OEM HD Dash Cam DV DVR Car Video Camera Recorder 720P Black Box Digital

Brand: TUNEZ

Product Code: DVR01

Availability: In stock

$64.45
BUICK LACROSSE reversing rear view camera

car video av cable

Features and description

This is a set of high quality dedicated reversing camera.

Tailor made for your car with fine workmanship, it has beautiful rounded curves and very easy to install. Being a dedicated camera, it gives your car rear view capability while maintaining the factory look and feel.

Made of durable optical lense, it is waterproof, dustproof and shockproof. Even after washing your car the lens will stay clean and clear.

The lens is made of digital fill-ray technology, with that night vision is achieved without the need for infra-red LED; it provides clear images during day and night.

It also has
170° wide viewing angle, providing intuitive and clear rear view.

Compatibility
Make and model

Fits : Pontiac Montana

Note: Please refer to installation dimension shown below to check for fitting to your number plate light slot before purchase

Installation dimension BUICK LACROSSE reversing rear view camera

Specification
Image sensor

CMOS MT9V136 1/4”

TV system

- NTSC TV System
-
Note: Please check and confirm your monitor is NTSC compatible, contact us if you need PAL TV system

Video output connector

- CVBS (Composite video cable) i.e. standard RCA type connector
-
Note: Please check and make sure your head unit/display has RCA type video-in port to work with this camera. Some factory fitted head unit/display does not have RCA type of video-in port

Effective pixels

680 x 512 pixels

TV line

480 TV Line

Minimum Illumination

0.01 Lux

Lens

- Reinforced glass
- Thickness: 1.8mm

Viewing angle

Wide 170°

Shutter speed

(N)1/60-1/100000 (P)1/50-1/100000 second

Operating voltage

DC 12V ± 15%

Operating temperature

- (-20°C) to +85°C
- RH95% max

Waterproof index

IP67

Data rate

27 Mb/s


Accessories
In-the-box

- Dedicated reversing camera
- 5 meter RCA video cable with
built-in camera switching control wire (for ease of installation, saves time and money from running an extra wire from rear to the head unit/display)

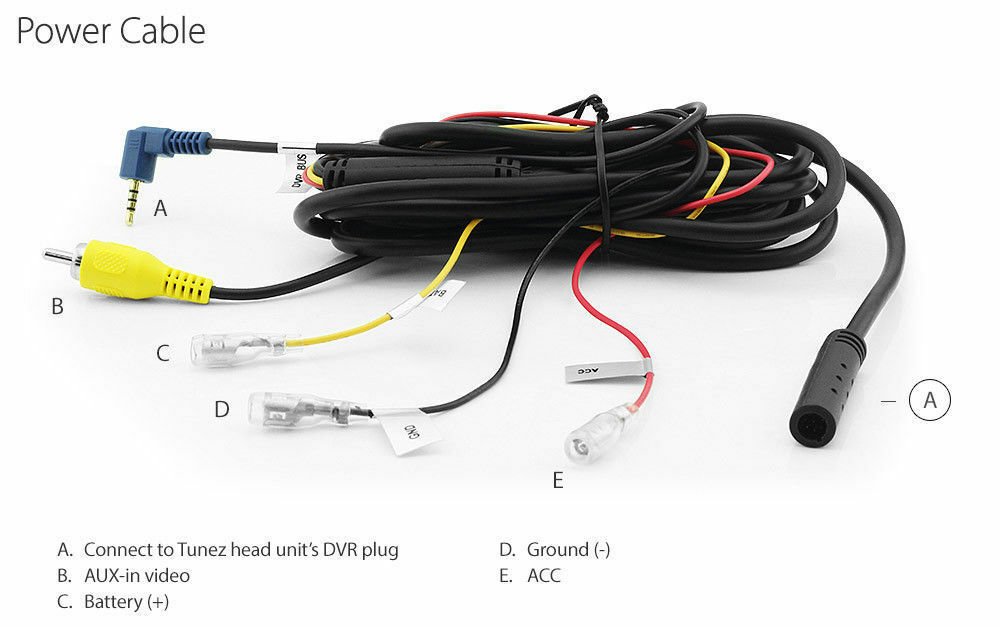

- Power supply wire
