Specifications:

  • Dynamic Range(RCA Input): ≥100dB
  • S/N (RCA Input): ≥98dB
  • THD: ≤0.05%
  • Frequency Response: 20Hz ~ 20kHz
  • Input Impedance High Level: 240Ω
  • Low Level Output Impedance: 51Ω
  • Signal Input Range: RCA: 7.5Vpp; High Level: 26Vpp
  • Signal Output Range: RCA: 8Vpp; Amplifier Maximum Power : 4 Channels x 50W + 4 Channels x 80W + 2 Channels x 160W, Bridging 1 x 300W
  • Working Temperature: -20~ 70 °C
  • Power: DC 9V~16V
  • REM Input: High Level Input Signal: H1+ / H1- or ACC control cable
  • REM Output: +12V Start up Voltage Output
  • Standby Power: 0.1W
  • Net Weight: Approx. 2.08kg

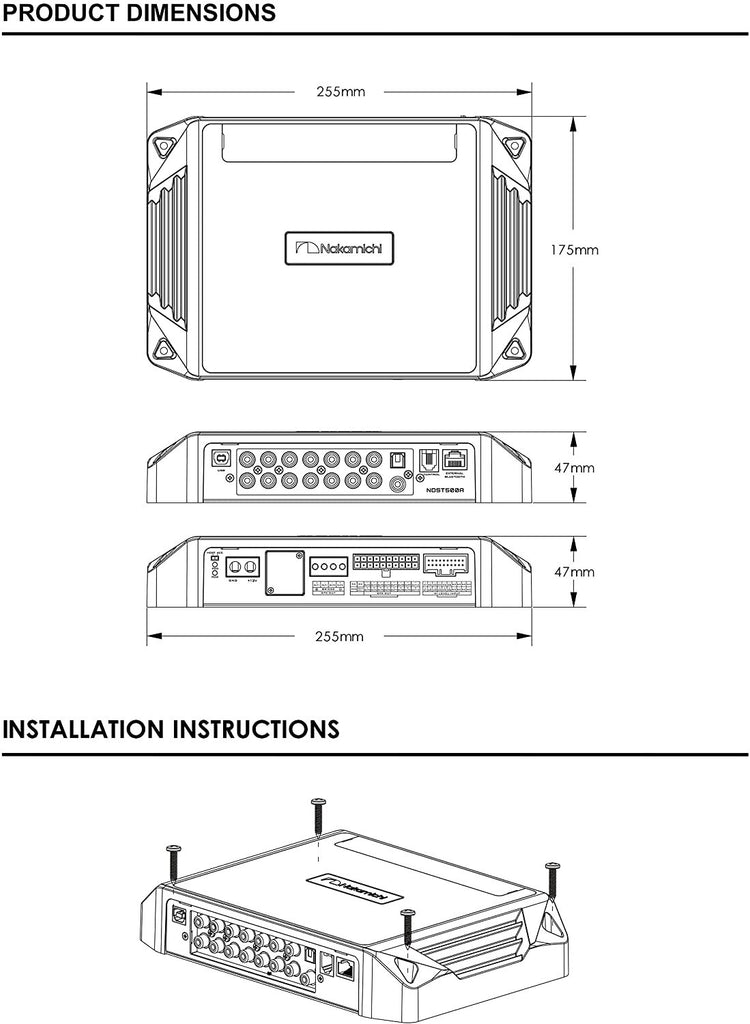

  • Product Dimension (L X W X H): 255 x 175 x 47 (mm)
  • Input Type: 6 Channels High Level, 2 Channels Low Level, External digital Bluetooth, Optical Coaxial
  • Output Type: 12 Channels Low Level, 4 Channels x 50W + 4 Channels x 80W + 2 Channels x160W Power, Bridging 1x300W
  • Output Gain: Gain Range: Mute,-59.9dB ~ 0.0dB
  • Output Signal EQ: 31 Band Equalizer Engine :

1. Frequency range: 20Hz ~ 20kHz, 1Hz Accuracy

2. Q value (slope): 0.404 ~ 28.85

3. Gain: -12.0dB ~ +12.0dB, 0.1dB Accuracy

  • Output Signal Crossover: Each output is equipped with multi-order high and low pass indepance filters.

1. Filtering types: Link-Rill, Butter-W, Bessel

2. Filtering frequency division point:20Hz~20kHz,Resolution 1Hz

3. Filter slope(Slope) setting:6dB/Oct to48dB/Oct and OFF

- Each output channel can be adjusted for phase and delay, parameter range : phase: in-phase or reverse-phase(0°/180°); Delay: 0.000 to 20.000 ms, 0 to 692 cm,0 to 273 inch.
