Features and description

This is a set of heavy duty suzi coil caravan 2-infrared CCD camera system with 7-inch TFT LCD digital monitor to assist you in your daily driving. It gives you a complete view and ability to assess the surrounding of your vehicle in real-time.

Supports both 12V and 24V vehicles.

All buyers, kindly note:
• Please ask installer to bench test monitor and cameras to ensure it is in working condition before installation.

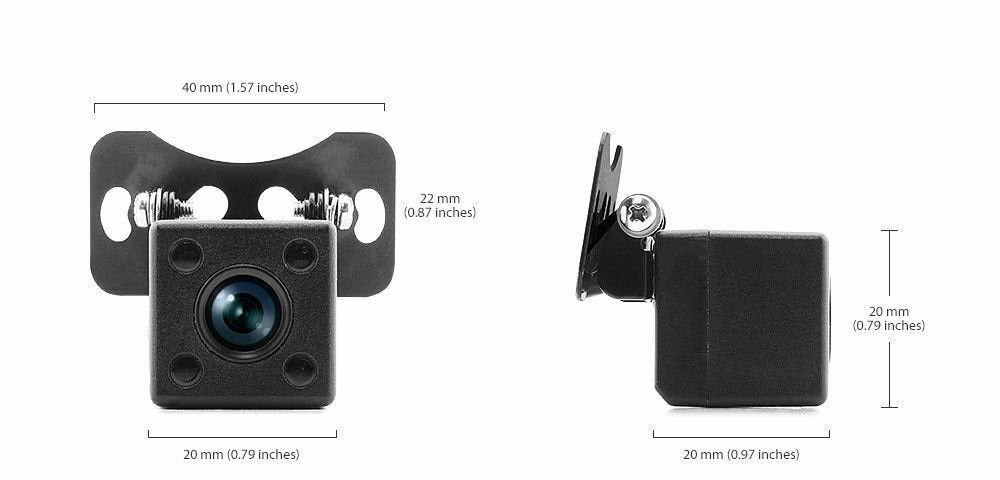

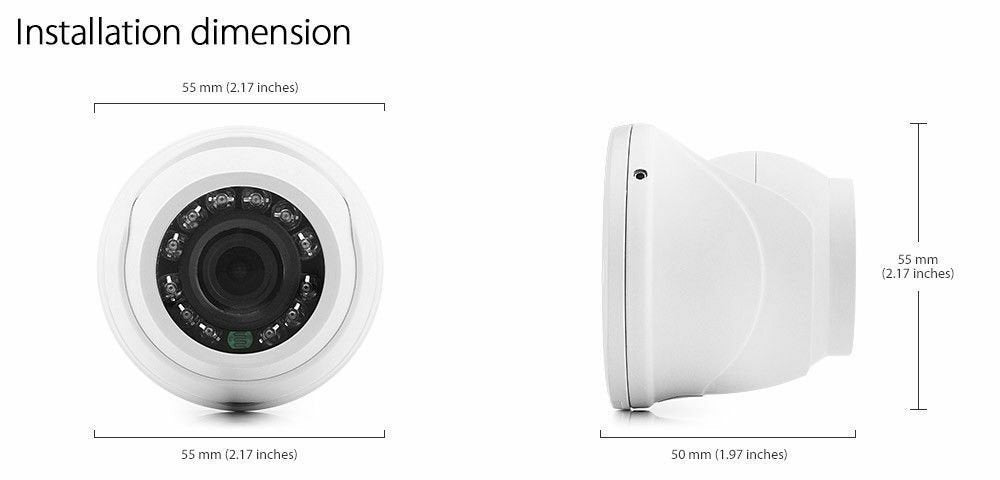

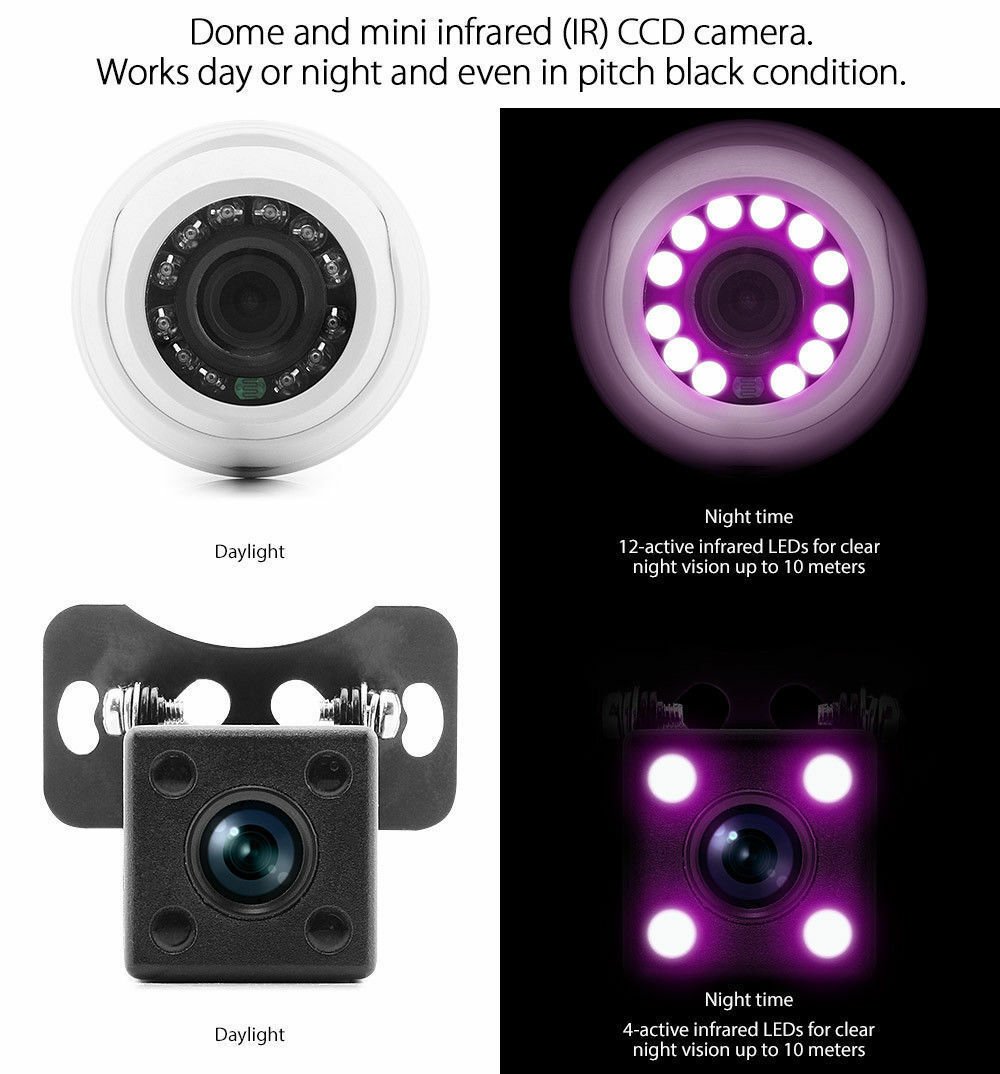

Infrared dome & mini CCD camera

Image sensor	Full colour SONY^® CCD
Casing	Dome: Heavy duty alloy Mini: Durable ABS plastic
Casing protection rating	- IP68 - Waterproof and dustproof - Submersible up to 1-meter (3-feet)
TV system	- NTSC format Note: Most of the monitors in the market today support both NTSC and PAL TV system format. If you need PAL version, kindly contact us.
Horizontal resolution	420 TV lines
Effective pixels	512 x 492 pixels
Optical size	1/3: 4.9 mm x 3.7 mm
Minimum illumination	- 1.0 lux/F=1.2 (0 lux with active infrared turned on) - Works in pitch black condition
Viewing angle	120 degree
Night vision	Dome: 15 meter Mini: 10 meter
Video output	4-PIN connector, 1.0Vp-p/75Ω
Power consumption	50-60 mA, maximum 300mA with infrared turned on
Power supply	- DC 12V ~ 24V - Suitable for car, caravan, bus, van, truck, trailer, motorhome, etc. - Sourced from 7-inch monitor power adapter via 4-PIN connector
Operating temperature	-20°C ~ 60°C, RH 95% max.
Storage temperature	-40°C ~ 68°C, RH 95% max.

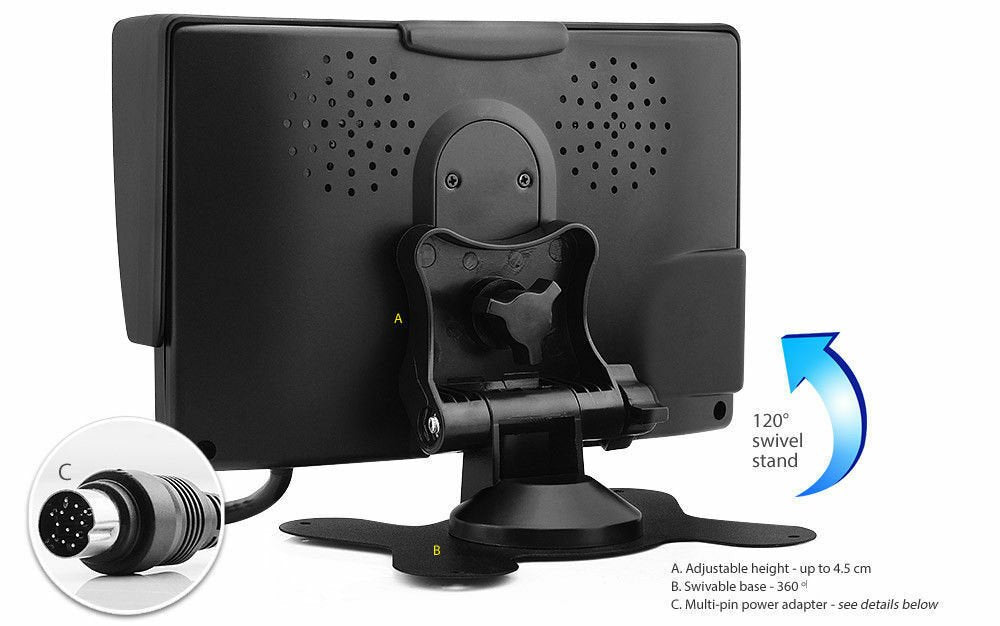

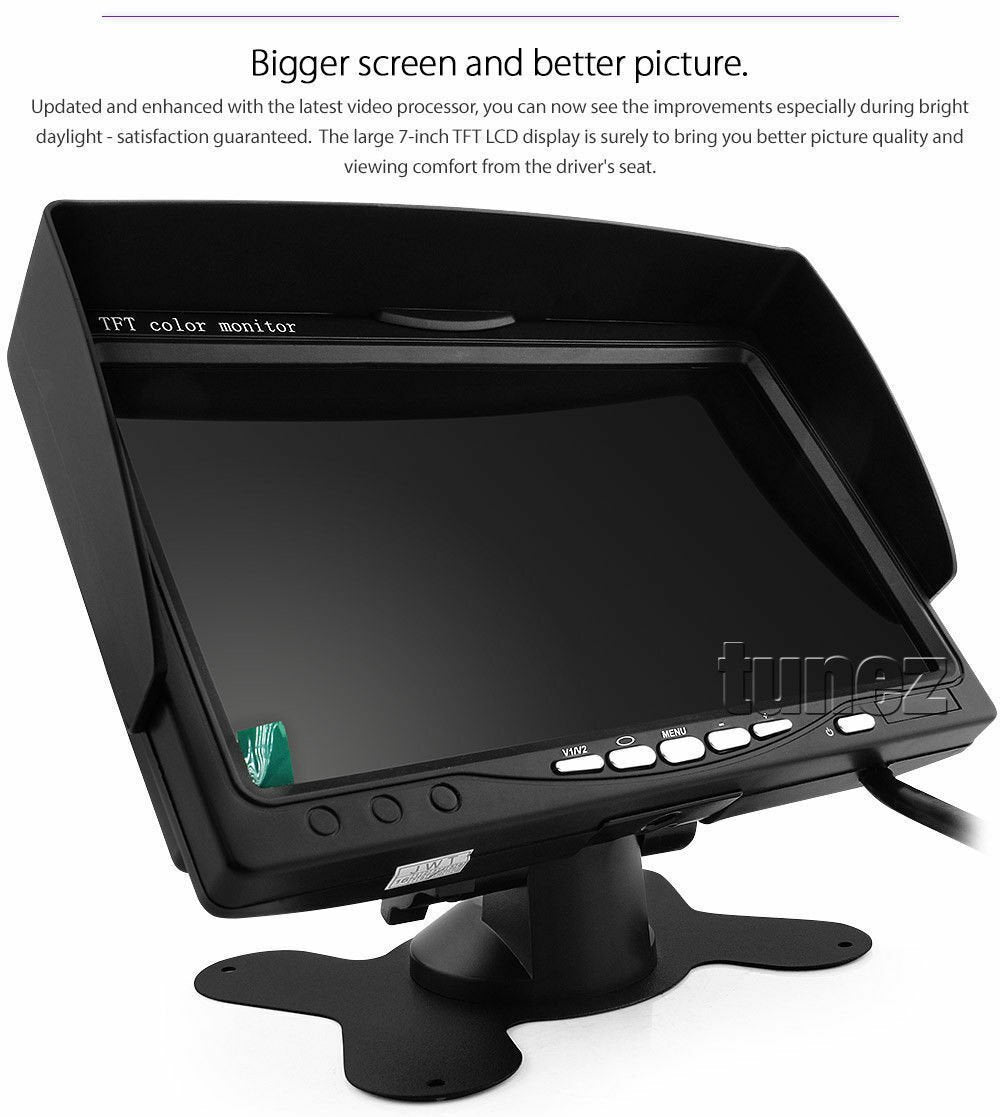

7-inch High resolution TFT LCD digital monitor

Screen size	- 7" (diagonal) - With detachable sunshade
Easy View	- Allows you to switch between dome camera and mini camera view manually simply by pressing the channel button on monitor or remote control - We recommend Easy View installation for maximum control on both cameras

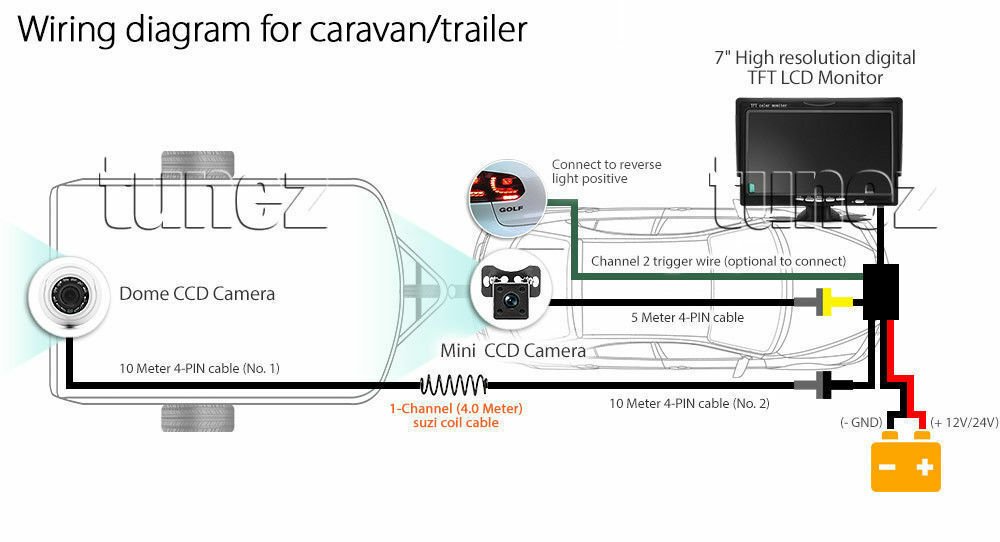

Auto-switching trigger wire	Auto-switchingtrigger wire enables you to view channel-2 camera before switching back to the previous state: - For example, the monitor is showing dome camera mode (channel-1) and you engaged into reversing gear. The monitor will then automatically switch to mini camera mode (channel-2). This can be achieved by connecting the trigger wire to reversing light positive wire or it’s fuse box - This is useful because it gives you a clear view of the tow bar and trailer coupler - However, if you are towing and you engaged into reversing gear, you will not be able to see what is behind the caravan (i.e. dome camera/channel-1) as it is now override by mini camera mode (channel-2)
TV system	NTSC / PAL (auto switch)
Screen resolution	800 x 480 pixels
Effective viewing area	(H) x (V) : 156 mm x 88 mm
Gamut display	NTSC 60%
Power supply	- DC 12V ~ 24V - Suitable for car, caravan, bus, van, truck, trailer, motorhome, etc. - 4-PIN power adapter also supplies power to cameras
Operating temperature	-20°C ~ 70°C
Storage temperature	-30°C ~ 80°C

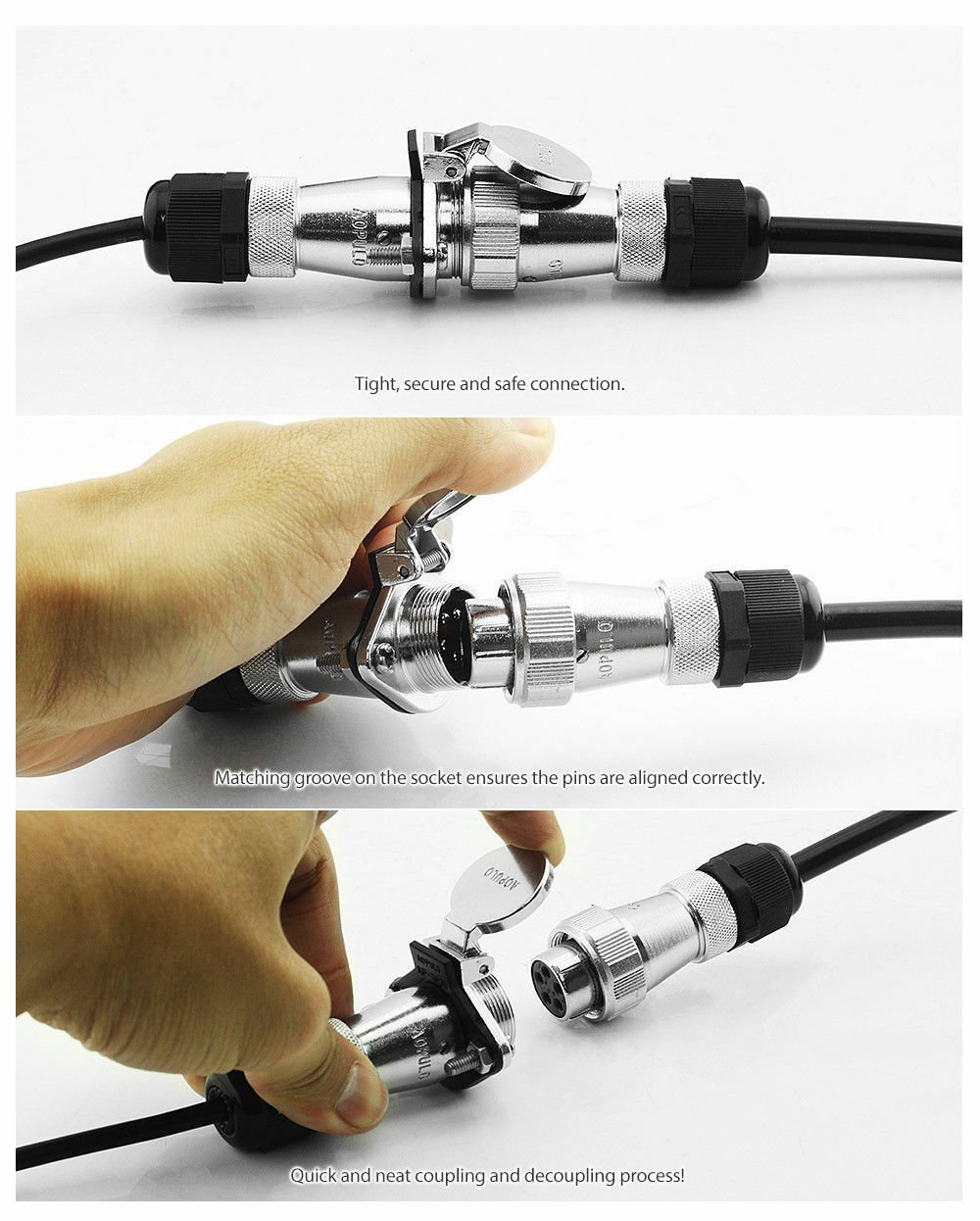

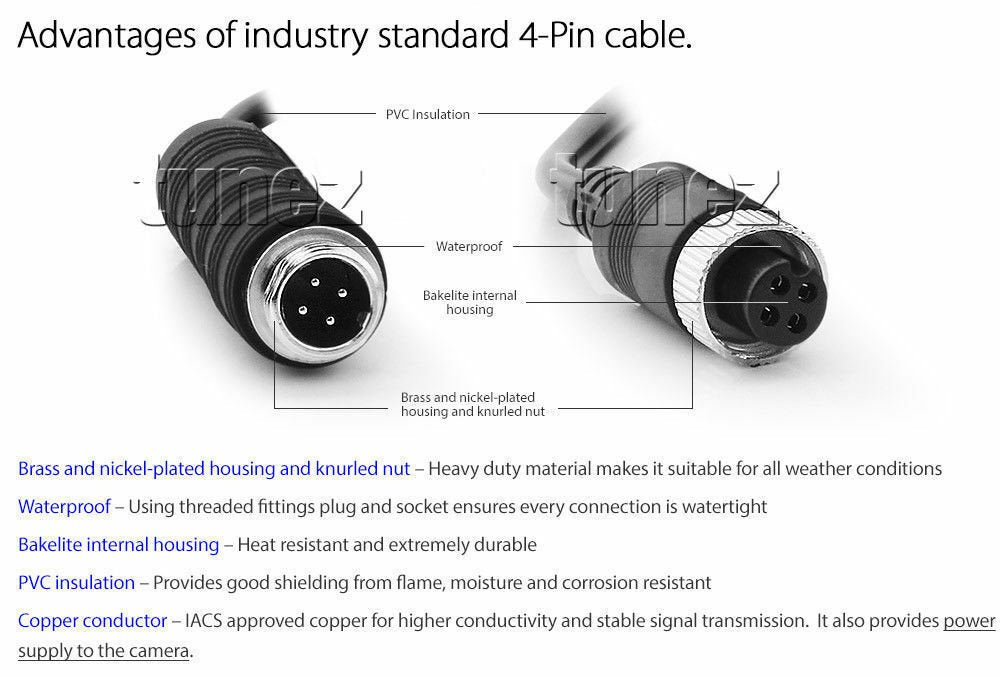

Industry standard suzi coil and 4-PIN cable

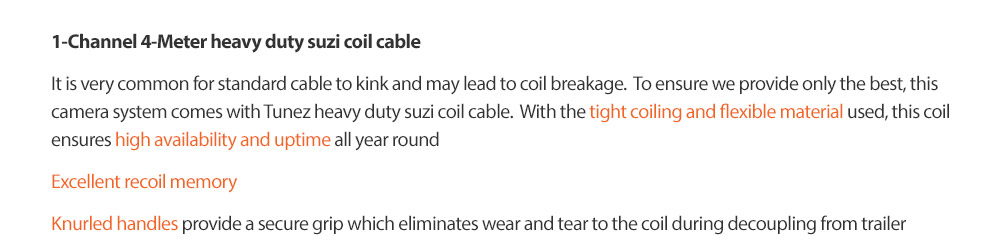

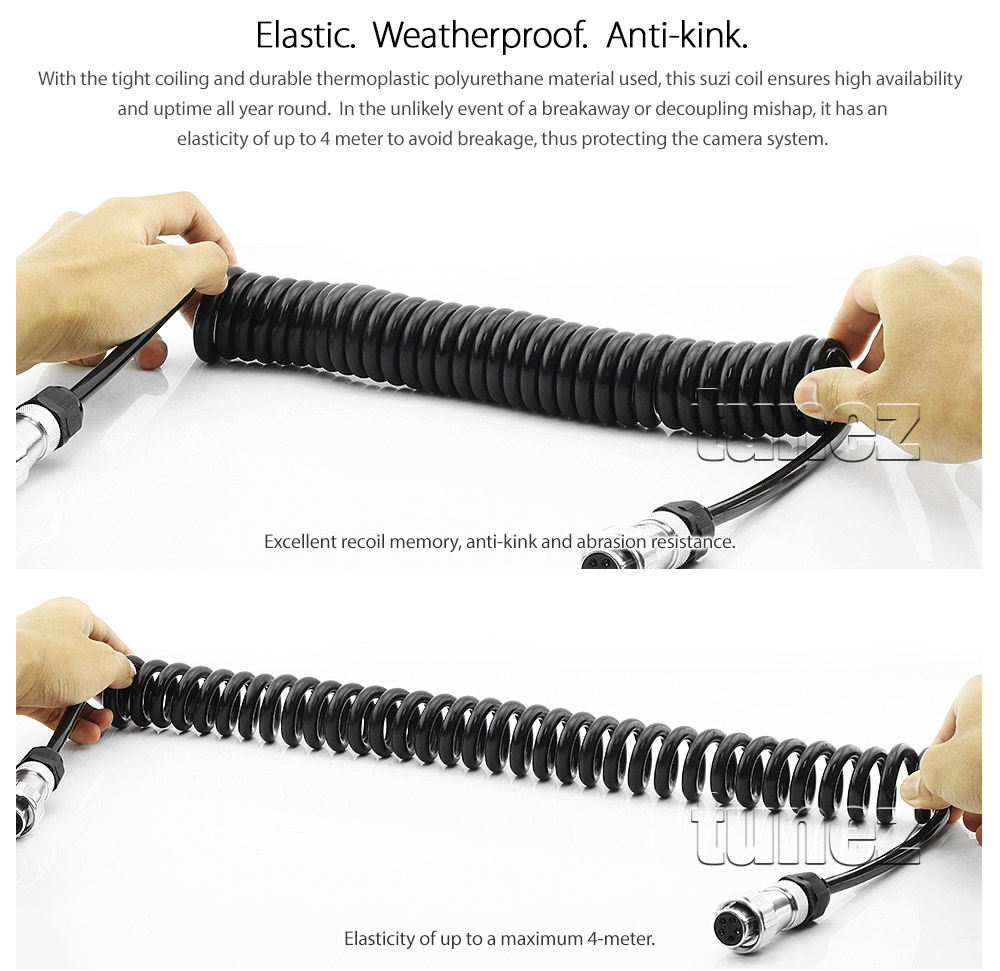

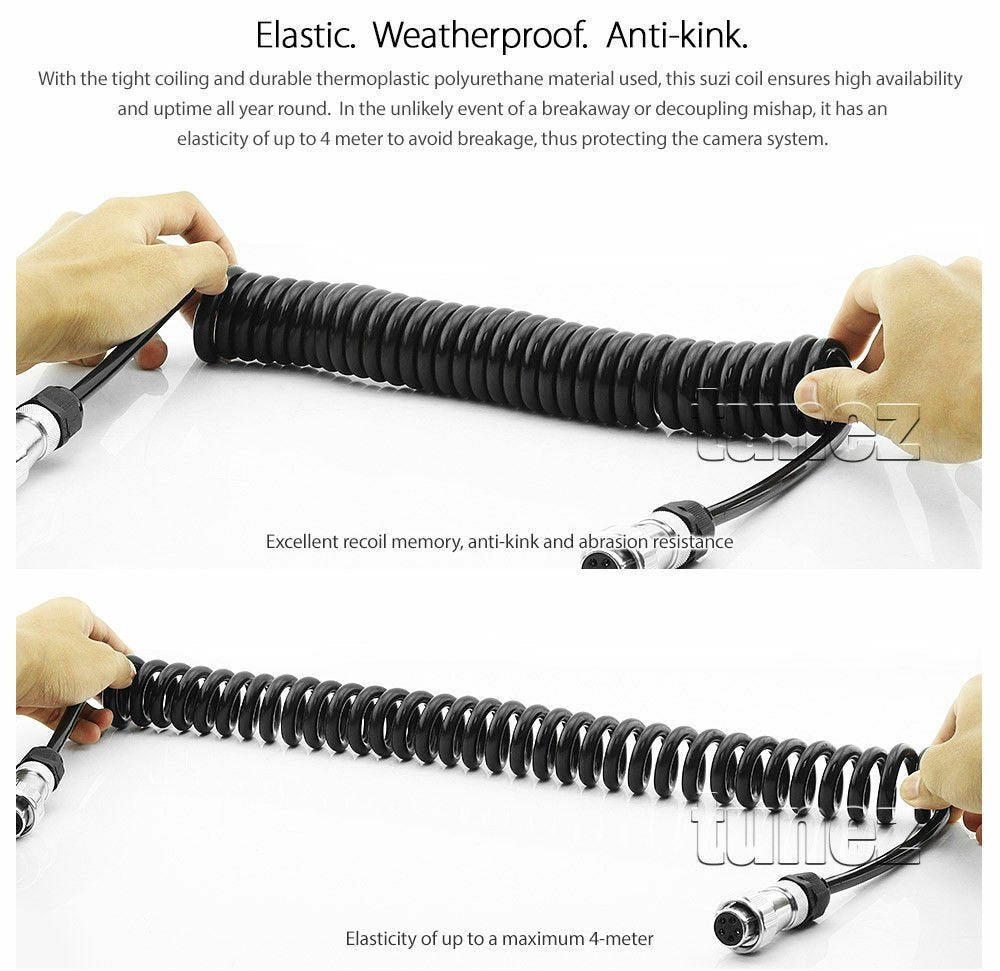

Suzi coil	- With the tight coiling and flexible material used, this coil ensures high availability and uptime all year round - Excellent recoil memory - Knurled handles provide a secure grip which eliminates wear and tear to the coil during decoupling from trailer
Housing and knurled nut	- Brass and nickel-plated - Suitable for all weather conditions
Waterproof	Using threaded fittings plug and socket ensures every connection is watertight
Internal housing	- Bakelite - Heat resistant and extremely durable
Insulation	- PVC - Provides good shielding from flame, moisture and corrosion resistant
Conductor	- Copper wire - IACS approved copper for higher conductivity and stable signal transmission - It also provides power supply to the cameras

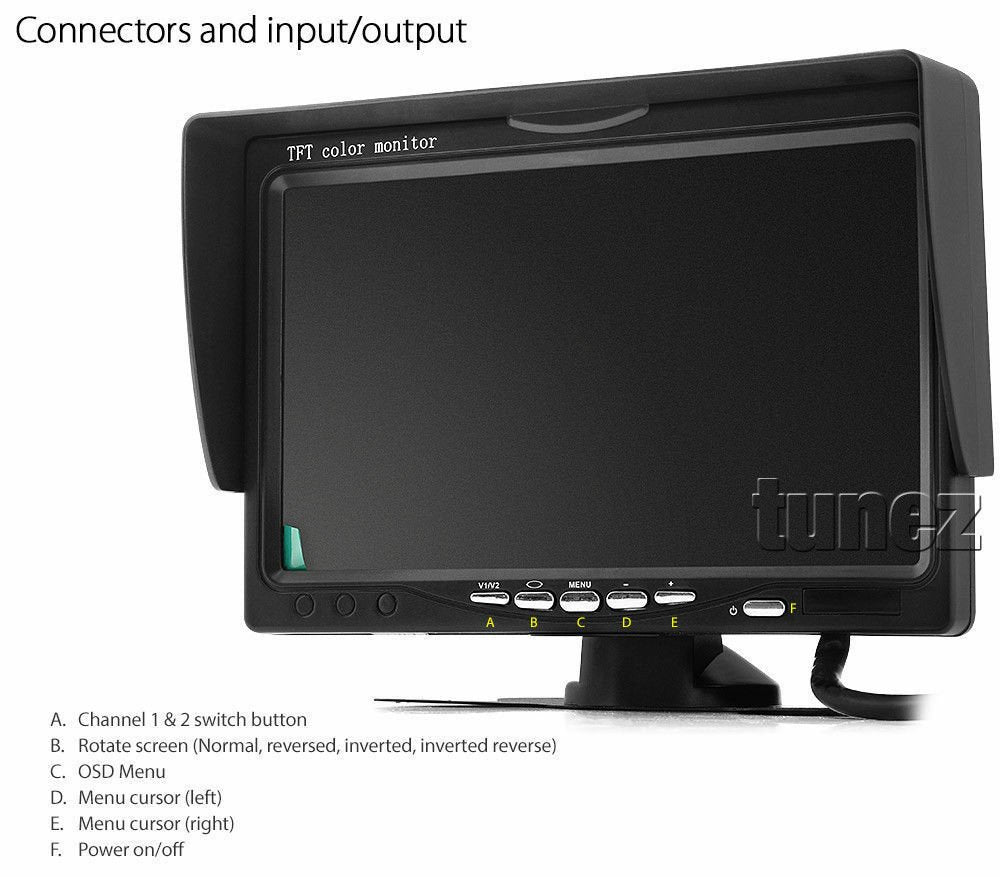

Connectors and hardware

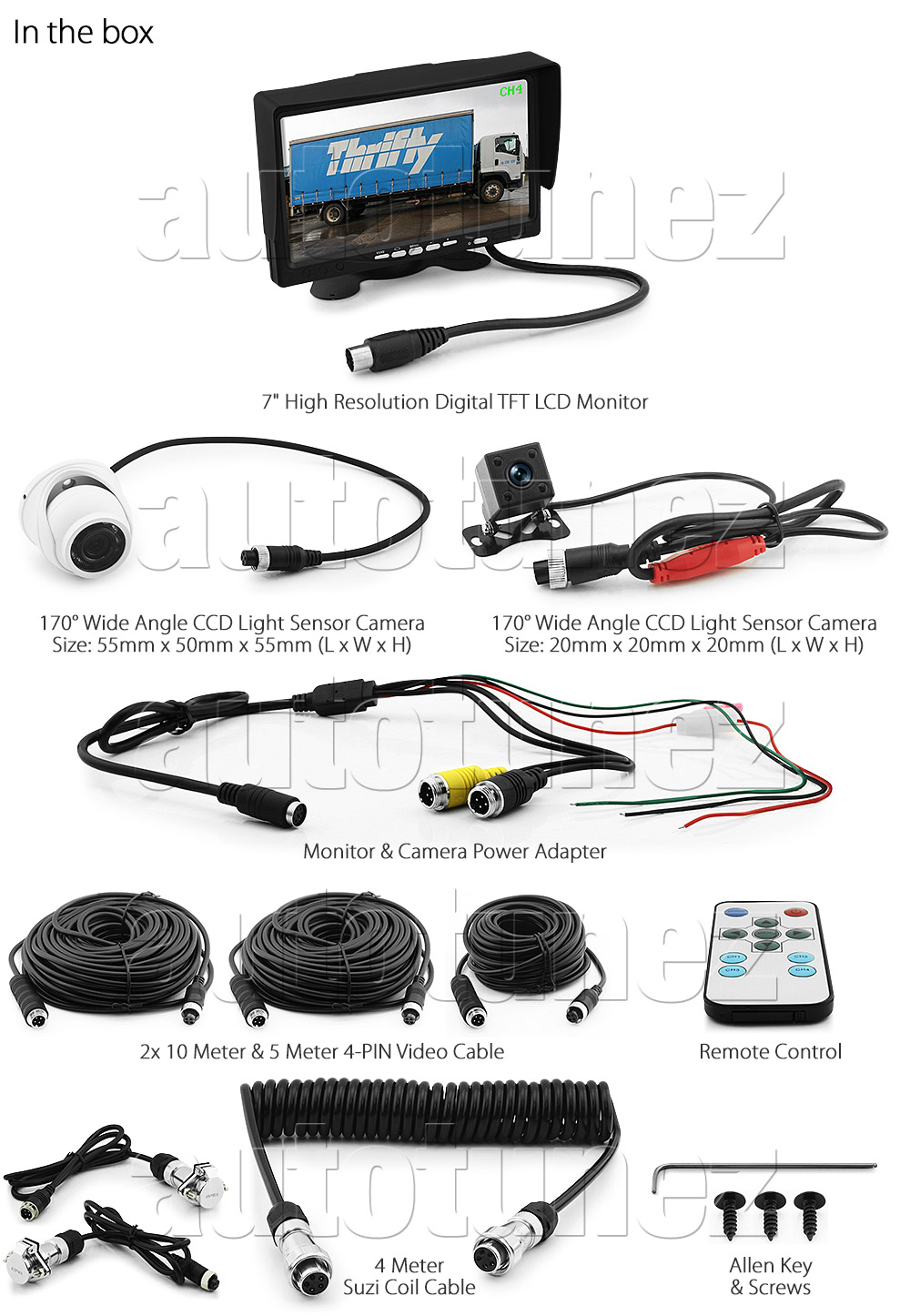

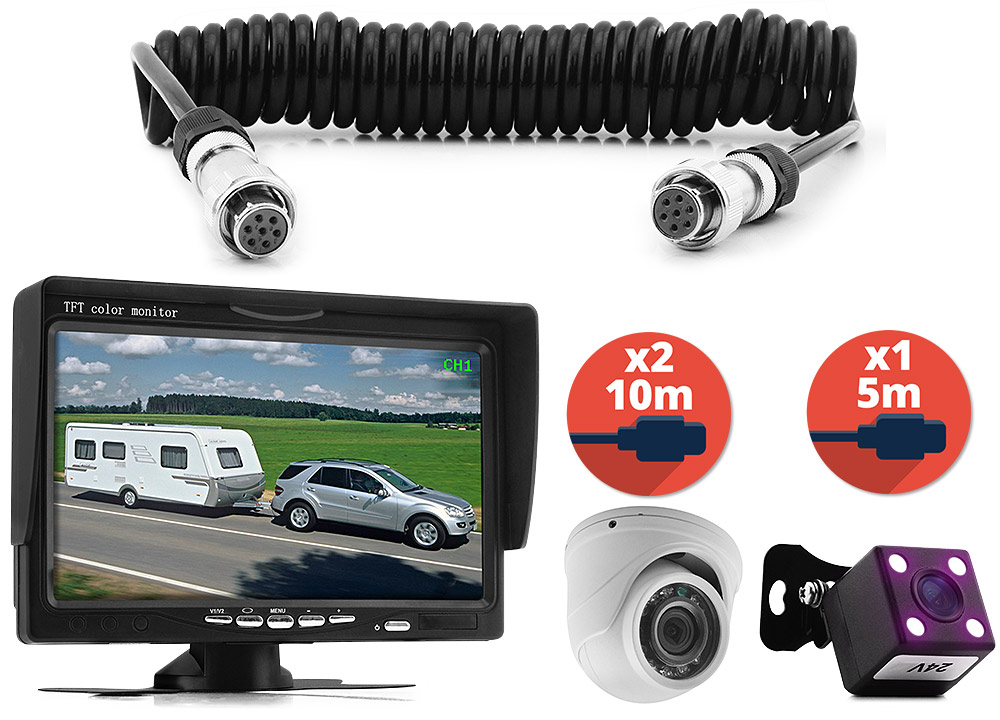

Accessories

- Suzi coil cable (1-channel, 4 meter)
- Dome infrared CCD camera
- Mini infrared CCD camera
- 2x 4-PIN video cable (10 meter)
- 1x 4-PIN video cable (5 meter)
- 7-inch TFT LCD digital monitor
- Multi-pin power adapter
- Remote control
