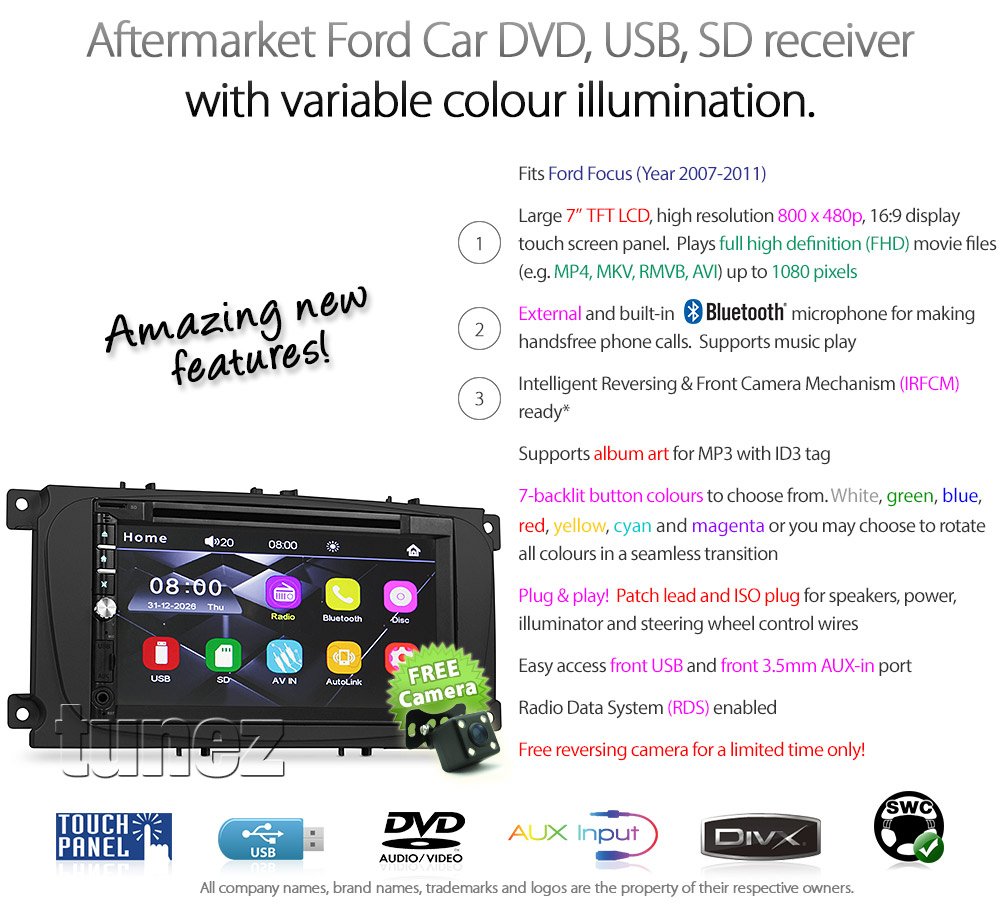

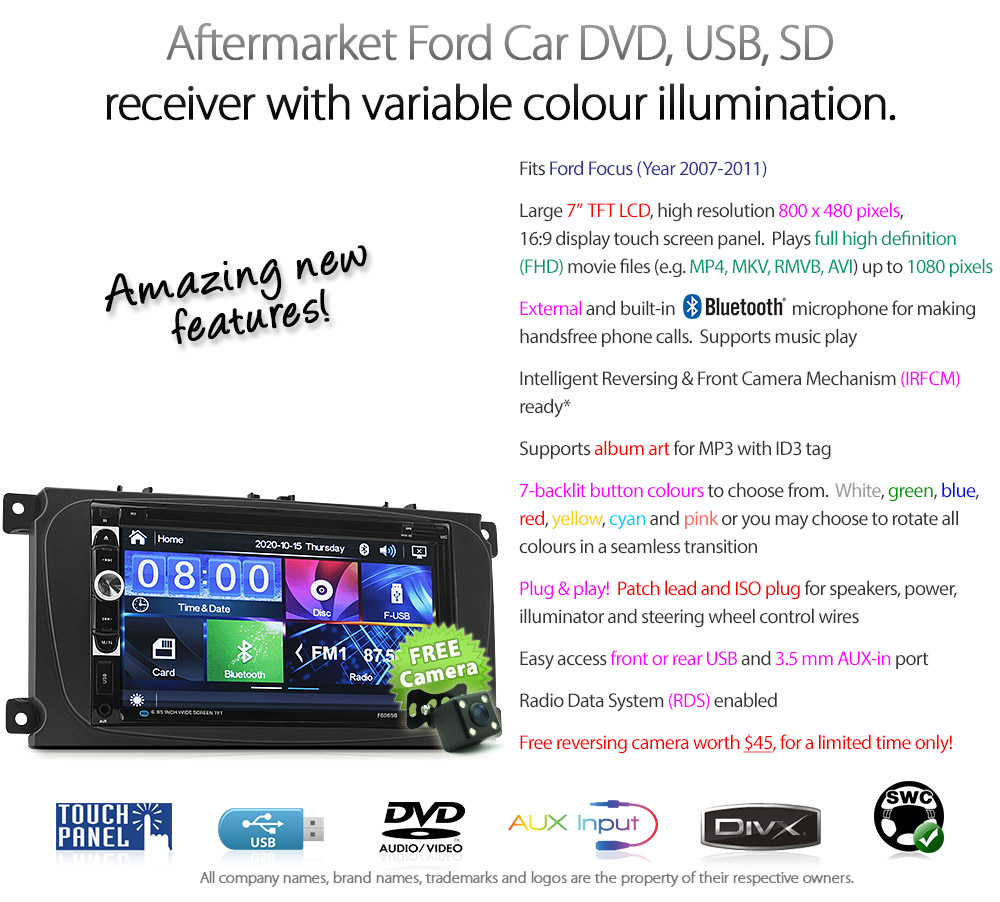

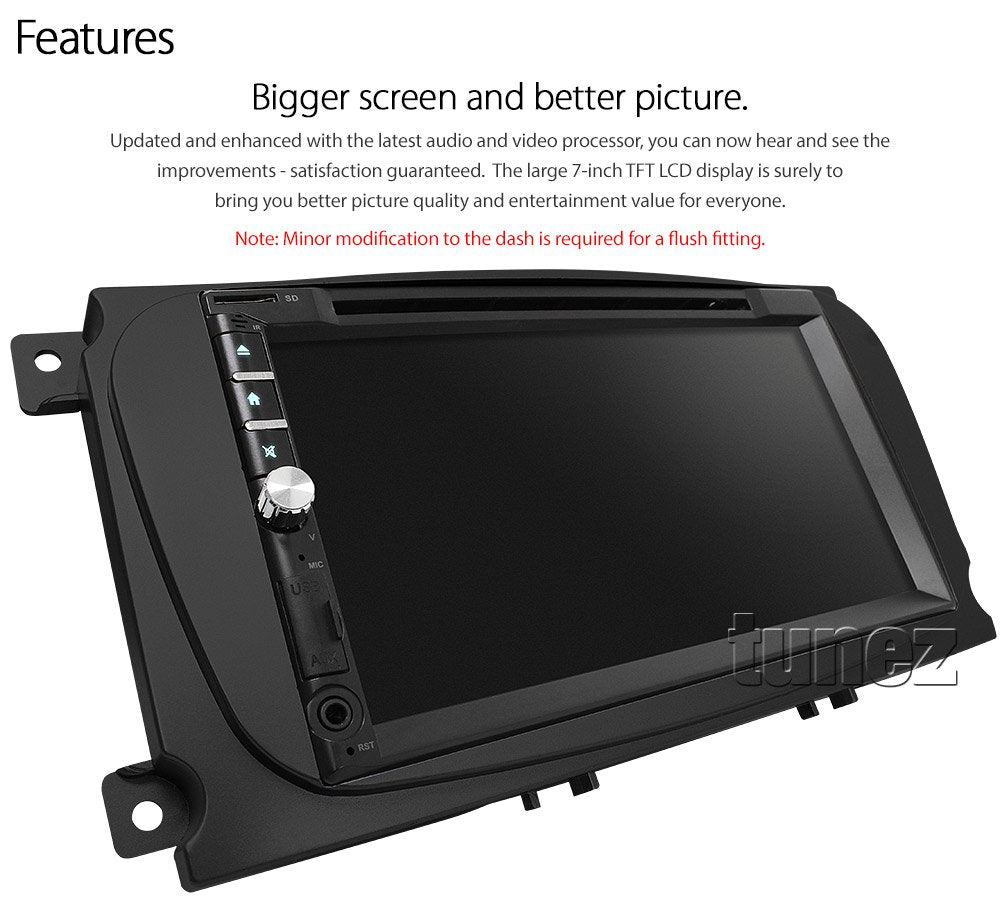

Newly released aftermarket Ford Focus 2nd Generation (Year 2007-2011) 7-inch TFT LCD touchscreen car CD/DVD, USB and SD player.
Plug & Play feature with matching wiring harness and ISO plugs. No need to splice your factory fitted wires!
Matching fascia kit for a factory fitted look and feel!
Note: This model does not include GPS function, for a similar model with GPS function and licensed iGO GPS software and map, kindly click on the link below.
Coming soon!
All buyers, kindly note:
• Send us a message or e-mail of your vehicle's model, year manufactured and badge/series for compatibility and fitting check.
• Please ask installer to bench test head unit to ensure it is in working condition before installation.
|
Media
| Compatible media |
ALL region DVD playback / VCD / CD / CD-R / CD-RW / MP3 / MP4 / MKV / RMVB / AVI / DIVX / WMA / WMV
|
| Display |

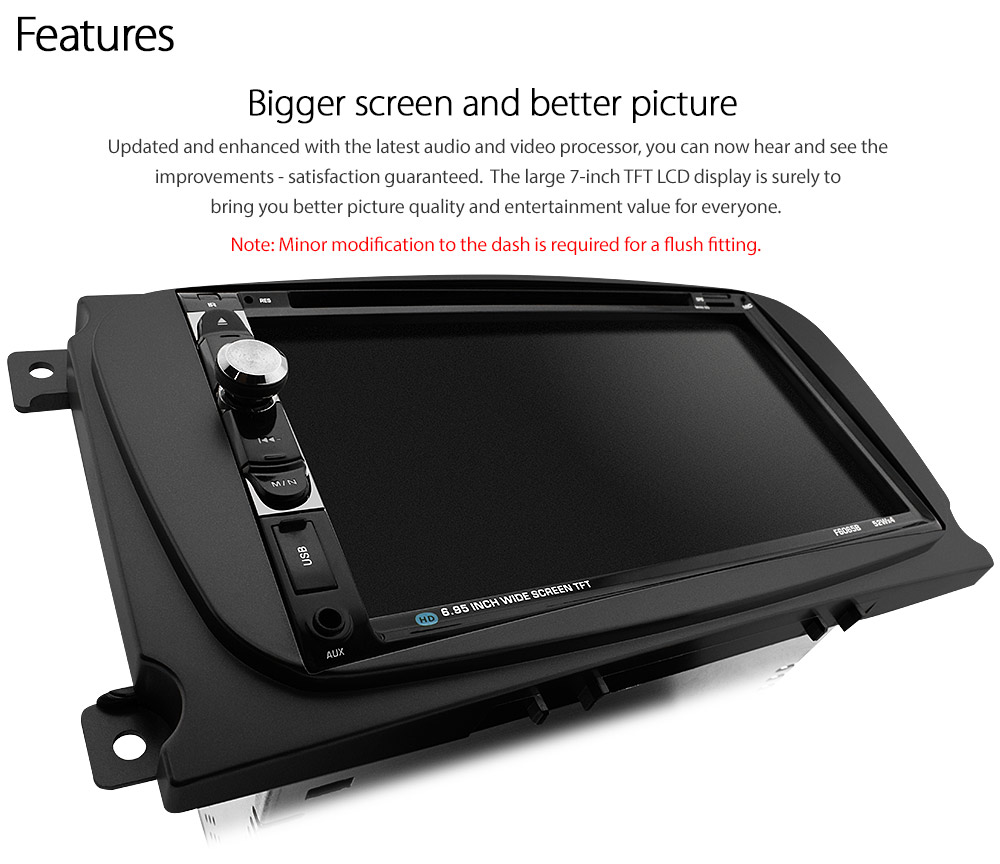

- Large 7-inch TFT LCD touchscreen
- 16:9 aspect ratio
- User friendly menu for ease of navigation
- 2 stage monitor dimming control function
- Automatically dims monitor when headlights are turned on
- Monitor 'Sleep' function, turns off monitor anytime you wish
|
| TFT LCD screen |
- 800 x 480 pixels gives you sharp and crisp display

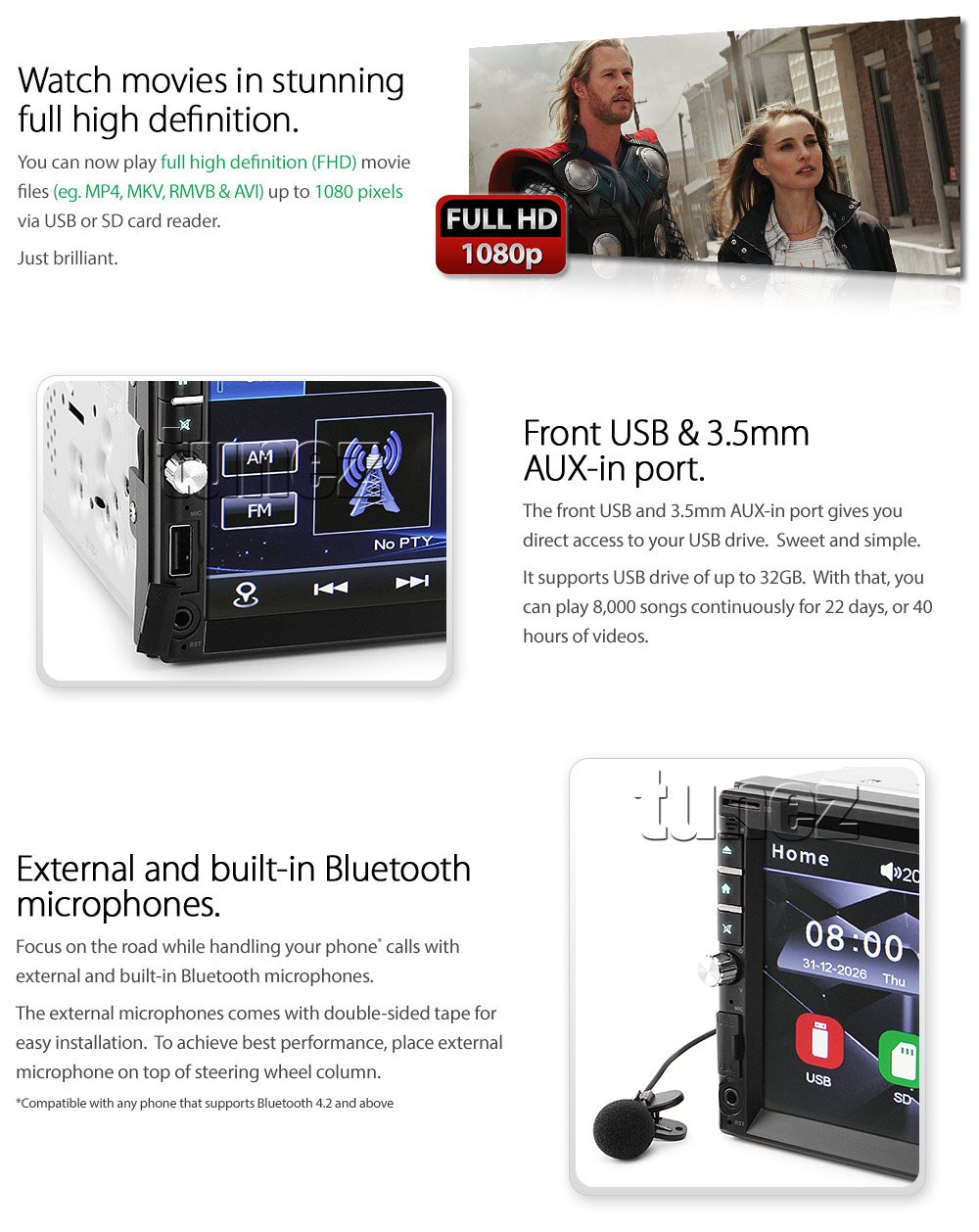

- Plays full high definition (FHD) movie files (e.g. MP4, MKV, RMVB, AVI) up to 1080 pixels via USB and SD card reader
|
| USB |
- You have a choice of connecting your USB thumb drive via front or rear USB port
- Rear USB port comes with 1-meter USB cable. Hence, you can place your USB thumb thumb drive in the glove compartment and keep your dashboard neat
- Supports USB thumb drive only and up to 32GB
- Does not support external hard disk, iPod or mobile phones
|
| SD card |
Supports up to 32GB
|

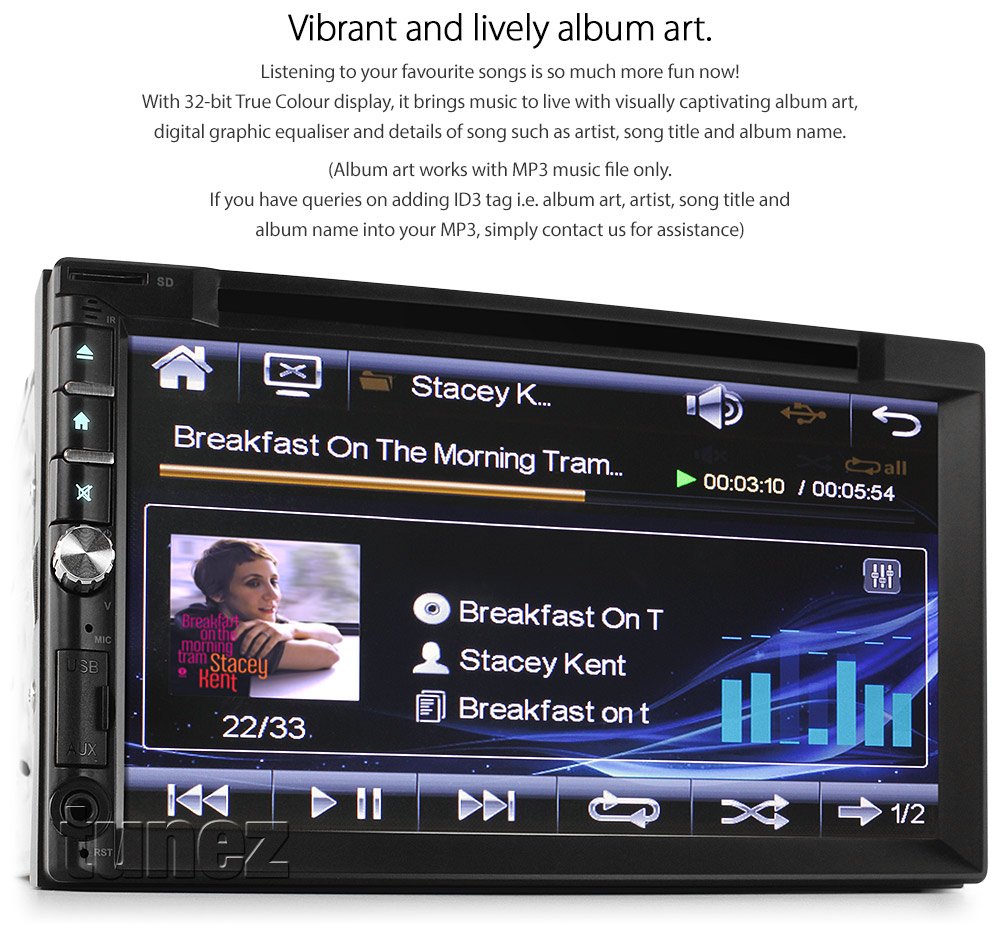

| Album art & ID3 tag |
- Displays MP3 album art
- Compatible with ID3 tag for artist name, song title and album name
- Please contact us if you have any queries on ID3 tag
- This feature is available in USB and SD card mode only
|
| Radio tuner |
- FM/AM tuner with Radio Data System (RDS)
- 30 present channels (18 FM & 12 AM)
- FM/AM frequencies menu option for all region
|
Bluetooth
| System |
- Supports Bluetooth 2.0
- High quality Bluetooth receiver
|
Handsfree
feature |
Make and receive phone calls using Bluetooth receiver
|
| Microphone |
- Equipped with 2 microphones
- External microphone with double-sided tape. For best performance, place external microphone on steering wheel column
- Built-in microphone in head unit
|
| Music player |
- Wirelessly stream music to the stereo using your mobile phone that supports A2DP for e.g. all iPhone models
- Remotely control your mobile phone using the stereo's on-screen button i.e. play, next song, previous song and stop
|
Systems and controls
| Wallpaper |
Comes with 4 attractive preset wallpapers
|

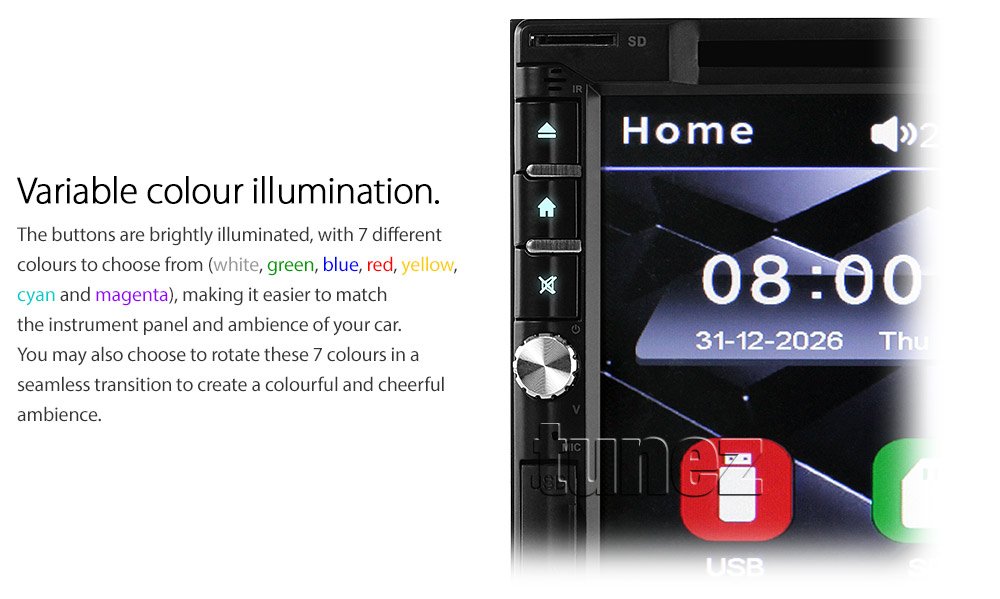

| Backlit illumination colours |
- Choose from 7 different backlit illumination colours (i.e. white, green, blue, red, yellow, cyan and magenta) to match your car's instrument panel
- You may rotate these 7 colours in a seamless transition to create a colourful and cheerful ambience
|
| Reversing camera feature |
- Intelligent Reversing & Front Camera Mechanism (IRFCM)*
- For e.g. upon detecting car in reverse gear, head unit automatically power up and goes into parking/reverse camera view mode
- For more features, kindly refer to IRFCM features description mentioned earlier in this ad
- * Note: Works with Tunez optional reversing camera; for details, view optional items at the bottom of this ad
|
| Front camera feature |
- After disengaging reverse gear, head unit automatically switches to front camera view for 6 seconds. After that, head unit screen will resume the last function/mode accessed.
- Alternatively, press the front camera on-screen button while parking to prevent hitting the road curb
- * Note: Works with Tunez optional front camera; for details, view optional items at the bottom of this ad
|
| Audio and video settings |
- Built-in 10-band graphic equaliser for better audio control
- Preset EQ settings (Classic, Standard, Jazz, Pop, Rock, Techno and Custom settings)
- Fader, balance, subwoofer, loud settings
- Adjustable video display (Brightness, colour and contrast settings)
- Languages (English, Chinese, Indonesian, Arabic, Thai, Russian and Spanish)
|

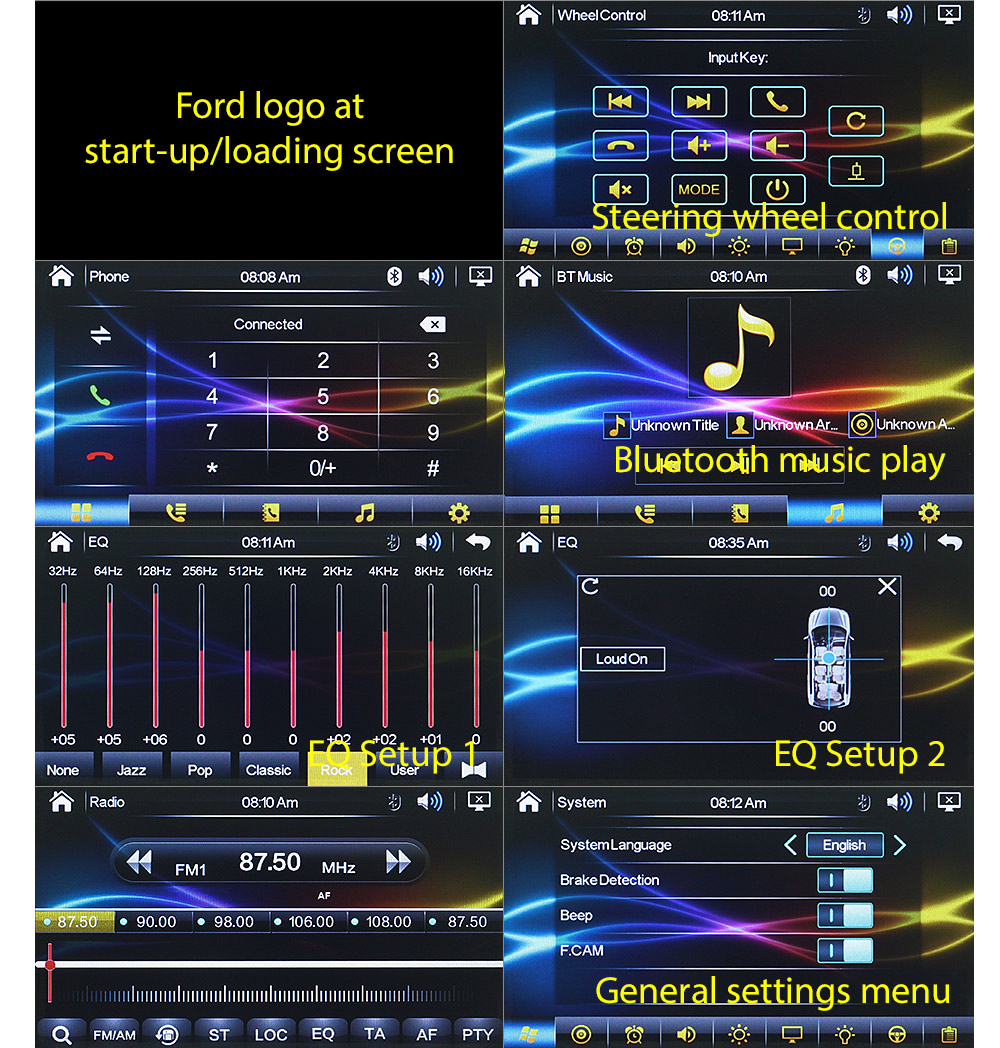

| Steering wheel control |
- The Plug & Play wiring harness connects audio steering wheel control wires to your Ford ISO plug directly
- You are required to perform steering wheel control learning procedure via 'Settings' menu in order to map factory steering wheel control buttons to the head unit
- Please follow the simple on-screen learning procedure or refer to the user manual
|
| Other controls |
- Amplifier remote turn on control (REM)
- Power antenna control
- Built-in RGB imaging for auto video adjustment
- Eco friendly and low power consumption model
|
Connectors and hardware
| Plug & Play |
- The Plug & Play feature connects the ACC, battery, ground, illuminator, speakers and steering wheel control wires to your Ford ISO plug directly
- No need to splice your factory fitted wires
|

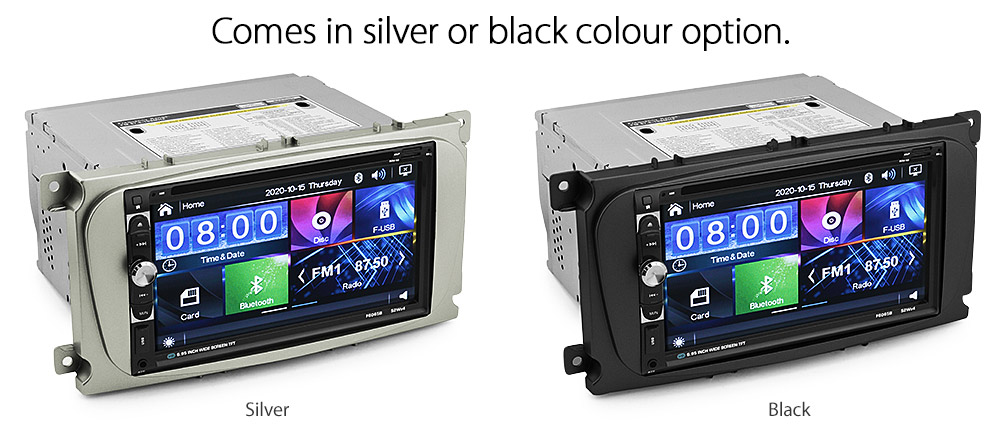

| Fascia kit |
- Designed for Ford Focus 2nd Generation (Year 2007-2011, MK2 chassis)
- Matte black colour
|

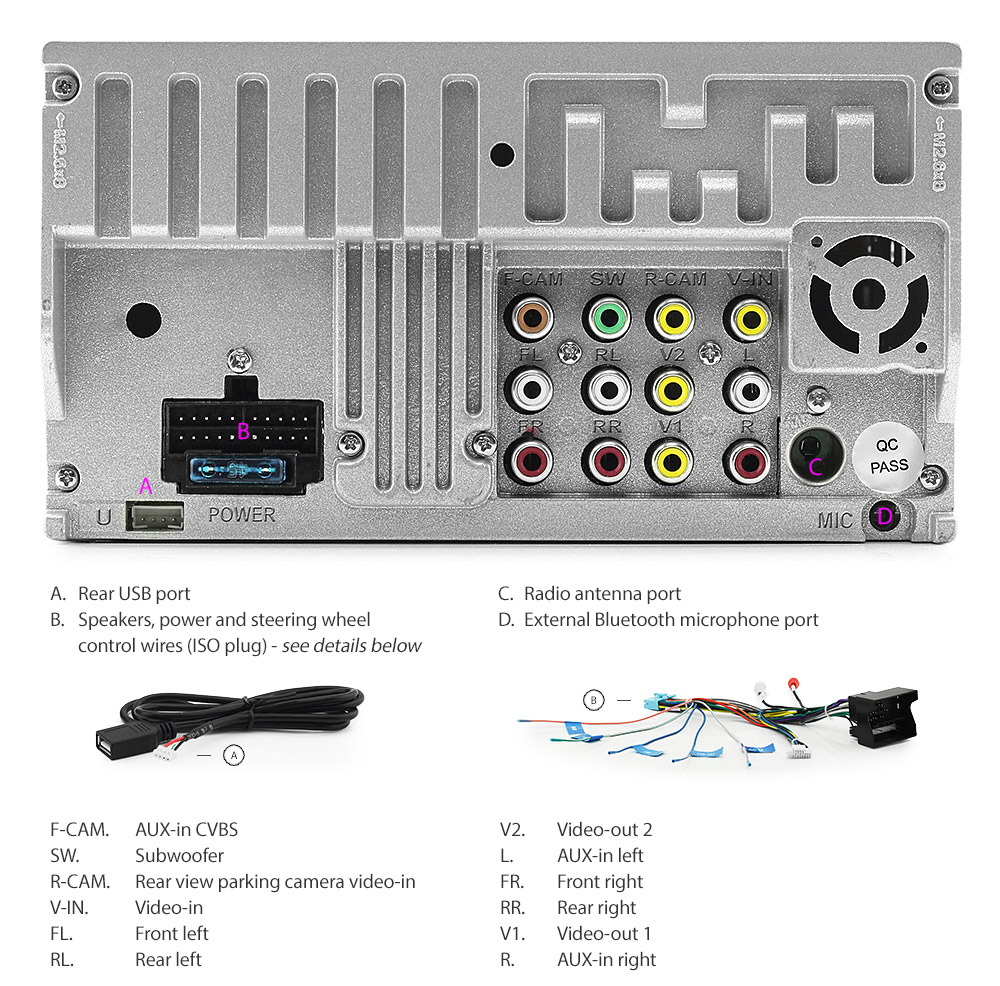

| Audio and visual (RCA) |
- 5 x Pre-out (Front right, front left, rear right, rear left and subwoofer)
- 2 x Video output
- 1 x Parking/reversing camera input
- 1 x Front camera input
- 1 x Video input
- 2 x Audio input (Right and left)
|
| AUX-In |
Front 3.5mm AUX-In port. Plug-in your favourite iPod, iPad, iPhone, MP3/MP4 player, CD player, etc. and play music on your car stereo system
|
| DVD/CD loader |
Built-in Electronic Shock Protection (ESP)
|
| Cooling mechanism |
Highly conductive rear heat sink keeps the unit cool
|
| Sound system |
Built-in high fidelity amplifier with maximum power output 45W x 4 (4 Ohm)
|

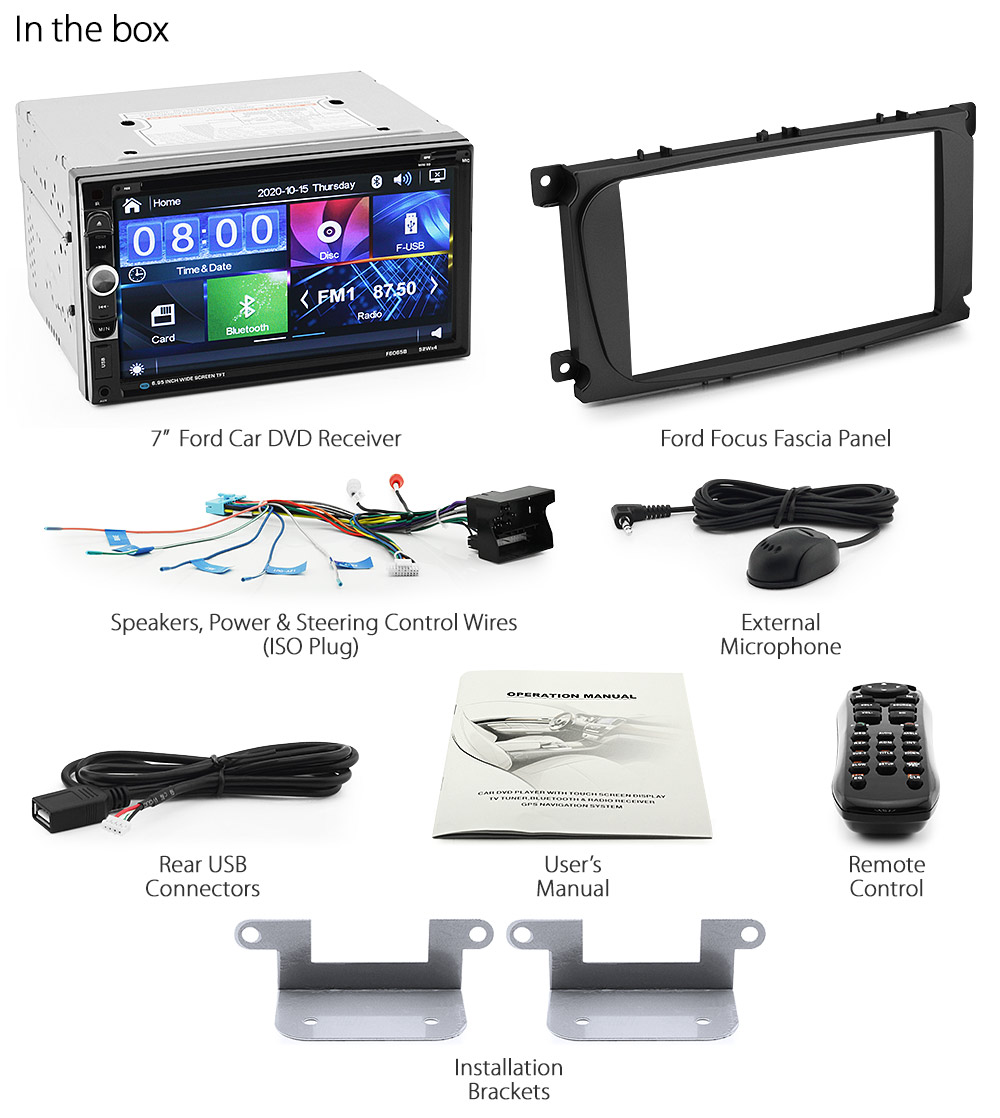

| Accessories |
- Ford Focus fascia kit and wiring harness (ISO plug)
- External Bluetooth microphone (2-meter)
- Rear USB connectors (1-meter)
- Remote control
|
|
