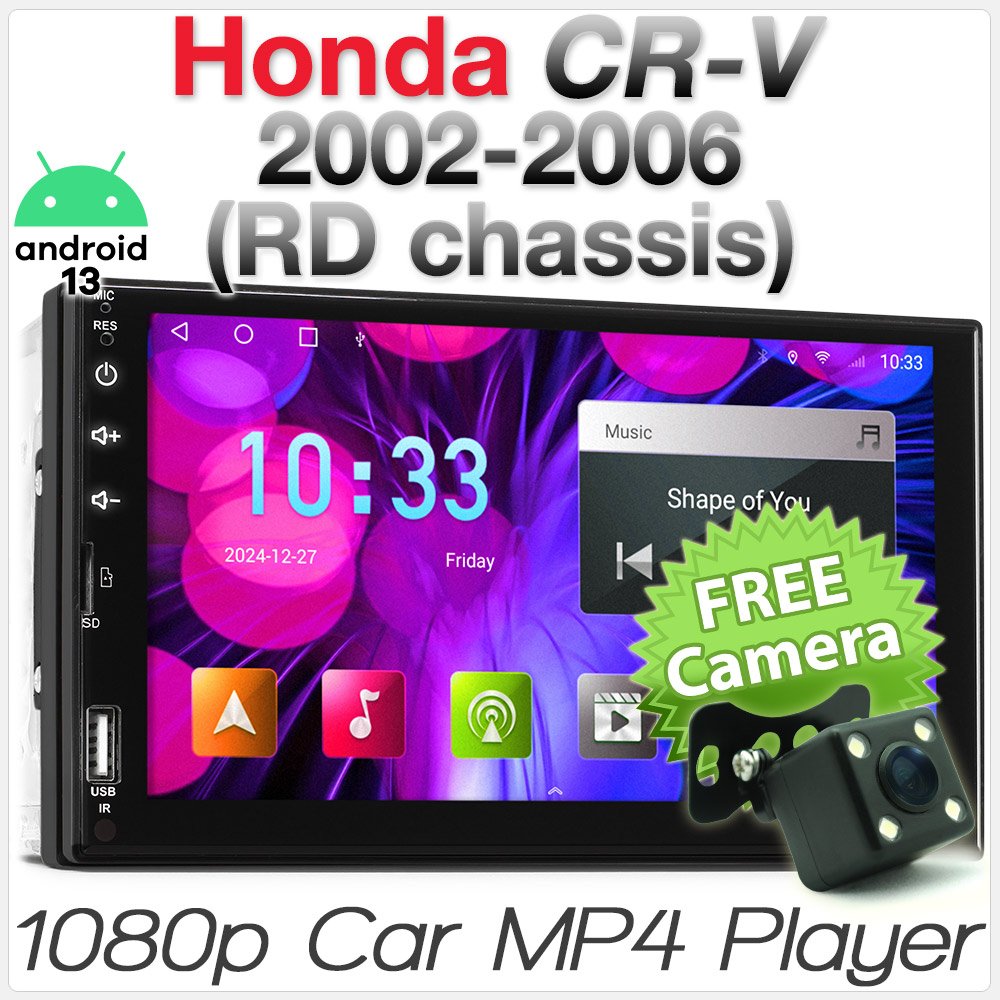

Android Car MP3 Player Honda CR-V CRV RD 2002-2006 Stereo MP4 Radio Head Unit

Brand: TUNEZ

Product Code: HCRV22AND

Availability: In stock

HCRV22AND GPS 7-inch 7
tunezmart business partners HCRV22AND GPS 7-inch 7
HCRV22AND GPS 7-inch 7
HCRV22AND GPS 7-inch 7
HCRV22AND GPS 7-inch 7 HCRV22AND GPS 7-inch 7
HCRV22AND GPS 7-inch 7
HCRV22AND GPS 7-inch 7
HCRV22AND GPS 7-inch 7
HCRV22AND GPS 7-inch 7
HCRV22AND GPS 7-inch 7
HCRV22AND GPS 7-inch 7
HCRV22AND GPS 7-inch 7
HCRV22AND GPS 7-inch 7
HCRV22AND GPS 7-inch 7
HCRV22AND GPS 7-inch 7
HCRV22AND GPS 7-inch 7
HCRV22AND GPS 7-inch 7
HCRV22AND GPS 7-inch 7
HCRV22AND GPS 7-inch 7
Intelligent Reversing And Front Camera Mechanism IRFCM tunez view mode HCRV22AND GPS 7-inch 7
tunezmart video demo
HCRV22AND GPS 7-inch 7
HCRV22AND GPS 7-inch 7
HCRV22AND GPS 7-inch 7
HCRV22AND GPS 7-inch 7
HCRV22AND GPS 7-inch 7
HCRV22AND GPS 7-inch 7
HCRV22AND GPS 7-inch 7
Features and description

Newly released aftermarket Honda CR-V Year 2002-2006 (RD chassis) 7-inch capacitive TFT LCD touchscreen car multimedia radio receiver powered by proven Android 7.1 Nougat operating system.

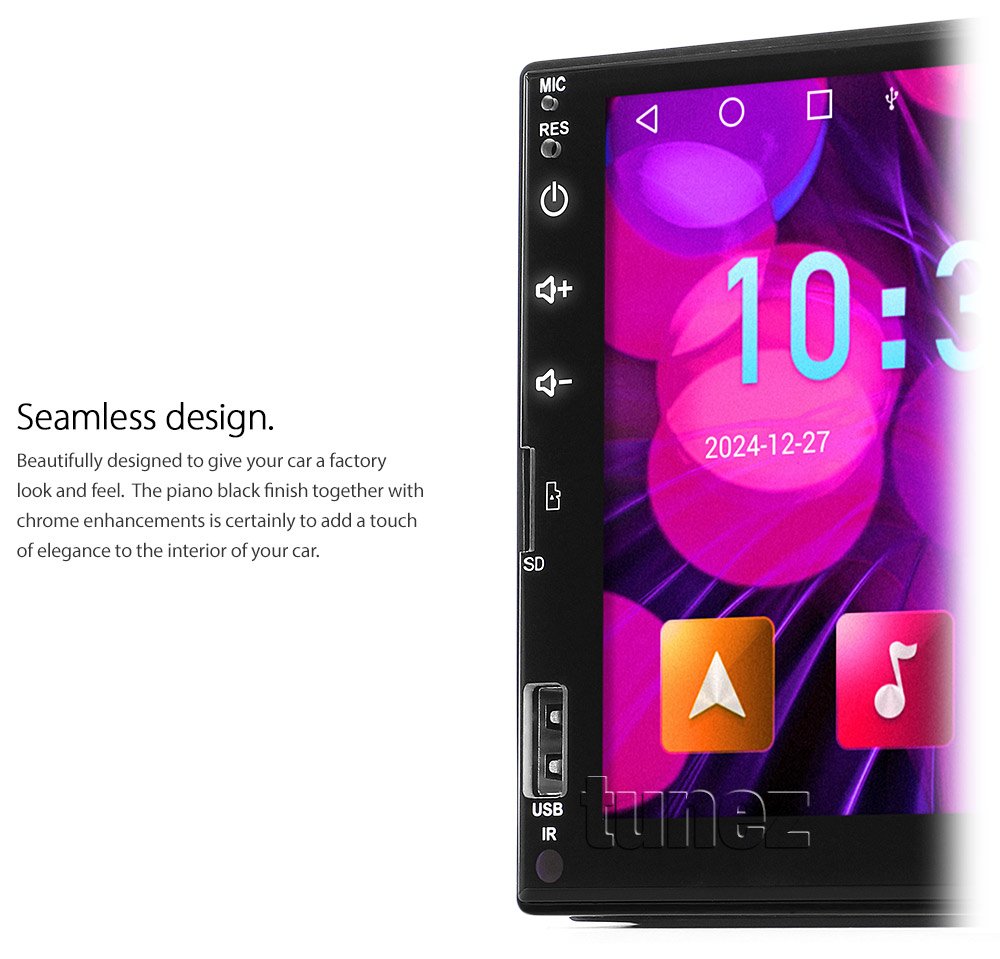

A combination of chrome and piano black finish with variable colour illumination.

Plug & Play feature with matching wiring harness and ISO plugs. No need to splice your factory fitted wires!

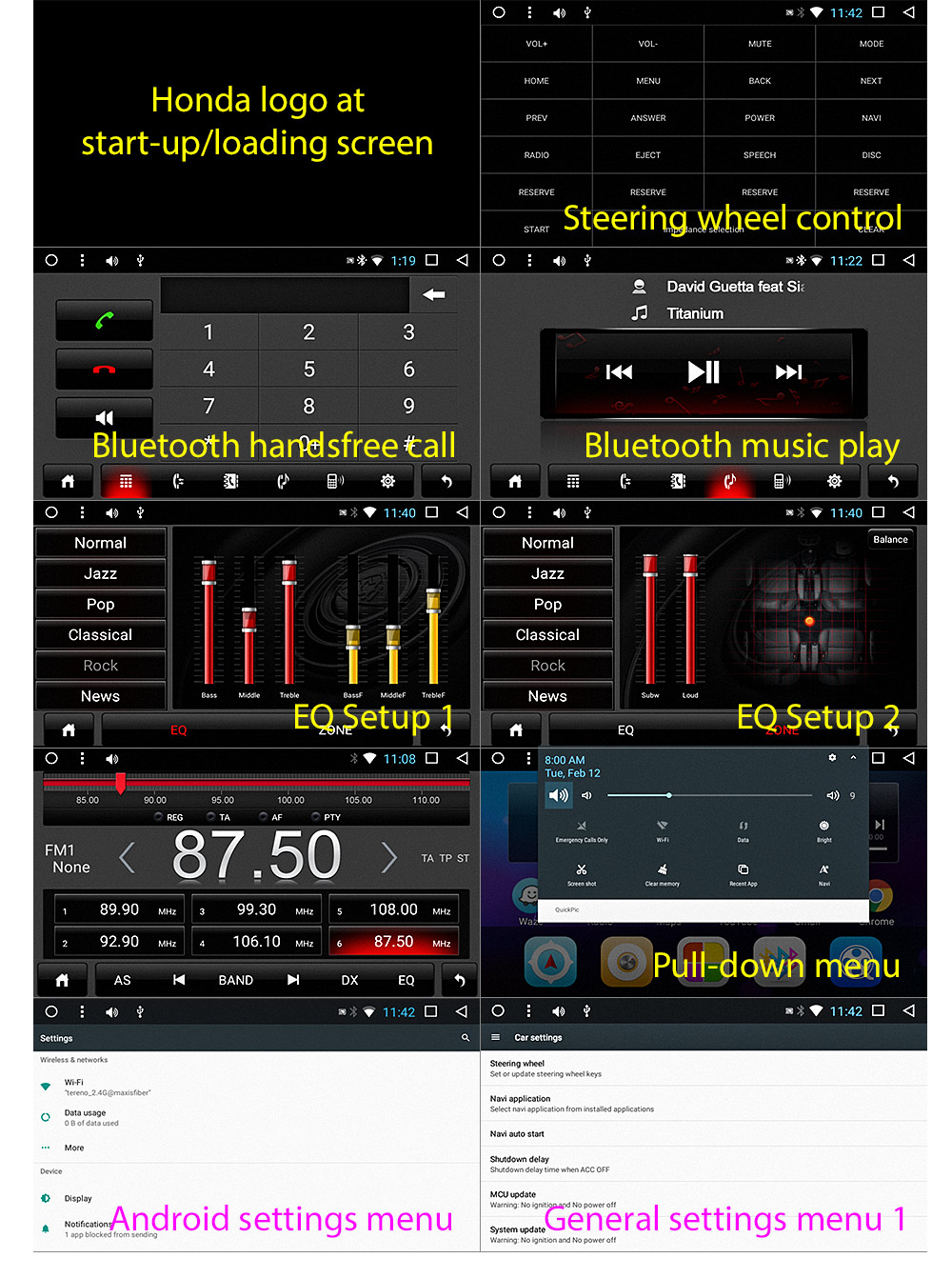

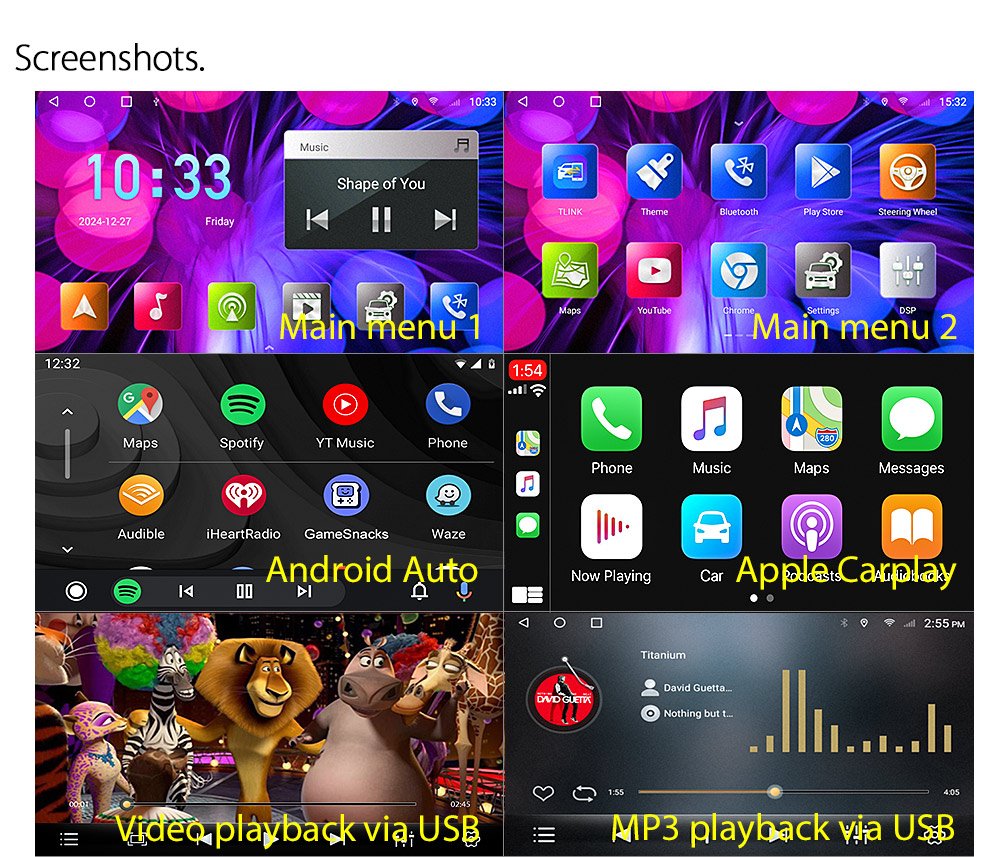

Beautifully designed user interface.

All buyers, kindly note:

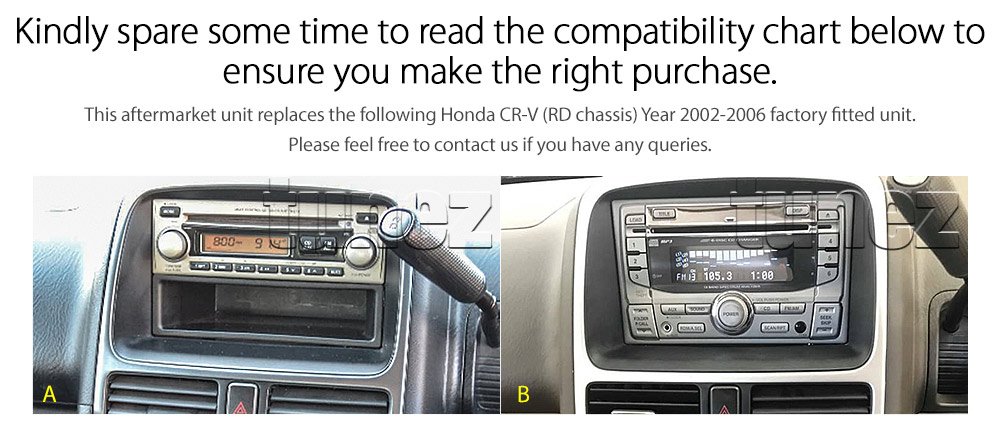

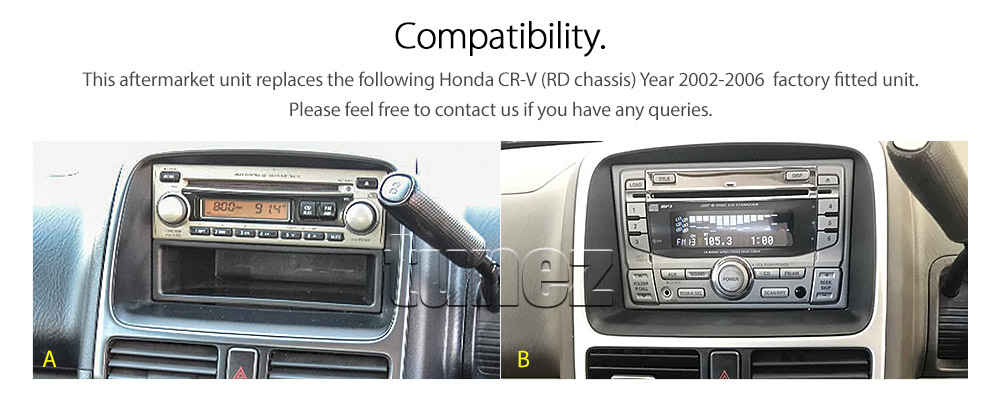

• Send us a message or e-mail of your vehicle's model, year manufactured and badge/series for compatibility and fitting check.
• Please ask installer to bench test head unit to ensure it is in working condition before installation.

Car specifications and technical guidance

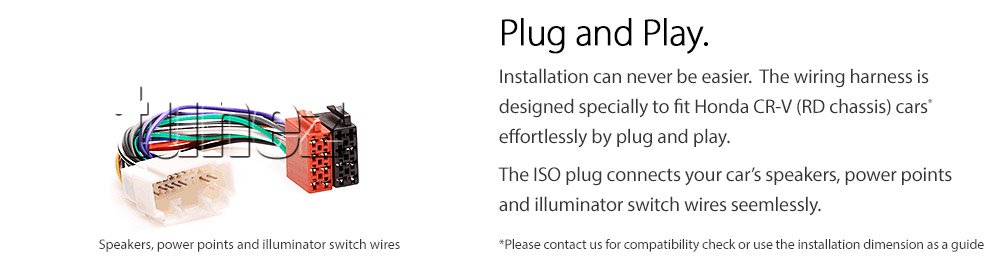

Matching ISO plugs

- The Plug & Play feature connects the ACC, battery, ground, illuminator, speakers and steering wheel control wires to your Honda CR-V ISO plug directly
- No need to splice your factory fitted wires

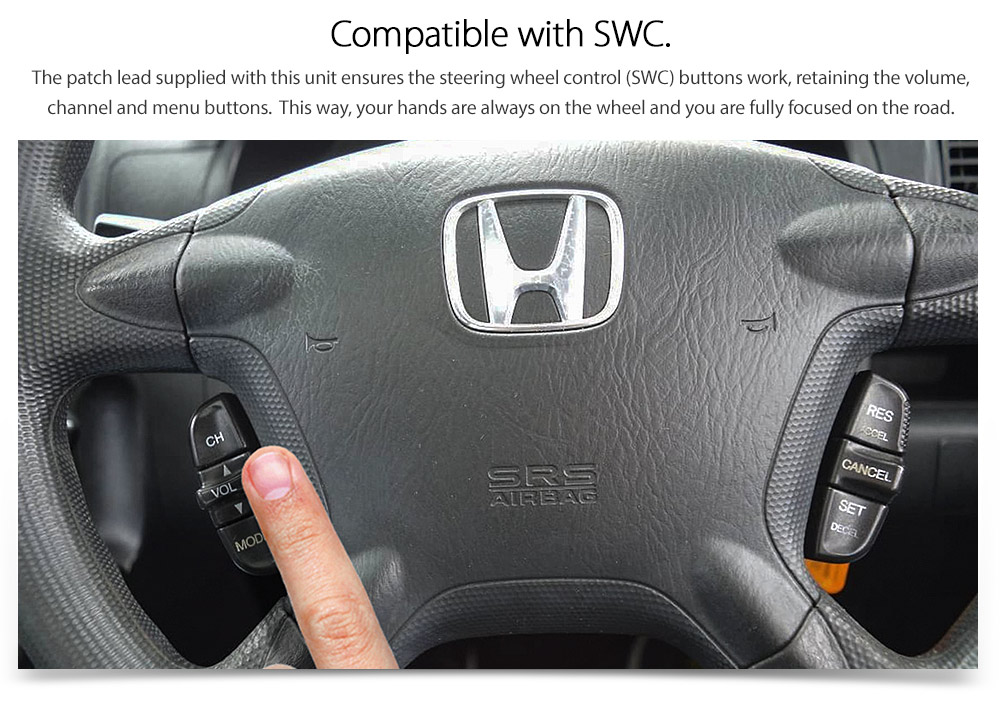

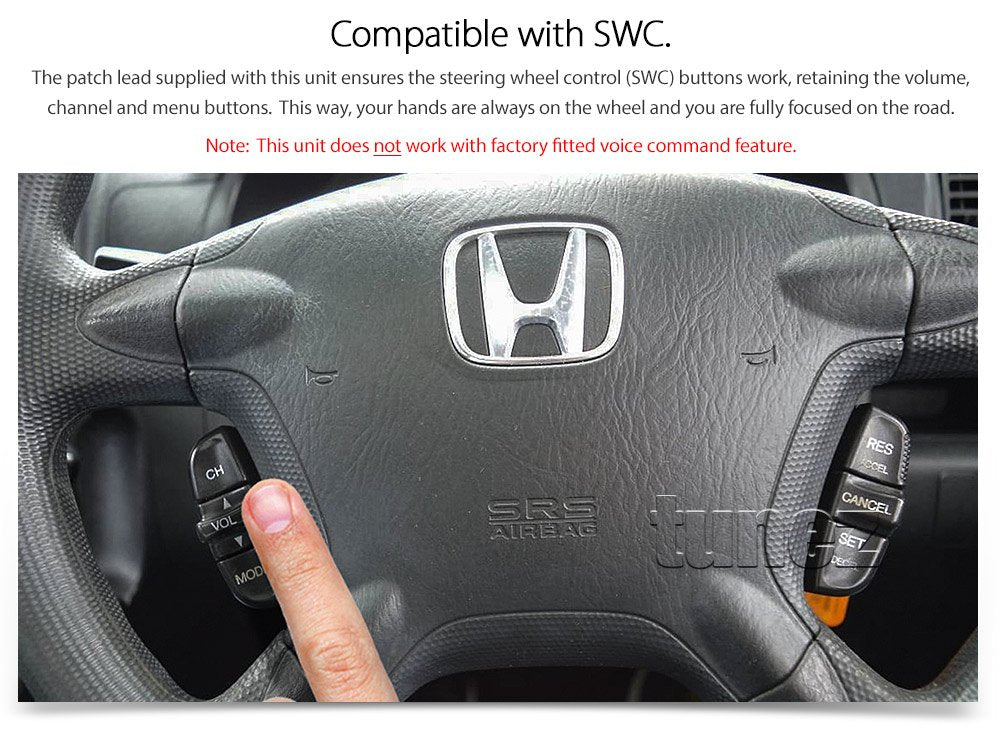

Steering wheel control

- The Plug & Play wiring harness connects audio steering wheel control wires to your Honda CR-V ISO plug directly
- You are required to perform steering wheel control learning procedure via 'Settings' menu in order to map factory steering wheel control buttons to the head unit
- Please follow the simple on-screen learning procedure or refer to the user manual

Android specifications

- Android Nougat 7.1
- Proven and stable operating system

Central processing system (CPU)

- 1.7GHz Intel ATOM
- 4-Quad Core T3 processor


- MediaTek
- MiraVision technology

Random Access Memory (RAM)

Samsung 1GB DDR3 RAM
- 2X faster route calculation !!!
- No more lagging and out of memory problem when running Text-To-Speech (TTS) files !!!
- Spoken street name with truly natural human voice !!!
- Smoother 3D image rendering !!!

Internal storage

11GB of free space for your music and video files

GPS receiver

- SiRFatlasVI 1,200MHz receiver with 64 acquisition channels
- Faster satellite locking !!!

GPS module

- Detects satellite signal faster than standard GPS unit
- Does not support Windows CE GPS software and map
- Does not come with GPS software
- You may download Waze or Google Map for navigation.
Note: You will need to connect your 4G mobile data to this head unit via hotspot to use Waze or Google Map other mobile GPS application. Please contact us if you need assistance to link your mobile phone to this head unit.
- Compatible with major Android based GPS software which (for e.g. OziExplorer, Tom Tom, iGO, etc.)
- If you have Android based OziExplorer/Hema off-road maps, you can run them on this unit

Dual-zone capability

- Dual-zone playback enables the driver to use GPS navigator for navigation while rear passengers watch video using headrest or roof mounted monitor simultaneously
- Whenever there is GPS voice broadcast, front 2 speakers will give way to GPS voice and return back to music after broadcast. The rear 2 speakers are not affected in anyway

Compatible media

Video format: MP4 / MKV / RMVB / AVI / DIVX / FLV / MPG
Audio format: MP3 / AAC / WMA / WAV / FLAC / MKA


Capacitive touch

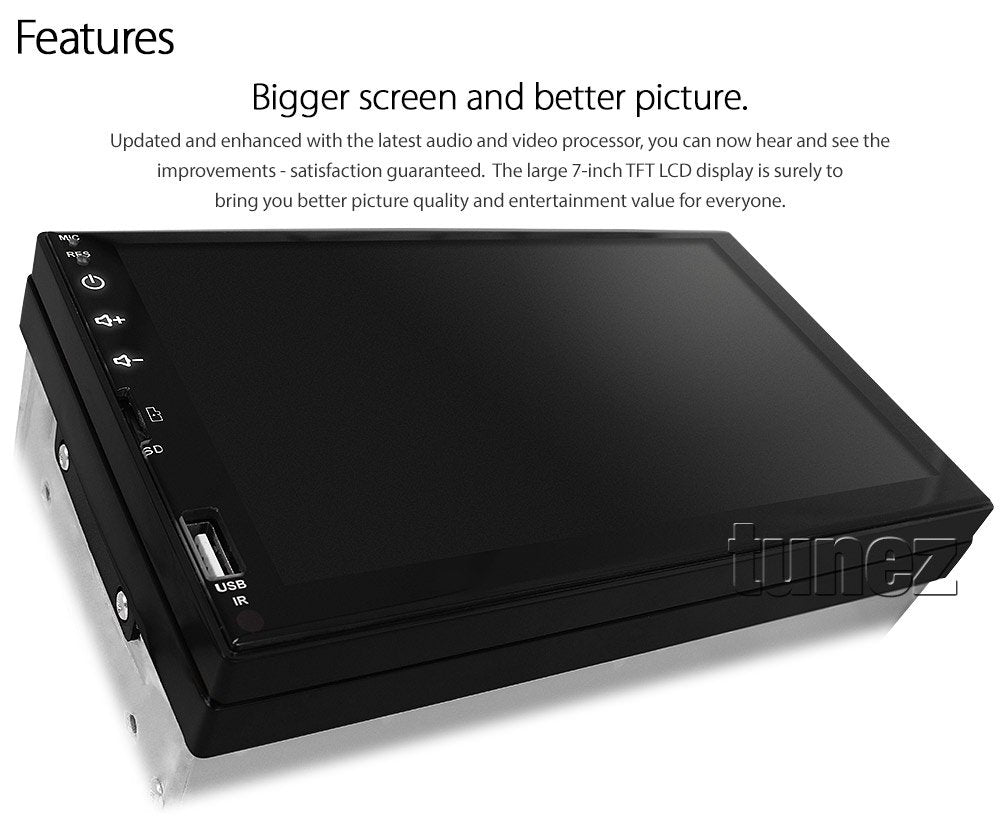

- Large 7-inch TFT LCD touchscreen
- 16:9 aspect ratio
User friendly menu for ease of navigation
- 2 stage monitor dimming control function
- Automatically dims monitor when headlights are turned on
- Monitor
'Sleep' function, turns off monitor anytime you wish

TFT LCD screen

- 32-bit True Colour
1024 x 600 pixels gives you sharp and crisp display
- Plays full high definition (FHD) movie files (e.g. MP4, MKV, RMVB, AVI) up to 1080 pixels via USB and SD card reader
- Contrast ratio 4,000:1
Brightness 450cd/m2

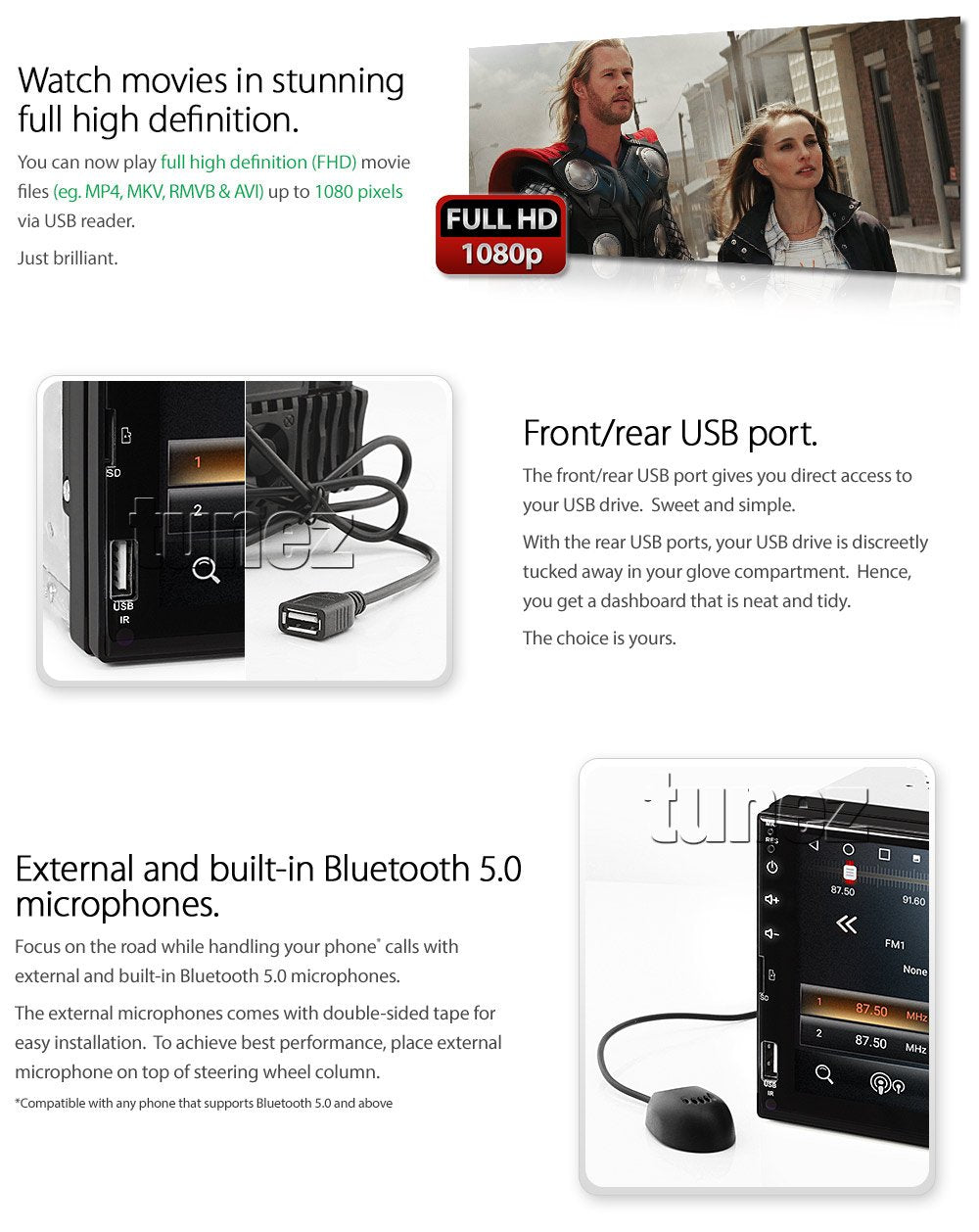

USB reader

- You have a choice of connecting your USB thumb drive via front or rear USB port
- Rear USB port comes with
1-meter USB cable. Hence, you can place your USB thumb drive in the glove compartment and keep your dashboard neat
- Supports USB thumb drive only and up to 64GB
- Does not support external hard disk, iPod or tablet

Rear USB charger

- You can now charge your mobile devices (eg. iPhone, iPad, smartphones, tablet, etc.)
- Rear dedicated USB charger comes with
2.1 Amp power output
, hence powerful enough to charge a tablet

SD card

Supports up to 64GB

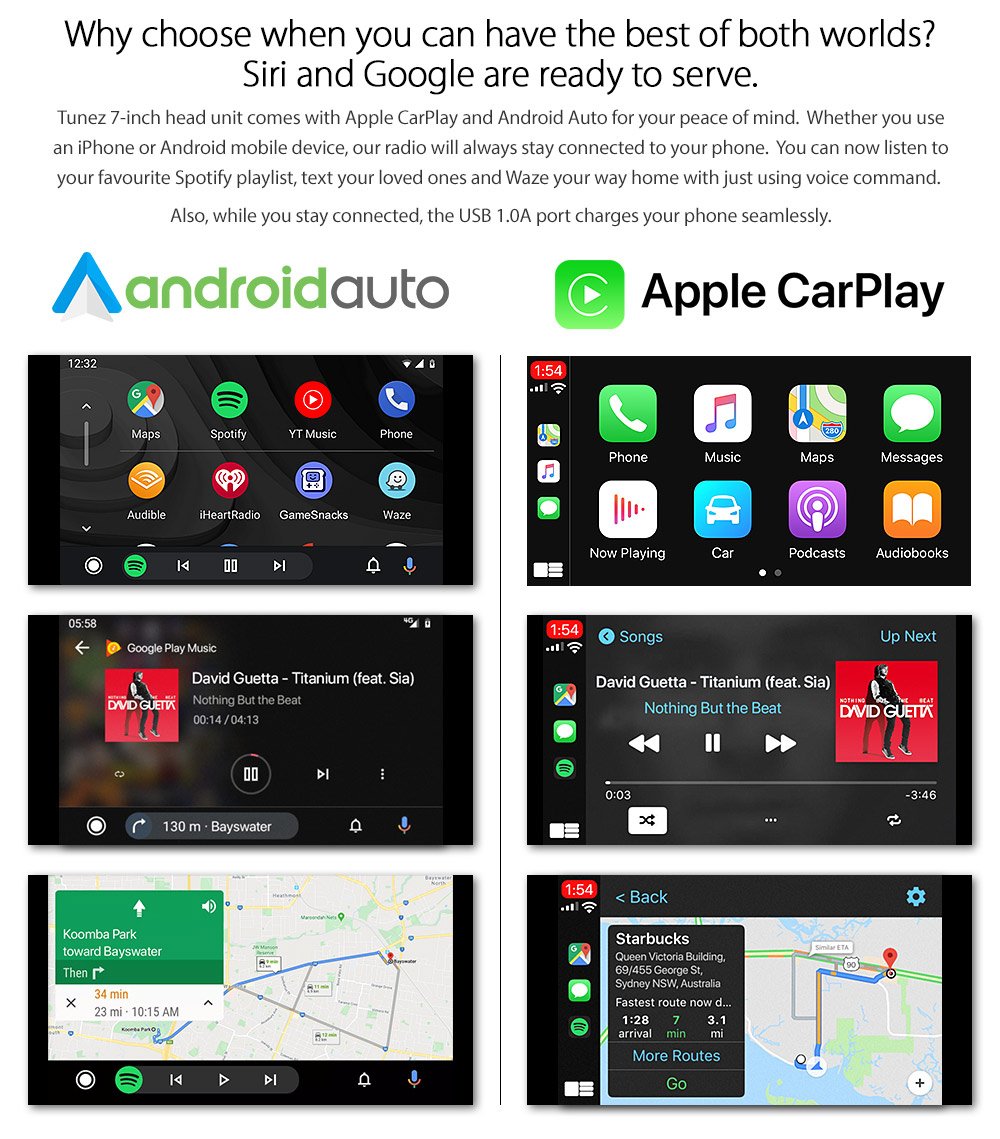

- Via the front USB reader: Simply connect any Android MirrorLink-enabled smartphone to the head unit and take advantage of easier and more responsible access to navigation, music and phone apps which makes connected driving easier, safer and more enjoyable.
- Please follow the on-screen instruction to connect your phone to this head unit
- If you have any queries, please send us an eBay message and we will be able to assist you

Apple AirPlay Mirroring

- Simply pair your iPhone, iPad, iPod or iOS devices to this head unit via Apple AirPlay Mirroring
- Once that is done, it mirrors your iPhone screen to the head unit and transmits the sound to the car's speakers

Album art & ID3 tag

- Displays MP3 album art
- Compatible with
ID3 tag for artist name, song title and album name
- Please contact us if you have any queries on ID3 tag
- This feature is available in SD card and USB mode only

Analogue radio tuner

- FM/AM tuner with Radio Data System (RDS)
- 54 present channels (36 FM & 18 AM)
- FM/AM frequencies menu option for all region

Digital radio tuner (Optional)

Major benefits of optional DAB+ digital radio receiver:
- Exceptional sound quality
- Song & artist information
- Tuning by station name
- Scrolling text
- More radio stations than regular FM radio

But don’t worry if you aren’t in a DAB+ area, this head unit can also tune into regular FM and AM radio stations.

- Optional @ AU $29
- Please check coverage area at


- Supports Bluetooth 2.0
- High quality Bluetooth receiver


Make and receive phone calls using Bluetooth receiver


- Equipped with 2 microphones
External microphone with double-sided tape. For best performance, place external microphone on steering wheel column
Built-in microphone in head unit

Music player

- Wirelessly stream music to the stereo using your mobile phone that supports A2DP for e.g. all iPhone models
- Remotely control your mobile phone using the stereo's on-screen button i.e. play, next song, previous song and stop

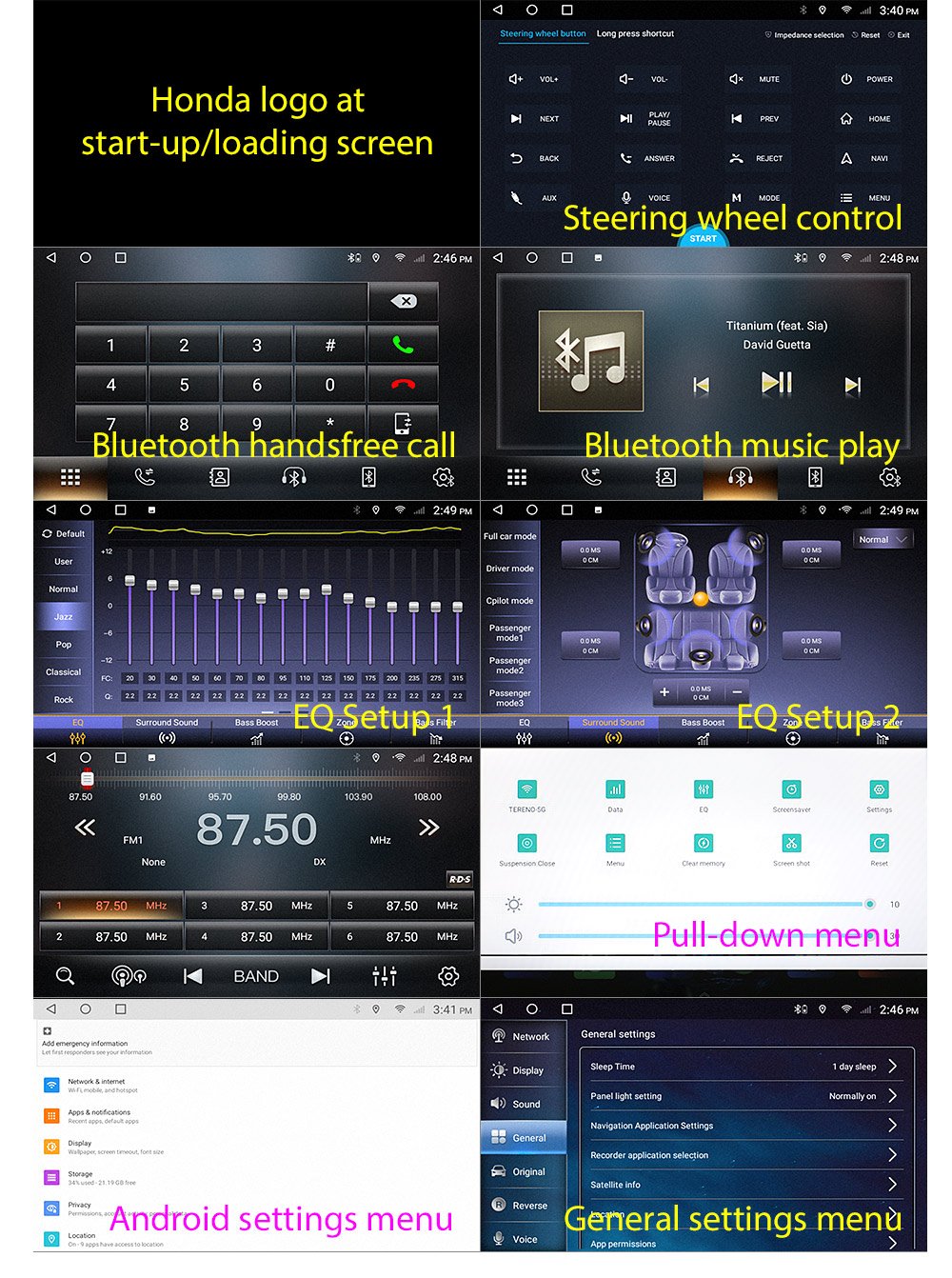

Systems and controls
Static wallpaper

- Comes with 14 attractive preset wallpapers
- Alternatively, add a personalised wallpaper to your new stereo
- Choose your favourite pet photo, car logo, symbol or just about anything

Live wallpaper

- Comes with 3 interactive preset live wallpaper
- You can download more live wallpaper from Google Play Store

Backlit illumination colours

- Choose from 7 different backlit illumination colours (i.e. white, green, blue, red, yellow, cyan and magenta) to match your car's instrument panel
- You may rotate these 7 colours in a seamless transition to create a colourful and cheerful ambience

Reversing camera feature

- Intelligent Reversing & Manual Front Camera Mechanism (IRMFCM)*
- For e.g.
upon detecting car in reverse gear, head unit automatically power up and goes into parking/reverse camera view mode
- For more features, kindly refer to IRMFCM features description mentioned earlier in this ad
- * Note: Works with Tunez optional reversing camera; for details, view optional items at the bottom of this ad

Front camera feature

- After disengaging reverse gear, you can turn on the front camera by pressing 'Front Video' icon to give you a clear view on what lies ahead of your front bumper e.g. road curb or low lying objects.
- * Note: Works with Tunez optional front camera; for details, view optional items at the bottom of this ad

Audio and video settings

- Built-in 10-band graphic equaliser for better audio control
- Preset EQ settings (Classic, Standard, Jazz, Pop, Rock, Techno and Custom settings)
- Fader, balance, subwoofer, loud settings
- Adjustable video display (Brightness, colour and contrast settings)
- Languages (English, Chinese, Indonesian, Arabic, Thai, Russian and Spanish)

Other controls

- Amplifier remote turn on control (REM)
- Power antenna control

- Built-in RGB imaging for auto video adjustment
- Eco friendly and low power consumption model

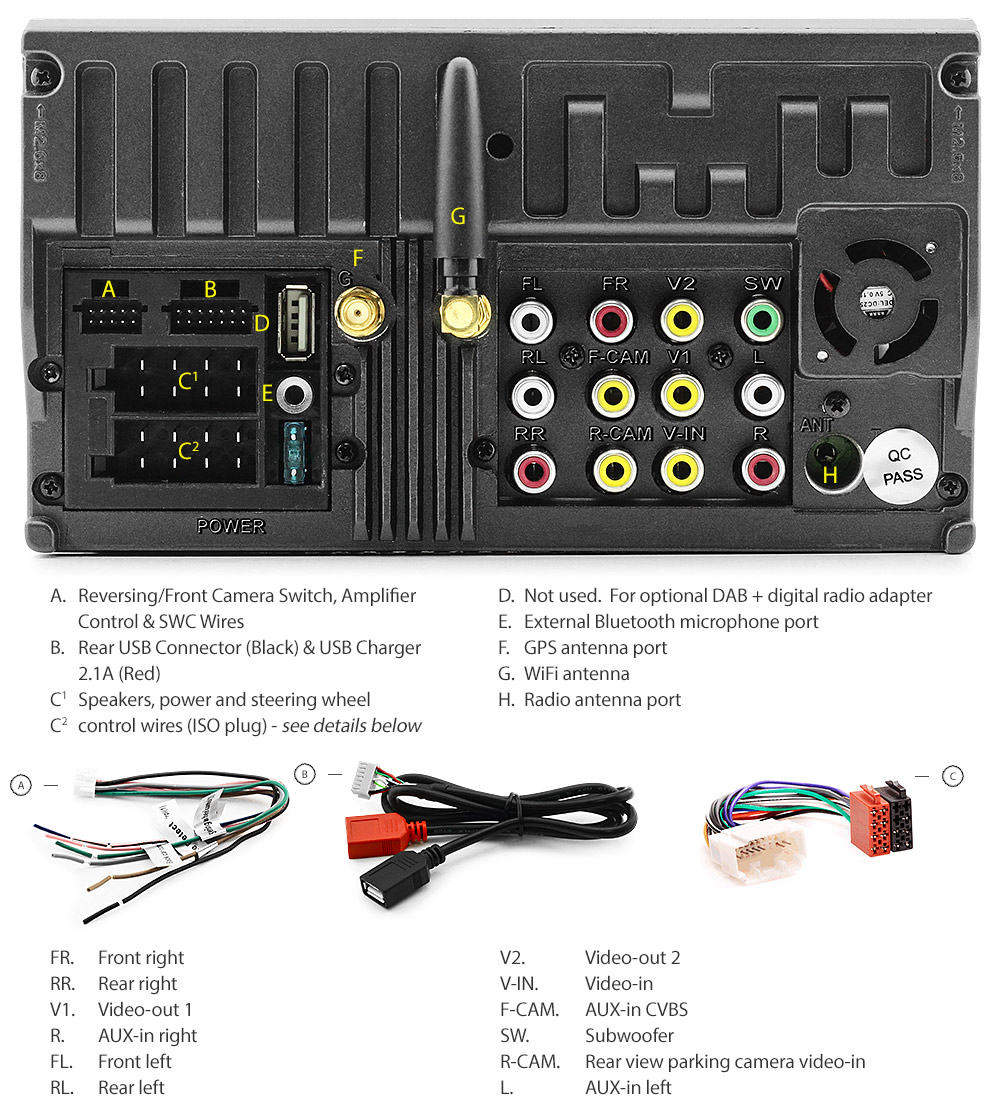

Connectors and hardware
Audio and visual (RCA)

- 5 x Pre-out (Front right, front left, rear right, rear left and subwoofer)
- 2 x Video output
- 1 x Parking/reversing camera input
- 1 x Front camera input
- 1 x Video input
- 2 x Audio input (Right and left)

Cooling mechanism

Highly conductive rear heat sink keeps the unit cool

Sound system

Built-in high fidelity amplifier with maximum power output 45W x 4 (4 Ohm)

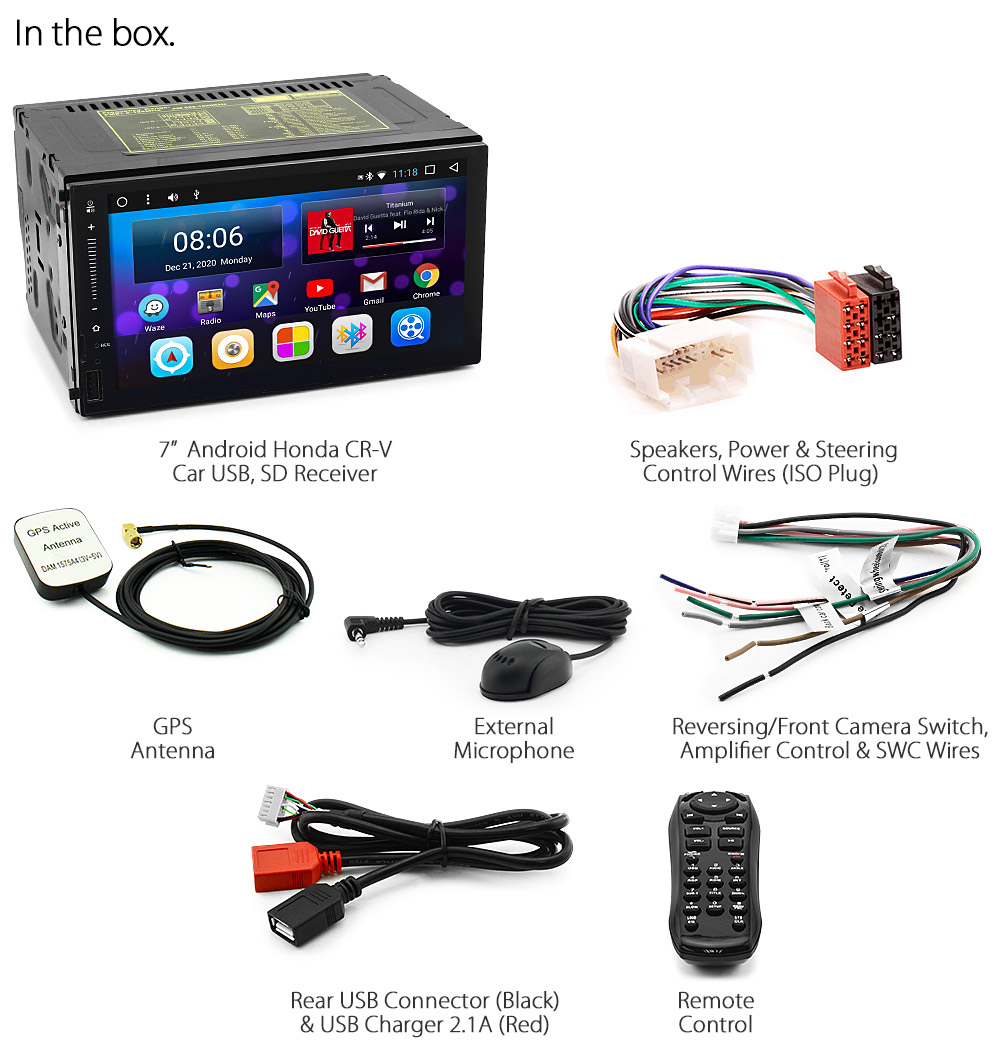

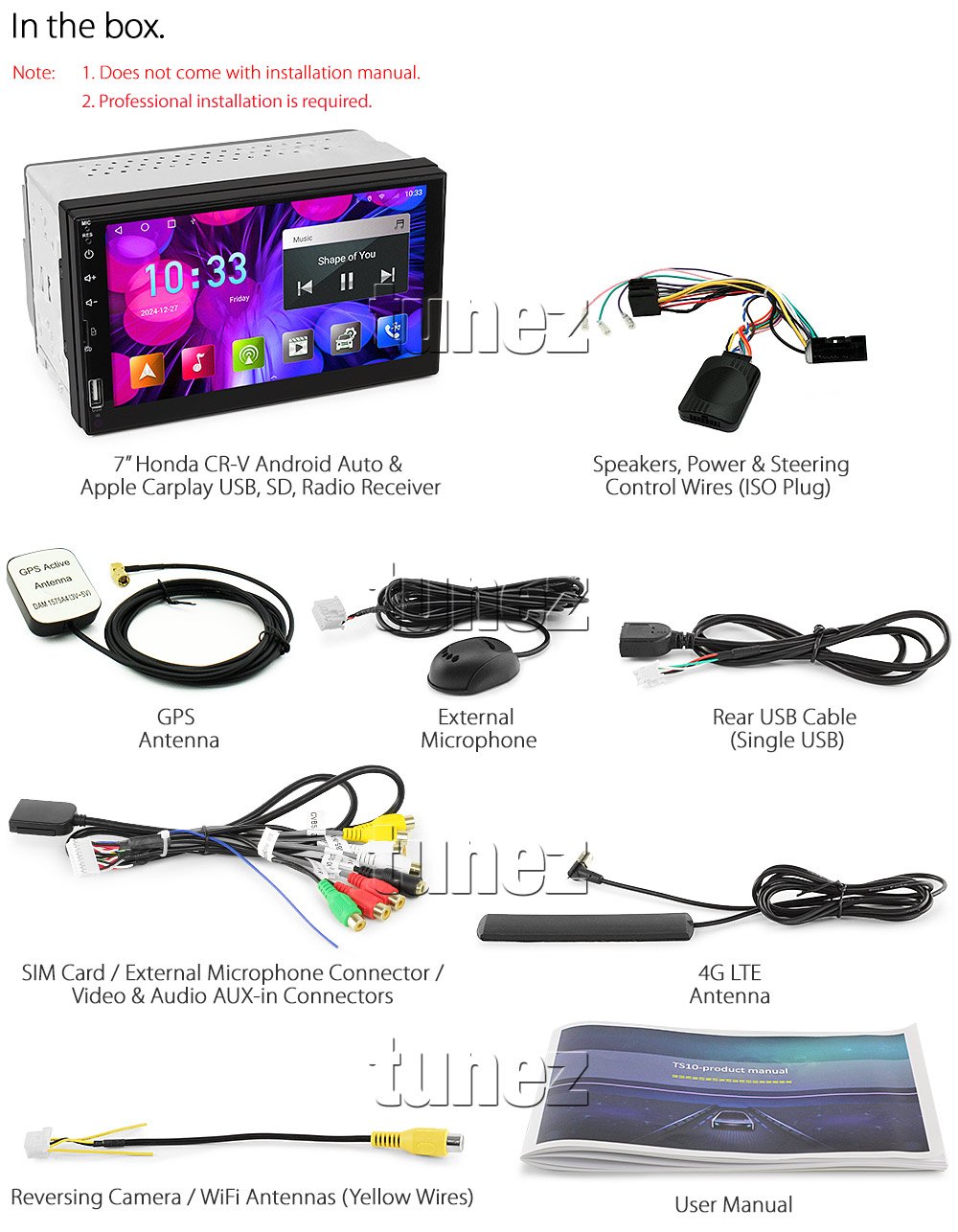

- Honda CR-V patch lead and ISO plug
- GPS antenna (3-meter)
- External Bluetooth microphone (2-meter)
- Rear USB connector (1-meter)

- Remote contro
