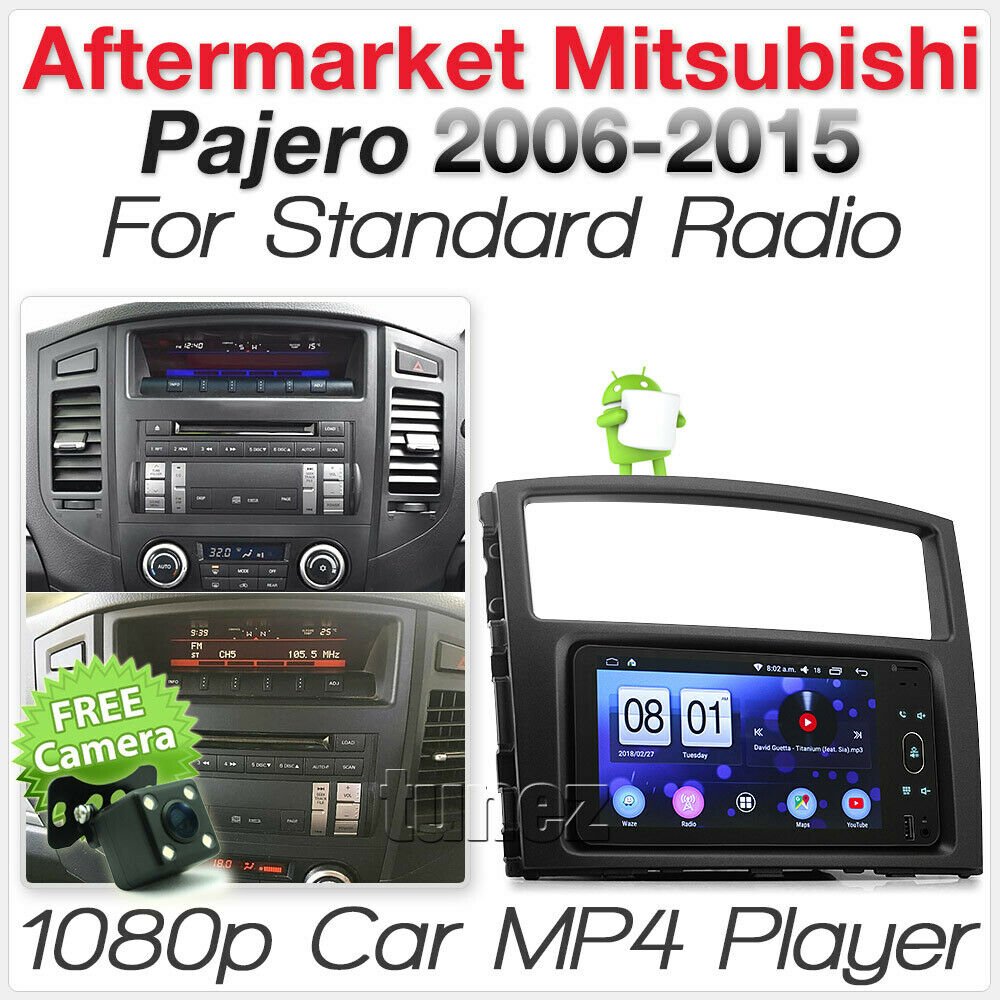

Android Car MP3 Player For Mitsubishi Pajero 2006-2015 Stereo Radio Fascia GPS

Brand: TUNEZ

Product Code: MP05AND-S

Availability: Out of stock

Out of stock
MP05AND GPS 7-inch 7
tunezmart business partners MP05AND GPS 7-inch 7
MP05AND GPS 7-inch 7
MP08AND GPS Aftermarket Misubishi Pajero Shogun 2006 2007 2008 2009 2010 2011 2012 2013 2014 2015 NS NT NW NX chassis 4th generation gen large 9-inch 9
To fit RF01 & RF02, please follow the link here:
https://www.ebay.com.au/itm/233317599686
MP08AND GPS Aftermarket Misubishi Pajero Shogun 2006 2007 2008 2009 2010 2011 2012 2013 2014 2015 NS NT NW NX chassis 4th generation gen large 9-inch 9
Factory fitted navigation feature N01 & N02 is not supported.
MP05AND GPS 7-inch 7
MP05AND GPS 7-inch 7
MP05AND GPS 7-inch 7
MP05AND GPS 7-inch 7
MP05AND GPS 7-inch 7
MP05AND GPS 7-inch 7
MP05AND GPS 7-inch 7
MP05AND GPS 7-inch 7
MP05AND GPS 7-inch 7
MP05AND GPS 7-inch 7 MP05AND GPS 7-inch 7
MP05AND GPS 7-inch 7
MP05AND GPS 7-inch 7
MP05AND GPS 7-inch 7
MP05AND GPS 7-inch 7
MP05AND GPS 7-inch 7
MP05AND GPS 7-inch 7
MP05AND GPS 7-inch 7
MP05AND GPS 7-inch 7
Intelligent Reversing And Front Camera Mechanism IRFCM tunez view mode MP05AND GPS 7-inch 7
tunezmart video demo
MP05AND GPS 7-inch 7
MP05AND GPS 7-inch 7
MP05AND GPS 7-inch 7
MP05AND GPS 7-inch 7
MP05AND GPS 7-inch 7
MP05AND GPS 7-inch 7
Features and description

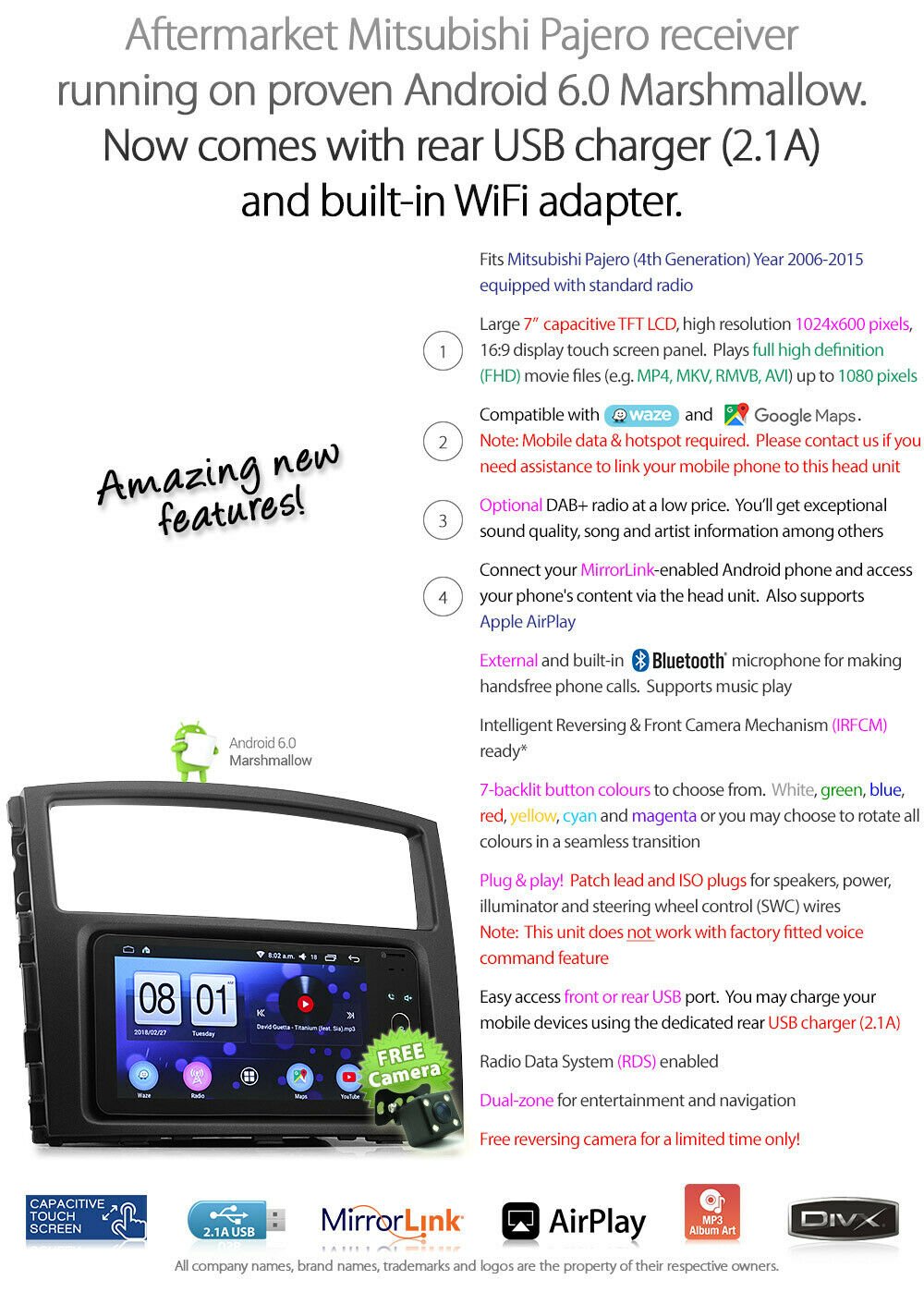

Newly released aftermarket Mitsubishi Pajero (4th Generation) Year 2006-2015 7-inch capacitive TFT LCD touchscreen car multimedia radio receiver powered by proven Android 6.0 Marshmallow operating system.

Plug & Play feature with matching wiring harness and ISO plugs. No need to splice your factory fitted wires!

Matching fascia kit for a factory fitted look and feel!

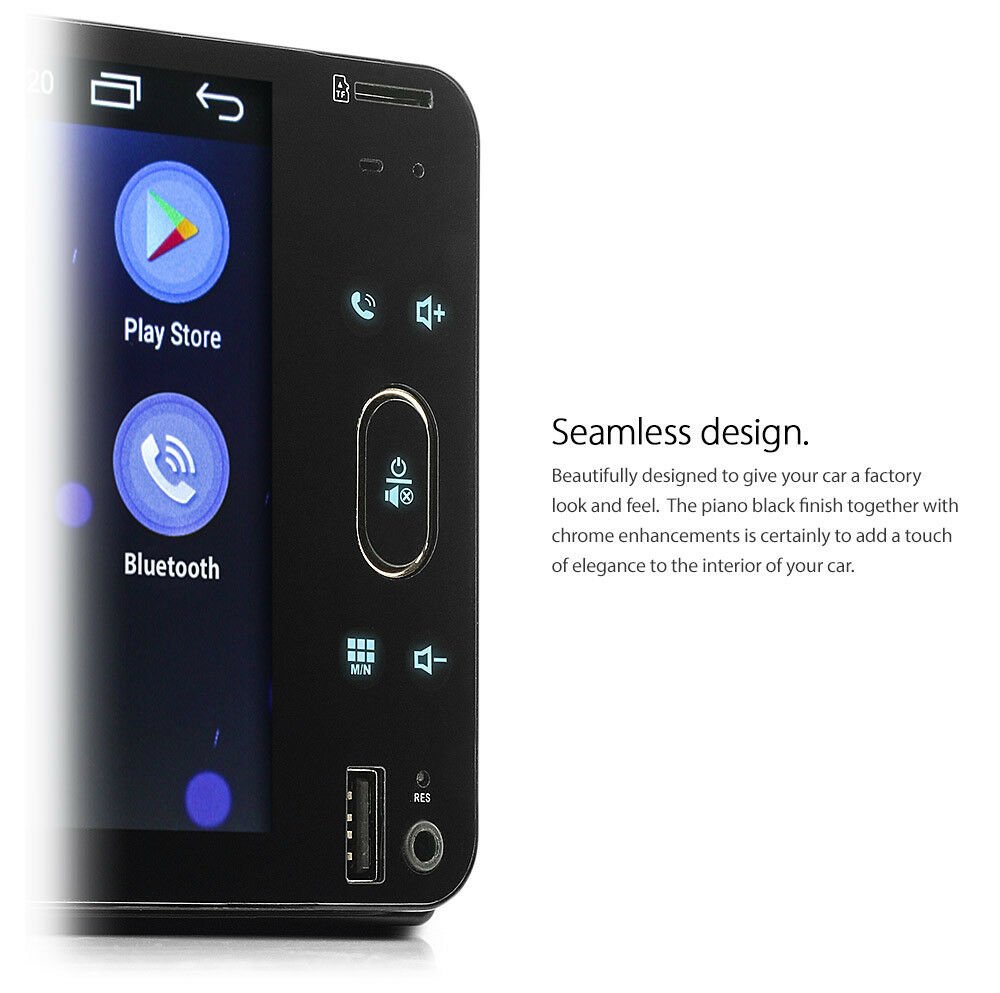

Beautifully designed user interface.

All buyers, kindly note:
Send us a message or e-mail of your vehicle's model, year manufactured and badge/series for compatibility check.
• Please ask installer to bench test head unit to ensure it is in working condition before installation.


Car specifications and technical guidance

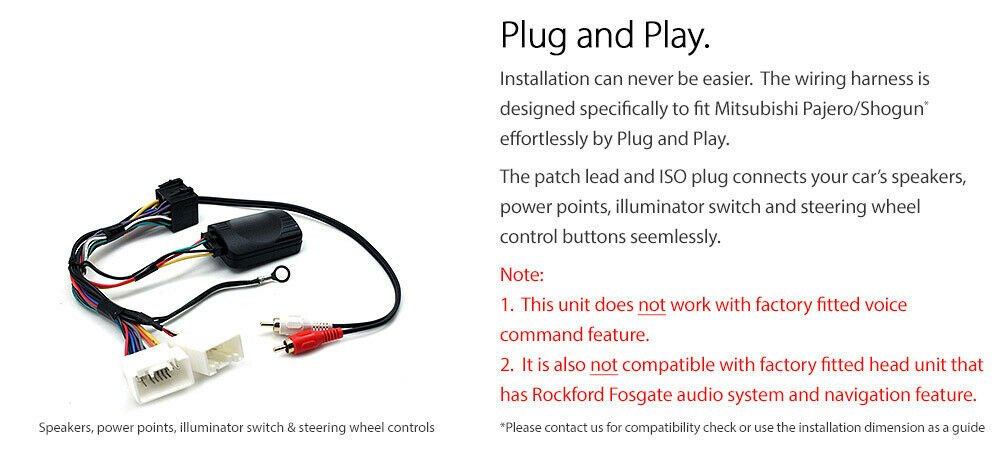

Matching ISO plugs

- The Plug & Play wiring harness feature connects ACC, battery, ground, illuminator and speaker wires to your Mitsubishi Pajero ISO plug directly
- No need to splice your factory fitted wires

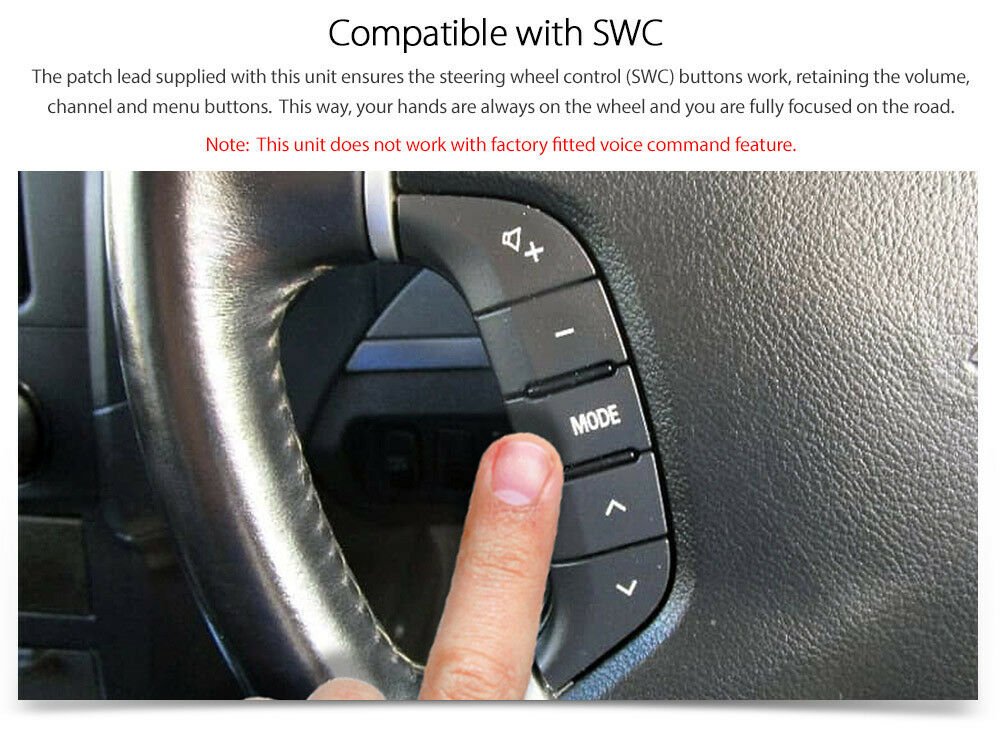

Steering wheel control

- The Plug & Play wiring harness connects audio steering wheel control wires to your Mitsubishi Pajero ISO plug directly
- You are required to perform steering wheel control learning procedure via 'Settings' menu in order to map factory steering wheel control buttons to the head unit
- Please follow the simple on-screen learning procedure or refer to the user manual

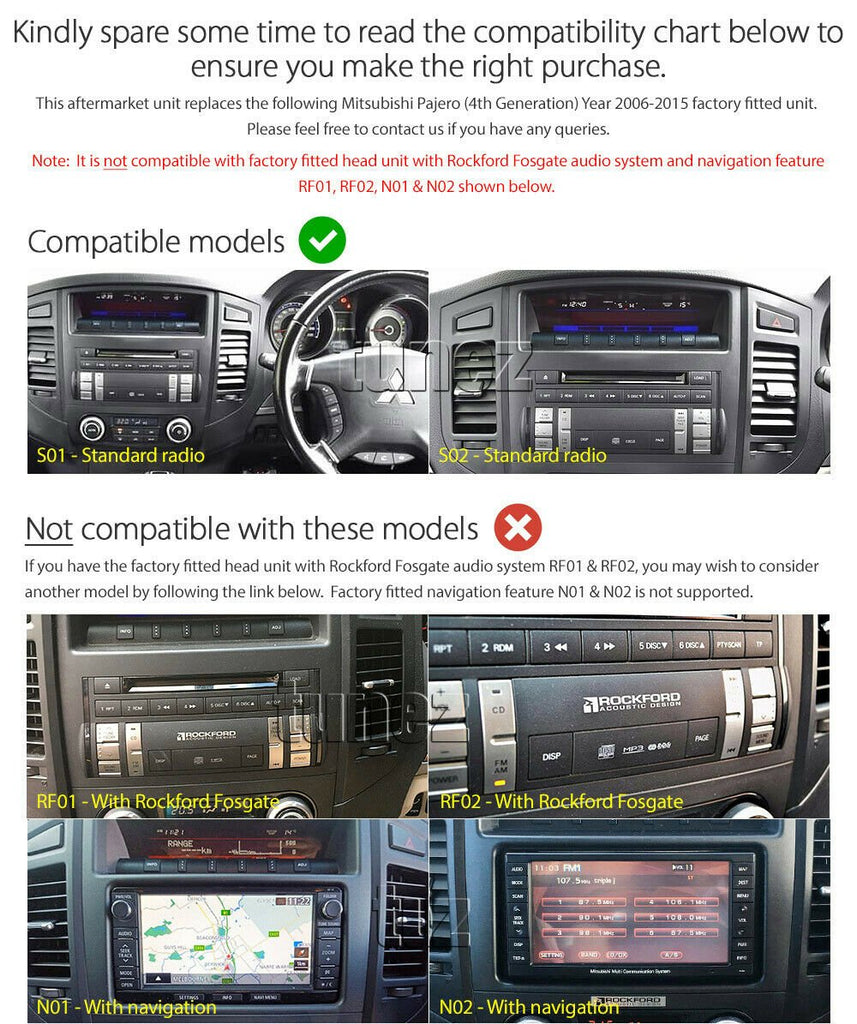

Factory fitted head unit Please ensure you have selected the correct aftermarket head unit to replace your factory fitted radio
Factory fitted type Compatible aftermarket head unit
Standard radio https://www.ebay.com.au/itm/323537926682
With Rockford Fosgate audio system https://www.ebay.com.au/itm/233317599686
With navigation Not supported

If you are unsure how the factory fitted unit looks like, please refer to the compatibility chart at the top section of this ad

Voice command

Note: Does not work with factory fitted Voice Command button and feature

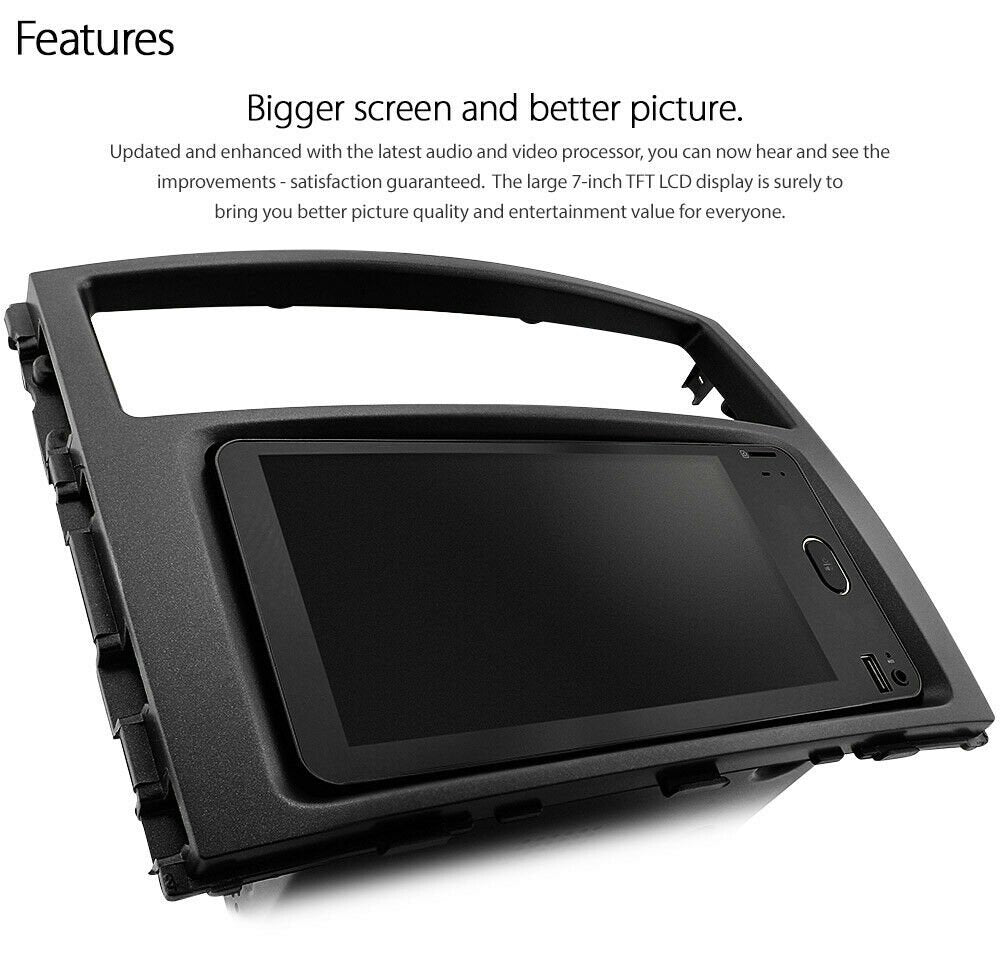

Fascia kit

- Designed for Mitsubishi Pajero (4th Generation) Year 2006-2015
- Minor modification to the dash is required for a flush fitting
- Matte black colour only


Android specifications
Software

- Android Marshmallow 6.0
- Proven and stable operating system

Central processing system (CPU)

- 1.7GHz Intel ATOM
- 4-Quad core processor

Assembler

- MediaTek
- MiraVision technology

Random Access Memory (RAM)

Samsung 1GB DDR3 RAM
- 2X faster route calculation !!!
- No more lagging and out of memory problem when running Text-To-Speech (TTS) files !!!
- Spoken street name with truly natural human voice !!!
- Smoother 3D image rendering !!!

Internal storage

11GB of free space for your music and video files

GPS receiver

- SiRFatlasVI 1,200MHz receiver with 64 acquisition channels
- Faster satellite locking !!!

GPS module

- Detects satellite signal faster than standard GPS unit
- Does not support Windows CE GPS software and map
- Does not come with GPS software
- You may download Waze or Google Map for navigation.
Note: You will need to connect your 4G mobile data to this head unit via hotspot to use Waze or Google Map other mobile GPS application. Please contact us if you need assistance to link your mobile phone to this head unit.
- Compatible with major Android based GPS software which (for e.g. OziExplorer, Tom Tom, iGO, etc.)
- If you have Android based OziExplorer/Hema off-road maps, you can run them on this unit

Dual-zone capability

- Dual-zone playback enables the driver to use GPS navigator for navigation while rear passengers watch video using headrest or roof mounted monitor simultaneously
- Whenever there is GPS voice broadcast, front 2 speakers will give way to GPS voice and return back to music after broadcast. The rear 2 speakers are not affected in anyway


Media
Compatible media

Video format: MP4 / MKV / RMVB / AVI / DIVX / FLV / MPG
Audio format: MP3 / AAC / WMA / WAV / FLAC / MKA

Touchscreen

Capacitive touch

Display

- Large 7-inch TFT LCD touchscreen
- 16:9 aspect ratio
-
User friendly menu for ease of navigation
- 2 stage monitor dimming control function
- Automatically dims monitor when headlights are turned on
- Monitor
'Sleep' function, turns off monitor anytime you wish

TFT LCD screen

- 32-bit True Colour
-
1024 x 600 pixels gives you sharp and crisp display
- Plays full high definition (FHD) movie files (e.g. MP4, MKV, RMVB, AVI) up to 1080 pixels via USB and SD card reader
- Contrast ratio 4,000:1
-
Brightness 450cd/m2

USB reader

- You have a choice of connecting your USB thumb drive via front or rear USB port
- Rear USB port comes with
1-meter USB cable. Hence, you can place your USB thumb drive in the glove compartment and keep your dashboard neat
- Supports USB thumb drive only and up to 64GB
- Does not support external hard disk, iPod or tablet

Rear USB charger

- You can now charge your mobile devices (eg. iPhone, iPad, smartphones, tablet, etc.)
- Rear dedicated USB charger comes with
2.1 Amp power output
, hence powerful enough to charge a tablet

SD card

Supports up to 64GB

MirrorLink

- Via the front USB reader: Simply connect any Android MirrorLink-enabled smartphone to the head unit and take advantage of easier and more responsible access to navigation, music and phone apps which makes connected driving easier, safer and more enjoyable.
- Please follow the on-screen instruction to connect your phone to this head unit
- If you have any queries, please send us an eBay message and we will be able to assist you

Apple AirPlay Mirroring

- Simply pair your iPhone, iPad, iPod or iOS devices to this head unit via Apple AirPlay Mirroring
- Once that is done, it mirrors your iPhone screen to the head unit and transmits the sound to the car's speakers

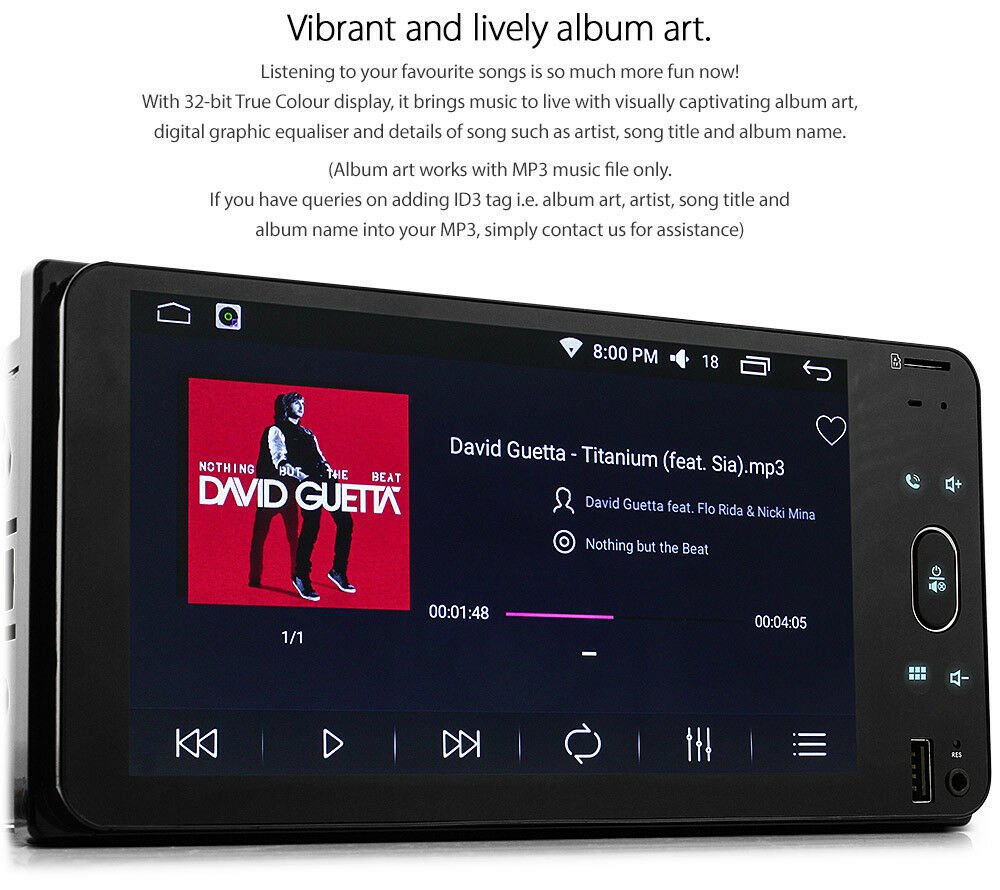

Album art & ID3 tag

- Displays MP3 album art
- Compatible with
ID3 tag for artist name, song title and album name
- Please contact us if you have any queries on ID3 tag
- This feature is available in SD card and USB mode only

Analogue radio tuner

- FM/AM tuner with Radio Data System (RDS)
- 30 present channels (18 FM & 12 AM)
- FM/AM frequencies menu option for all region

Digital radio tuner (Optional)

Major benefits of optional DAB+ digital radio receiver:
- Exceptional sound quality
- Song & artist information
- Tuning by station name
- Scrolling text
- More radio stations than regular FM radio

But don’t worry if you aren’t in a DAB+ area, this head unit can also tune into regular FM and AM radio stations.

Note:
- Optional @ AU $29
- Please check coverage area at www.digitalradioplus.com.au/can-i-get-digital-radio


Bluetooth
System

- Supports Bluetooth 2.0
- High quality Bluetooth receiver

Handsfree
feature

Make and receive phone calls using Bluetooth receiver

Microphone

- Equipped with 2 microphones
-
External microphone with double-sided tape. For best performance, place external microphone on steering wheel column
-
Built-in microphone in head unit

Music player

- Wirelessly stream music to the stereo using your mobile phone that supports A2DP for e.g. all iPhone models
- Remotely control your mobile phone using the stereo's on-screen button i.e. play, next song, previous song and stop


Systems and controls
Static wallpaper

- Comes with 4 attractive preset wallpapers
- Alternatively, add a personalised wallpaper to your new stereo
- Choose your favourite pet photo, car logo, symbol or just about anything

Live wallpaper

- Comes with 2 interactive preset live wallpaper
- You can download more live wallpaper from Google Play Store

Backlit illumination colours

- Choose from 7 different backlit illumination colours (i.e. white, green, blue, red, yellow, cyan and magenta) to match your car's instrument panel
- You may rotate these 7 colours in a seamless transition to create a colourful and cheerful ambience

Reversing camera feature

- Intelligent Reversing & Front Camera Mechanism (IRFCM)*
- For e.g.
upon detecting car in reverse gear, head unit automatically power up and goes into parking/reverse camera view mode
- For more features, kindly refer to IRFCM features description mentioned earlier in this ad
- * Note: Works with Tunez optional reversing camera; for details, view optional items at the bottom of this ad

Front camera feature

- After disengaging reverse gear, head unit automatically switches to front camera view for 6 seconds. After that, head unit screen will resume the last function/mode accessed.
- Alternatively, press the front camera on-screen button while parking to prevent hitting the road curb
- * Note: Works with Tunez optional front camera; for details, view optional items at the bottom of this ad

Audio and video settings

- Built-in 10-band graphic equaliser for better audio control
- Preset EQ settings (Classic, Standard, Jazz, Pop, Rock, Techno and Custom settings)
- Fader, balance, subwoofer, loud settings
- Adjustable video display (Brightness, colour and contrast settings)
- Languages (English, Chinese, Indonesian, Arabic, Thai, Russian and Spanish)

Other controls

- Amplifier remote turn on control (REM)
- Power antenna control

- Built-in RGB imaging for auto video adjustment
- Eco friendly and low power consumption model


Connectors and hardware
Audio and visual (RCA)

- 5 x Pre-out (Front right, front left, rear right, rear left and subwoofer)
- 2 x Video output
- 1 x Parking/reversing camera input
- 1 x Front camera input
- 1 x Video input
- 2 x Audio input (Right and left)

AUX-In

Front 3.5mm AUX-In port. Plug-in your favourite iPod, iPad, iPhone, MP3/MP4 player, CD player, etc. and play music on your car stereo system

Cooling mechanism

Highly conductive rear heat sink keeps the unit cool

Sound system

Built-in high fidelity amplifier with maximum power output 45W x 4 (4 Ohm)

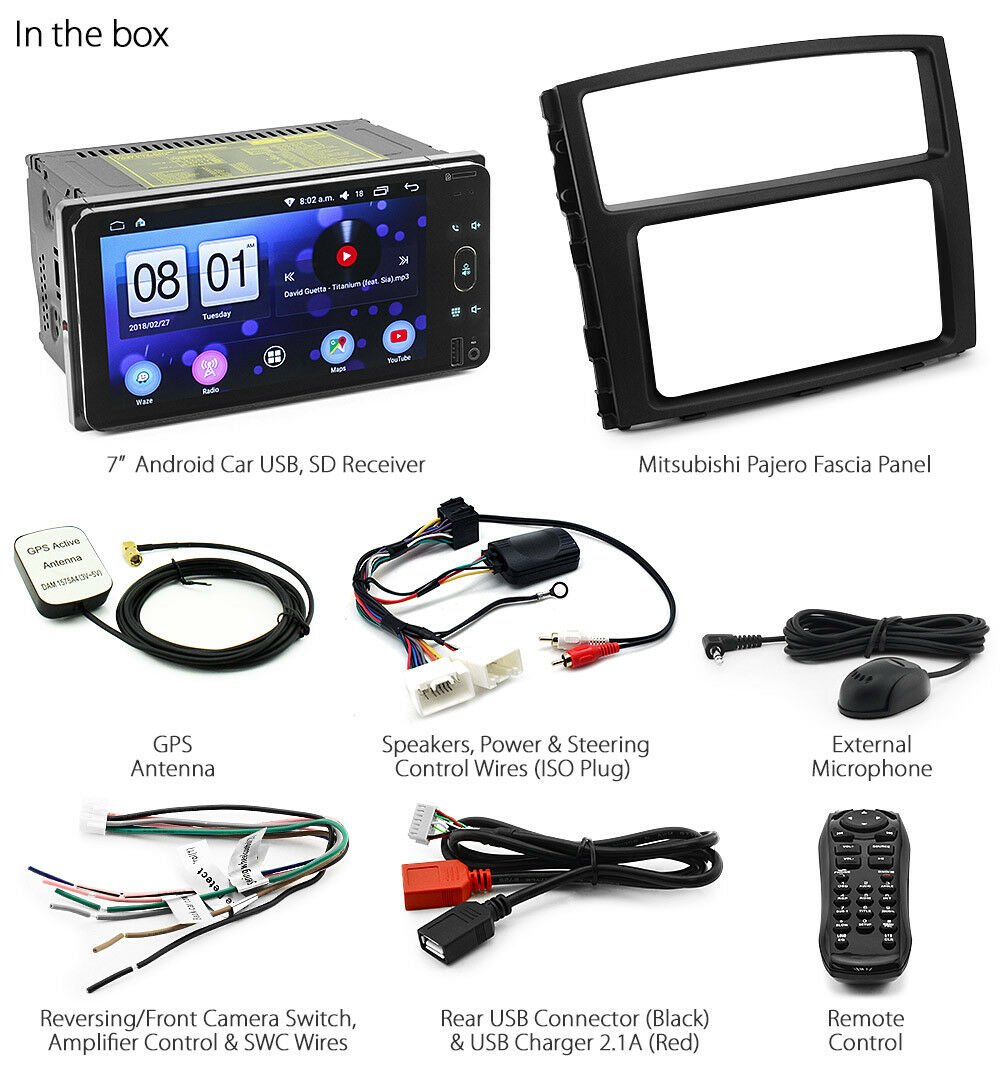

Accessories

- Matching Mitsubishi Pajero wiring harness (ISO plugs)
- GPS antenna (3-meter)
- External Bluetooth microphone (2-meter)
- Rear USB connector (1-meter)

- Remote control
