9" Quad Monitor Split Screen Reversing 2 Cameras IR CCD 4PIN Kit Truck 24V/12V

Brand: TUNEZ

Product Code: RCAM4P0302

Availability: In stock

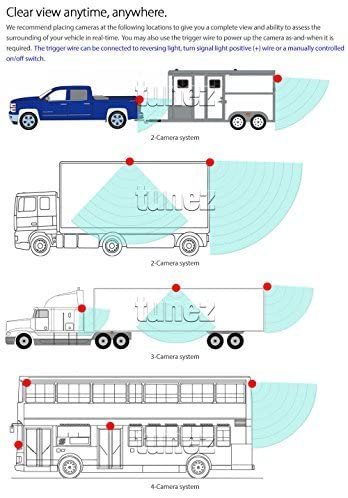

This support 12V/24V power supply camera system is designed for the use on bus, caravan, heavy equipment mover, pickup, trailer, car, ute, etc.

Full colour SONY CCD sensor for crisp display during day or night. Heavy duty 4-Pin cable for video feed and power supply from monitor.18 active infrared LEDs help produce clear night vision in pitch black condition to 10 meters.

Wide 120 degree viewing angle camera, made from heavy duty alloy to withstand the harshest conditions. Waterproof and dust-proof with IP68 protection rating. Submersible up to 1 meter(3-feet).

Large 9-inch Quad view hight resolution TFT LCD digital monitor with sharp and clear 800 x 480 pixels monitor with removable sunshade and 4-Pin cable allows video feed and power supply to all cameras. 360 degree swivel base, adjustable height and 120degree swivel stand.

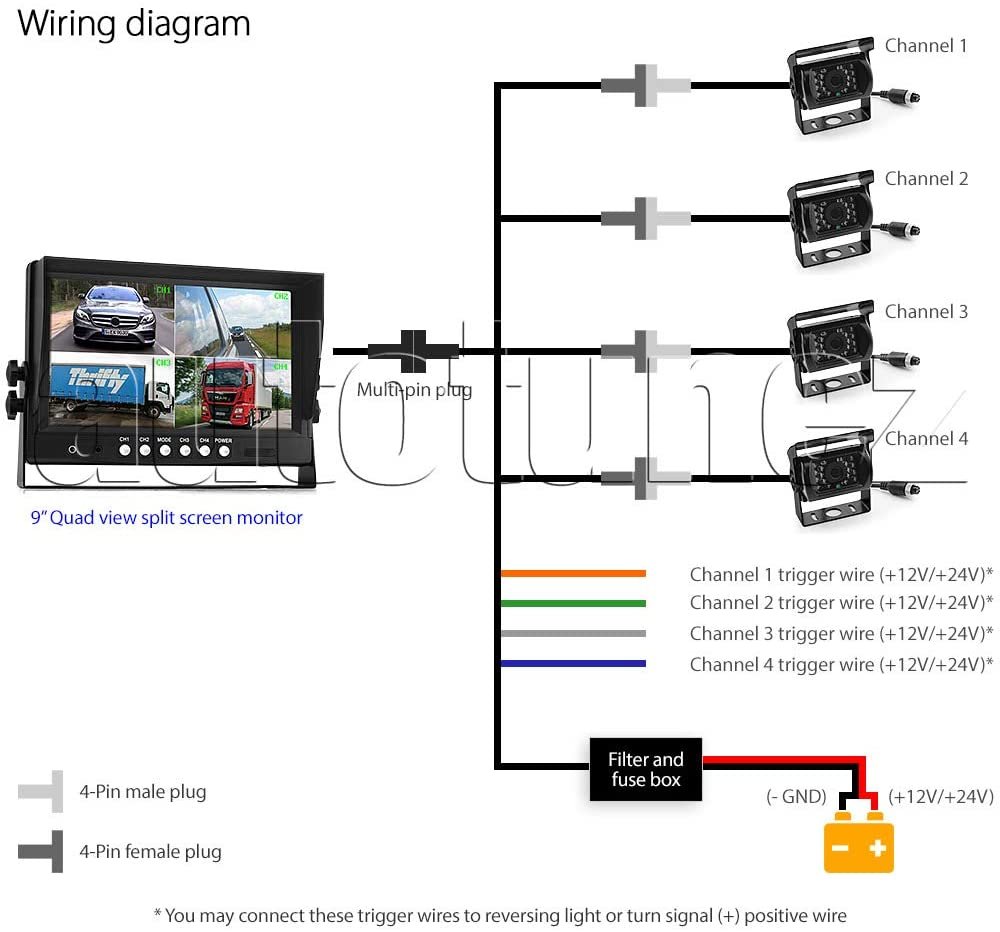

Built-in quad view/split screen control box with independent mirror image, and can auto-switching full-screen trigger wire enables you to view selected camera on full-screen mode before switching back to the previous state. You can connect trigger wire to turn signal or manually control the trigger wire by connecting it to an on/off switch.

All buyers, kindly note:
Please ask installer to bench test monitor and cameras to ensure it is in working condition before installation.

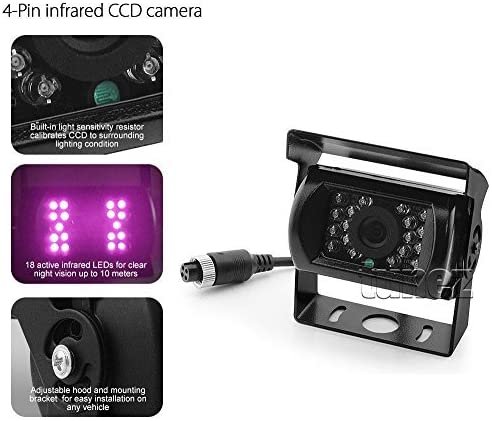

Infrared CCD Camera

- Full colour SONY® CCD
- Heavy duty alloy
- Waterproof and dust-proof(IP68)
- 420 TV Lines
- NTSC:512x492 pixels
- PAL:512x582
- Optical size 1/3: 4.9mm x 3.7 mm
- 1.0 lux/F=1.2
- Work in pitch black condition
- 120 degree viewing angle & 10 meters night vision
- Video output 4-Pin connector,1.0Vp-p/750
- 50-60 mA, maximum 300mA with infrared turned on
- DC 12V ~ 24V
- Operating temperature :-20°C ~ 60°C, RH 95% max.
- Storage temperature:-40°C ~ 68°C, RH 95% max.

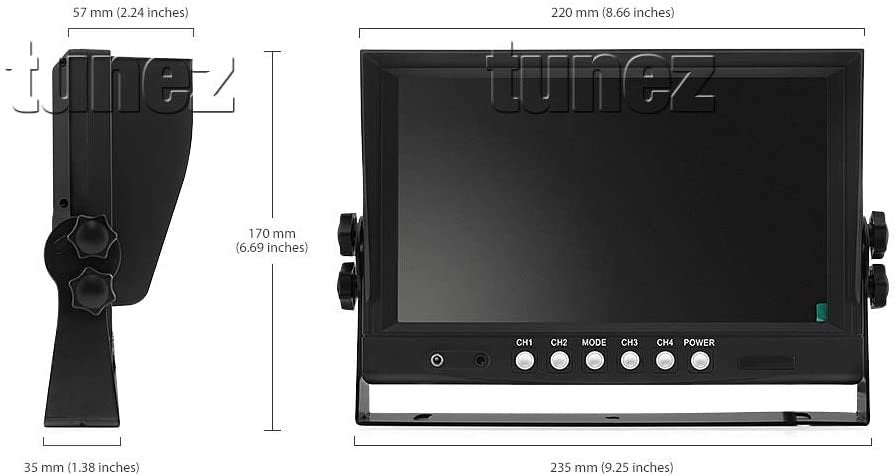

Large 9-inch Hight resolution digital TFT LCD monitor
- 9”(diagonal)screen

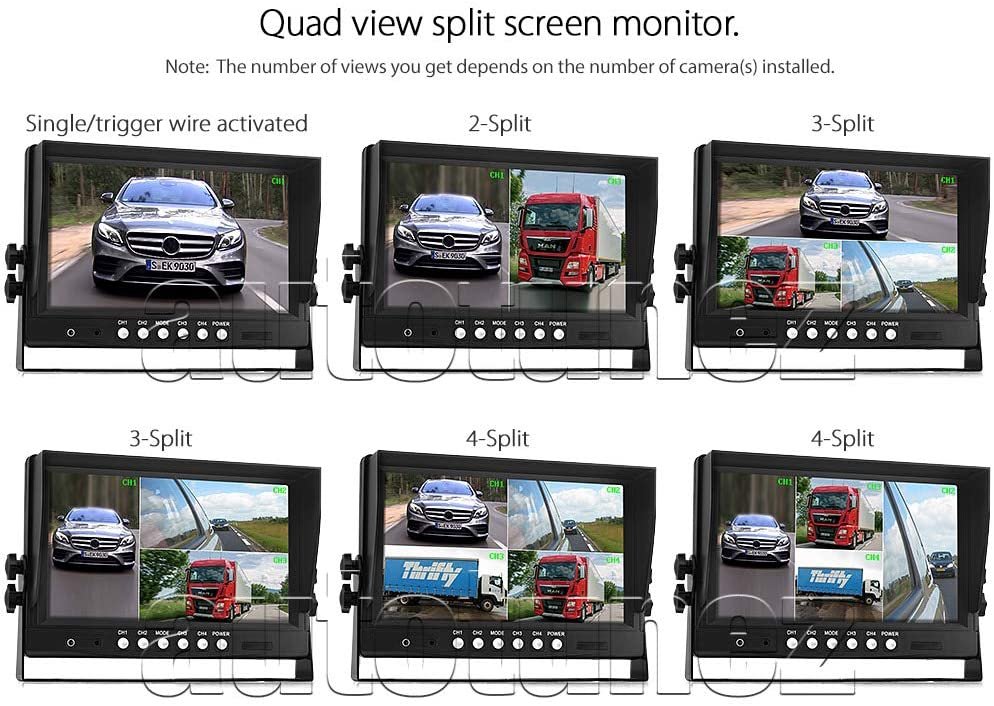

- Supports 2, 3 & 4 screen mode
- NTSC / PAL (auto switch)
- Screen resolution 800 x 480 pixels
- Effective viewing area (H) x (V) : 196 mm x 117 mm
- NTS 60%
- DC 12V ~ 24V

Connectors and hardware
Industry standard 4-Pin cable
Housing and knurled nut
- Brass and nickel-plated
- Suitable for all weather conditions
- Waterproof
- Insulation(PVC)
- Conductor by copper wire & IACS approved copper for higher conductivity and stable signal transmission

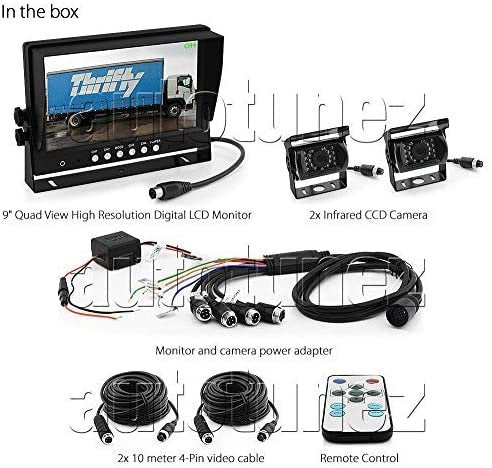

- 2 units of infrared CCD camera

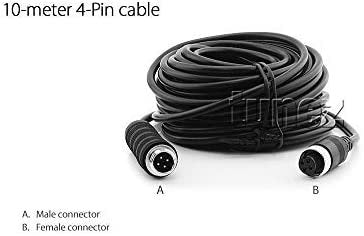

- 2 units 10-meter 4-Pin video cable
- 9-inch Quad view TFT LCD digital monitor

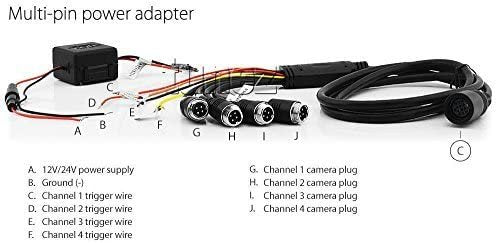

- Multi-pin power adapter
- Remote control
