7" Split screen Monitor 24V 12V 2 CCD Reversing Camera 4PIN System Kit Caravan

Brand: TUNEZ

Product Code: IRCAMP40202

Availability: In stock

$274.56
IRCAM4P01 12V 24V DC 2 3 4 Camera System Caravan Truck Trailer Bus Car Bus Van Lorry Goods Parking Reversing Park Reverse Safety Camera Surveillance Sony Lense Lens CCD 18 LED Infrared Night Vision Day Pitch Black Condition Heavy Duty 18-Months Australian Warranty 7-inch Quad View Split Screen TFT LCD digital monitor 4-Pin Waterproof video cable industry standard IP68 Dustproof CE FCC Approved RoHS Compliant Certified
IRCAM4P02 12V 24V DC 2 3 4 Channels Camera System Caravan Motorhome Truck Trailer Bus Car Bus Van Lorry Goods Parking Reversing Park Reverse Safety Camera Surveillance Sony Lense Lens CCD 18 LED Infrared Night Vision Day Pitch Black Condition Heavy Duty 18-Months Australian Warranty 7-inch Quad View Split Screen TFT LCD digital monitor 4-Pin Waterproof video cable industry standard IP68 Dustproof CE FCC Approved RoHS Compliant Certified
IRCAM4P01 12V 24V DC 2 3 4 Camera System Caravan Truck Trailer Bus Car Bus Van Lorry Goods Parking Reversing Park Reverse Safety Camera Surveillance Sony Lense Lens CCD 18 LED Infrared Night Vision Day Pitch Black Condition Heavy Duty 18-Months Australian Warranty 7-inch Quad View Split Screen TFT LCD digital monitor 4-Pin Waterproof video cable industry standard IP68 Dustproof CE FCC Approved RoHS Compliant Certified
IRCAM4P01 12V 24V DC 2 3 4 Camera System Caravan Truck Trailer Bus Car Bus Van Lorry Goods Parking Reversing Park Reverse Safety Camera Surveillance Sony Lense Lens CCD 18 LED Infrared Night Vision Day Pitch Black Condition Heavy Duty 18-Months Australian Warranty 7-inch Quad View Split Screen TFT LCD digital monitor 4-Pin Waterproof video cable industry standard IP68 Dustproof CE FCC Approved RoHS Compliant Certified
IRCAM4P01 12V 24V DC 2 3 4 Camera System Caravan Truck Trailer Bus Car Bus Van Lorry Goods Parking Reversing Park Reverse Safety Camera Surveillance Sony Lense Lens CCD 18 LED Infrared Night Vision Day Pitch Black Condition Heavy Duty 18-Months Australian Warranty 7-inch Quad View Split Screen TFT LCD digital monitor 4-Pin Waterproof video cable industry standard IP68 Dustproof CE FCC Approved RoHS Compliant Certified
IRCAM4P02 12V 24V DC 2 3 4 Channels Camera System Caravan Motorhome Truck Trailer Bus Car Bus Van Lorry Goods Parking Reversing Park Reverse Safety Camera Surveillance Sony Lense Lens CCD 18 LED Infrared Night Vision Day Pitch Black Condition Heavy Duty 18-Months Australian Warranty 7-inch Quad View Split Screen TFT LCD digital monitor 4-Pin Waterproof video cable industry standard IP68 Dustproof CE FCC Approved RoHS Compliant Certified
IRCAM4P02 12V 24V DC 2 3 4 Channels Camera System Caravan Motorhome Truck Trailer Bus Car Bus Van Lorry Goods Parking Reversing Park Reverse Safety Camera Surveillance Sony Lense Lens CCD 18 LED Infrared Night Vision Day Pitch Black Condition Heavy Duty 18-Months Australian Warranty 7-inch Quad View Split Screen TFT LCD digital monitor 4-Pin Waterproof video cable industry standard IP68 Dustproof CE FCC Approved RoHS Compliant Certified
IRCAM4P02 12V 24V DC 2 3 4 Channels Camera System Caravan Motorhome Truck Trailer Bus Car Bus Van Lorry Goods Parking Reversing Park Reverse Safety Camera Surveillance Sony Lense Lens CCD 18 LED Infrared Night Vision Day Pitch Black Condition Heavy Duty 18-Months Australian Warranty 7-inch Quad View Split Screen TFT LCD digital monitor 4-Pin Waterproof video cable industry standard IP68 Dustproof CE FCC Approved RoHS Compliant Certified
IRCAM4P02 12V 24V DC 2 3 4 Channels Camera System Caravan Motorhome Truck Trailer Bus Car Bus Van Lorry Goods Parking Reversing Park Reverse Safety Camera Surveillance Sony Lense Lens CCD 18 LED Infrared Night Vision Day Pitch Black Condition Heavy Duty 18-Months Australian Warranty 7-inch Quad View Split Screen TFT LCD digital monitor 4-Pin Waterproof video cable industry standard IP68 Dustproof CE FCC Approved RoHS Compliant Certified
IRCAM4P02 12V 24V DC 2 3 4 Channels Camera System Caravan Motorhome Truck Trailer Bus Car Bus Van Lorry Goods Parking Reversing Park Reverse Safety Camera Surveillance Sony Lense Lens CCD 18 LED Infrared Night Vision Day Pitch Black Condition Heavy Duty 18-Months Australian Warranty 7-inch Quad View Split Screen TFT LCD digital monitor 4-Pin Waterproof video cable industry standard IP68 Dustproof CE FCC Approved RoHS Compliant Certified
IRCAM4P02 12V 24V DC 2 3 4 Channels Camera System Caravan Motorhome Truck Trailer Bus Car Bus Van Lorry Goods Parking Reversing Park Reverse Safety Camera Surveillance Sony Lense Lens CCD 18 LED Infrared Night Vision Day Pitch Black Condition Heavy Duty 18-Months Australian Warranty 7-inch Quad View Split Screen TFT LCD digital monitor 4-Pin Waterproof video cable industry standard IP68 Dustproof CE FCC Approved RoHS Compliant Certified
IRCAM4P01 12V 24V DC 2 3 4 Channels Camera System Caravan Motorhome Truck Trailer Bus Car Bus Van Lorry Goods Parking Reversing Park Reverse Safety Camera Surveillance Sony Lense Lens CCD 18 LED Infrared Night Vision Day Pitch Black Condition Heavy Duty 18-Months Australian Warranty 7-inch Quad View Split Screen TFT LCD digital monitor 4-Pin Waterproof video cable industry standard IP68 Dustproof CE FCC Approved RoHS Compliant Certified
IRCAM4P02 12V 24V DC 2 3 4 Channels Camera System Caravan Motorhome Truck Trailer Bus Car Bus Van Lorry Goods Parking Reversing Park Reverse Safety Camera Surveillance Sony Lense Lens CCD 18 LED Infrared Night Vision Day Pitch Black Condition Heavy Duty 18-Months Australian Warranty 7-inch Quad View Split Screen TFT LCD digital monitor 4-Pin Waterproof video cable industry standard IP68 Dustproof CE FCC Approved RoHS Compliant Certified
IRCAM4P02 12V 24V DC 2 3 4 Camera System Caravan Motorhome Truck Trailer Bus Car Bus Van Lorry Goods Parking Reversing Park Reverse Safety Camera Surveillance Sony Lense Lens CCD 18 LED Infrared Night Vision Day Pitch Black Condition Heavy Duty 18-Months Australian Warranty 7-inch Quad View Split Screen TFT LCD digital monitor 4-Pin Waterproof video cable industry standard IP68 Dustproof CE FCC Approved RoHS Compliant Certified
IRCAM4P02 12V 24V DC 2 3 4 Camera System Caravan Motorhome Truck Trailer Bus Car Bus Van Lorry Goods Parking Reversing Park Reverse Safety Camera Surveillance Sony Lense Lens CCD 18 LED Infrared Night Vision Day Pitch Black Condition Heavy Duty 18-Months Australian Warranty 7-inch Quad View Split Screen TFT LCD digital monitor 4-Pin Waterproof video cable industry standard IP68 Dustproof CE FCC Approved RoHS Compliant Certified
IRCAM4P02 12V 24V DC 2 3 4 Channels Camera System Caravan Motorhome Truck Trailer Bus Car Bus Van Lorry Goods Parking Reversing Park Reverse Safety Camera Surveillance Sony Lense Lens CCD 18 LED Infrared Night Vision Day Pitch Black Condition Heavy Duty 18-Months Australian Warranty 7-inch Quad View Split Screen TFT LCD digital monitor 4-Pin Waterproof video cable industry standard IP68 Dustproof CE FCC Approved RoHS Compliant Certified
IRCAM4P02 12V 24V DC 2 3 4 Channels Camera System Caravan Motorhome Truck Trailer Bus Car Bus Van Lorry Goods Parking Reversing Park Reverse Safety Camera Surveillance Sony Lense Lens CCD 18 LED Infrared Night Vision Day Pitch Black Condition Heavy Duty 18-Months Australian Warranty 7-inch Quad View Split Screen TFT LCD digital monitor 4-Pin Waterproof video cable industry standard IP68 Dustproof CE FCC Approved RoHS Compliant Certified
IRCAM4P02 12V 24V DC 2 3 4 Channels Camera System Caravan Motorhome Truck Trailer Bus Car Bus Van Lorry Goods Parking Reversing Park Reverse Safety Camera Surveillance Sony Lense Lens CCD 18 LED Infrared Night Vision Day Pitch Black Condition Heavy Duty 18-Months Australian Warranty 7-inch Quad View Split Screen TFT LCD digital monitor 4-Pin Waterproof video cable industry standard IP68 Dustproof CE FCC Approved RoHS Compliant Certified
Features and description

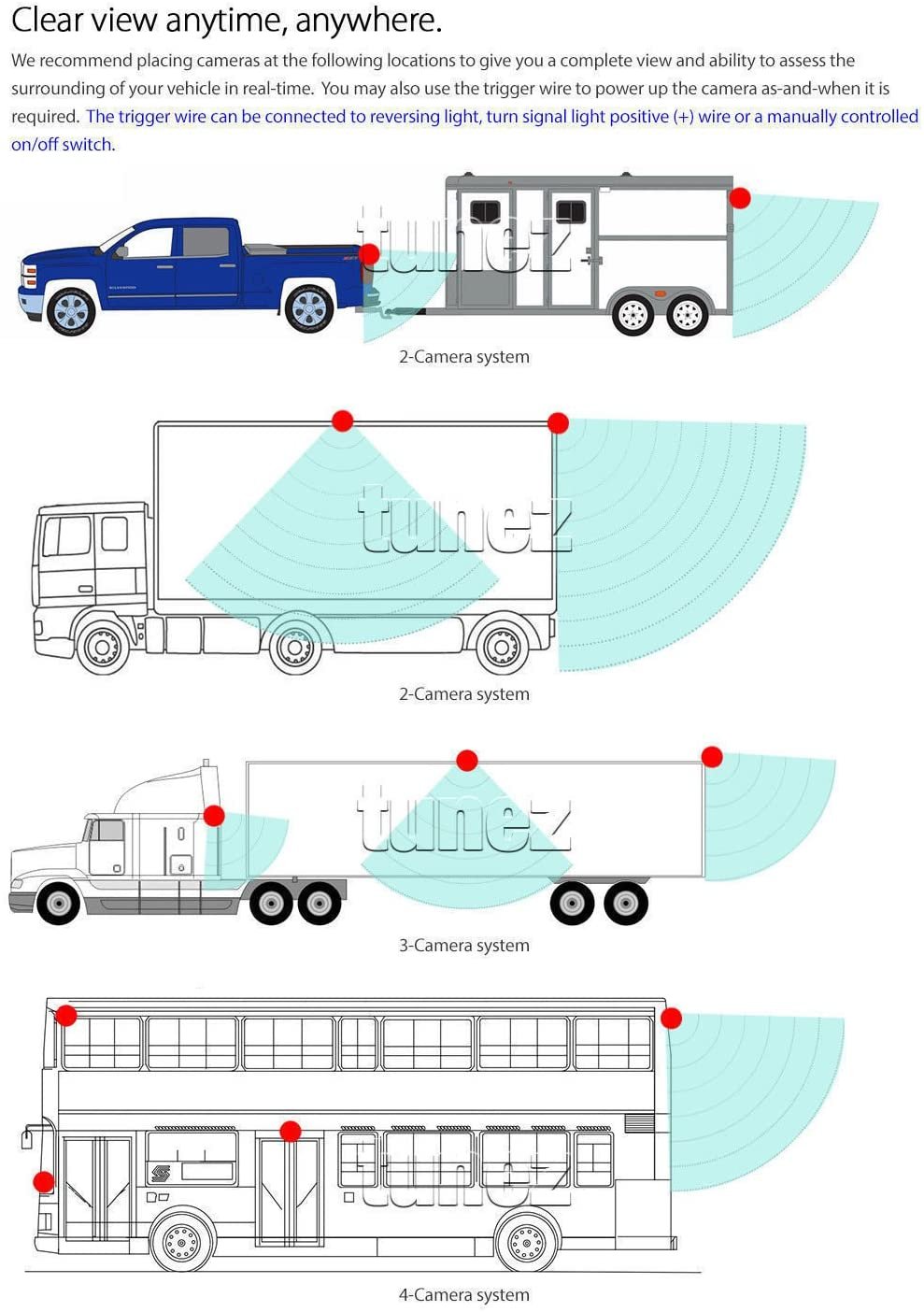

This is a set of heavy duty 2-infrared CCD camera system with 7-inch quad view TFT LCD digital monitor to assist you in your daily driving. It gives you a complete view and ability to assess the surrounding of your vehicle in real-time.

Supports both 12V and 24V vehicles.


Note: This set is a 2-infrared CCD camera system. Please follow the link below for other variations.
http://www.ebay.com.au/itm/232072300059(4-infrared CCD camera system)
http://www.ebay.com.au/itm/232072326213
(3-infrared CCD camera system)

All buyers, kindly note:
• Please ask installer to bench test monitor and cameras to ensure it is in working condition before installation.

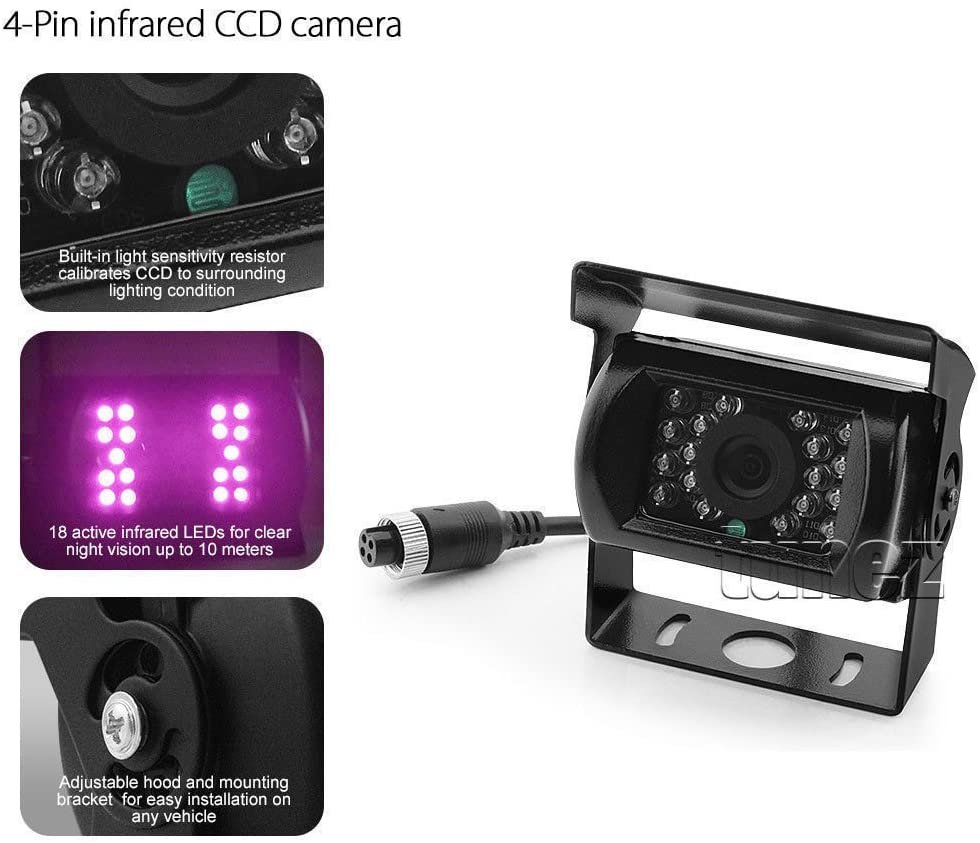

Infrared CCD Camera
Image sensor

Full colour SONY® CCD

Casing

Heavy duty alloy

Casing protection rating

- IP68
-
Waterproof and dustproof
- Submersible up to 1-meter (3-feet)

TV system

NTSC / PAL

Horizontal resolution

420 TV lines

Effective pixels

NTSC: 512 x 492 pixels
PAL: 512 x 582 pixels

Optical size

1/3: 4.9 mm x 3.7 mm

Minimum illumination

- 1.0 lux/F=1.2
(0 lux with active infrared turned on)
-
Works in pitch black condition

Viewing angle

120 degree

Night vision

10 meters

Video output

4-Pin connector, 1.0Vp-p/75Ω

Power consumption

50-60 mA, maximum 300mA with infrared turned on

Power supply

- DC 12V ~ 24V
- Suitable for car, caravan, bus, van, truck, trailer, motorhome, etc.
- Sourced from 7-inch monitor power adapter via 4-Pin connector

Operating temperature

-20°C ~ 60°C, RH 95% max.

Storage temperature

-40°C ~ 68°C, RH 95% max.

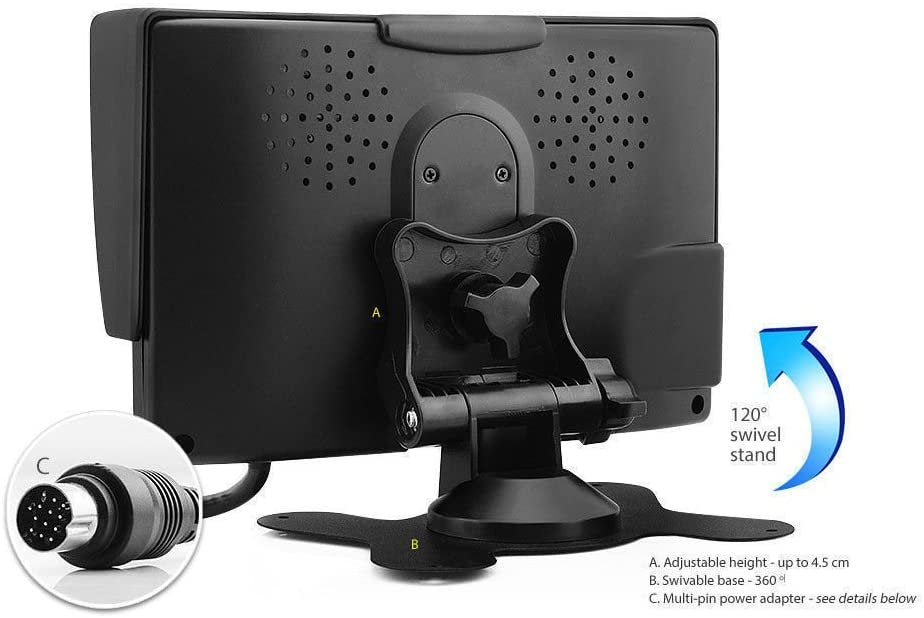

7-inch High resolution digital TFT LCD monitor
Screen size

- 7" (diagonal)
- With detachable sunshade

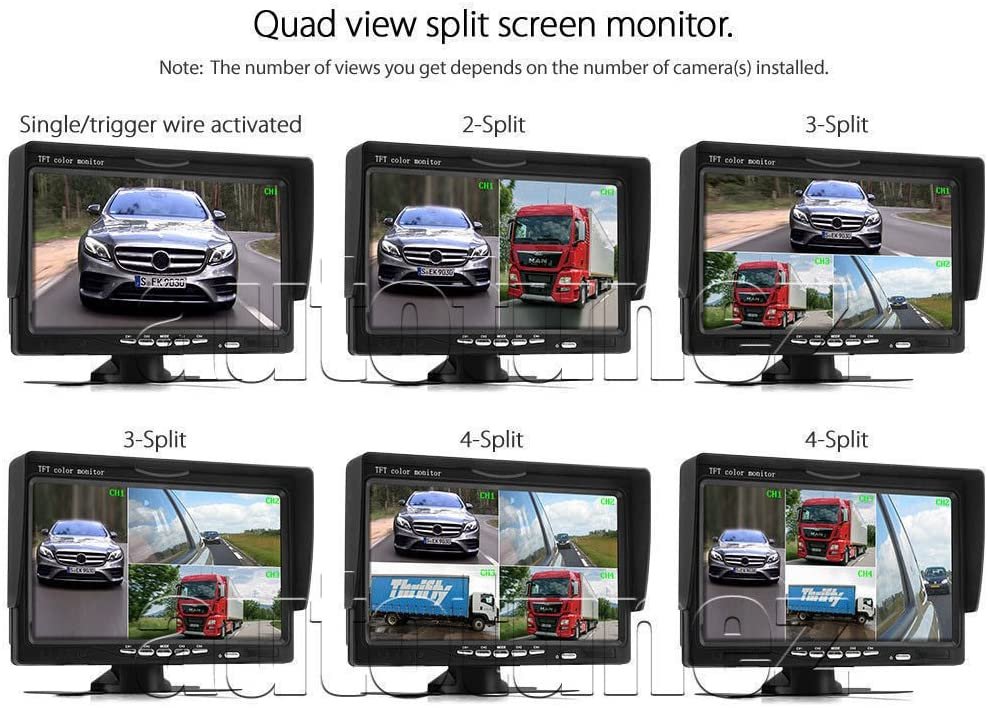

Split-screen

- Supports 2, 3 & 4 screen mode
- Note: The number of split screen views you get depends on the number of camera(s) installed

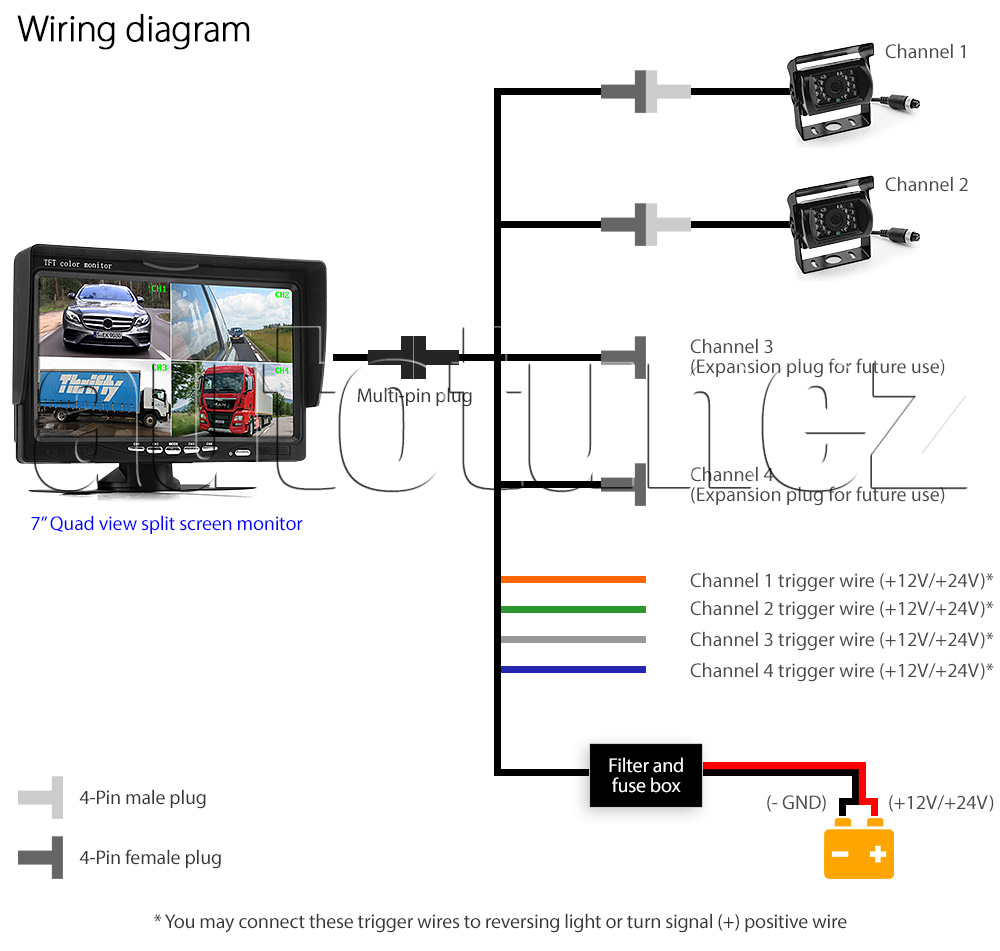

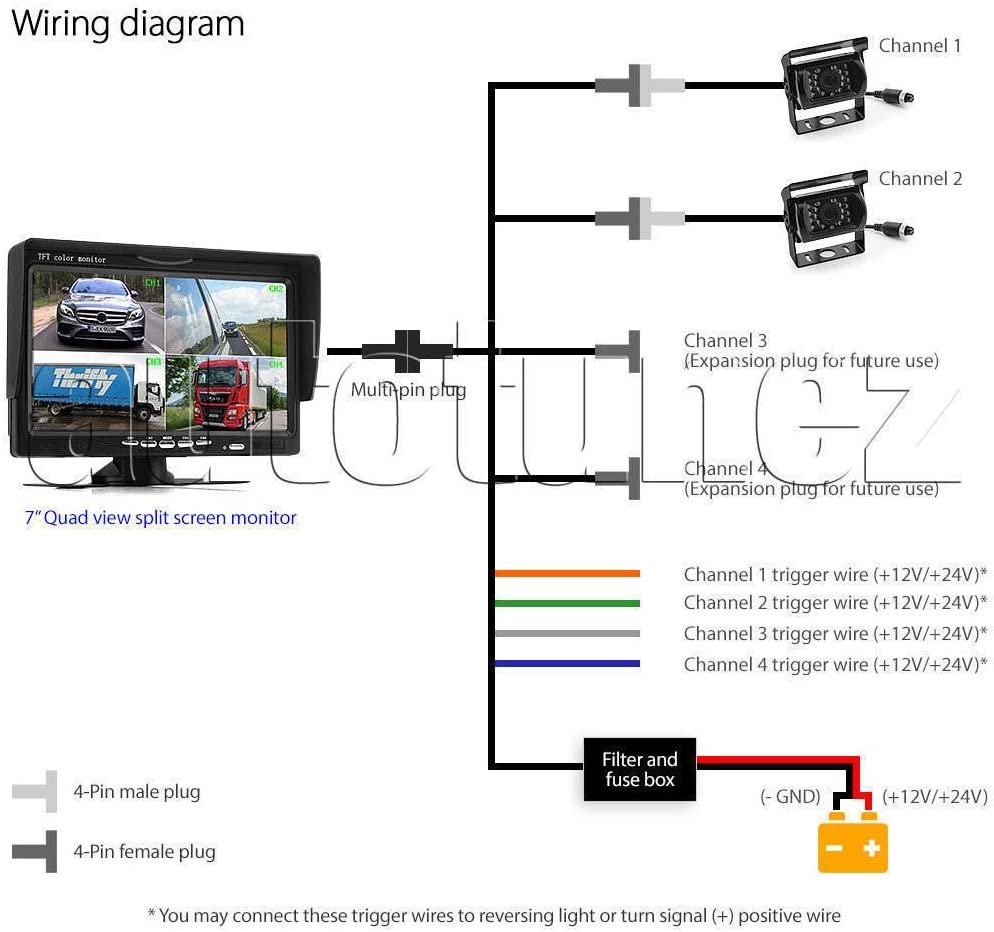

Auto-switching full-screen mode

Auto-switching full-screen trigger wire enables you to view selected camera on a full-screen mode before switching back to the previous state:
- For example, the monitor is on 4-split screen mode and you engaged into reversing gear. The screen will then automatically switches to a full-screen rear camera mode for a bigger and clearer picture. This can be achieved by
connecting the trigger wire to reversing light positive wire or it’s fuse box.
- Alternatively, you can also connect the trigger wire to turn signal or manually control the trigger wire by
connecting it to an on/off switch.

TV system

NTSC / PAL (auto switch)

Screen resolution

800 x 480 pixels

Effective viewing area

(H) x (V) : 156 mm x 88 mm

Gamut display

NTSC 60%

Power supply

- DC 12V ~ 24V
- Suitable for car, caravan, bus, van, truck, trailer, motorhome, etc.
- 4-Pin power adapter also supplies power to cameras

Operating temperature

-20°C ~ 70°C

Storage temperature

-30°C ~ 80°C


Industry standard 4-Pin cable
Housing and knurled nut

- Brass and nickel-plated
- Suitable for all weather conditions

Waterproof

Using threaded fittings plug and socket ensures every connection is watertight

Internal housing

- Bakelite
- Heat resistant and extremely durable

Insulation

- PVC
- Provides good shielding from flame, moisture and corrosion resistant

Conductor

- Copper wire
- IACS approved copper for higher conductivity and stable signal transmission
- It also provides
power supply to the cameras


Connectors and hardware

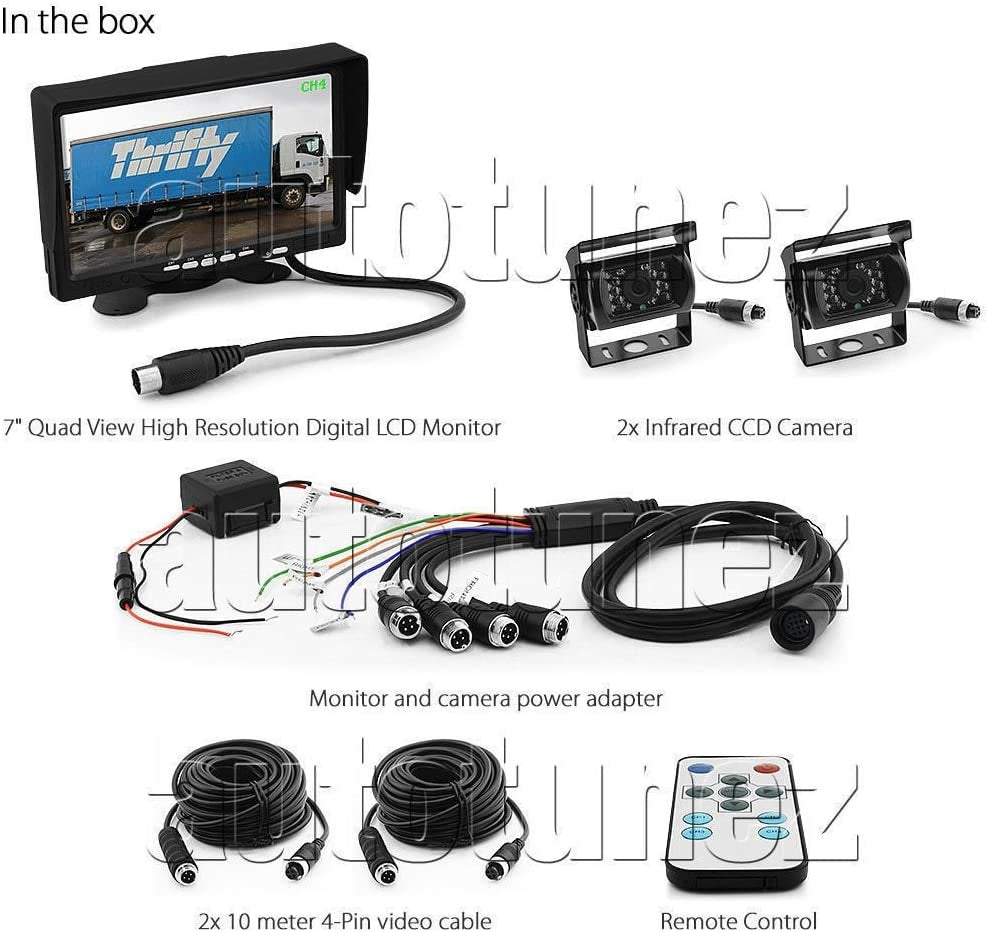

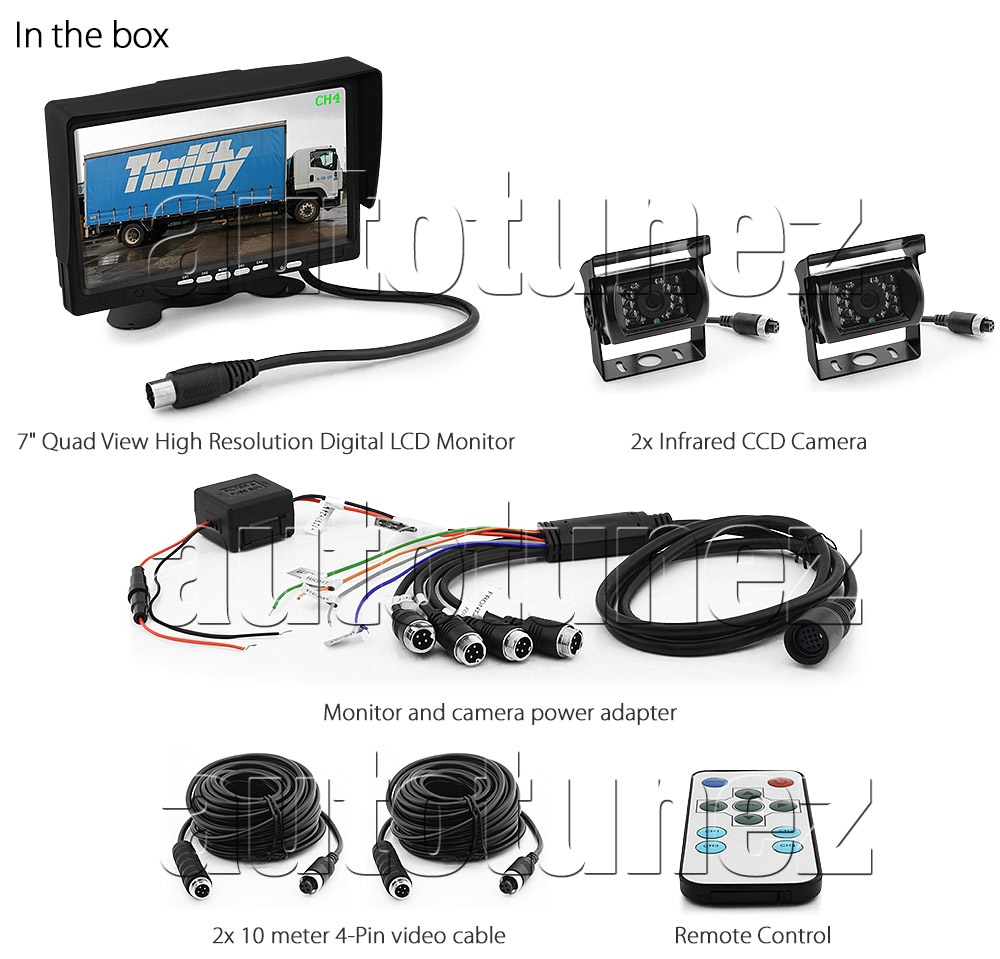

Accessories

- 2 units of infrared CCD camera
- 2 units 10-meter 4-Pin video cable
- 7-inch Quad view TFT LCD digital monitor

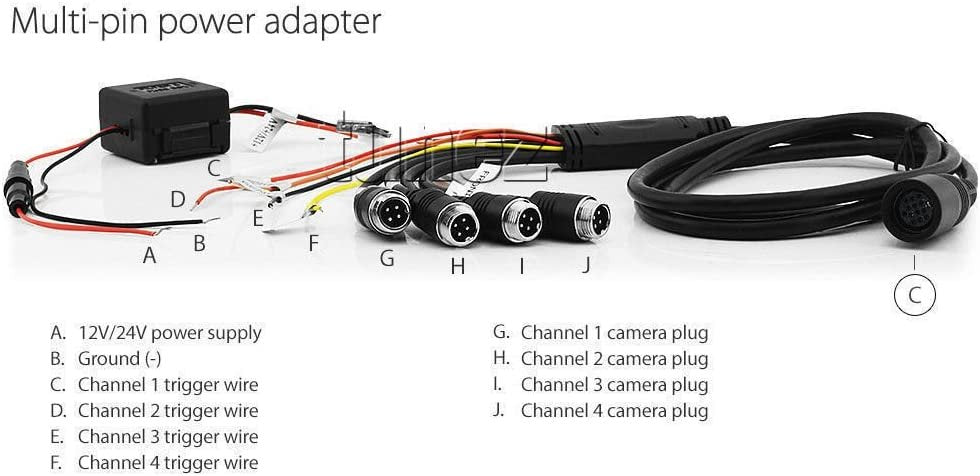

- Multi-pin power adapter
- Remote control
