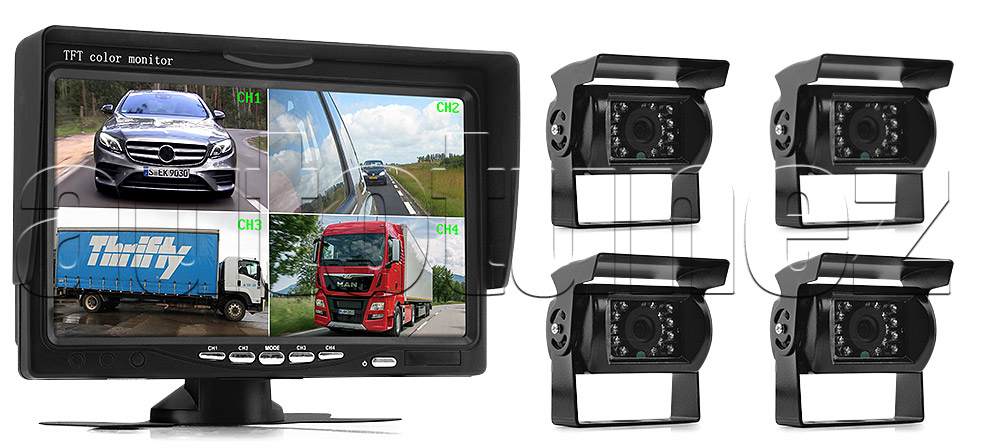

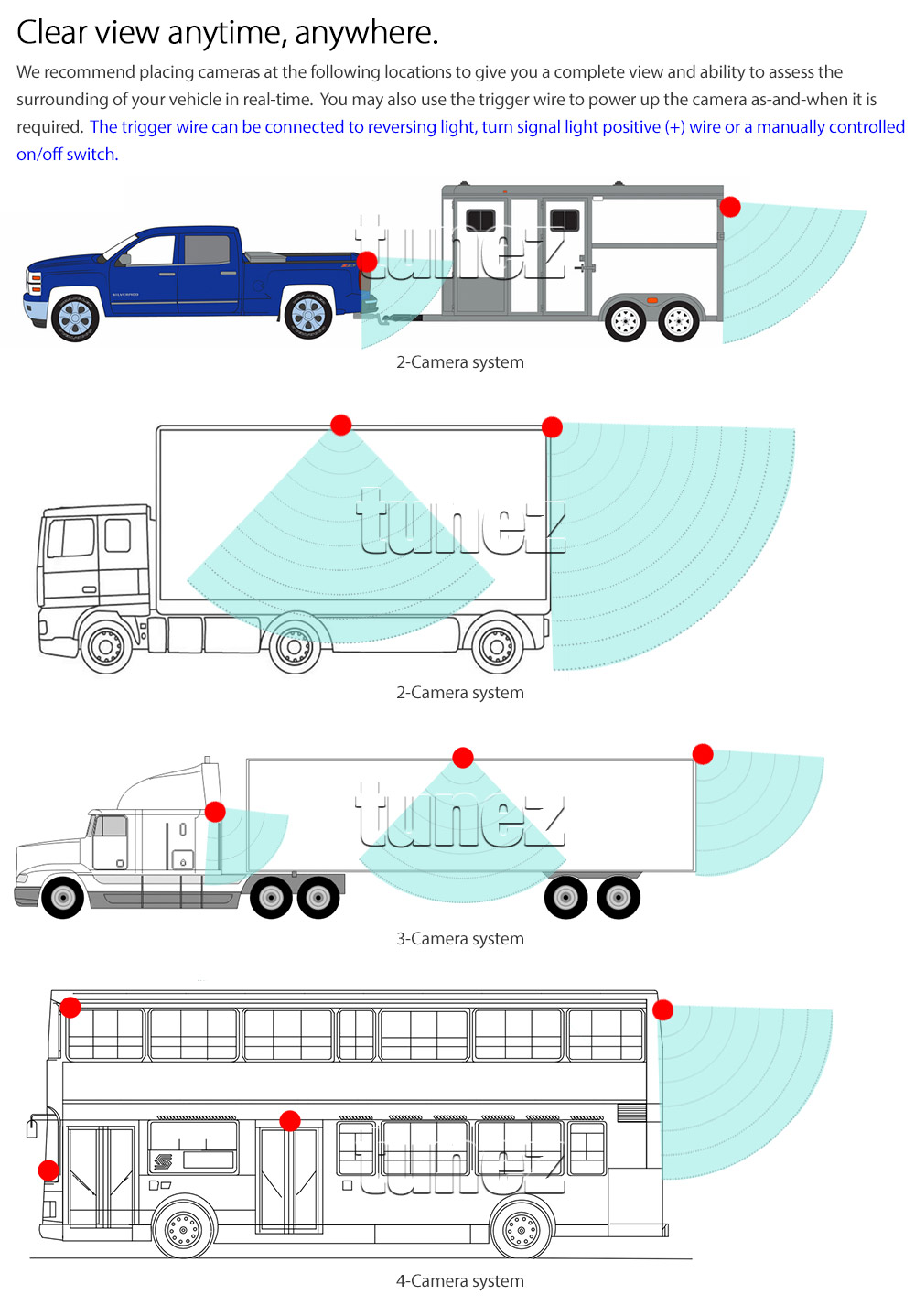

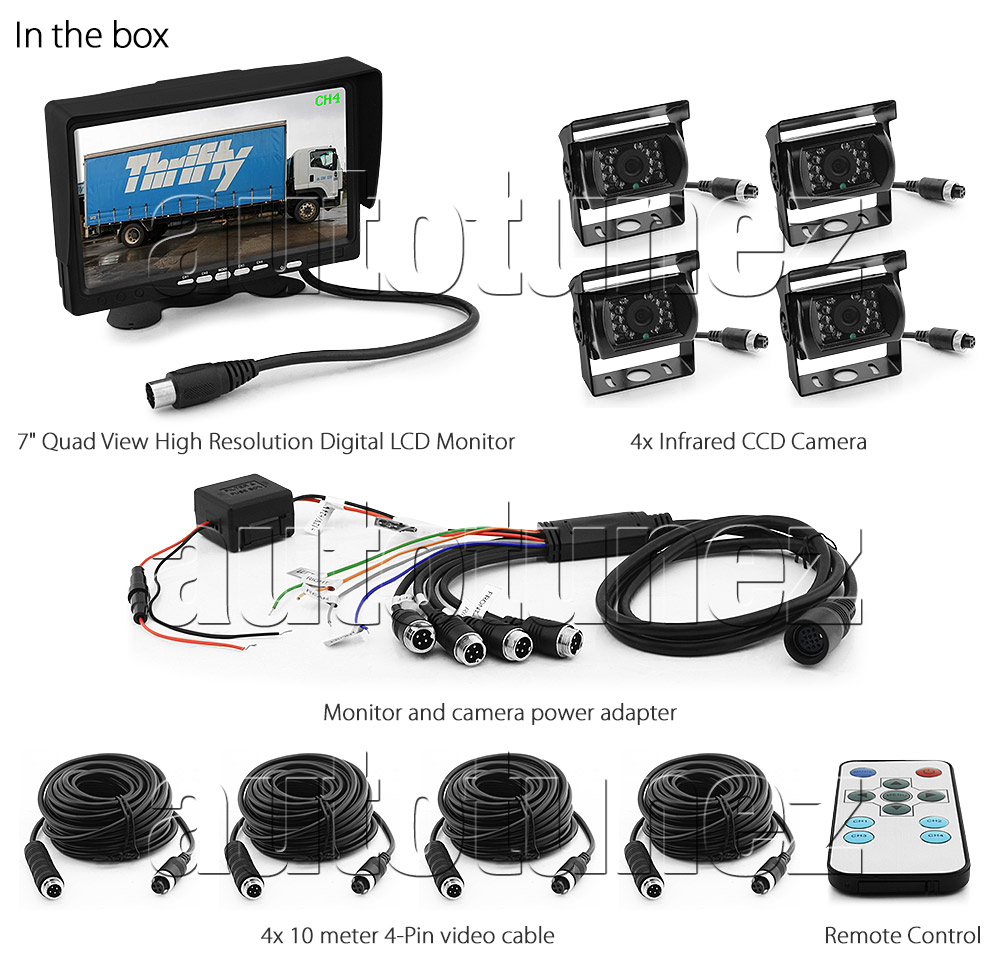

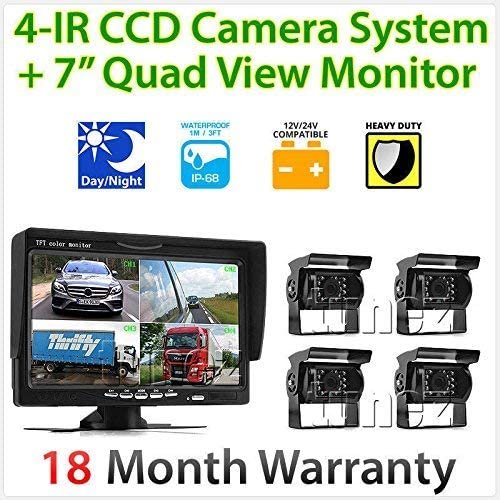

This is a set of heavy duty 4-infrared CCD camera system with 7-inch quad view TFT LCD digital monitor to assist you in your daily driving. It gives you a complete view and ability to assess the surrounding of your vehicle in real-time.
Supports both 12V and 24V vehicles.
Note: This set is a 4-infrared CCD camera system. Please follow the link below for other variations.
http://www.ebay.com.au/itm/232072326213(3-infrared CCD camera system)
http://www.ebay.com.au/itm/232072336607(2-infrared CCD camera system)
All buyers, kindly note:
• Please ask installer to bench test monitor and cameras to ensure it is in working condition before installation.
|

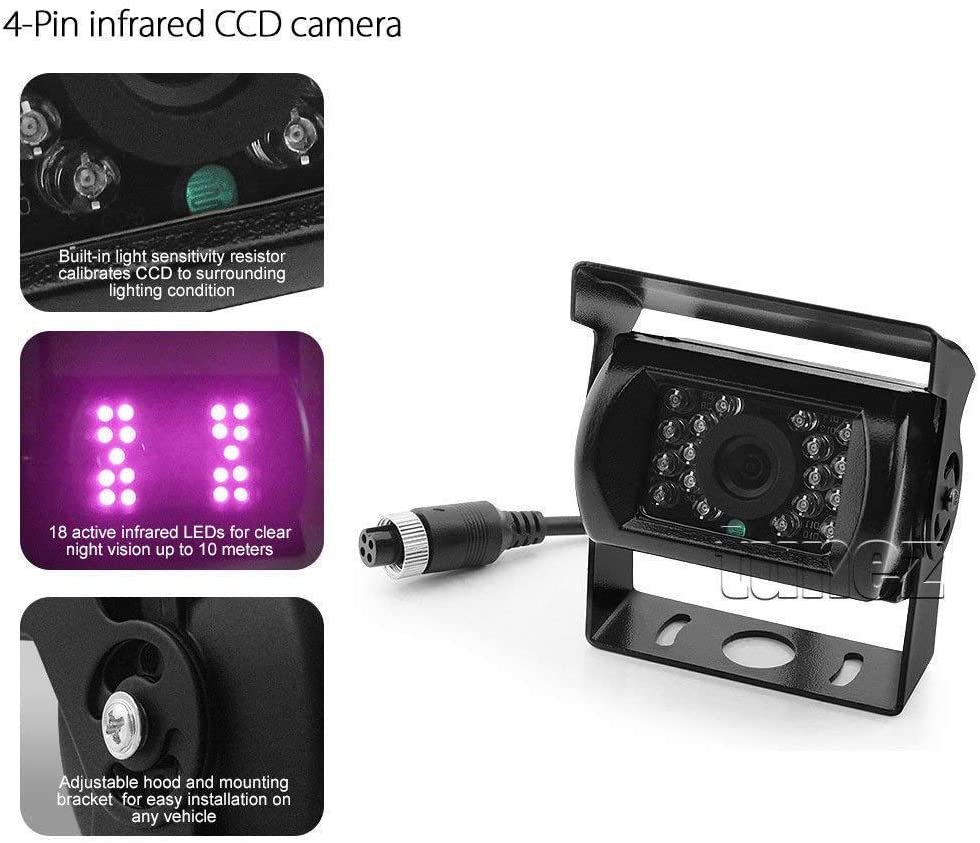

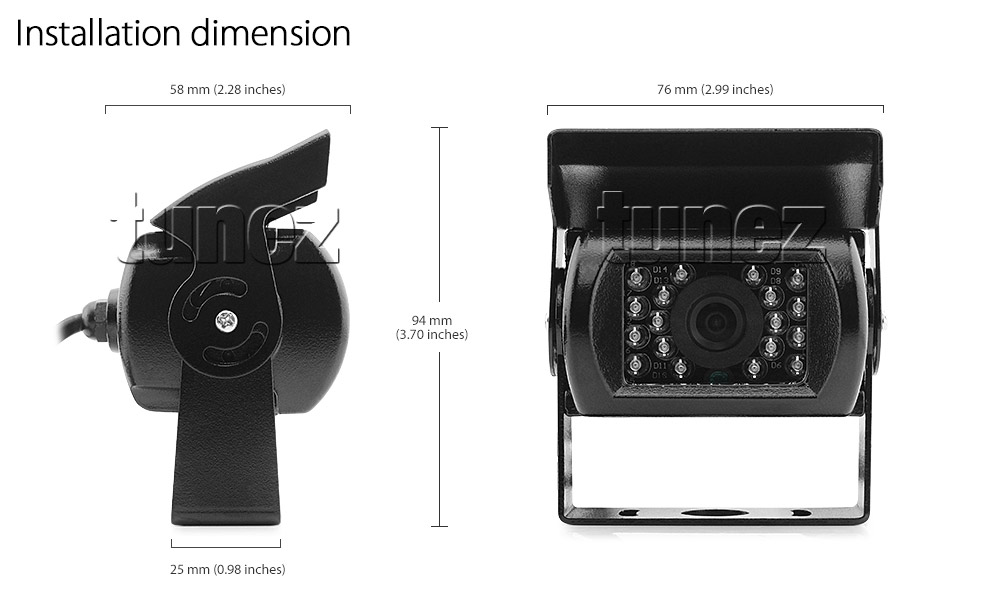

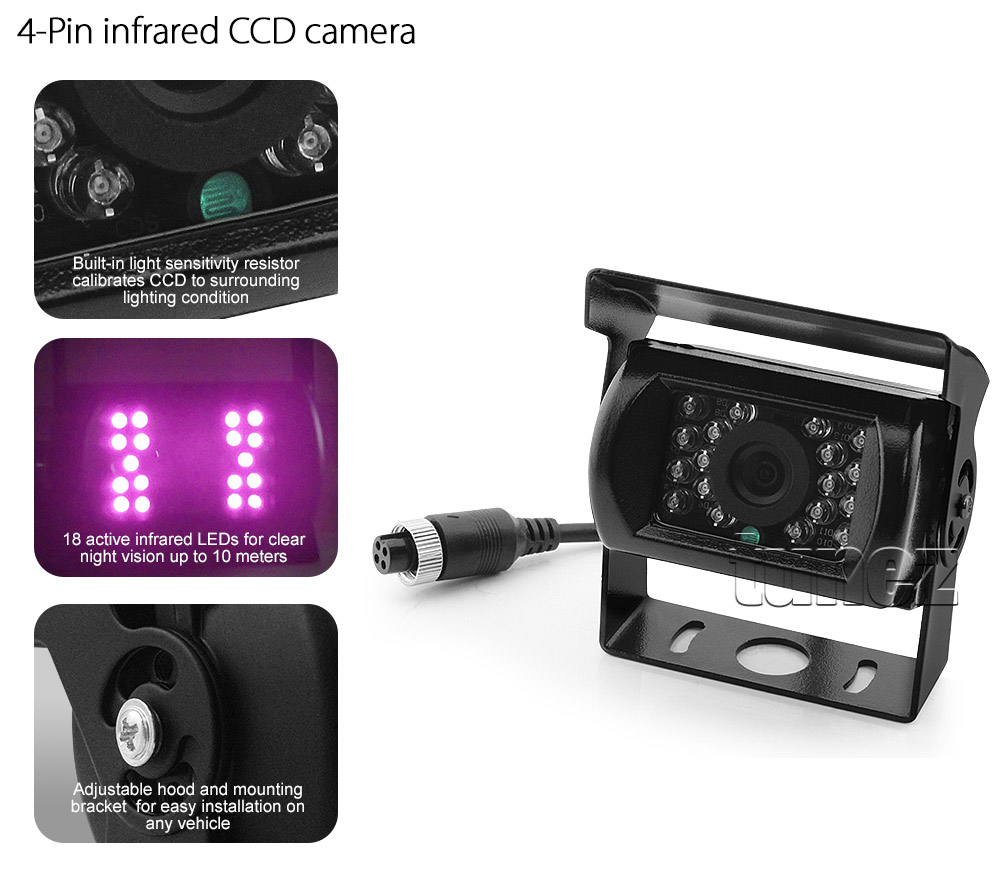

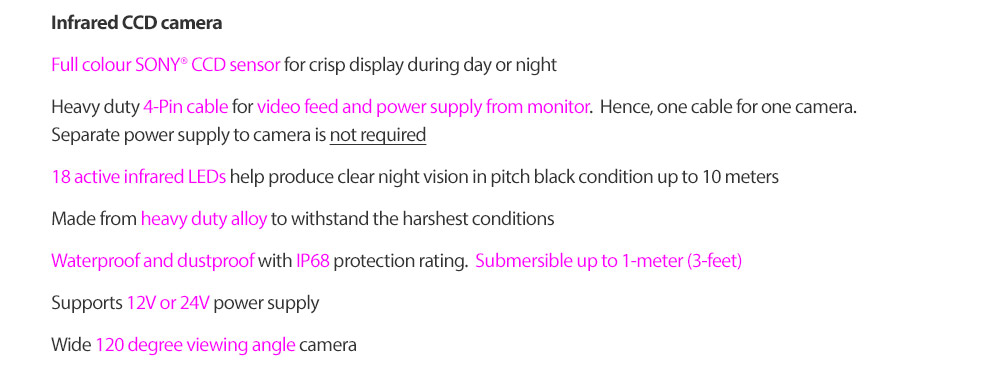

Infrared CCD Camera
Image sensor |
Full colour SONY® CCD
|
Casing |
Heavy duty alloy
|
Casing protection rating |
- IP68
- Waterproof and dustproof
- Submersible up to 1-meter (3-feet)
|
TV system |
NTSC / PAL
|
Horizontal resolution |
420 TV lines
|
Effective pixels |
NTSC: 512 x 492 pixels
PAL: 512 x 582 pixels
|
Optical size |
1/3: 4.9 mm x 3.7 mm
|
Minimum illumination |
- 1.0 lux/F=1.2
(0 lux with active infrared turned on)
- Works in pitch black condition
|
Viewing angle |
120 degree
|
Night vision |
10 meters
|
Video output |
4-Pin connector, 1.0Vp-p/75Ω
|
Power consumption |
50-60 mA, maximum 300mA with infrared turned on
|
Power supply |
- DC 12V ~ 24V
- Suitable for car, caravan, bus, van, truck, trailer, motorhome, etc.
- Sourced from 7-inch monitor power adapter via 4-Pin connector
|
Operating temperature |
-20°C ~ 60°C, RH 95% max.
|
Storage temperature |
-40°C ~ 68°C, RH 95% max.
|

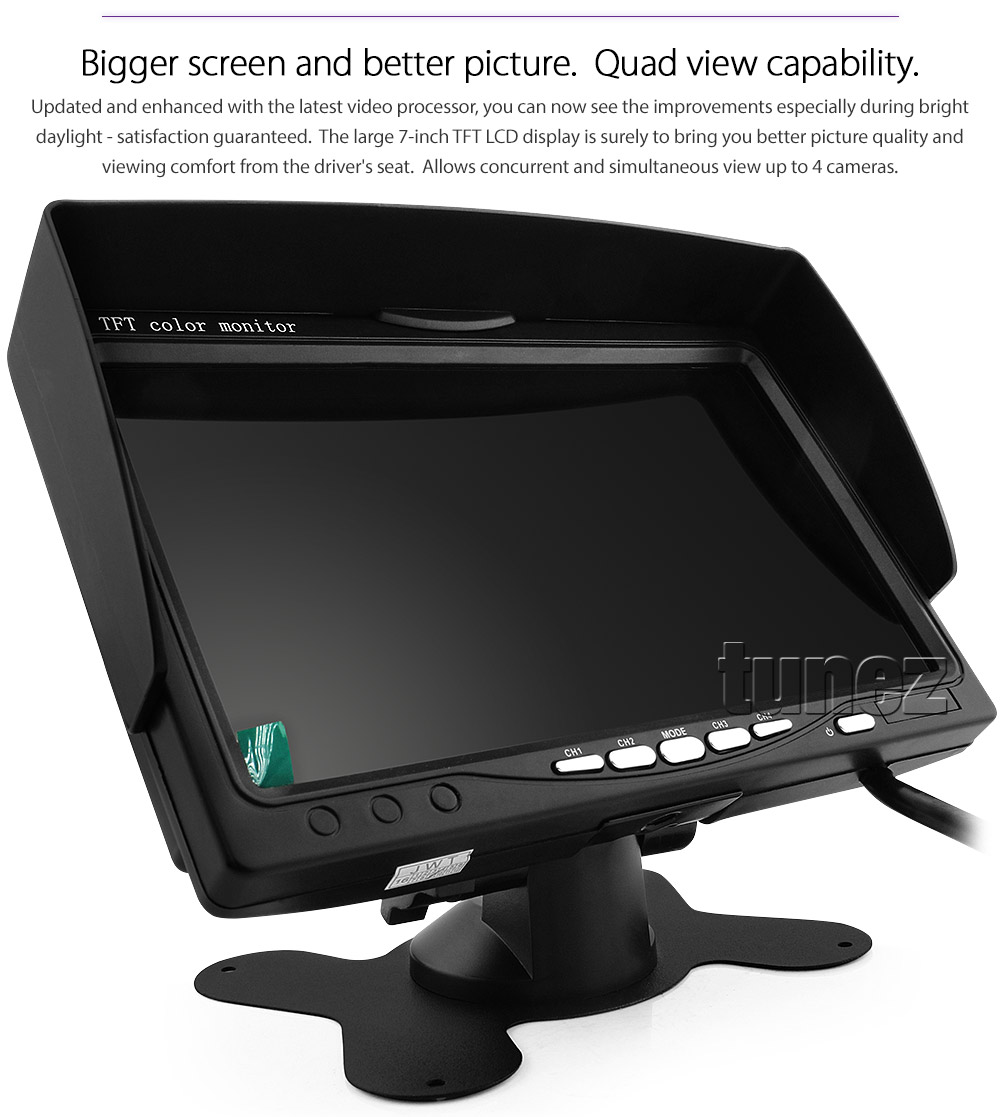

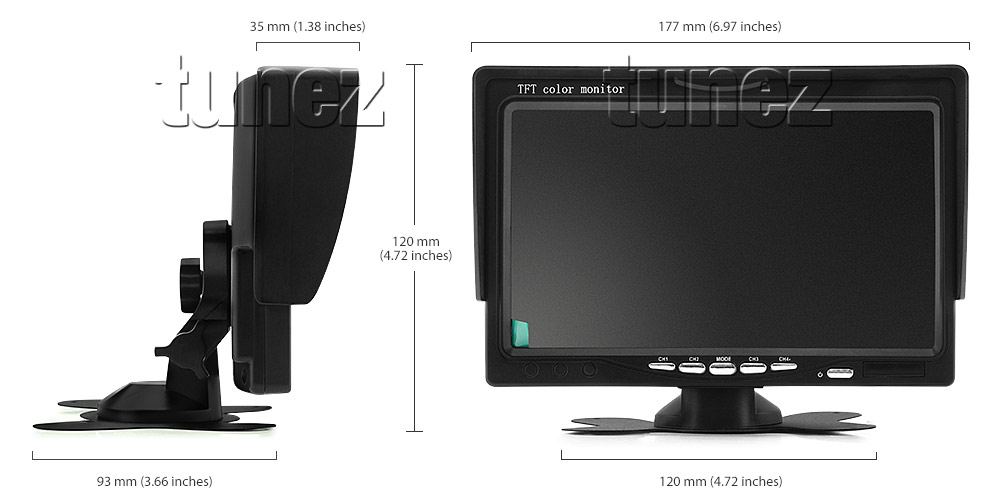

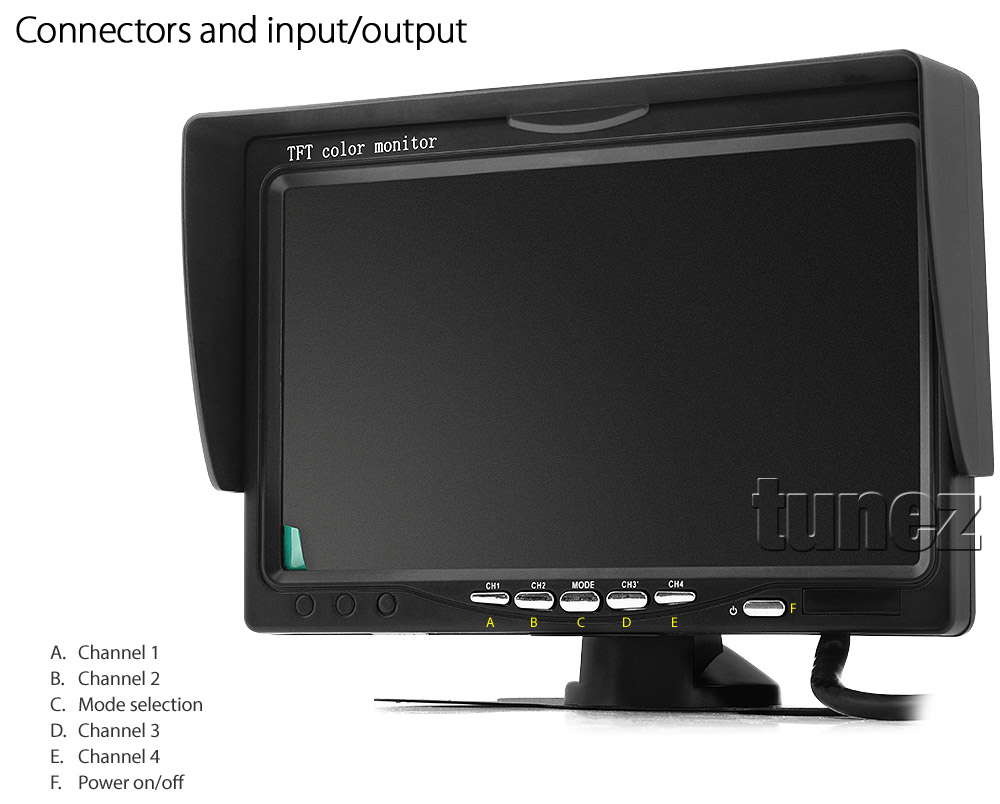

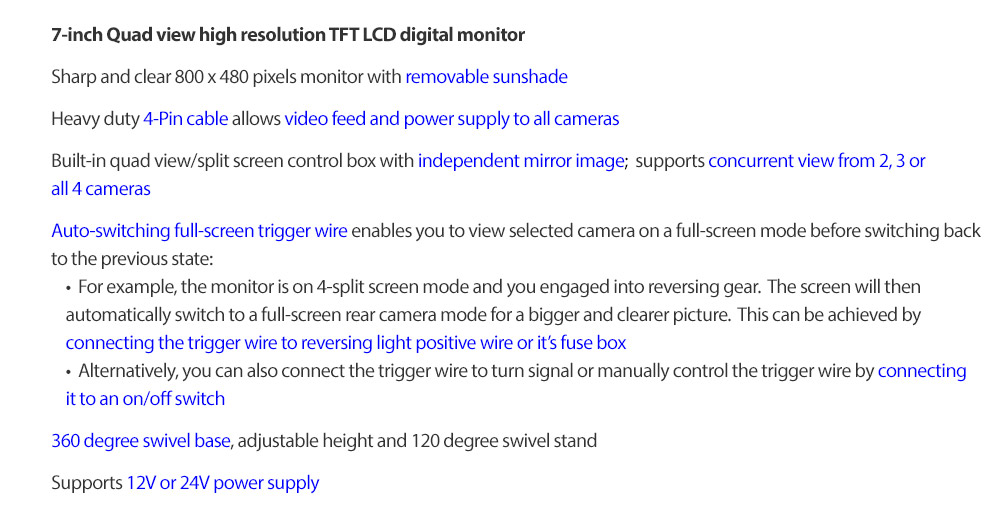

7-inch High resolution digital TFT LCD monitor
Screen size |
- 7" (diagonal)
- With detachable sunshade
|

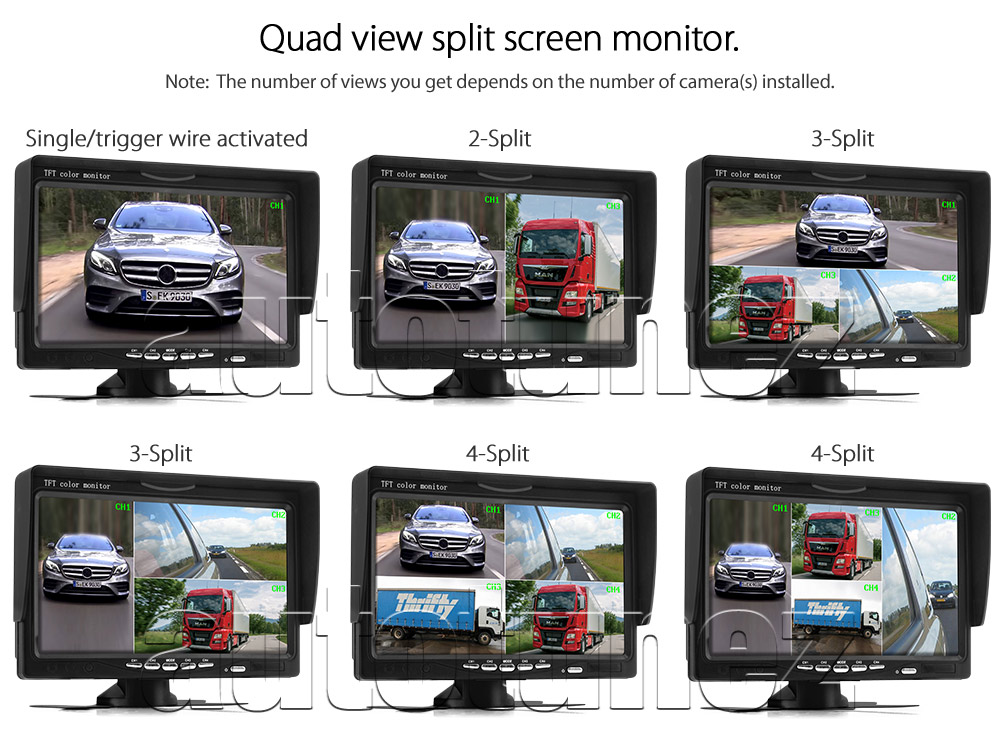

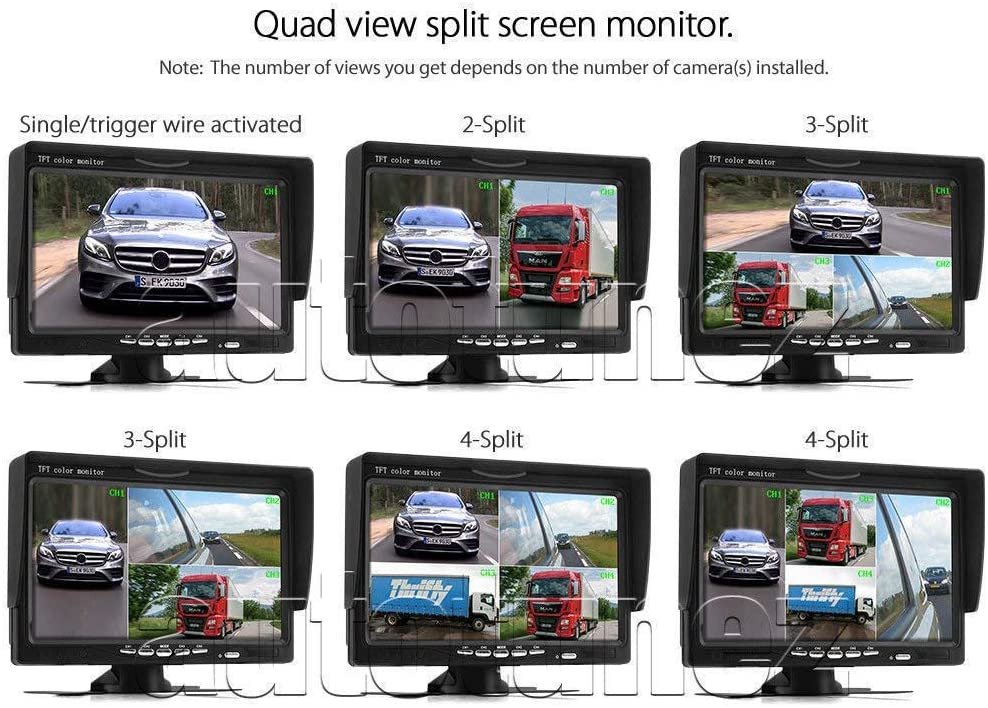

Split-screen |
- Supports 2, 3 & 4 screen mode
- Note: The number of split screen views you get depends on the number of camera(s) installed
|
Auto-switching full-screen mode |

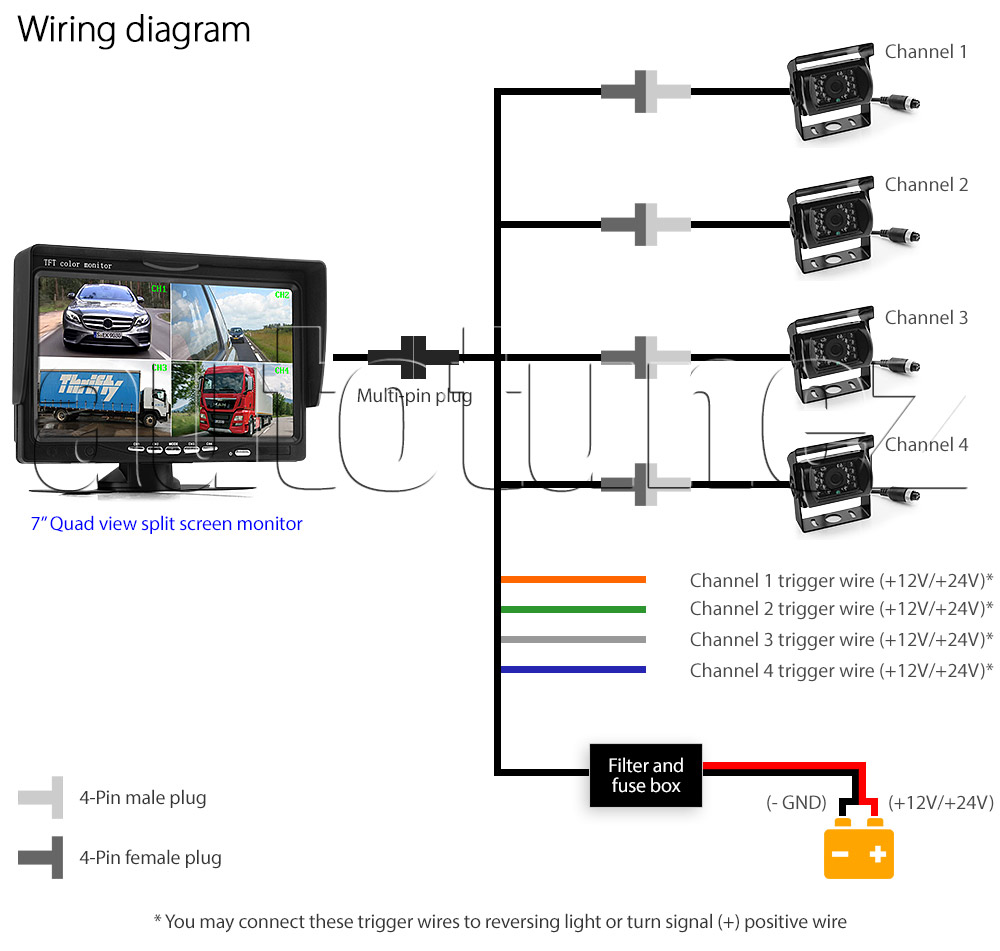

Auto-switching full-screen trigger wire enables you to view selected camera on a full-screen mode before switching back to the previous state:
- For example, the monitor is on 4-split screen mode and you engaged into reversing gear. The screen will then automatically switches to a full-screen rear camera mode for a bigger and clearer picture. This can be achieved by connecting the trigger wire to reversing light positive wire or it’s fuse box.
- Alternatively, you can also connect the trigger wire to turn signal or manually control the trigger wire by connecting it to an on/off switch.
|
TV system |
NTSC / PAL (auto switch)
|
Screen resolution |
800 x 480 pixels
|
Effective viewing area |
(H) x (V) : 156 mm x 88 mm
|
Gamut display |
NTSC 60%
|

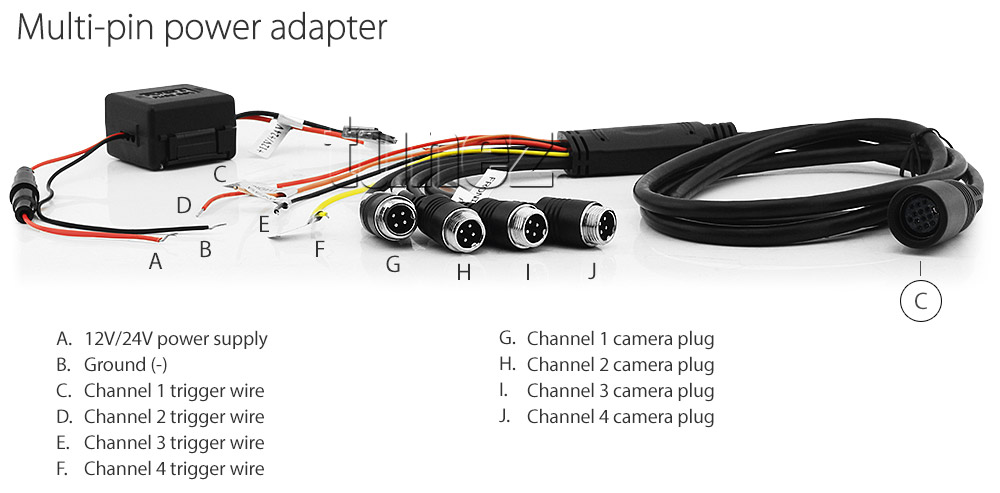

Power supply |
- DC 12V ~ 24V
- Suitable for car, caravan, bus, van, truck, trailer, motorhome, etc.
- 4-Pin power adapter also supplies power to cameras
|
Operating temperature |
-20°C ~ 70°C
|
Storage temperature |
-30°C ~ 80°C
|

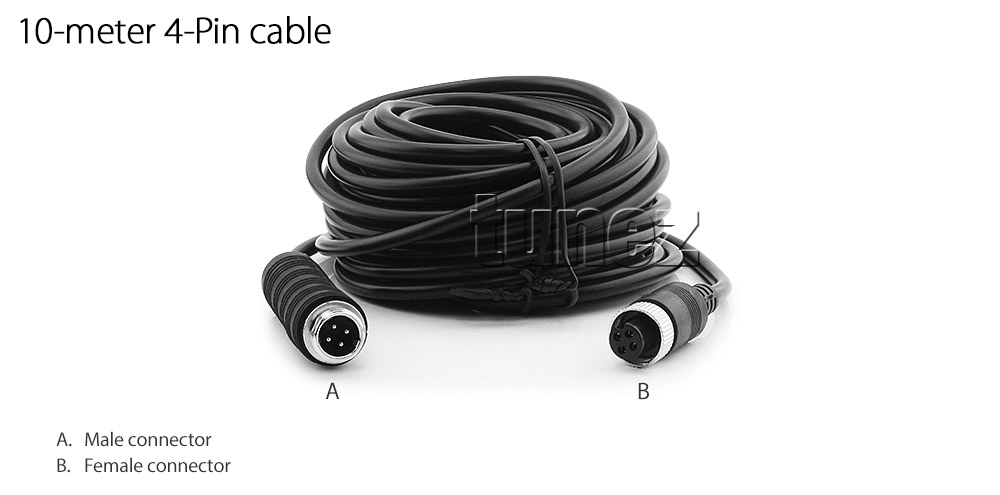

Industry standard 4-Pin cable
Housing and knurled nut |
- Brass and nickel-plated
- Suitable for all weather conditions
|
Waterproof |
Using threaded fittings plug and socket ensures every connection is watertight
|
Internal housing |
- Bakelite
- Heat resistant and extremely durable
|
Insulation |
- PVC
- Provides good shielding from flame, moisture and corrosion resistant
|
Conductor |
- Copper wire
- IACS approved copper for higher conductivity and stable signal transmission
- It also provides power supply to the cameras
|
|
