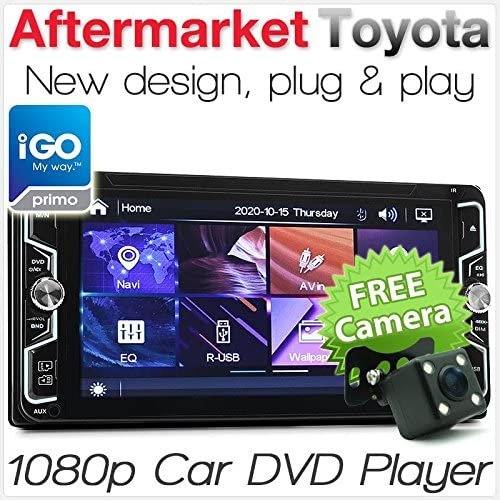

Newly released aftermarket Toyota 7-inch TFT LCD touchscreen car CD/DVD player with GPS receiver. Powered by licensed iGO Primo GPS software.
Piano black finish edition with variable colour illumination.
Plug & Play feature with matching wiring harness and ISO plugs. No need to splice your factory fitted wires!
Beautifully designed user interface.
Note: This model does not include GPS function, for a similar model with GPS function and licensed iGO GPS software and map, kindly click on the link below.
https://www.ebay.com.au/itm/272604549525
All buyers, kindly note:
• Send us a message or e-mail of your vehicle's model, year manufactured and badge/series for compatibility check.
• Please ask installer to bench test head unit to ensure it is in working condition before installation.
|
Compatibility
Toyota car models |
This Toyota car DVD receiver fits most of the following Toyota models below. If you have any doubts, feel free to contact us.
Installation dimension is 200 mm (7.87 inches) x 100 mm (3.94 inches) x 162 mm (6.38 inches), (Width x Height x Depth).
- Camry
- Celica
- Corolla
- Echo
- FJ Cruiser
- Hiace
- Hilux
- Kluger
- Land Cruiser
- MR2
- Prado
- RAV4
- Rukus
- Tarago
- Yaris
- 86 GT
|
GPS
GPS receiver |

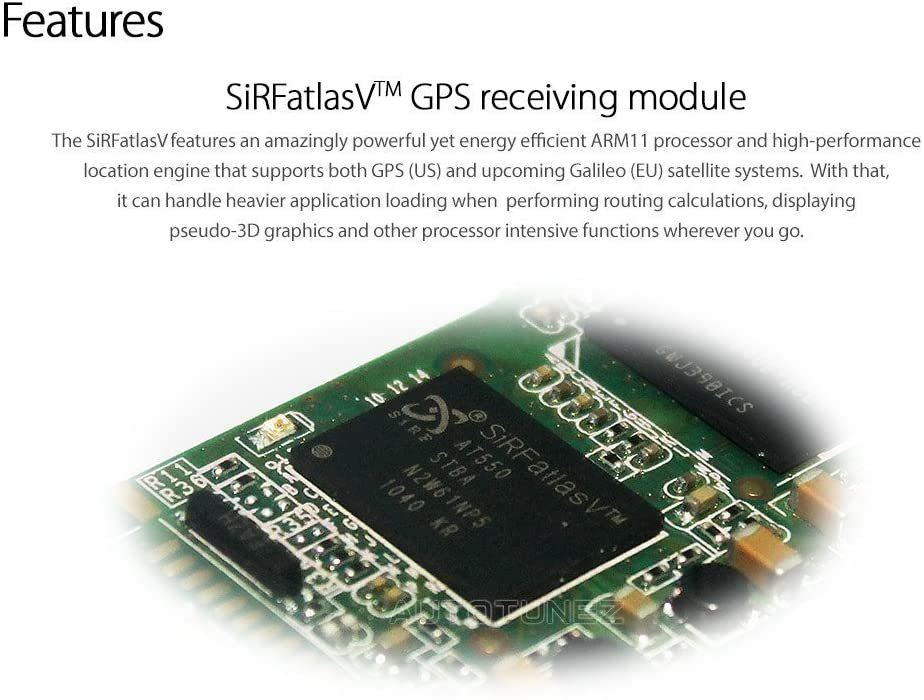

- SiRFatlasV with 64 acquisition channels
- Faster satellite locking !!!
|
GPS processor |
Powerfully fast ARM11 800MHz processor
|
How to check GPS processor? |
The pop-up window below shows GPS module used in this car DVD player. This information is obtained using a 3rd party software i.e. WR-Tools ResInfo.
The information is as follows:
Nowada_2450 |
GPS module assembler |
NWD_2450 multi-platform 6.0 |
GPS module platform version |
Windows Embedded CE 6.0 |
Core operating system for GPS platform i.e. Windows Embedded CE 6.0
|
166MB RAM |
Free 166MB of RAM, 90MB RAM used by system. Total 256MB DD2 RAM |
ARM1136JF-S AT550 |
ARM1136JF-S (ARM11 800MHz GPS processor) / AT550 (SiRFatlasV GPS receiver) |
800 x 480 pixels, 65,536 colours |
High resolution graphics
|
For more information, please feel free to contact us.
|
GPS RAM |
256MB DDR2 RAM
- 2X faster route calculation !!!
- No more lagging and out of memory problem when running Text-To-Speech (TTS) files !!!
- Spoken street name with truly natural human voice !!!
- Smoother 3D image rendering !!!
|
GPS operating system |
Windows CE 6.0
- Detects satellite signal faster than normal GPS unit
- Compatible with major GPS software (for e.g. OziExplorer, Tom Tom, iGO, etc.)
- If you have OziExplorer/Hema off-road maps, you can run them on this unit
|
Dual-zone capability |
- Dual-zone playback enables the driver to use GPS navigator for navigation while rear passengers watch DVD using headrest or roof mounted monitor simultaneously
- Whenever there is GPS voice broadcast, front 2 speakers will give way to GPS voice and return back to music after broadcast. The rear 2 speakers are not affected in anyway
|

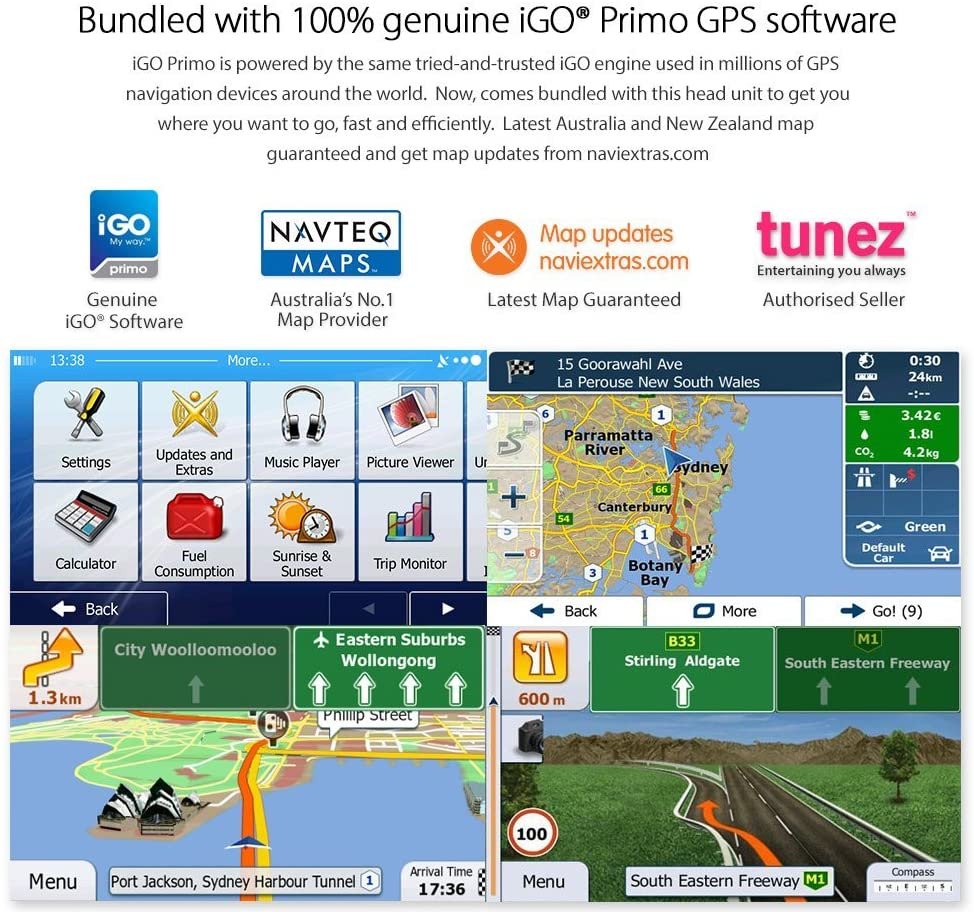

GPS software |
- Preloaded with licensed iGO Primo GPS software
- Windows CE 5.0 / 6.0 compatible
- Comes in 4GB SD card (upgrade to 8GB card bundled with OziExplorer evaluation version for $15 only)
- iGO Primo is the latest navigation software and flagship engine from NNG LLC.
- The iGO Primo edition ensures superior intelligent navigation experience with a simplistic and easy-to-use graphical interface
- Regular software, maps and content updates are available from www.naviextras.com
- Screenshots
|
GPS map & Point-Of-Interest (POI) |
- Preloaded with licensed latest Australia & New Zealand map (Oceania region)
- Latest map guarantee
- Regular software, maps and content updates are available from www.naviextras.com
|
Other GPS features |
- Speed limits, school zones and railway crossings alert
- Speed camera alert
- Detects fixed speed and traffic light cameras
- It will give audible warning when your vehicle is approaching a speed camera
- It will show the camera icon on the screen when your vehicle is approaching a speed camera
- Full 2D & 3D Map
- Multiple skins for GPS menu
- Night mode GPS features available
- Route planning features available
- Off road recalculation features available
- Detailed route information available
- Choice of female or male with natural voice guide in English (also available in other languages)
- Australian spoken street name voice available !!!
- Australian accent Text-To-Speech (TTS) voice guidance
- Unit of measure: Metric or imperial option (kilometers or miles, etc.)
|
Optional (please contact us) |
2D / 3D map & POI are available for the following region:
- Latest USA & Canada
- Latest Western Europe
- Latest Eastern Europe
- Latest Middle East
- Latest Africa
- Latest Middle & South America
- Latest South East Asia
|
Media
Compatible media |
ALL region DVD playback / VCD / CD / CD-R / CD-RW / MP3 / MP4 / MKV / RMVB / AVI / DIVX / WMA / WMV
|
Display |
- Large 7-inch TFT LCD touchscreen
- 16:9 aspect ratio
- User friendly menu for ease of navigation
- 2 stage monitor dimming control function
- Automatically dims monitor when headlights are turned on
- Monitor 'Sleep' function, turns off monitor anytime you wish
|
TFT LCD screen |
- 800 x 480 pixels gives you sharp and crisp display
- Plays full high definition (FHD) movie files (e.g. MP4, MKV, RMVB, AVI) up to 1080 pixels via USB and SD card reader
|
USB |
- You have a choice of connecting your USB flash drive via front or rear USB port
- Rear USB port comes with 1-meter USB cable. Hence, you can place your USB drive in the glove compartment and keep your dashboard neat
- Supports USB flash drive only and up to 32GB
- Does not support external hard disk, iPod or mobile phones
|
SD card |
- Dual SD card slot, one for GPS use and another for your multimedia files
- Supports up to 32GB
|

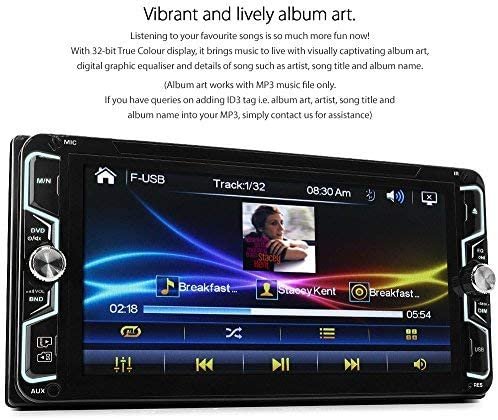

Album art & ID3 tag |
- Displays MP3 album art
- Compatible with ID3 tag for artist name, song title and album name
- Please contact us if you have any queries on ID3 tag
- This feature is available in SD card and USB mode only
|
Radio tuner |
- FM/AM tuner with Radio Data System (RDS)
- 30 present channels (18 FM & 12 AM)
- FM/AM frequencies menu option for all region
|
Bluetooth
System |
- Supports Bluetooth 2.0
- High quality Bluetooth receiver
|
Handsfree
feature |
Make and receive phone calls using Bluetooth receiver
|
Microphone |
- Equipped with 2 microphones
- External microphone with double-sided tape. For best performance, place external microphone on steering wheel column
- Built-in microphone in head unit
|
Music player |
- Wirelessly stream music to the stereo using your mobile phone that supports A2DP for e.g. all iPhone models
- Remotely control your mobile phone using the stereo's on-screen button i.e. play, next song, previous song and stop
|

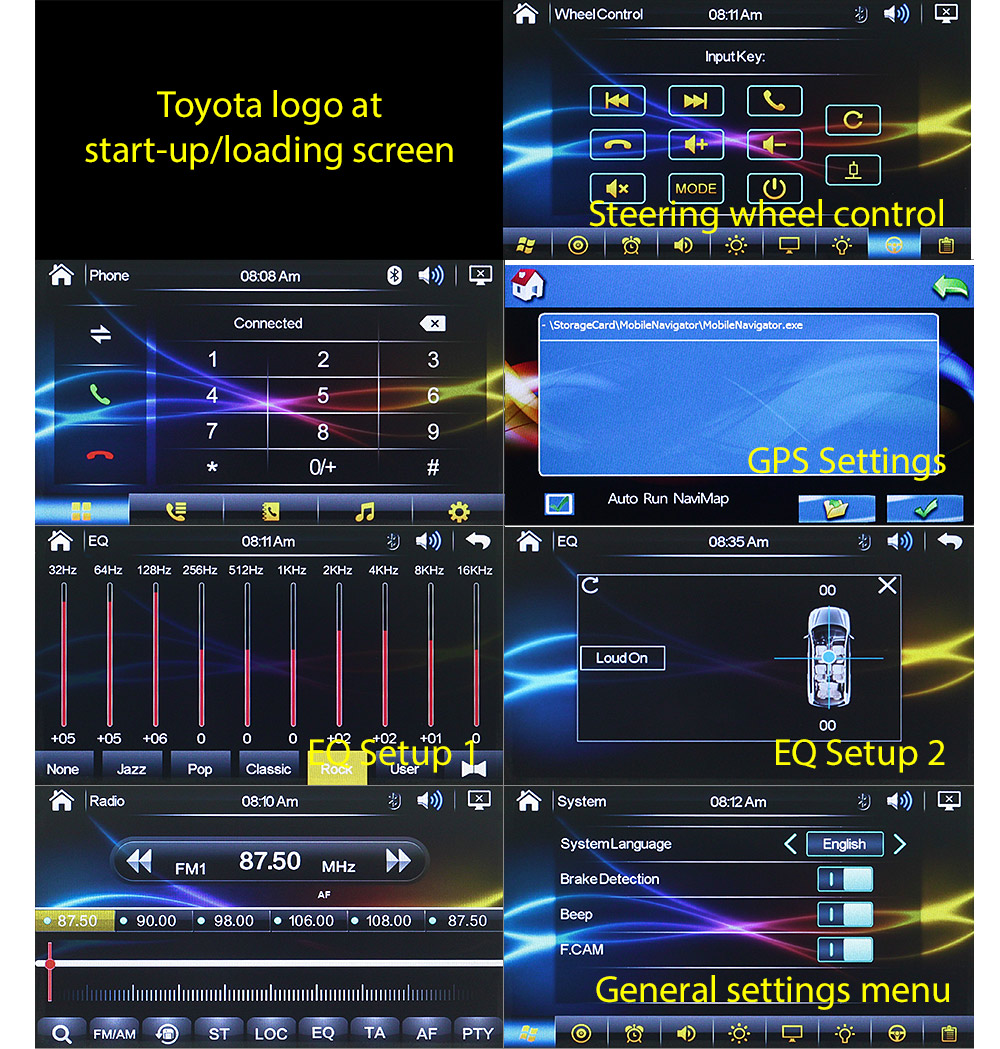

Systems and controls
Wallpaper |
Comes with 4 attractive preset wallpapers
|
Backlit illumination colours |
- Choose from 7 different backlit illumination colours (i.e. white, green, blue, red, yellow, cyan and magenta) to match your car's instrument panel
- You may rotate these 7 colours in a seamless transition to create a colourful and cheerful ambience
|
Reversing camera feature |
- Intelligent Reversing & Front Camera Mechanism (IRFCM)*
- For e.g. upon detecting car in reverse gear, head unit automatically power up and goes into parking/reverse camera view mode
- For more features, kindly refer to IRFCM features description mentioned earlier in this ad
- * Note: Works with Tunez optional reversing camera; for details, view optional items at the bottom of this ad
|
Front camera feature |
- After disengaging reverse gear, head unit automatically switches to front camera view for 6 seconds. After that, head unit screen will resume the last function/mode accessed.
- Alternatively, press the front camera on-screen button while parking to prevent hitting the road curb
- * Note: Works with Tunez optional front camera; for details, view optional items at the bottom of this ad
|
Audio and video settings |
- Built-in 10-band graphic equaliser for better audio control
- Preset EQ settings (Classic, Standard, Jazz, Pop, Rock, Techno and Custom settings)
- Fader, balance, subwoofer, loud settings
- Adjustable video display (Brightness, colour and contrast settings)
- Languages (English, Chinese, Indonesian, Arabic, Thai, Russian and Spanish)
|
Steering wheel control |
- The Plug & Play wiring harness connects audio steering wheel control wires to your Toyota ISO plug directly
- You are required to perform steering wheel control learning procedure via 'Settings' menu in order to map factory steering wheel control buttons to the head unit
- Please follow the simple on-screen learning procedure or refer to the user manual
|
Other controls |
- Amplifier remote turn on control (REM)
- Power antenna control
- Built-in RGB imaging for auto video adjustment
- Eco friendly and low power consumption model
|

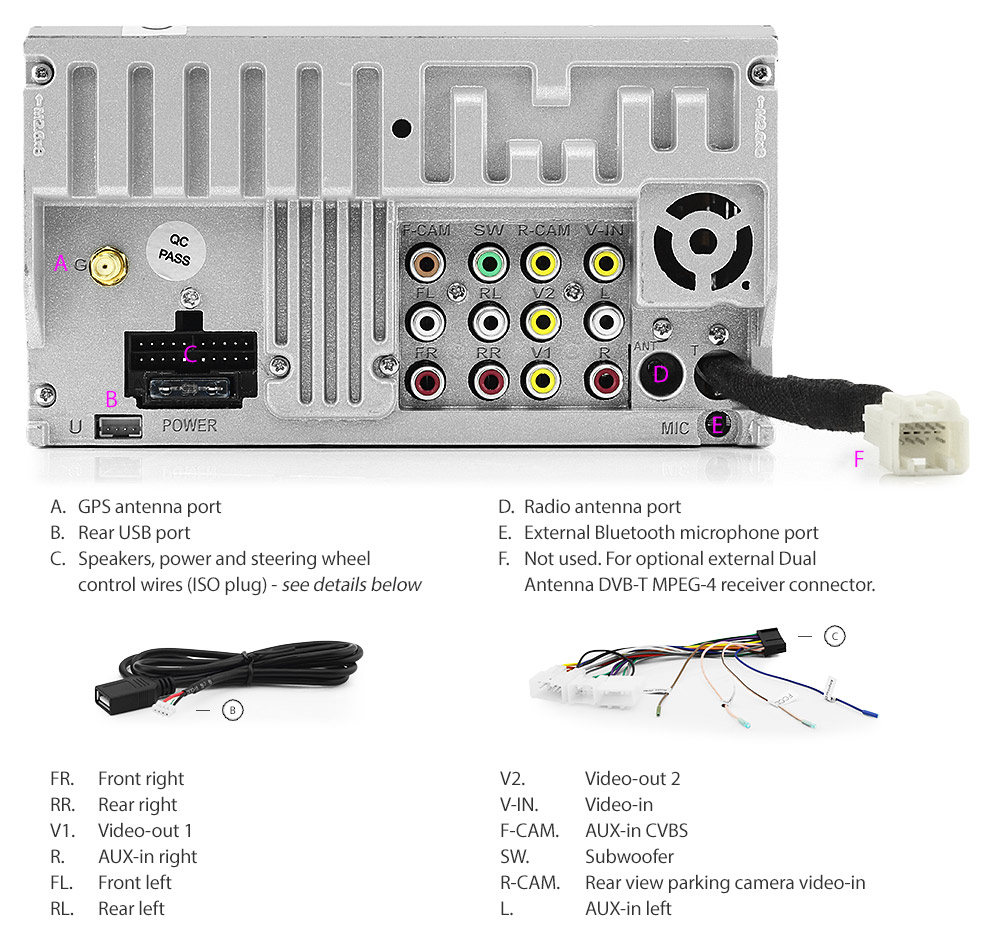

Connectors and hardware
Plug & Play |
- The Plug & Play feature connects the ACC, battery, ground, illuminator, speakers and steering wheel control wires to your Toyota ISO plug directly
- No need to splice your factory fitted wires
|
Audio and visual (RCA) |
- 5 x Pre-out (Front right, front left, rear right, rear left and subwoofer)
- 2 x Video output
- 1 x Parking/reversing camera input
- 1 x Front camera input
- 1 x Video input
- 2 x Audio input (Right and left)
|
DVD/CD loader |
Built-in Electronic Shock Protection (ESP)
|
Cooling mechanism |
Highly conductive rear heat sink keeps the unit cool
|
Dimension |
178 mm x 100 mm x 165 mm (Width x Height x Depth), designed for Nissan cars
|
Sound system |
Built-in high fidelity amplifier with maximum power output 45W x 4 (4 Ohm)
|
Accessories |
- 4GB SD card preloaded with licensed iGO Primo GPS software with latest Australia and New Zealand map
- GPS antenna (3-meter)
- Matching Toyota wiring harness (ISO plugs)
- External Bluetooth microphone (2-meter)
- Rear USB connector (1-meter)
- Remote control
|
|
