4PIN Heavy Duty 12V 24V CCD IR Colour Reverse Reversing Camera Parking Rear View
4PIN Heavy Duty 12V 24V CCD IR Colour Reverse Reversing Camera Parking Rear View
4PIN Heavy Duty 12V 24V CCD IR Colour Reverse Reversing Camera Parking Rear View
  • 4PIN Heavy Duty 12V 24V CCD IR Colour Reverse Reversing Camera Parking Rear View
  • 4PIN Heavy Duty 12V 24V CCD IR Colour Reverse Reversing Camera Parking Rear View

4PIN Heavy Duty 12V 24V CCD IR Colour Reverse Reversing Camera Parking Rear View

Brand: TUNEZ

Product Code: IRCAMP406S

Availability: In stock

$60.54

Qty

Ask about this productAsk about this product
IRCAM4P02 12V 24V DC 2 3 4 Channels Camera System Caravan Motorhome Truck Trailer Bus Car Bus Van Lorry Goods Parking Reversing Park Reverse Safety Camera Surveillance Sony Lense Lens CCD 18 LED Infrared Night Vision Day Pitch Black Condition Heavy Duty 18-Months Australian Warranty 7-inch Quad View Split Screen TFT LCD digital monitor 4-Pin Waterproof video cable industry standard IP68 Dustproof CE FCC Approved RoHS Compliant Certified Camera only
IRCAM4P02 12V 24V DC 2 3 4 Channels Camera System Caravan Motorhome Truck Trailer Bus Car Bus Van Lorry Goods Parking Reversing Park Reverse Safety Camera Surveillance Sony Lense Lens CCD 18 LED Infrared Night Vision Day Pitch Black Condition Heavy Duty 18-Months Australian Warranty 7-inch Quad View Split Screen TFT LCD digital monitor 4-Pin Waterproof video cable industry standard IP68 Dustproof CE FCC Approved RoHS Compliant Certified
IRCAM4P02 12V 24V DC 2 3 4 Channels Camera System Caravan Motorhome Truck Trailer Bus Car Bus Van Lorry Goods Parking Reversing Park Reverse Safety Camera Surveillance Sony Lense Lens CCD 18 LED Infrared Night Vision Day Pitch Black Condition Heavy Duty 18-Months Australian Warranty 7-inch Quad View Split Screen TFT LCD digital monitor 4-Pin Waterproof video cable industry standard IP68 Dustproof CE FCC Approved RoHS Compliant Certified
IRCAM4P01 12V 24V DC 2 3 4 Channels Camera System Caravan Motorhome Truck Trailer Bus Car Bus Van Lorry Goods Parking Reversing Park Reverse Safety Camera Surveillance Sony Lense Lens CCD 18 LED Infrared Night Vision Day Pitch Black Condition Heavy Duty 18-Months Australian Warranty 7-inch Quad View Split Screen TFT LCD digital monitor 4-Pin Waterproof video cable industry standard IP68 Dustproof CE FCC Approved RoHS Compliant Certified
IRCAM4P01 12V 24V DC 2 3 4 Channels Camera System Caravan Motorhome Truck Trailer Bus Car Bus Van Lorry Goods Parking Reversing Park Reverse Safety Camera Surveillance Sony Lense Lens CCD 18 LED Infrared Night Vision Day Pitch Black Condition Heavy Duty 18-Months Australian Warranty 7-inch Quad View Split Screen TFT LCD digital monitor 4-Pin Waterproof video cable industry standard IP68 Dustproof CE FCC Approved RoHS Compliant Certified Camera only
Features and description

Supports both 12V and 24V vehicles.

All buyers, kindly note:
• This camera only works with a monitor using 4PIN connector.
• Does not come with video cable.
• Please ask installer to bench test monitor and cameras to ensure it is in working condition before installation.

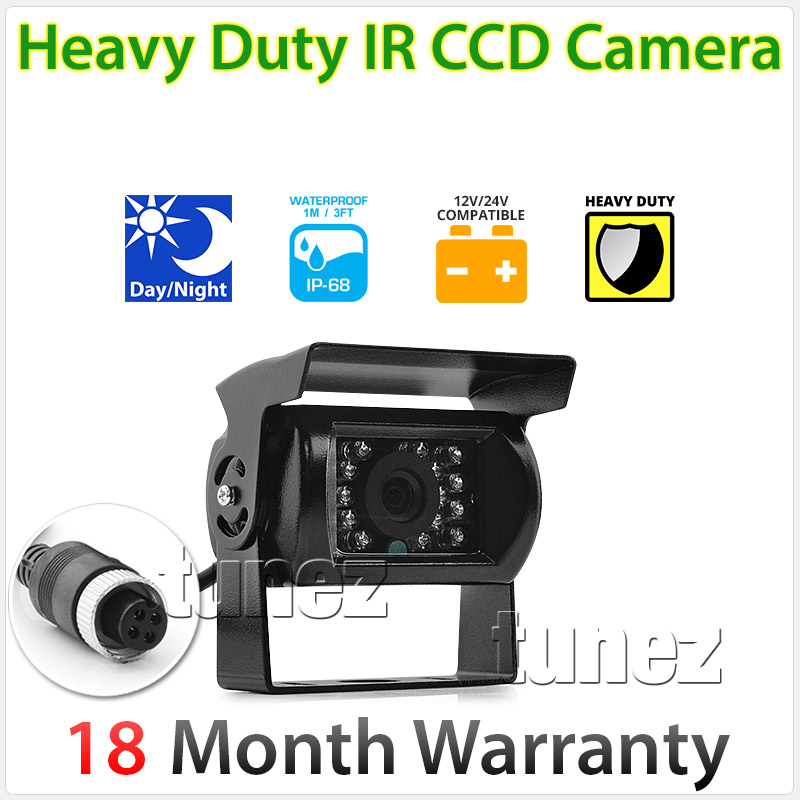

Infrared CCD Camera
Image sensor

Full colour SONY® CCD
Casing

Heavy duty alloy
Casing protection rating

- IP68
- Waterproof and dustproof
- Submersible up to 1-meter (3-feet)
TV system

- NTSC format
Note: Most of the monitors in the market today support both NTSC and PAL TV system format. If you need PAL version, kindly contact us.
Horizontal resolution

420 TV lines
Effective pixels

512 x 492 pixels
Optical size

1/3: 4.9 mm x 3.7 mm
Minimum illumination

- 1.0 lux/F=1.2
(0 lux with active infrared turned on)
- Works in pitch black condition
Viewing angle

120 degree
Night vision

10 meters
Video output

4-Pin connector, 1.0Vp-p/75Ω
Power consumption

50-60 mA, maximum 300mA with infrared turned on
Power supply

- DC 12V ~ 24V
- Suitable for car, caravan, bus, van, truck, trailer, motorhome, etc.
- Sourced from 7-inch monitor power adapter via 4-Pin connector
Operating temperature

-20°C ~ 60°C, RH 95% max.
Storage temperature

-40°C ~ 68°C, RH 95% max.

Industry standard 4-Pin connector
Housing and knurled nut

- Brass and nickel-plated
 - Suitable for all weather conditions
Waterproof

Using threaded fittings plug and socket ensures every connection is watertight
Internal housing

- Bakelite
- Heat resistant and extremely durable
Insulation

- PVC
- Provides good shielding from flame, moisture and corrosion resistant
Conductor

- Copper wire
- IACS approved copper for higher conductivity and stable signal transmission

Connectors and hardware
Accessories

1 unit of infrared CCD camera
