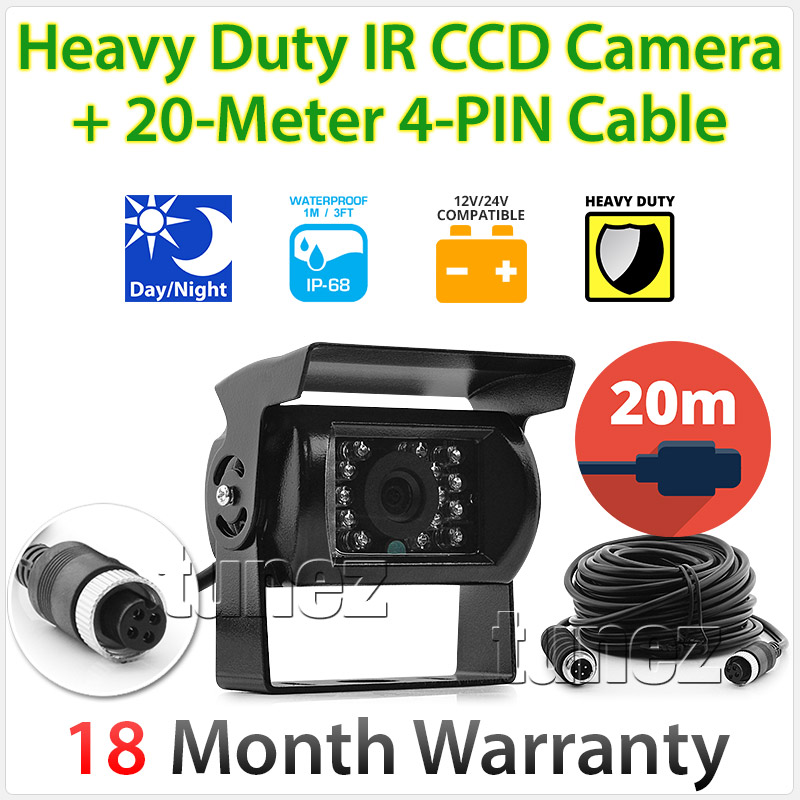

4PIN Heavy Duty 12V 24V CCD IR Colour Reverse Reversing Camera 20 Meter Cable

Brand: TUNEZ

Product Code: IRCAMP40620

Availability: In stock

$71.41
IRCAM4P02 12V 24V DC 2 3 4 Channels Camera System Caravan Motorhome Truck Trailer Bus Car Bus Van Lorry Goods Parking Reversing Park Reverse Safety Camera Surveillance Sony Lense Lens CCD 18 LED Infrared Night Vision Day Pitch Black Condition Heavy Duty 18-Months Australian Warranty 7-inch Quad View Split Screen TFT LCD digital monitor 4-Pin Waterproof video cable industry standard IP68 Dustproof CE FCC Approved RoHS Compliant Certified 20 meter
IRCAM4P02 12V 24V DC 2 3 4 Channels Camera System Caravan Motorhome Truck Trailer Bus Car Bus Van Lorry Goods Parking Reversing Park Reverse Safety Camera Surveillance Sony Lense Lens CCD 18 LED Infrared Night Vision Day Pitch Black Condition Heavy Duty 18-Months Australian Warranty 7-inch Quad View Split Screen TFT LCD digital monitor 4-Pin Waterproof video cable industry standard IP68 Dustproof CE FCC Approved RoHS Compliant Certified
IRCAM4P02 12V 24V DC 2 3 4 Channels Camera System Caravan Motorhome Truck Trailer Bus Car Bus Van Lorry Goods Parking Reversing Park Reverse Safety Camera Surveillance Sony Lense Lens CCD 18 LED Infrared Night Vision Day Pitch Black Condition Heavy Duty 18-Months Australian Warranty 7-inch Quad View Split Screen TFT LCD digital monitor 4-Pin Waterproof video cable industry standard IP68 Dustproof CE FCC Approved RoHS Compliant Certified
IRCAM4P01 12V 24V DC 2 3 4 Channels Camera System Caravan Motorhome Truck Trailer Bus Car Bus Van Lorry Goods Parking Reversing Park Reverse Safety Camera Surveillance Sony Lense Lens CCD 18 LED Infrared Night Vision Day Pitch Black Condition Heavy Duty 18-Months Australian Warranty 7-inch Quad View Split Screen TFT LCD digital monitor 4-Pin Waterproof video cable industry standard IP68 Dustproof CE FCC Approved RoHS Compliant Certified
IRCAM4P01 12V 24V DC 2 3 4 Channels Camera System Caravan Motorhome Truck Trailer Bus Car Bus Van Lorry Goods Parking Reversing Park Reverse Safety Camera Surveillance Sony Lense Lens CCD 18 LED Infrared Night Vision Day Pitch Black Condition Heavy Duty 18-Months Australian Warranty 7-inch Quad View Split Screen TFT LCD digital monitor 4-Pin Waterproof video cable industry standard IP68 Dustproof CE FCC Approved RoHS Compliant Certified 20 meter
Features and description

Supports both 12V and 24V vehicles.

All buyers, kindly note:
• This camera only works with a monitor using 4PIN connector.
• Please ask installer to bench test monitor and cameras to ensure it is in working condition before installation.


Infrared CCD Camera
Image sensor

Full colour SONY® CCD

Casing

Heavy duty alloy

Casing protection rating

- IP68
-
Waterproof and dustproof
- Submersible up to 1-meter (3-feet)

TV system

- NTSC format
Note: Most of the monitors in the market today support both NTSC and PAL TV system format. If you need PAL version, kindly contact us.

Horizontal resolution

420 TV lines

Effective pixels

512 x 492 pixels

Optical size

1/3: 4.9 mm x 3.7 mm

Minimum illumination

- 1.0 lux/F=1.2
(0 lux with active infrared turned on)
-
Works in pitch black condition

Viewing angle

120 degree

Night vision

10 meters

Video output

4-Pin connector, 1.0Vp-p/75Ω

Power consumption

50-60 mA, maximum 300mA with infrared turned on

Power supply

- DC 12V ~ 24V
- Suitable for car, caravan, bus, van, truck, trailer, motorhome, etc.
- Sourced from 7-inch monitor power adapter via 4-Pin connector

Operating temperature

-20°C ~ 60°C, RH 95% max.

Storage temperature

-40°C ~ 68°C, RH 95% max.


Industry standard 4-Pin cable
Housing and knurled nut

- Brass and nickel-plated
- Suitable for all weather conditions

Waterproof

Using threaded fittings plug and socket ensures every connection is watertight

Internal housing

- Bakelite
- Heat resistant and extremely durable

Insulation

- PVC
- Provides good shielding from flame, moisture and corrosion resistant

Conductor

- Copper wire
- IACS approved copper for higher conductivity and stable signal transmission
- It also provides
power supply to the cameras


Connectors and hardware

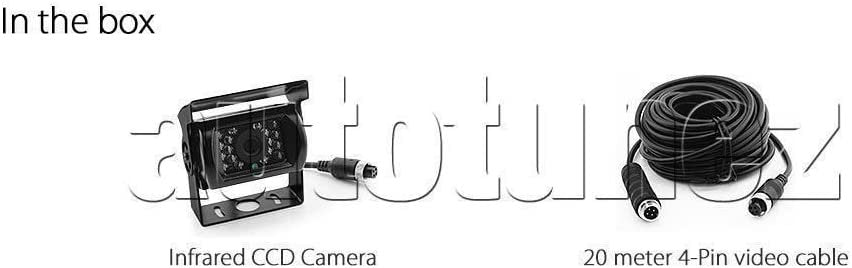

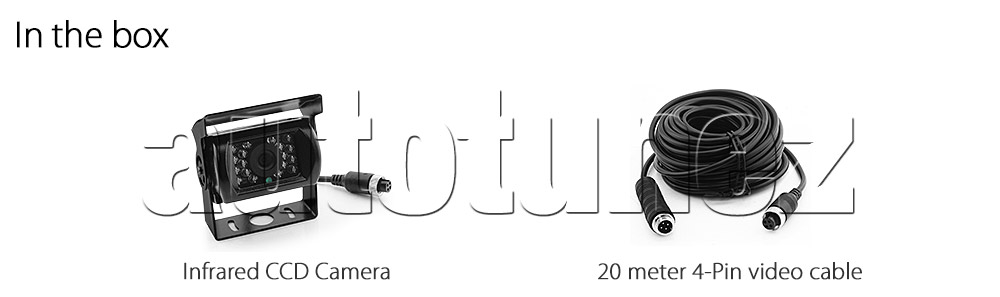

Accessories

- 1 unit of infrared CCD camera
- 1 unit 20-meter 4-Pin video cable
