28mm Infrared IR CCD Waterproof Towbar Bumper Car Reversing Camera Par

28mm Infrared IR CCD Waterproof Towbar Bumper Car Reversing Camera Parking

Brand: TUNEZ

Product Code: TCU12

Availability: Out of stock

Out of stock

Qty

Ask about this product

Description Reviews

TCU12 Universal reversing parking reverse camera for car night and day view 120 degree wide angle CCD light sensor infra-red IR LED Drill Drilling

Features and description

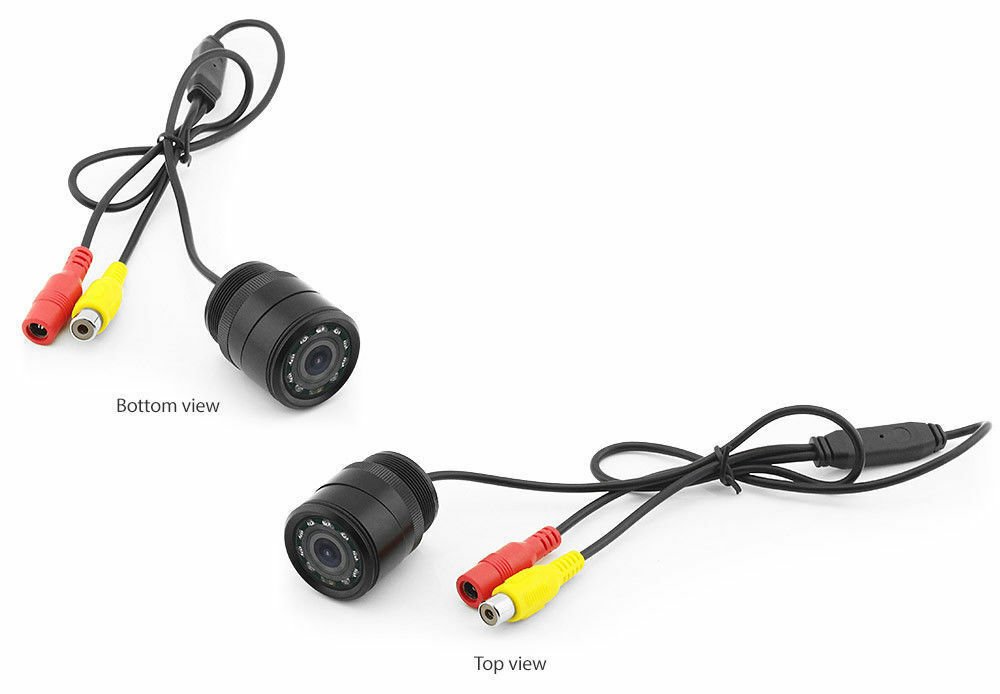

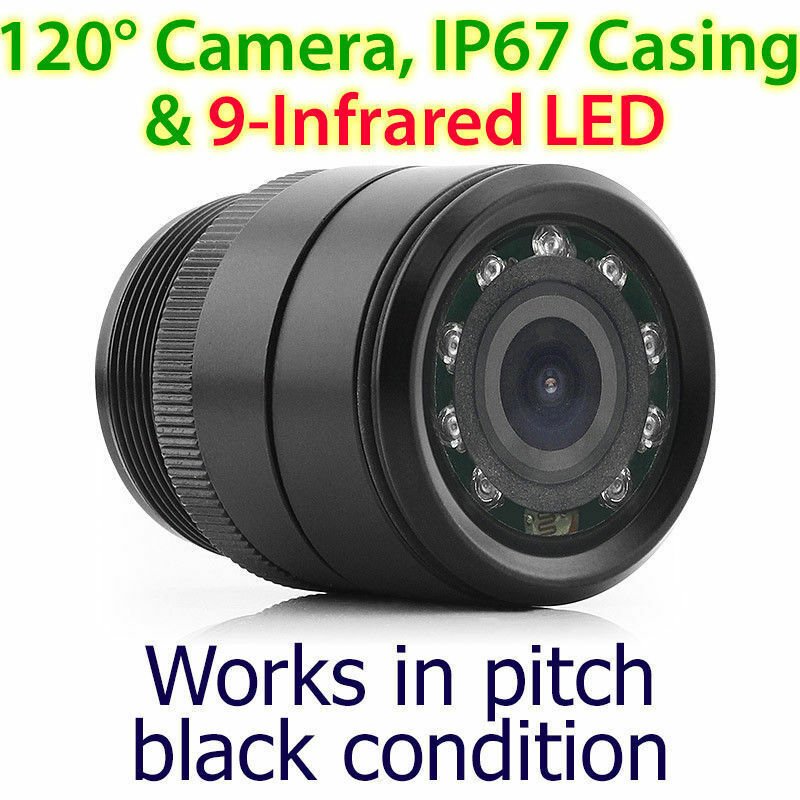

This is a set of 28mm full colour CCD light sensor reversing camera with 9 infra-red LEDs.

This enables the camera to work well even in pitch black condition. With the small and compact design, it sits flush with the rear bumper making it theftproof and gives your car a factory fitted look and feel. It has been tested thoroughly to be very stable, extremely robust and easy to install.

Note:

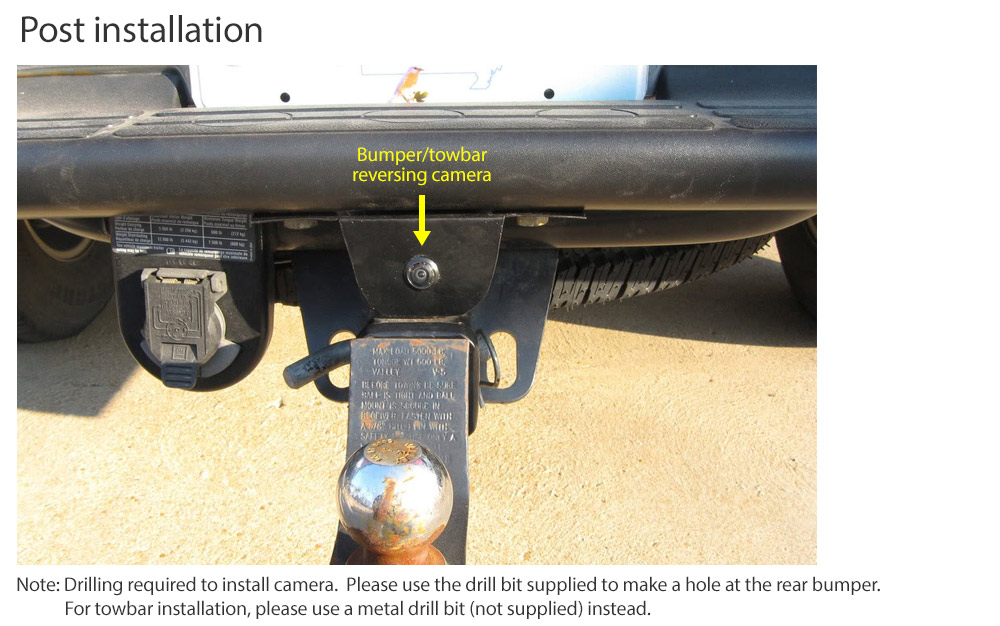

- Drilling required to install camera. Please use the drill bit supplied to make a hole at the car bumper.
- For towbar installation, please use a metal drill bit (not supplied) instead.
- If you are looking for a camera with adjustable angle and 4 bright white LED for enhanced night vision, kindly click on the link below

http://www.ebay.com.au/itm/230697093252

28mm Compact Car Reversing Camera Specifications:

Image sensor	CCD PC3030, night vision ready
Infra-red capability	9-LEDs, works well even in pitch black condition.
TV system	NTSC
Horizontal resolution	420 TV lines
Effective pixels	NTSC: 656 x 492 pixels
Minimum illumination	0.01 Lux
Camera angle	Fixed
Viewing angle	120 degree wide viewing angle
Rear guard line	3 guard lines i.e. green, yellow and red
Video output	RCA connector, 1.0Vp-p/75Ω
Power consumption	50-60 mA
Power supply	DC 12V
Operating temperature	-20°C ~ 60°C, RH 95% max.
Storage temperature	-40°C ~ 68°C, RH 95% max.
Casing protection rating	IP67
