24V 12V Wireless Reversing Camera Kit IP 68 Waterproof View Back Up Do

24V 12V Wireless Reversing Camera Kit IP 68 Waterproof View Back Up Dome Infrared CCD Camera, 7 Inches TFT LCD Rearview Monitor for Vans, Camping Cars, Trucks, Trailer

Brand: TUNEZ

Product Code: IRCAM4PWL-RD

Availability: In stock

$175.34

Description Reviews

IRCAM4PWL-RD Digital Wireless Advanced 12V 24V Receiver Transmitter 200m 200 meter DC Single 1 Channel Caravan Camera System Motorhome Truck Bus Car Bus Van Lorry Goods Ute Parking Reversing Park Reverse Safety Camera Surveillance Sony Lense Lens CCD 12 Infrared IR Dome Mini LED Infrared Night Vision Day Pitch Black Condition Heavy Duty 18-Months Australian UK Warranty 7-inch View Screen TFT LCD digital monitor 4-Pin Waterproof industry standard IP68 Dustproof CE FCC Approved RoHS Compliant Certified

IRCAM4PWL Digital Wireless Advanced 12V 24V Receiver Transmitter 200m 200 meter DC Single 1 Channel Caravan Camera System Motorhome Truck Bus Car Bus Van Lorry Goods Ute Parking Reversing Park Reverse Safety Camera Surveillance Sony Lense Lens CCD 12 Infrared IR Dome Mini LED Infrared Night Vision Day Pitch Black Condition Heavy Duty 18-Months Australian UK Warranty 7-inch View Screen TFT LCD digital monitor 4-Pin Waterproof industry standard IP68 Dustproof CE FCC Approved RoHS Compliant Certified

Features and description

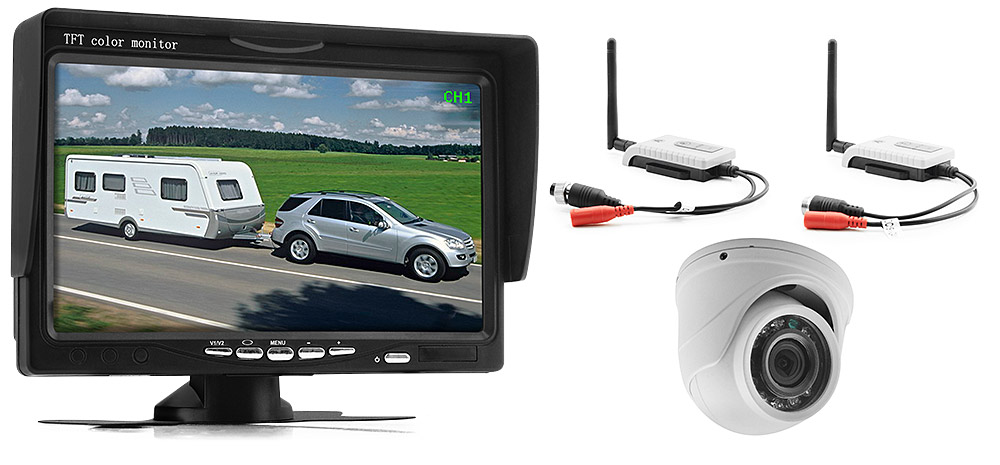

This is a set of advanced wireless dome infrared CCD camera system with 7-inch TFT LCD digital monitor to assist you in your daily driving. It gives you a complete view and ability to assess the surrounding of your vehicle in real-time.

Supports both 12V and 24V vehicles.

All buyers, kindly note:
• Please ask installer to bench test monitor and camera to ensure it is in working condition before installation.

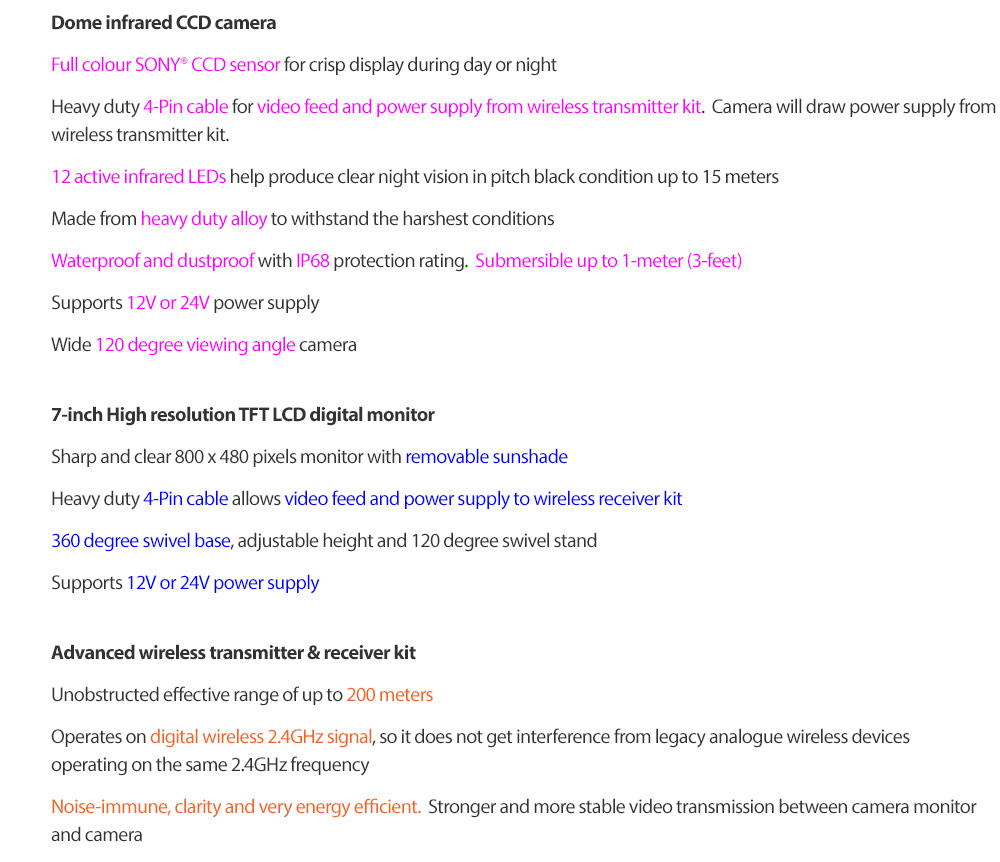

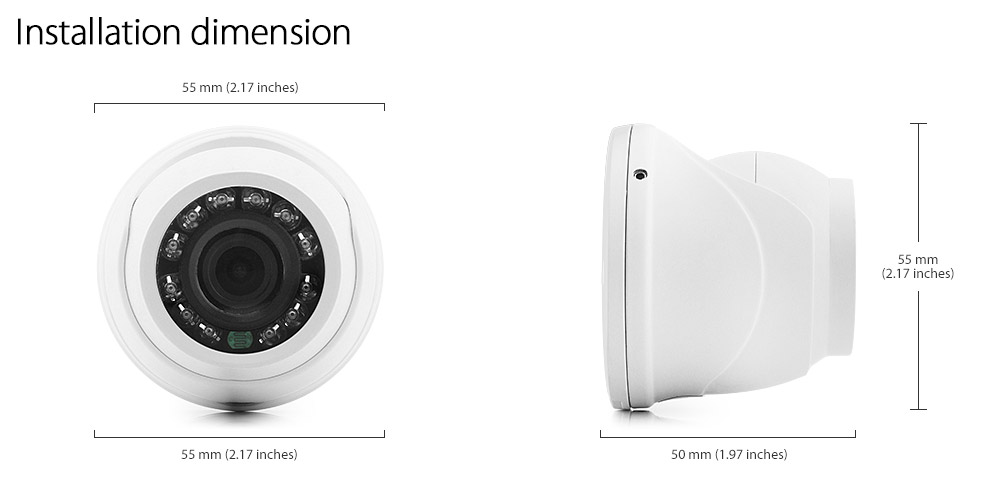

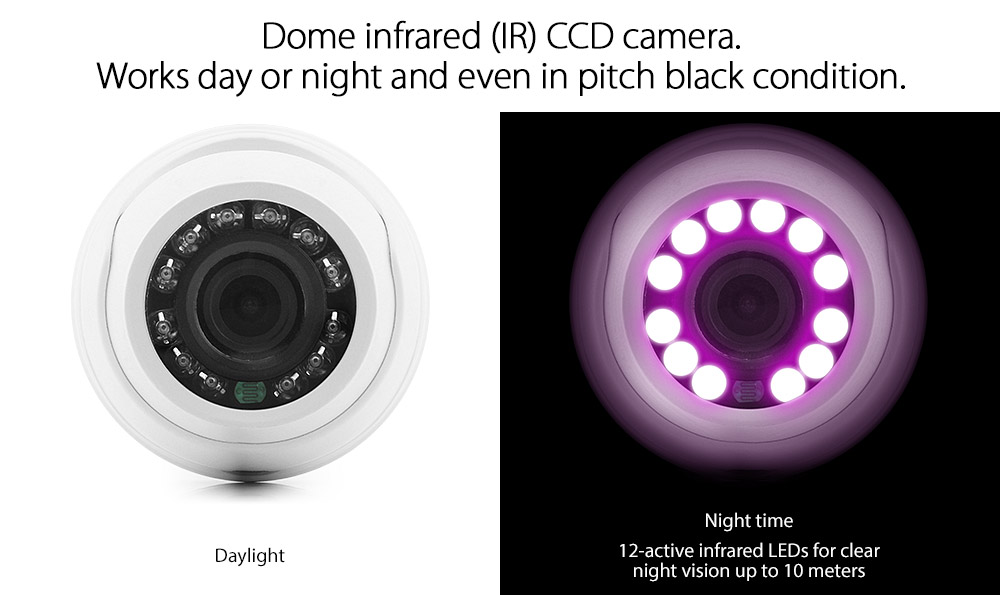

Dome infrared CCD camera

Image sensor	Full colour SONY^® CCD
Casing	Heavy duty alloy
Casing protection rating	- IP68 - Waterproof and dustproof - Submersible up to 1-meter (3-feet)
TV system	- NTSC format Note: Most of the monitors in the market today support both NTSC and PAL TV system format. If you need PAL version, kindly contact us.
Horizontal resolution	420 TV lines
Effective pixels	512 x 492 pixels
Optical size	1/3: 4.9 mm x 3.7 mm
Minimum illumination	- 1.0 lux/F=1.2 (0 lux with active infrared turned on) - Works in pitch black condition
Viewing angle	120 degree
Night vision	15 meter
Video output	4-PIN connector, 1.0Vp-p/75Ω
Power consumption	50-60 mA, maximum 300mA with infrared turned on
Power supply	- DC 12V ~ 24V - Suitable for car, caravan, bus, van, truck, trailer, motorhome, etc. - Draws power supply from wireless transmitter kit
Operating temperature	-20°C ~ 60°C, RH 95% max.
Storage temperature	-40°C ~ 68°C, RH 95% max.

7-inch High resolution TFT LCD digital monitor

Screen size	- 7" (diagonal) - With detachable sunshade
TV system	NTSC / PAL (auto switch)
Screen resolution	800 x 480 pixels
Effective viewing area	(H) x (V) : 156 mm x 88 mm
Gamut display	NTSC 60%
Power supply	- DC 12V ~ 24V - Suitable for car, caravan, bus, van, truck, trailer, motorhome, etc. - 4-PIN power adapter also supplies power to wireless receiver kit
Operating temperature	-20°C ~ 70°C
Storage temperature	-30°C ~ 80°C

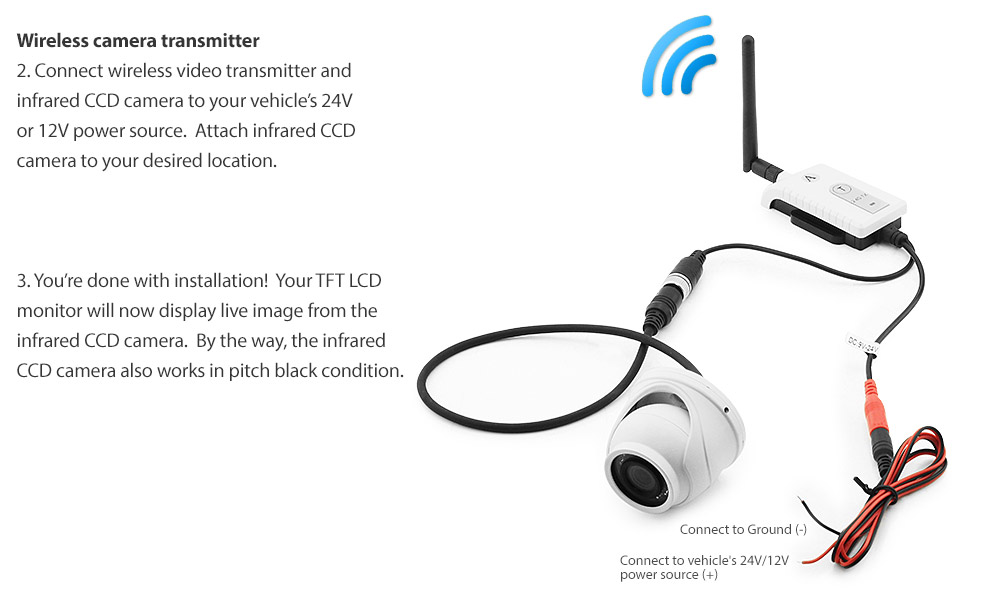

Advanced wireless transmitter & receiver kit

System	- Digital 2.4GHz wireless transmission - Does not get interference from legacy analogue wireless devices operating on the same 2.4GHz frequency
Effective range	Unobstructed effective range is up to 200 meters
Power supply	- DC 12V ~ 24V - Suitable for car, caravan, bus, van, truck, trailer, motorhome, etc. - Transmitter: Sourced from any 12V/24V power supply from the caravan, trailer, tail lamps, battery, etc. - Receiver: Sourced from 7-inch monitor power adapter via 4-Pin connector
Power consumption	50-60 mA, maximum 150mA
Operating temperature	-40°C ~ 80°C

Industry standard 4-Pin cable

Housing and knurled nut	- Brass and nickel-plated - Suitable for all weather conditions
Waterproof	Using threaded fittings plug and socket ensures every connection is watertight
Internal housing	- Bakelite - Heat resistant and extremely durable
Insulation	- PVC - Provides good shielding from flame, moisture and corrosion resistant
Conductor	- Copper wire - IACS approved copper for higher conductivity and stable signal transmission - It also provides power supply to the camera

Connectors and hardware

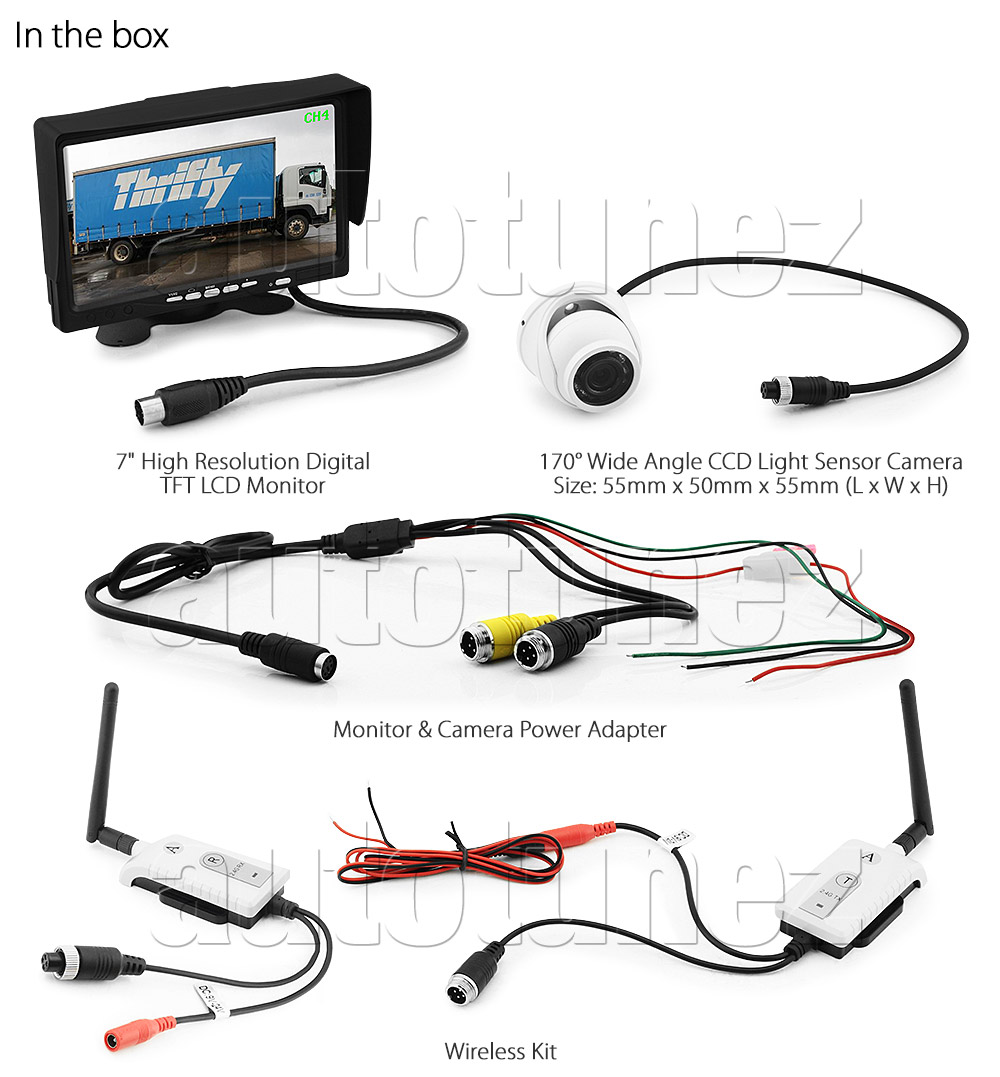

Accessories

- Dome infrared CCD camera
- 7-inch TFT LCD digital monitor
- Multi-pin power adapter
- Advanced wireless kit (transmitter & receiver)
- Remote control
