24v/12v CCD Reversing Camera Caravan Truck 7" Large Monitor Screen Parking Car

Brand: TUNEZ

Product Code: IRCAM70WR

Availability: In stock

$129.89

Wired Truck Bus Ute Tow Pickup Caravan Reversing Camera System Safety Car Kit 7-inch HD Monitor Screen Reverse Rear View Surveillance Backup IR Infra Red 18 LED IP67 Casing Full Colour Heavy Duty Alloy 120 degree view 24V 12V compatible
Wired Truck Bus Ute Tow Pickup Caravan Reversing Camera System Safety Car Kit 7-inch HD Monitor Screen Reverse Rear View Surveillance Backup IR Infra Red 18 LED IP67 Casing Full Colour Heavy Duty Alloy 120 degree view 24V 12V compatible
Wired Truck Bus Ute Tow Pickup Caravan Reversing Camera System Safety Car Kit 7-inch HD Monitor Screen Reverse Rear View Surveillance Backup IR Infra Red 18 LED IP67 Casing Full Colour Heavy Duty Alloy 120 degree view 24V 12V compatible
Wired Truck Bus Ute Tow Pickup Caravan Reversing Camera System Safety Car Kit 7-inch HD Monitor Screen Reverse Rear View Surveillance Backup IR Infra Red 18 LED IP67 Casing Full Colour Heavy Duty Alloy 120 degree view 24V 12V compatible
Wired Truck Bus Ute Tow Pickup Caravan Reversing Camera System Safety Car Kit 7-inch HD Monitor Screen Reverse Rear View Surveillance Backup IR Infra Red 18 LED IP67 Casing Full Colour Heavy Duty Alloy 120 degree view 24V 12V compatible
Wired Truck Bus Ute Tow Pickup Caravan Reversing Camera System Safety Car Kit 7-inch HD Monitor Screen Reverse Rear View Surveillance Backup IR Infra Red 18 LED IP67 Casing Full Colour Heavy Duty Alloy 120 degree view 24V 12V compatible

Features and description



This set of nifty reversing camera kit/system is suitable for car, caravan, bus, van or even truck.

Fully supports 12V and 24V vehicles.

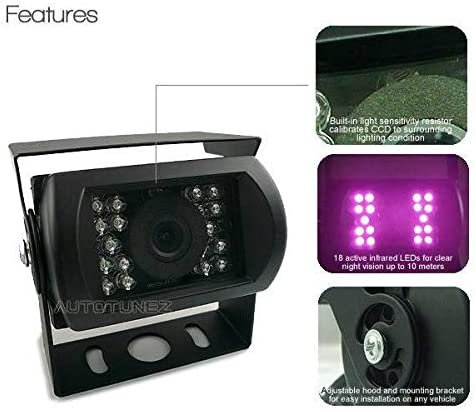

Infrared CCD Parking Camera
Image sensor

Full colour CCD

TV system

NTSC / PAL

Horizontal resolution

420 TV lines

Effective pixels

NTSC: 512 x 492 pixels
PAL: 512 x 582 pixels

Optical size

1/3: 4.9 mm x 3.7 mm

Minimum illumination

1.0 lux/F=1.2
(0 lux with active infrared turned on;
works in pitch black condition)

Viewing angle

120 degree

Night vision

10 meters

Video output

RCA connector, 1.0Vp-p/75Ω

Power consumption

50-60 mA, maximum 300mA with infrared turned on

Power supply

- DC 12V ~ 24V
- Suitable for car, caravan, bus, van, truck, etc.

Operating temperature

-20°C ~ 60°C, RH 95% max.

Storage temperature

-40°C ~ 68°C, RH 95% max.

Casing protection rating

IP67

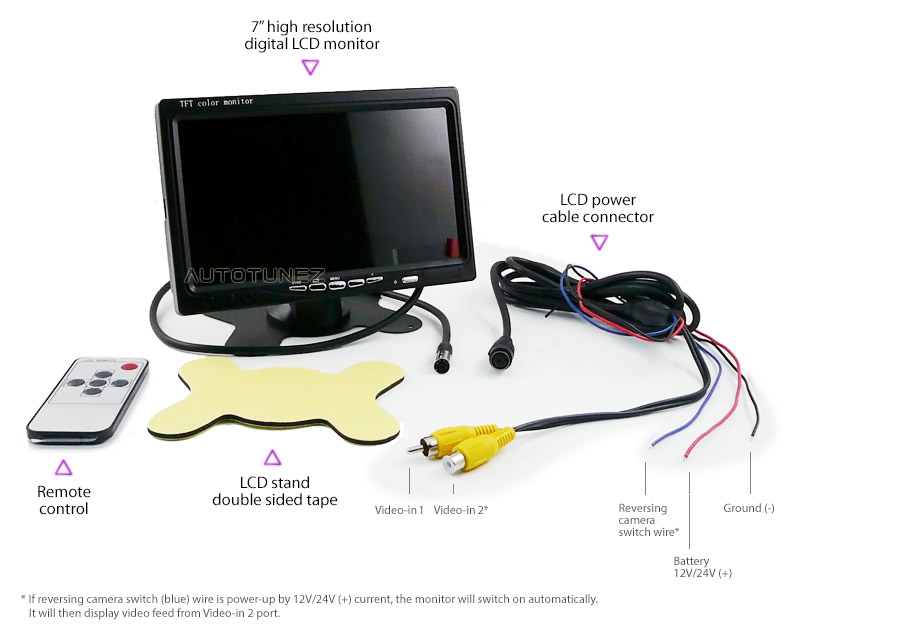

7" High resolution digital LCD monitor
Screen size

7" (diagonal)

TV system

NTSC / PAL (auto switch)

Screen resolution

800 x 480 pixels

Effective viewing area

(H) x (V) : 156 mm x 88 mm

Gamut display

NTSC 60%

Power supply

- DC 12V ~ 24V
- Suitable for car, caravan, bus, van, truck, etc.

Operating temperature

-20°C ~ 70°C

Storage temperature

-30°C ~ 80°C
