24v/12v CCD Reversing Camera Caravan Truck + 4.3" Monitor Backup Rear

Brand: TUNEZ

Product Code: IRCAM43WR

Availability: In stock

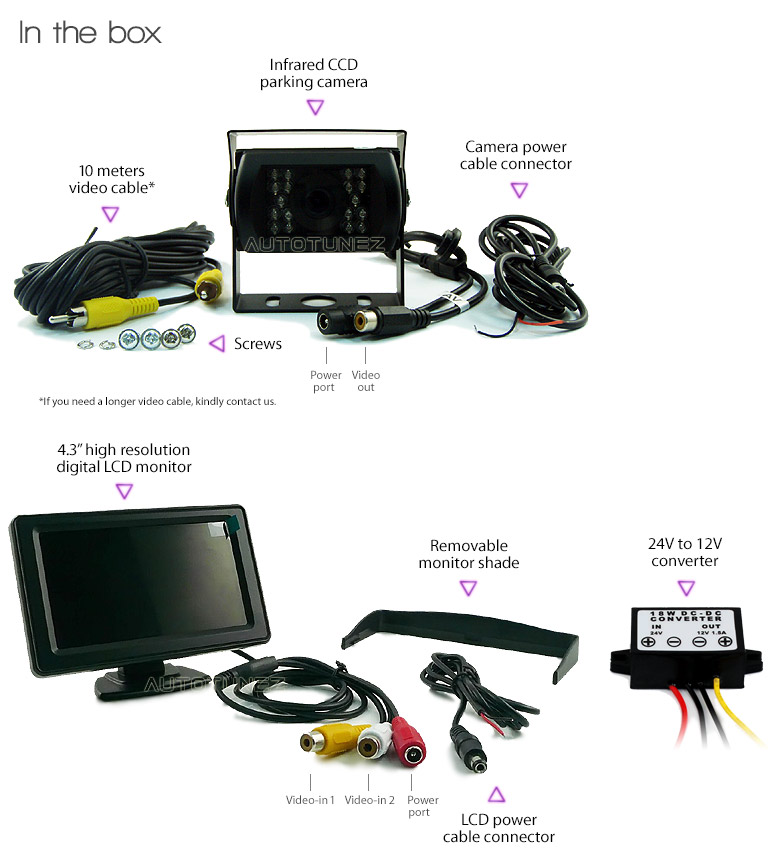

Infrared CCD parking camera

Image sensor Full colour CCD
TV system NTSC / PAL
Horizontal resolution 420 TV lines
Effective pixels NTSC: 512 x 492 pixels
PAL: 512 x 582 pixels
Optical size 1/3: 4.9 mm x 3.7 mm
Minimum illumination 1.0 lux/F=1.2
(0 lux with active infrared turned on)
Viewing angle 120 degree
Night vision 10 meters
Video output RCA connector, 1.0Vp-p/75Ω
Power consumption 50-60 mA, maximum 300mA with infrared turned on
Power supply DC 12V or 24V
Operating temperature -20°C ~ 60°C, RH 95% max.
Storage temperature -40°C ~ 68°C, RH 95% max.
Casing protection rating IP67

4.3" High resolution digital LCD monitor

Screen size 4.3" (diagonal)
TV system NTSC / PAL (auto switch)
Screen resolution 480 x 272 pixels
Effective viewing area (H) x (V) : 95.04 mm x 53.86 mm
Gamut display NTSC 60%
Power supply DC 12V or 24V, please use 24V to 12V converter supplied
Operating temperature -20°C ~ 70°C
Storage temperature -30°C ~ 80°C
