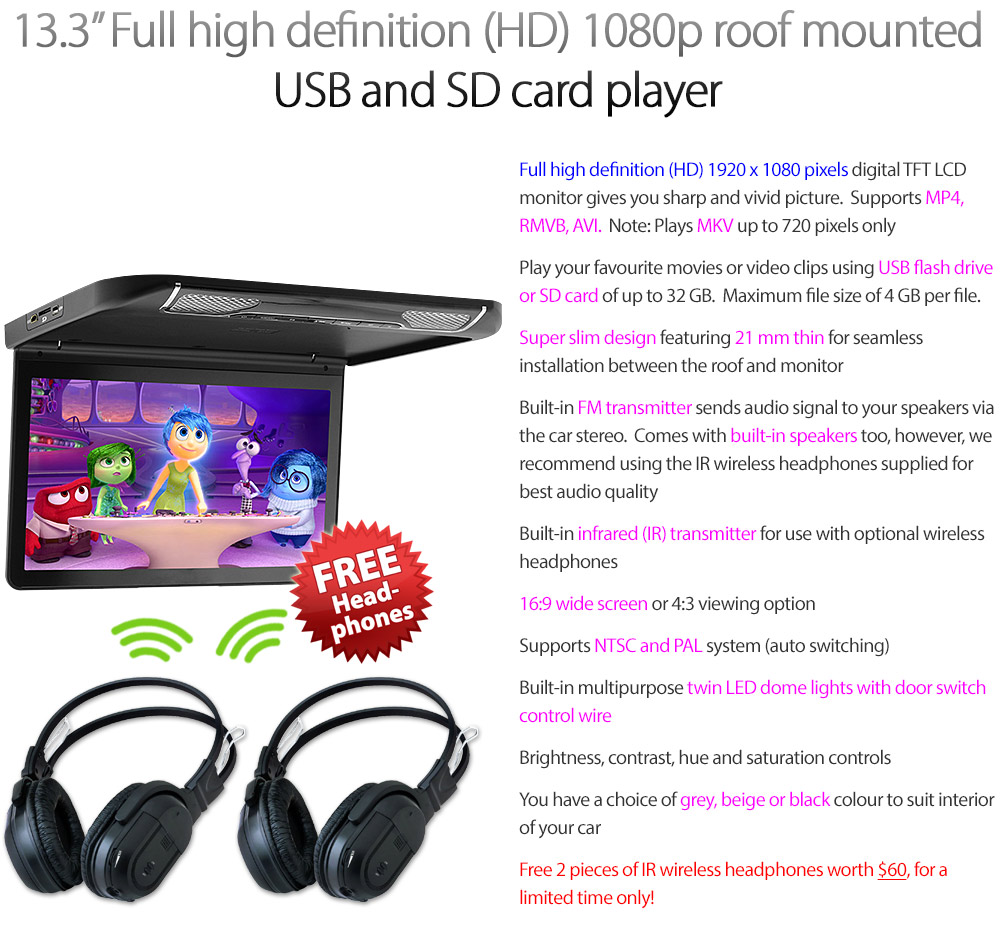

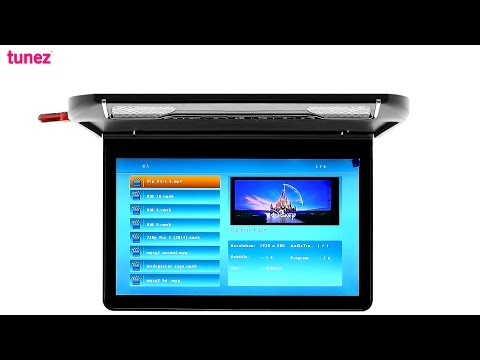

Newly released 13.3-inch digital TFT LCD roof mounted monitor with USB and SD card player.
Plays full high definition (HD) movie file up to 1080 pixels via USB and SD card slot.

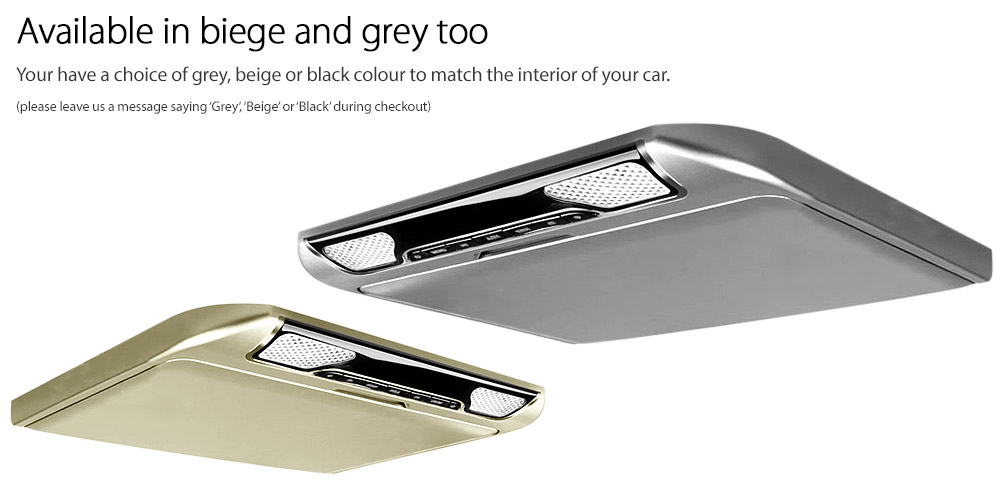

Beautifully designed for a factory fitted finish with a choice of beige or grey colour.
Note: This model does not include DVD player function, for one with DVD, USB and SD card player, kindly click on the link below:
http://www.ebay.com.au/itm/323312472914
All buyers, kindly note:
• Send us a message or e-mail informing us the colour of your choice i.e. 'Beige' or 'Grey', thank you!
|
Media
Compatible media |
Supports MP3 / MP4 / WMA / WAV / MPEG-2 / MPEG-4 / AVI / VP6 / VP8 / AVS / VC1 / DIVX / RM / H.264 / RMVB / MKV
|
Display |
- Super large 13.3-inch digital TFT LCD
- Plays full high definition (HD) movie file up to 1080 pixels via USB and SD card slot. Maximum file size of 4GB per file
- Note: Plays MKV file up to 720p only
- 16:9 aspect ratio
- User friendly menu for ease of navigation
|
USB |

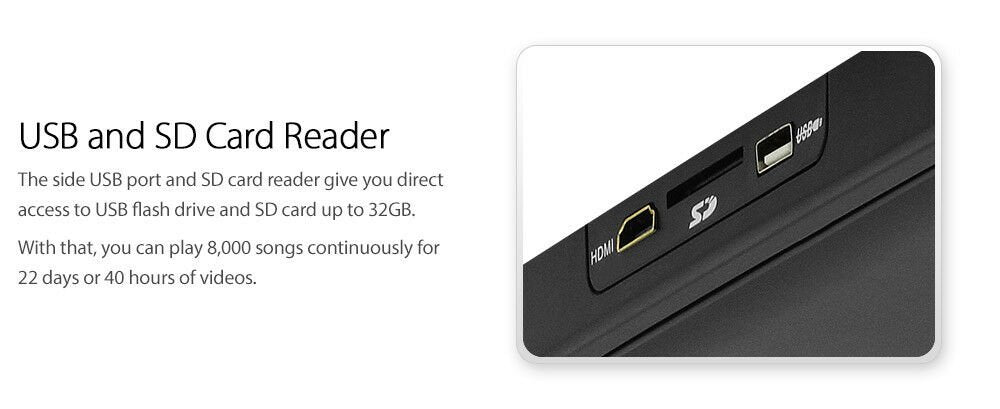

- Supports USB thumb drive only and up to 32GB
- Does not support external hard disk, iPod or mobile phones
|
SD card |
- Supports USB thumb drive only and up to 32GB
- Does not support external hard disk, iPod or mobile phones
|

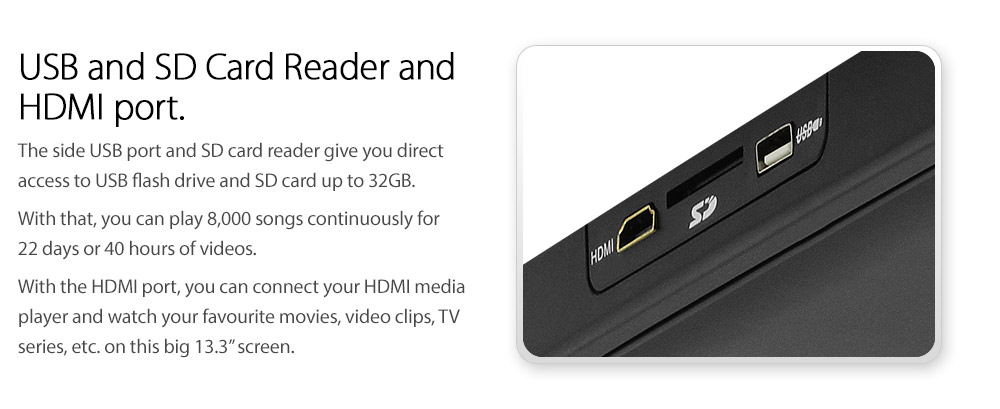

HDMI port |
- Connect to your HDMI devices for a bigger and better view
- HDMI cable NOT included
|

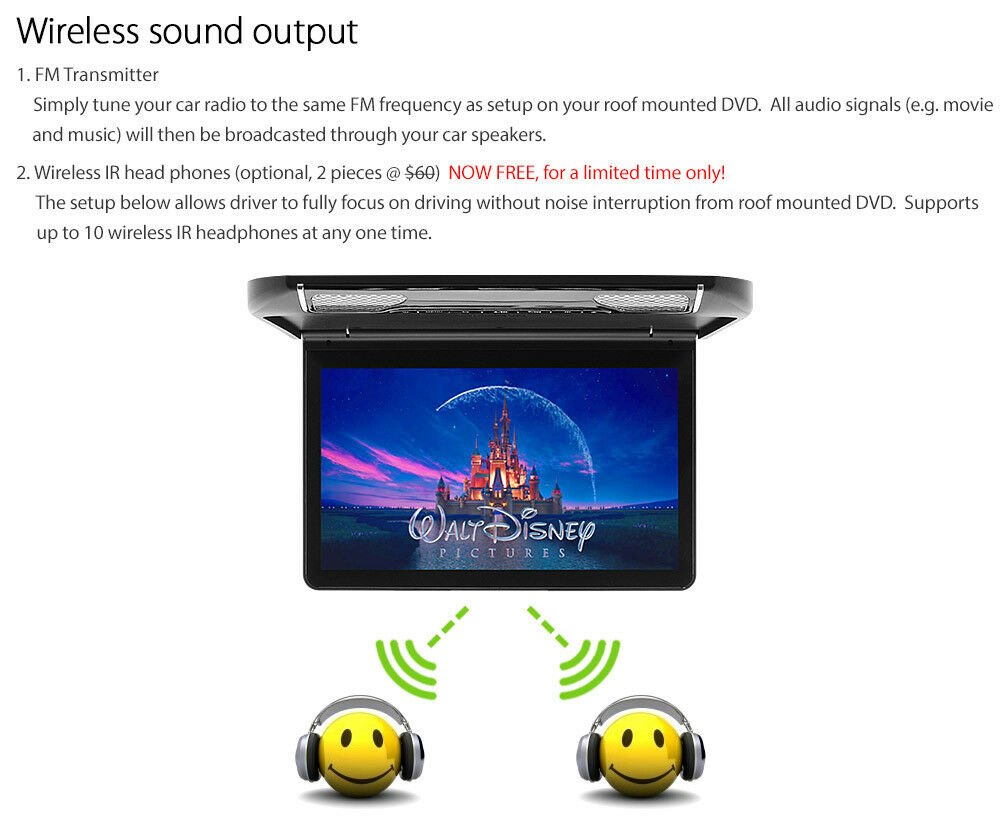

FM transmitter |
Built-in FM transmitter sends audio signal to your car radio
- Simply tune your car radio to the same FM frequency as setup on your roof mounted DVD. All audio signals (e.g. movie and music) will then be broadcasted through your car speakers
- Preset FM transmitter frequencies i.e. 87.5, 87.7, 87.9, 88.1, 88.3, 88.5 and 88.7 MHz
|
IR transmitter |
- Allows driver to fully focus on driving without noise interruption from roof mounted DVD player
- Supports up to 10 wireless IR headphones at any one time
- Optional wireless IR headphones, 2 pieces @ $60NOW FREE, for a limited only!
- For more information on headphones, please follow the link below:
http://www.ebay.com.au/itm/223027497726
|

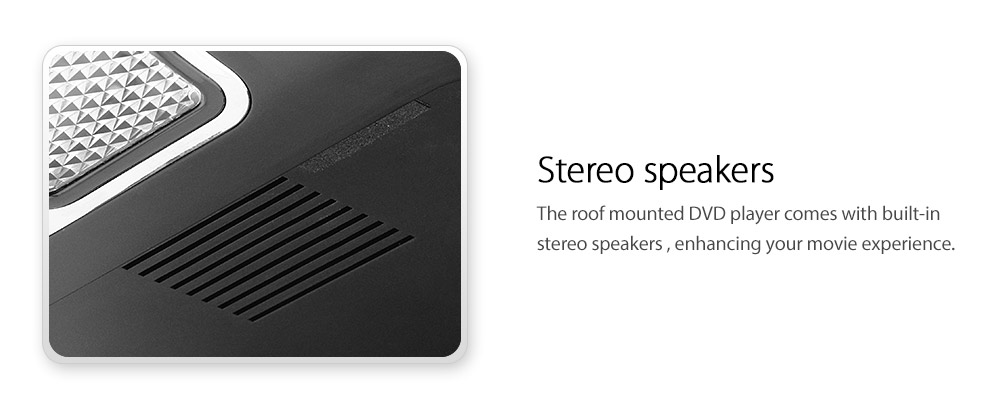

Speakers |
- Built-in speakers
- However we recommend using car speakers via FM transmitter or IR wireless headphones for best audio quality
|
Connectors and hardware
Digital TFT screen |

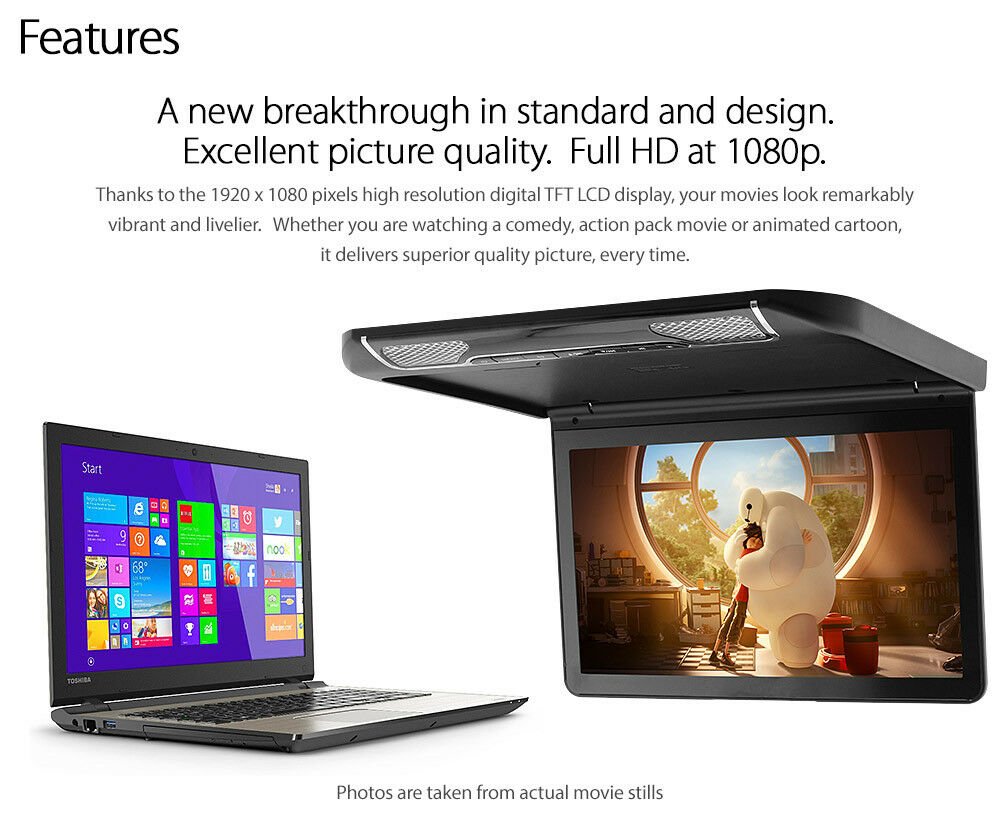

- High resolution 1920 x 1080 pixels gives you sharp and crisp display
- Brightness 500 cd/m2
|
Contrast ratio |
500 : 1
|
Viewing angle |
Horizontal: 150°
Vertical: 120°
|
Adjustable monitor angle - opening |
From 0° (closed) to 120° (maximum opening)
|
Video system |
NTSC / PAL (auto switching)
|

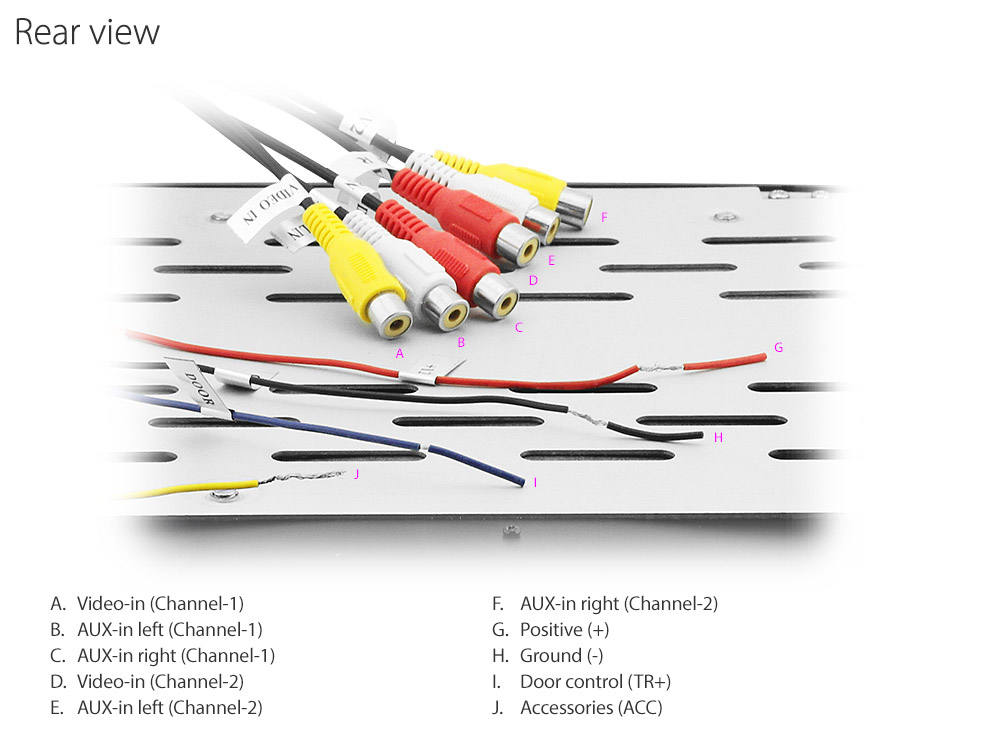

RCA input/output |
RCA connectors available as follows:
- Input (video, audio-right and audio-left)
- Output (video, audio-right and audio-left)
|
Operating voltage |
DC 12V
|
Power consumption |
12V ≤ 0.05A (sleeping)
12V ≤ 1.0A (working)
|
DVD/CD loader |
Built-in Electronic Shock Protection (ESP)
|
Operating temperature |
-20°C ~ 60°C
|

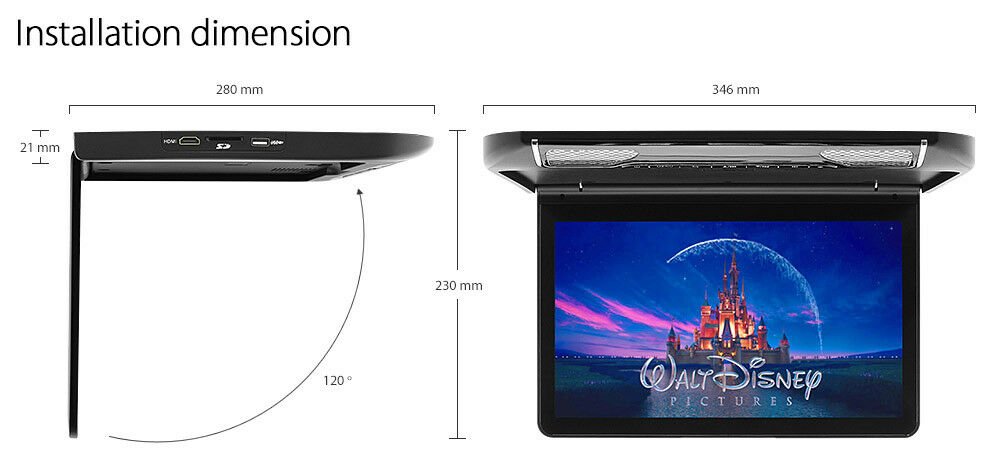

Dimension |

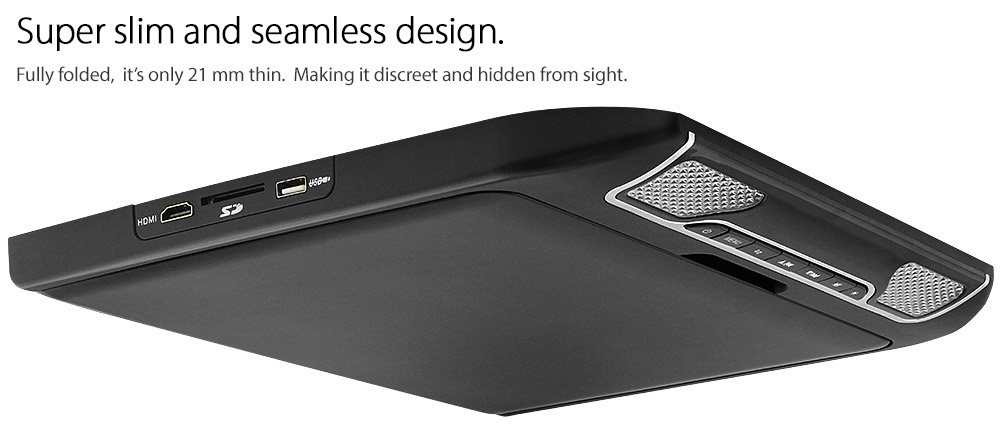

Monitor close - 346 mm x 21 mm x 280 mm (Width x Height x Depth)
Monitor open - 246 mm x 230 mm x 280 mm (Width x Height x Depth)
|
Weight |
2.0 kg
|

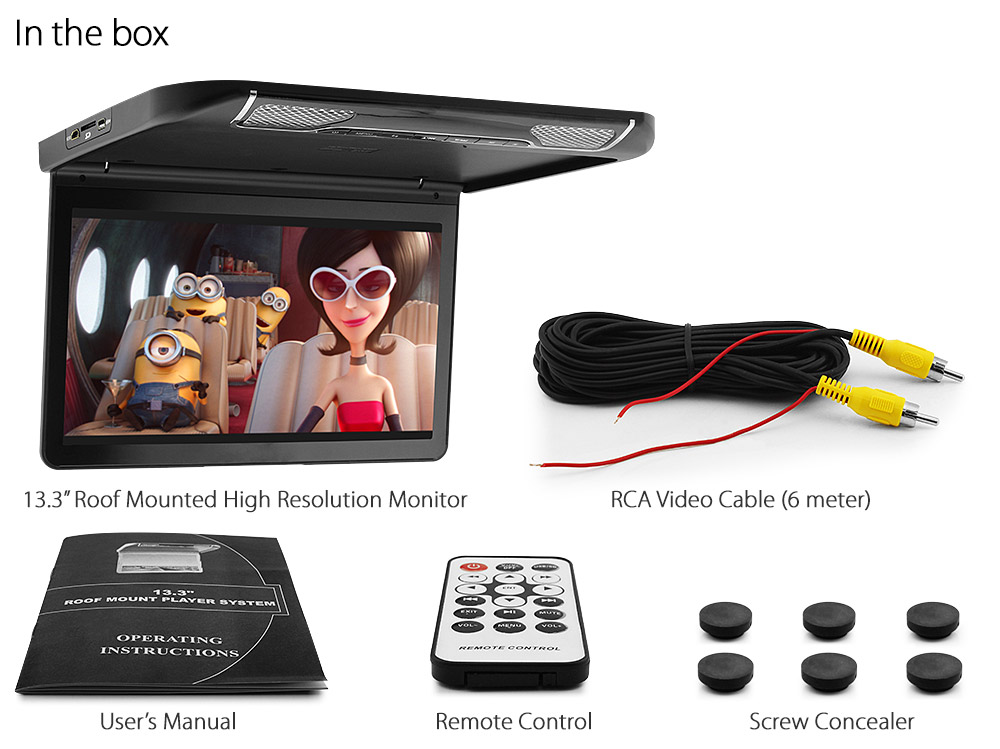

Accessories |
- RCA video cable (6-meter)
- Screw concealer
- User manual
|
|
