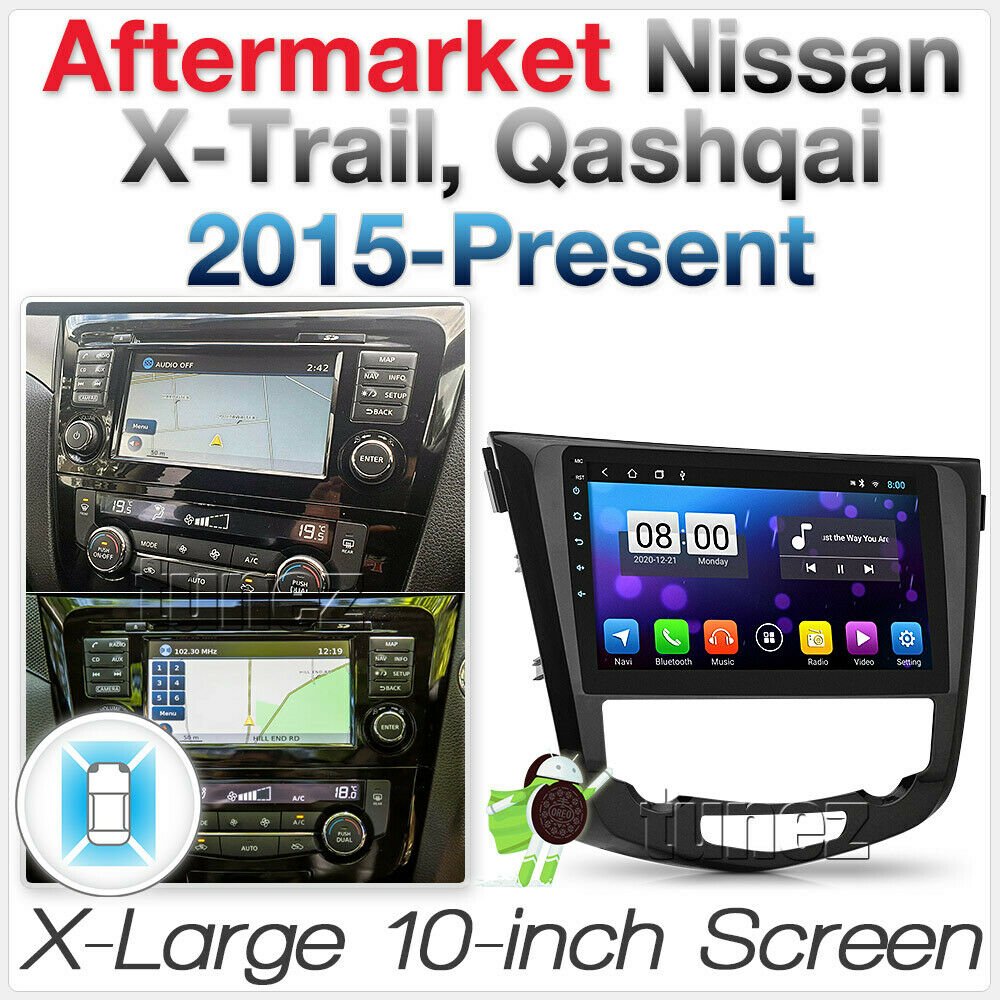

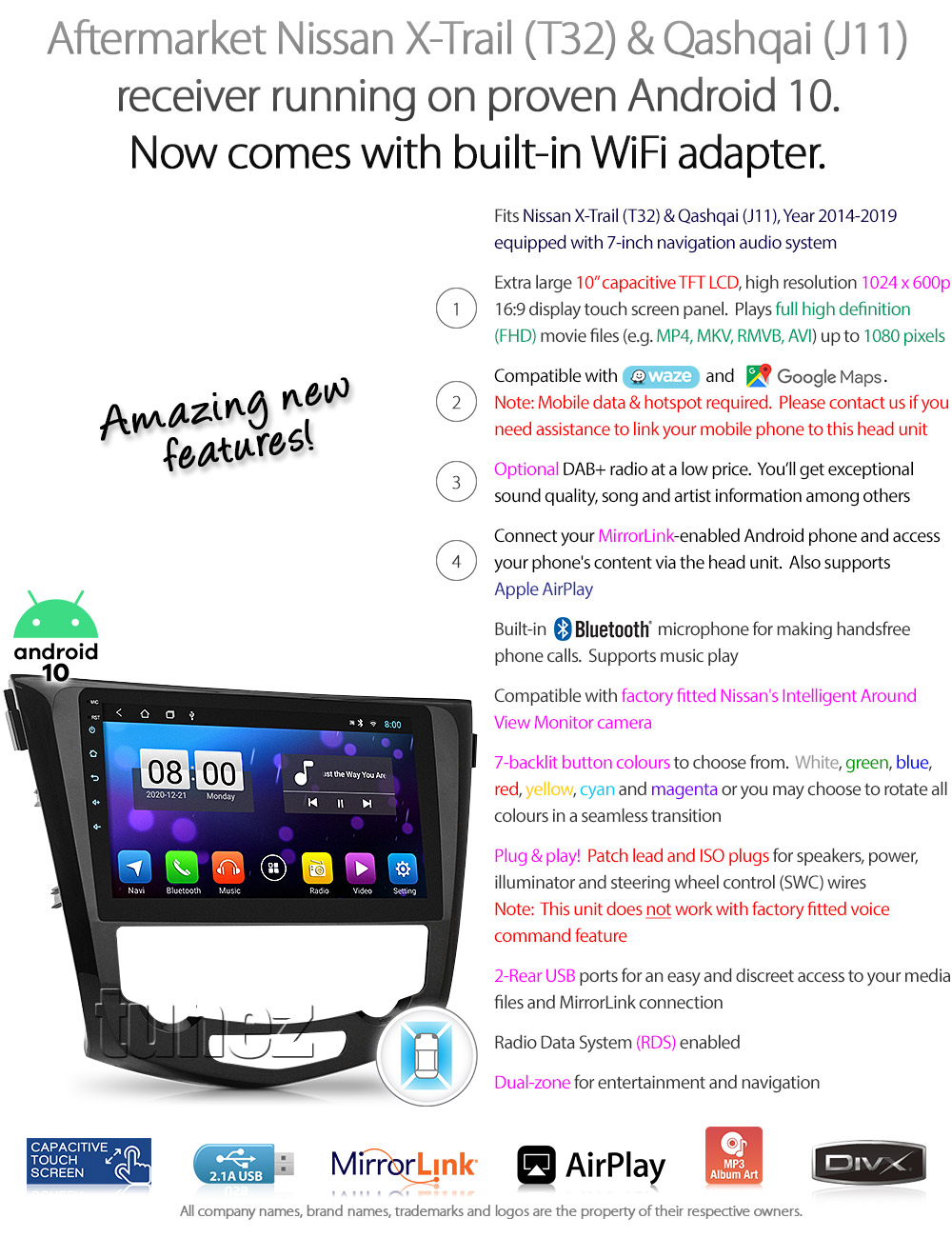

Newly released aftermarket Nissan X-Trail (T32) & Qashqai (J11), Year 2014-2019, extra large 10-inch capacitive TFT LCD touchscreen car multimedia radio receiver powered by proven Android 10 operating system.
Plug & Play feature with matching wiring harness and ISO plugs. No need to splice your factory fitted wires!
Matching fascia kit for a factory fitted look and feel!
All buyers, kindly note:
• Send us a message or e-mail of your vehicle's model, year manufactured and badge/series for compatibility and fitting check.
• Please ask installer to bench test head unit to ensure it is in working condition before installation. |
Car specifications and technical guidance

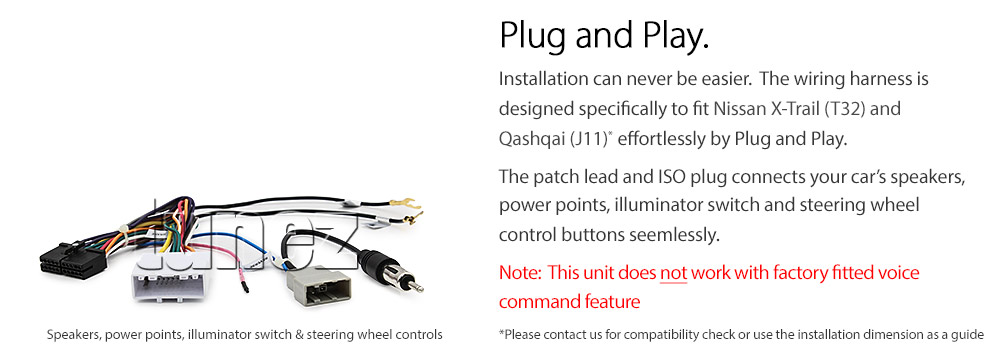

Matching ISO plugs |
- The Plug & Play feature connects the ACC, battery, ground, illuminator, speakers and steering wheel control wires to your Nissan X-Trail & Qashqai ISO plug directly
- No need to splice your factory fitted wires
|

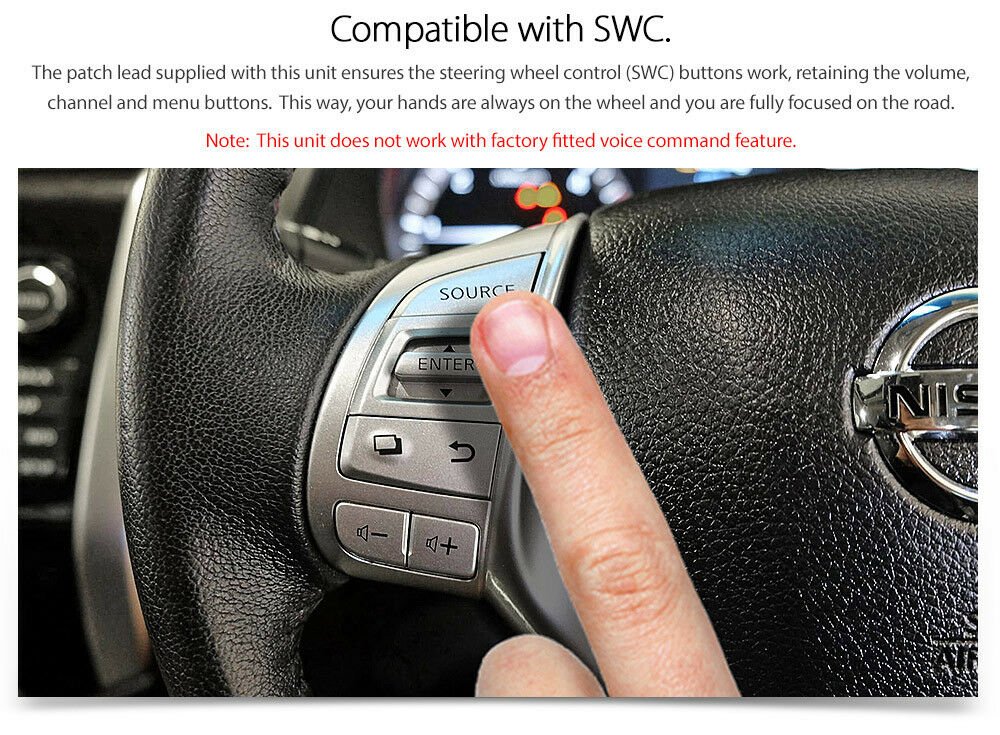

Steering wheel control |
- The Plug & Play wiring harness connects audio steering wheel control wires to your Nissan X-Trail & Qashqai ISO plug directly
- You are required to perform steering wheel control learning procedure via 'Settings' menu in order to map factory steering wheel control buttons to the head unit
- Please follow the simple on-screen learning procedure or refer to the user manual
|

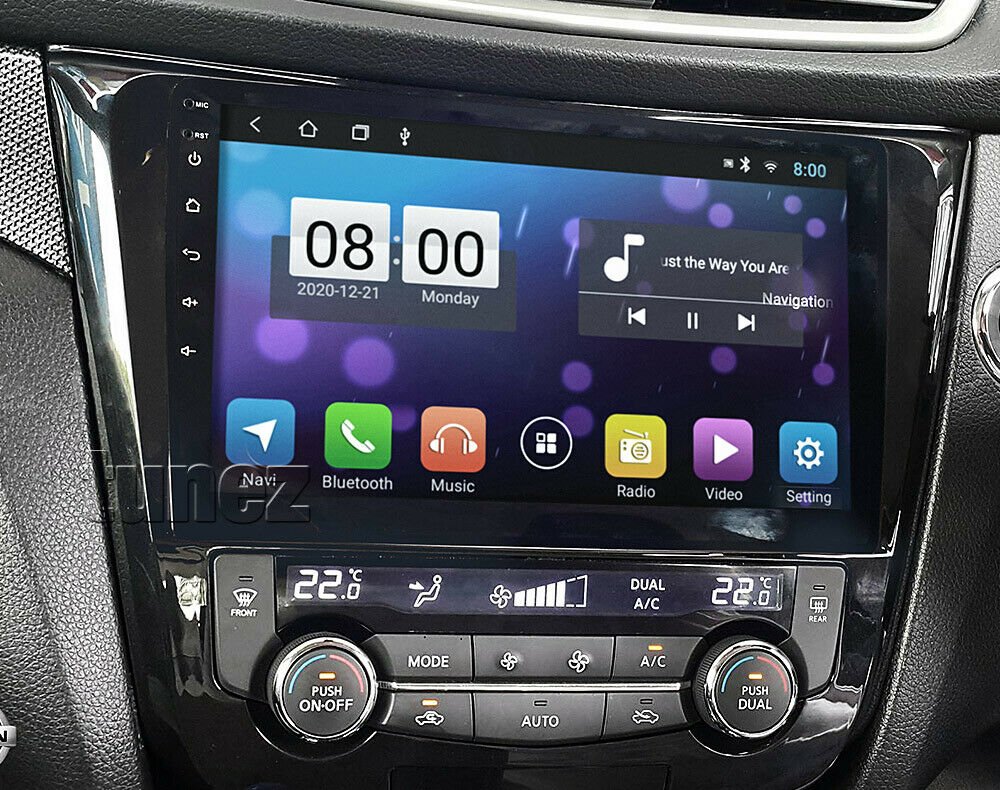

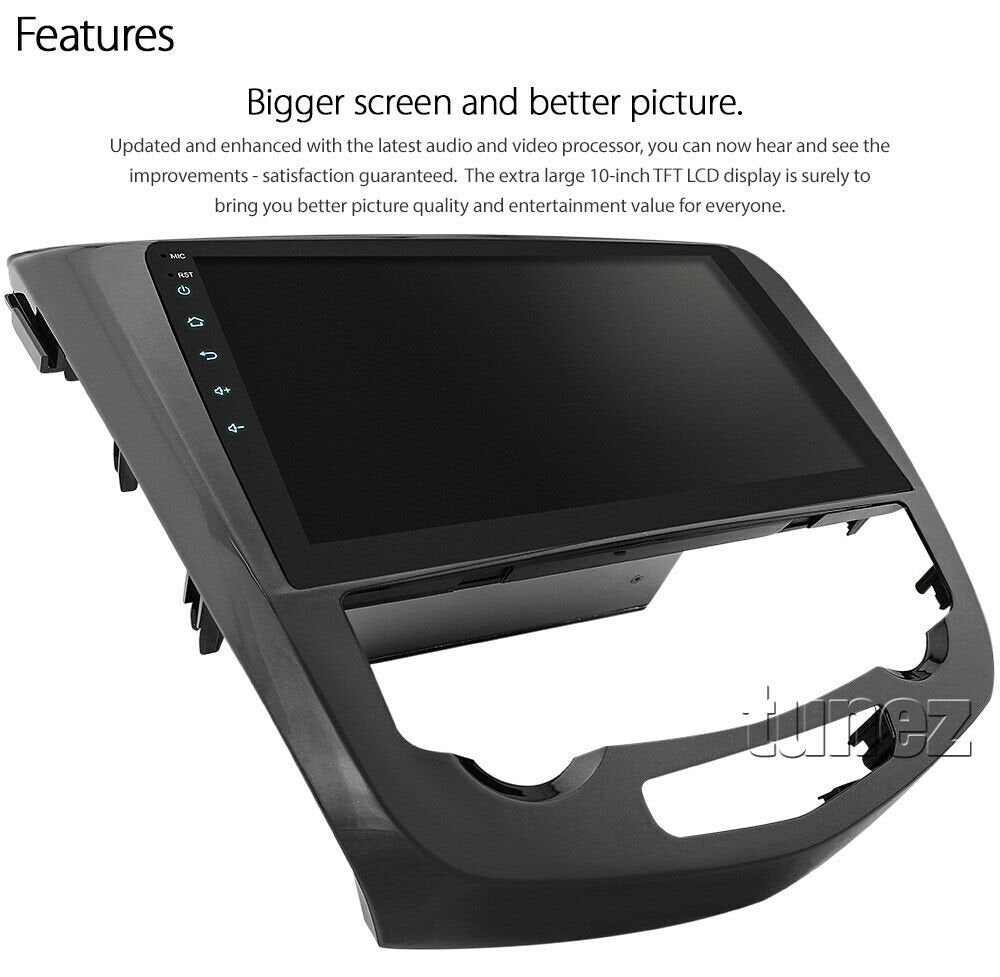

Fascia kit |
- Designed for Nissan X-Trail (T32) & Qashqai (J11), Year 2014-2019
- Minor modification to the dash is required for a flush fitting
- Comes in glossy black finish fascia kit only
|

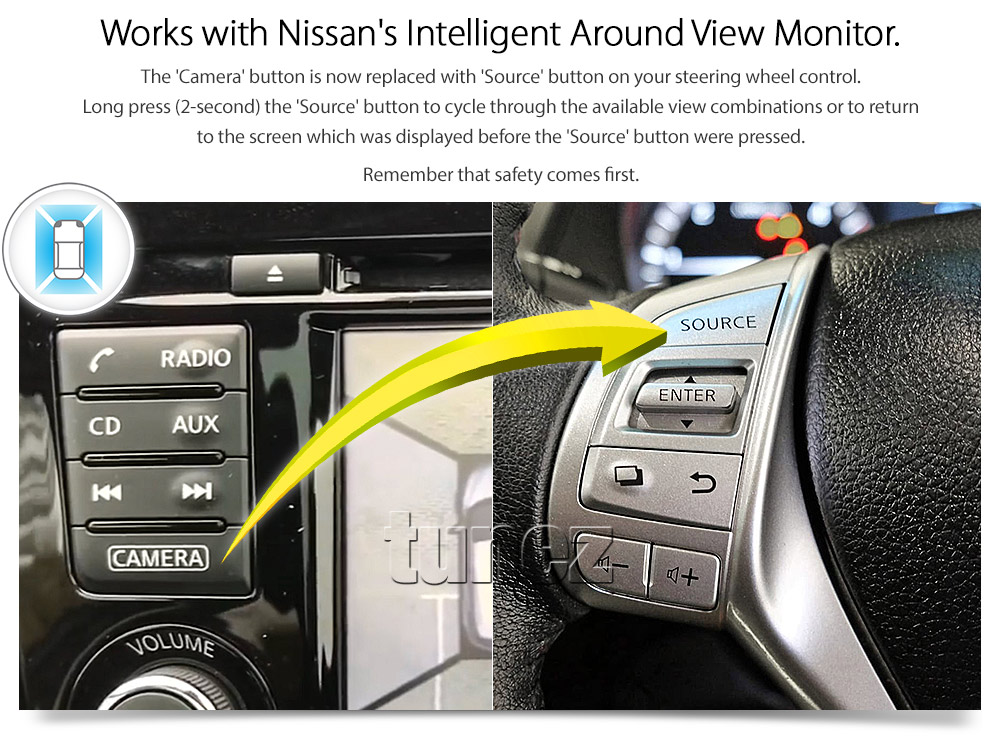

Reversing camera feature |
- Works with factory fitted Nissan's Intelligent Around View Monitor camera system
- This is a significant upgrade from the factory standard screen to an extra large 10-inch touch screen
|

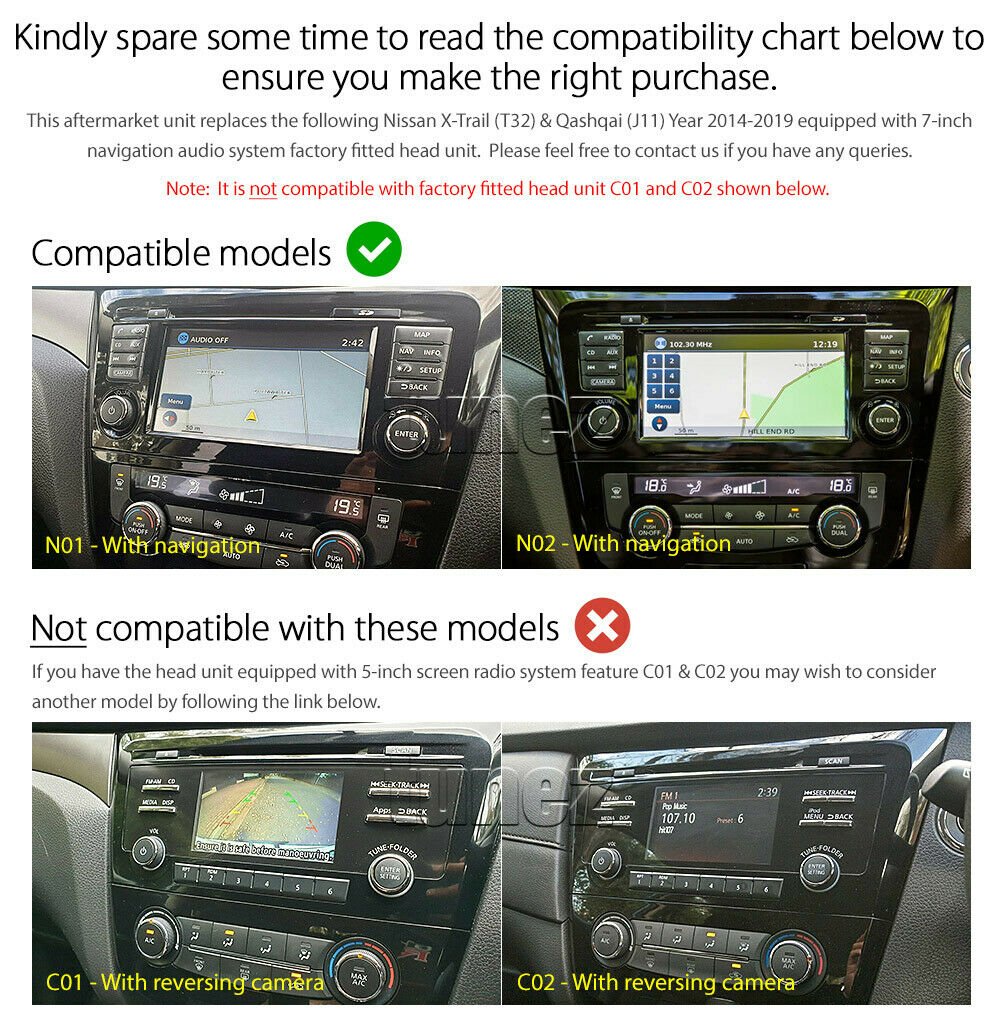

Factory fitted head unit |
Please ensure you have selected the correct aftermarket head unit to replace your factory fitted radio

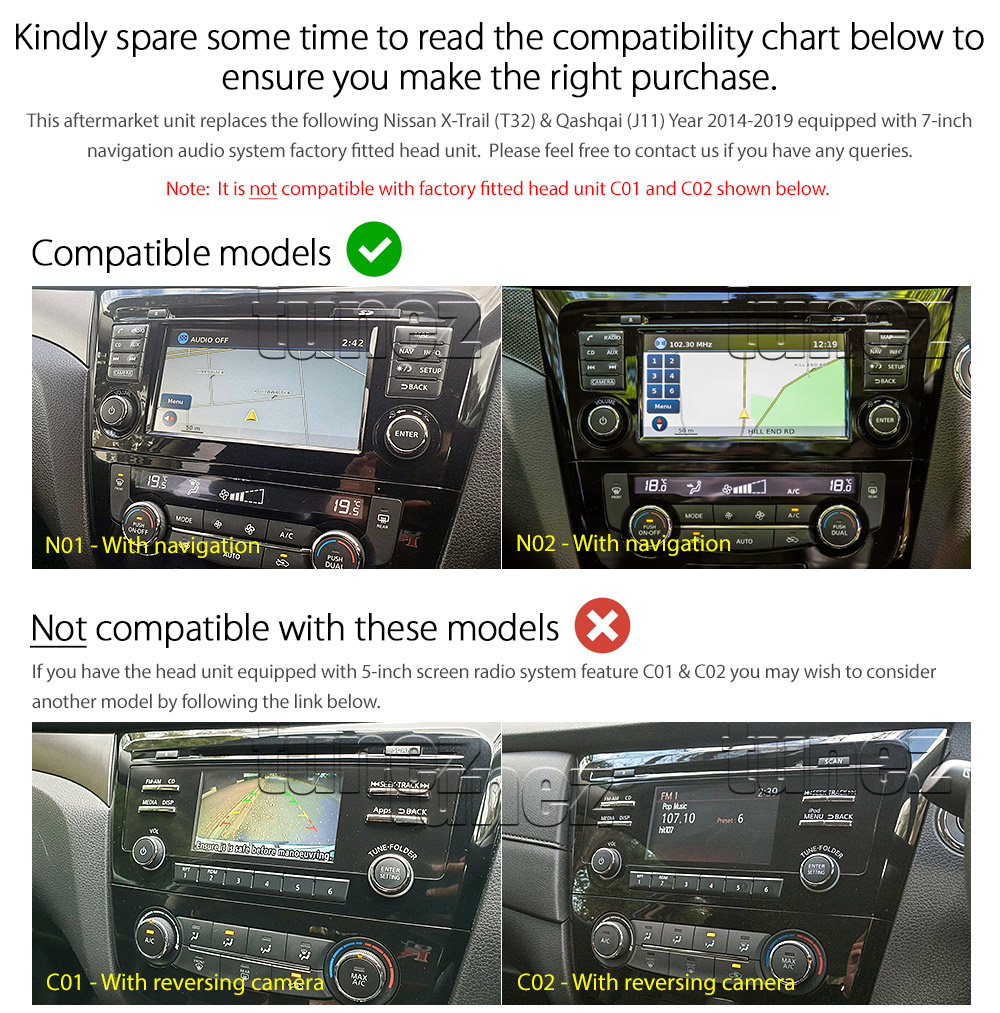

If you are unsure how the factory fitted unit looks like, please refer to the compatibility chart at the top section of this ad
|
Voice command |
Note: Does not work with factory fitted Voice Command button and feature
|
Android specifications
Software |
- Android 10
- Proven and stable operating system
|
Central processing system (CPU) |
- 1.7GHz ARM Cortex
- 4-Quad core processor
|
Assembler |
- MediaTek
- MiraVision technology
|
Random Access Memory (RAM) |
Samsung 2GB DDR3 RAM
- 3X faster route calculation !!!
- No more lagging and out of memory problem when running Text-To-Speech (TTS) files !!!
- Spoken street name with truly natural human voice !!!
- Smoother 3D image rendering !!!
|
Internal storage |
11GB of free space for your music and video files
|
GPS receiver |
- SiRFatlasVI 1,200MHz receiver with 64 acquisition channels
- Faster satellite locking !!!
|
GPS module |
- Detects satellite signal faster than standard GPS unit
- Does not support Windows CE GPS software and map
- Does not come with GPS software
- You may download Waze or Google Map for navigation.
Note: You will need to connect your 4G mobile data to this head unit via hotspot to use Waze or Google Map other mobile GPS application. Please contact us if you need assistance to link your mobile phone to this head unit.
- Compatible with major Android based GPS software which (for e.g. OziExplorer, Tom Tom, iGO, etc.)
- If you have Android based OziExplorer/Hema off-road maps, you can run them on this unit
|
Dual-zone capability |
- Dual-zone playback enables the driver to use GPS navigator for navigation while rear passengers watch video using headrest or roof mounted monitor simultaneously
- Whenever there is GPS voice broadcast, front 2 speakers will give way to GPS voice and return back to music after broadcast. The rear 2 speakers are not affected in anyway
|
Media
Compatible media |
Video format: MP4 / MKV / RMVB / AVI / DIVX / FLV / MPG
Audio format: MP3 / AAC / WMA / WAV / FLAC / MKA
|
Reminder |
Does NOT come with CD player and SD card reader
|
Touchscreen |
Capacitive touch
|

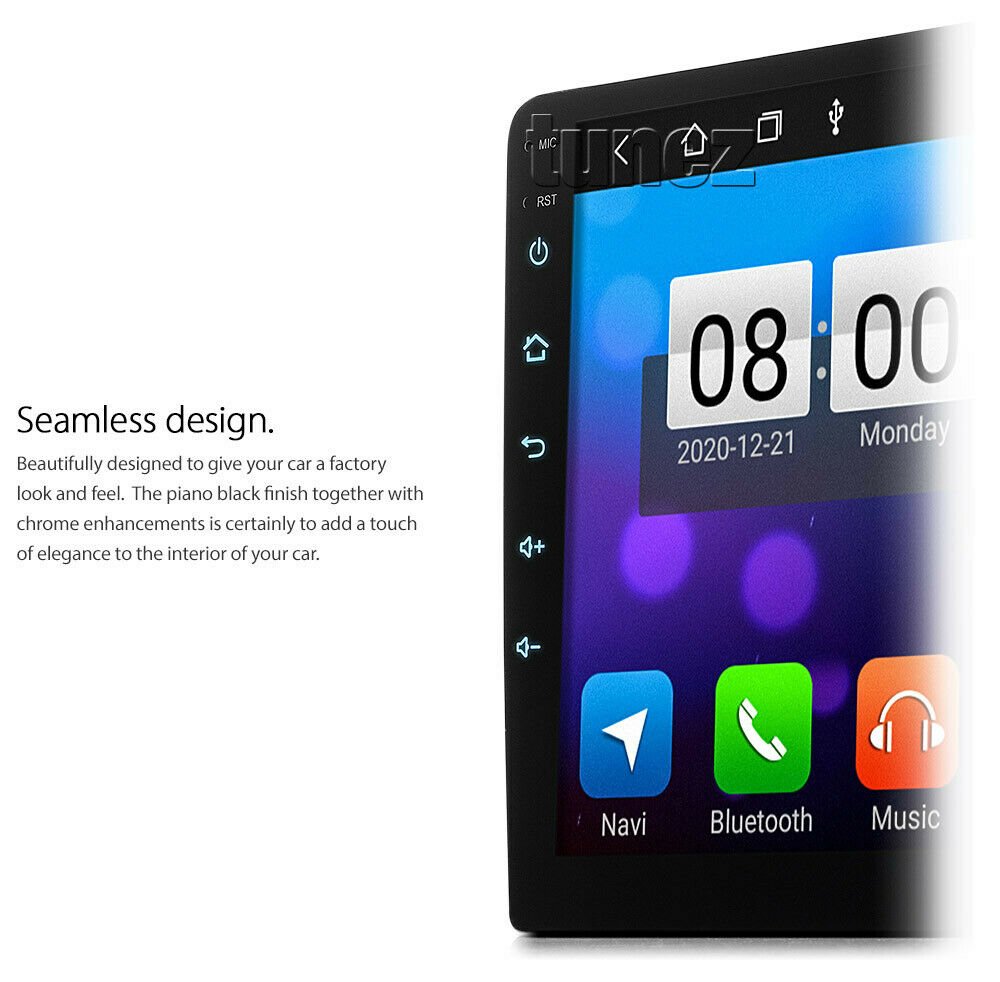

Display |
- Extra large 10-inch TFT LCD touchscreen
- 16:9 aspect ratio
- User friendly menu for ease of navigation
- 2 stage monitor dimming control function
- Automatically dims monitor when headlights are turned on
- Monitor 'Sleep' function, turns off monitor anytime you wish
|
TFT LCD screen |
- 32-bit True Colour
- 1024 x 600 pixels gives you sharp and crisp display
- Plays full high definition (FHD) movie files (e.g. MP4, MKV, RMVB, AVI) up to 1080 pixels via USB reader
- Contrast ratio 4,000:1
- Brightness 550cd/m2
|

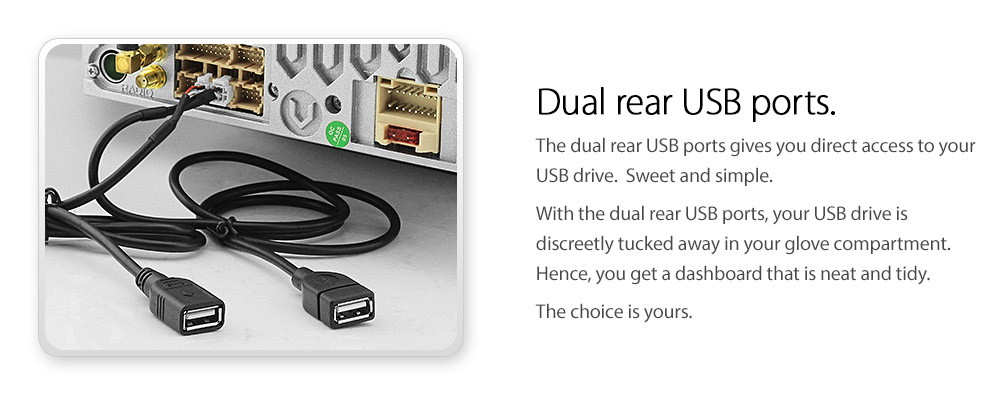

USB reader |
- 2 rear USB ports come with 1-meter USB cable. Hence, you can place your USB thumb drive in the glove compartment and keep your dashboard neat
- Supports USB thumb drive only and up to 256GB
- Does NOT support external hard disk, iPod or tablet
|

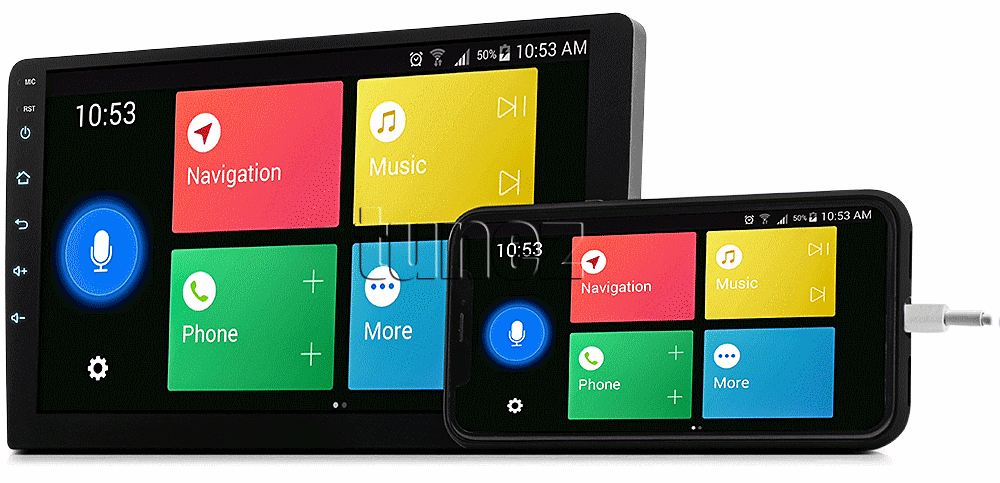

MirrorLink |
- Via the rear USB reader: Simply connect any Android MirrorLink-enabled smartphone to the head unit and take advantage of easier and more responsible access to navigation, music and phone apps which makes connected driving easier, safer and more enjoyable.
- Please follow the on-screen instruction to connect your phone to this head unit
- If you have any queries, please send us an eBay message and we will be able to assist you
|
Apple AirPlay Mirroring |
- Simply pair your iPhone, iPad, iPod or iOS devices to this head unit via Apple AirPlay Mirroring
- Once that is done, it mirrors your iPhone screen to the head unit and transmits the sound to the car's speakers
|

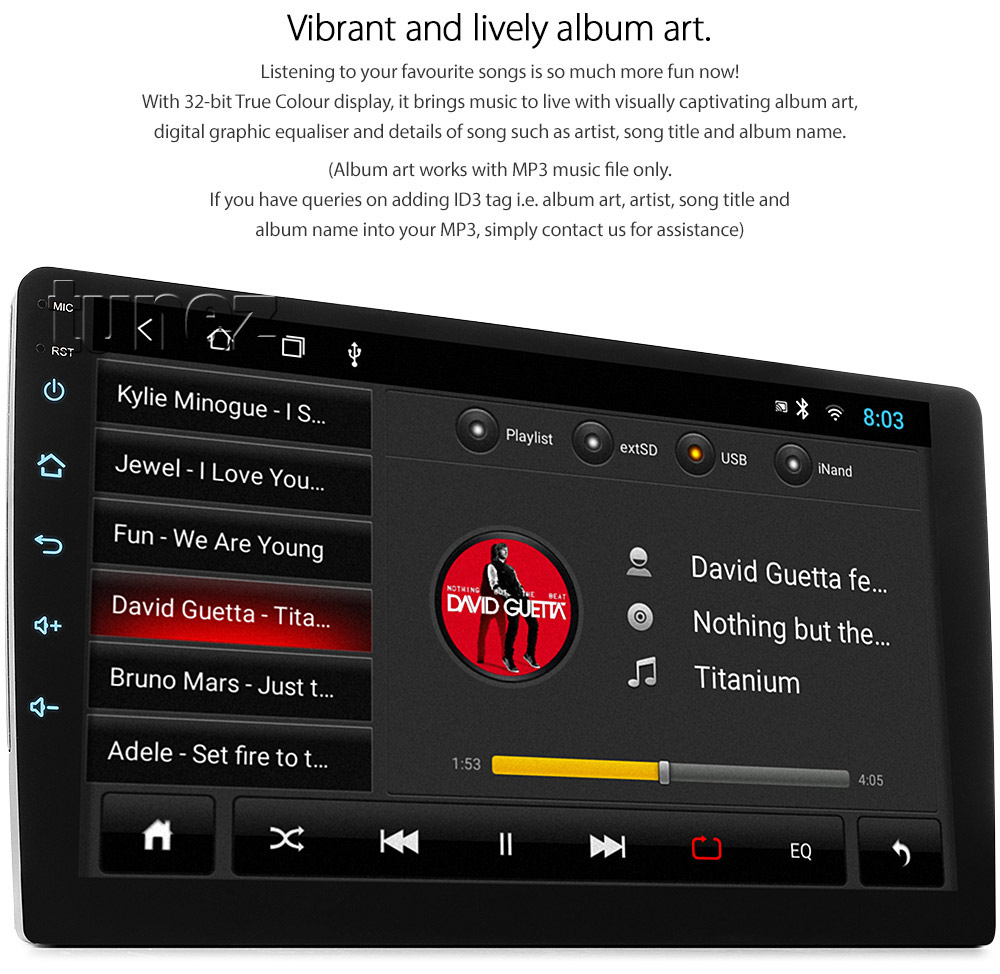

Album art & ID3 tag |
- Displays MP3 album art
- Compatible with ID3 tag for artist name, song title and album name
- Please contact us if you have any queries on ID3 tag
- This feature is available in USB mode only
|
Analogue radio tuner |
- FM/AM tuner with Radio Data System (RDS)
- 30 present channels (18 FM & 12 AM)
- FM/AM frequencies menu option for all region
|
Digital radio tuner (Optional) |
Major benefits of optional DAB+ digital radio receiver:
- Exceptional sound quality
- Song & artist information
- Tuning by station name
- Scrolling text
- More radio stations than regular FM radio
But don’t worry if you aren’t in a DAB+ area, this head unit can also tune into regular FM and AM radio stations.
Note:
- Optional @ AU $29
- Please check coverage area at www.digitalradioplus.com.au/can-i-get-digital-radio
|
Bluetooth
System |
- Supports Bluetooth 3.0 and below
- High quality Bluetooth receiver
|
Handsfree
feature |
Make and receive phone calls using Bluetooth receiver
|

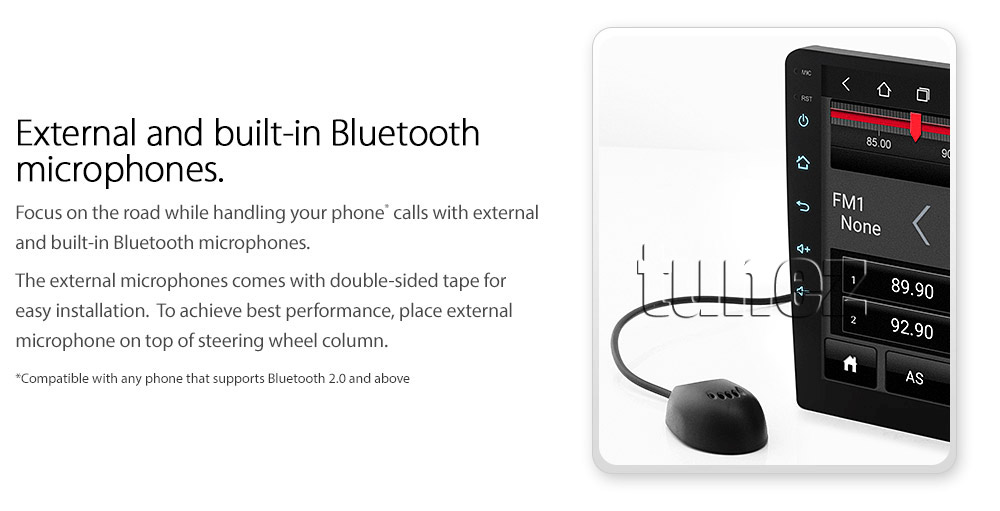

Microphone |
- Equipped with 2 microphones
- External microphone with double-sided tape. For best performance, place external microphone on steering wheel column
- Built-in microphone in head unit
|
Music player |
- Wirelessly stream music to the stereo using your mobile phone that supports A2DP for e.g. all iPhone models
- Remotely control your mobile phone using the stereo's on-screen button i.e. play, next song, previous song and stop
|

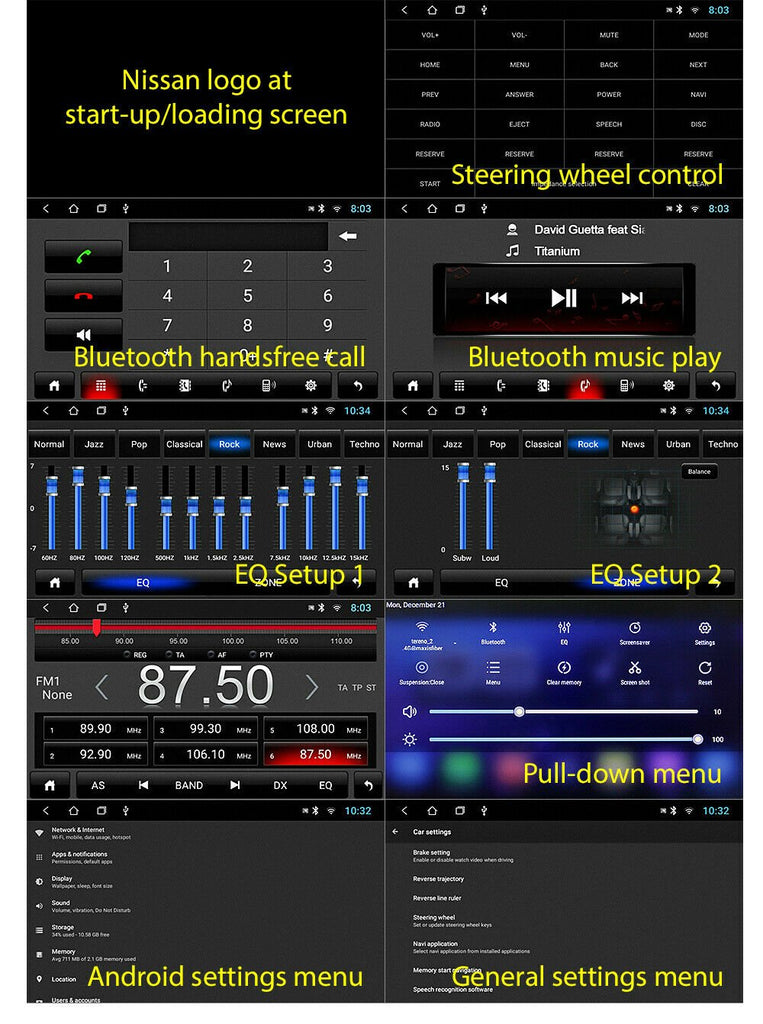

Systems and controls

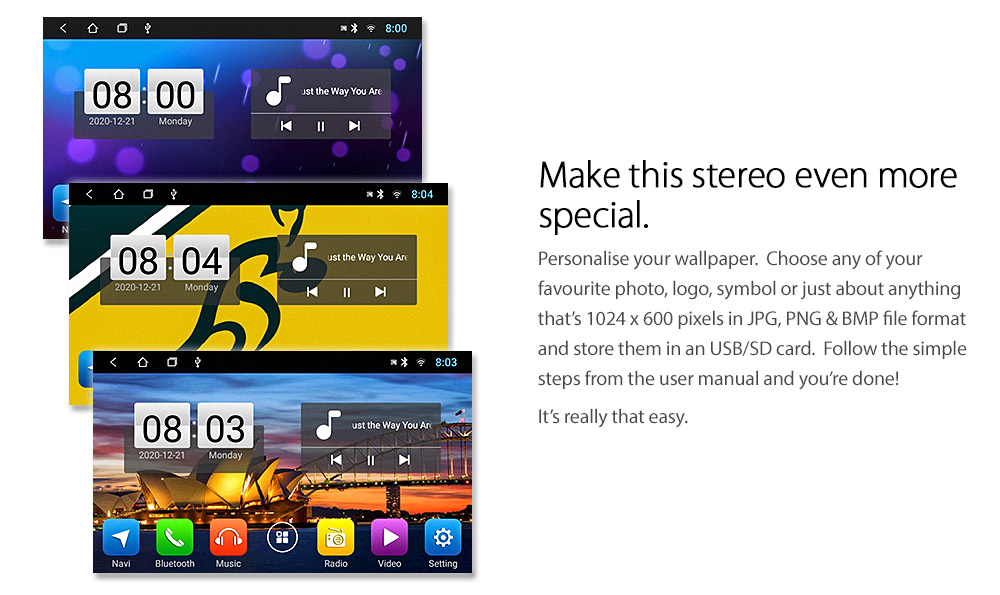

Static wallpaper |
- Comes with 12 attractive preset wallpapers
- Alternatively, add a personalised wallpaper to your new stereo
- Choose your favourite pet photo, car logo, symbol or just about anything
|
Live wallpaper |
- Supports interactive live wallpaper
- You can download live wallpaper from Google Play Store
|

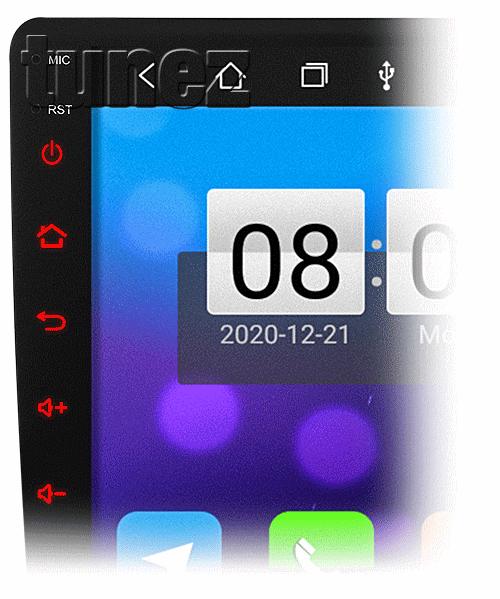

Backlit illumination colours |
- Choose from 7 different backlit illumination colours (i.e. white, green, blue, red, yellow, cyan and magenta) to match your car's instrument panel
- You may rotate these 7 colours in a seamless transition to create a colourful and cheerful ambience
|
Reversing camera feature |
- Intelligent Reversing & Manual Front Camera Mechanism (IRMFCM)*
- For e.g. upon detecting car in reverse gear, head unit automatically power up and goes into parking/reverse camera view mode
- For more features, kindly refer to IRMFCM features description mentioned earlier in this ad
- * Note: Works with Tunez optional reversing camera; for details, view optional items at the bottom of this ad
|
Front camera feature |
- After disengaging reverse gear, you can turn on the front camera by pressing 'Front Video' icon to give you a clear view on what lies ahead of your front bumper e.g. road curb or low lying objects.
- * Note: Works with Tunez optional front camera; for details, view optional items at the bottom of this ad
|
Audio and video settings |
- Built-in 12-band graphic equaliser for better audio control
- Preset EQ settings (Classic, Standard, Jazz, Pop, Rock, Techno and Custom settings)
- Fader, balance, subwoofer, loud settings
- Adjustable video display (Brightness, colour and contrast settings)
- Languages (English, Chinese, Indonesian, Arabic, Thai, Russian and Spanish)
|
Other controls |
- Amplifier remote turn on control (REM)
- Power antenna control
- Built-in RGB imaging for auto video adjustment
- Eco friendly and low power consumption model
|

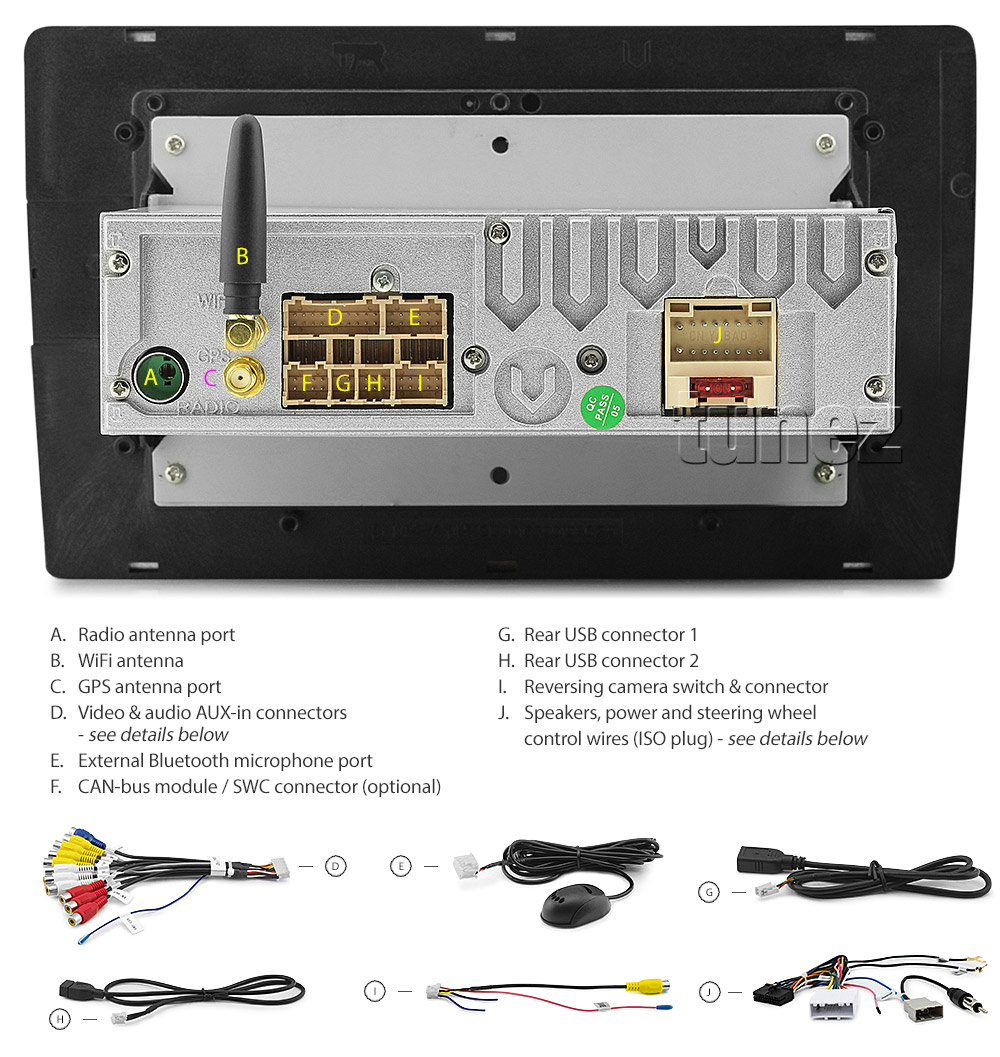

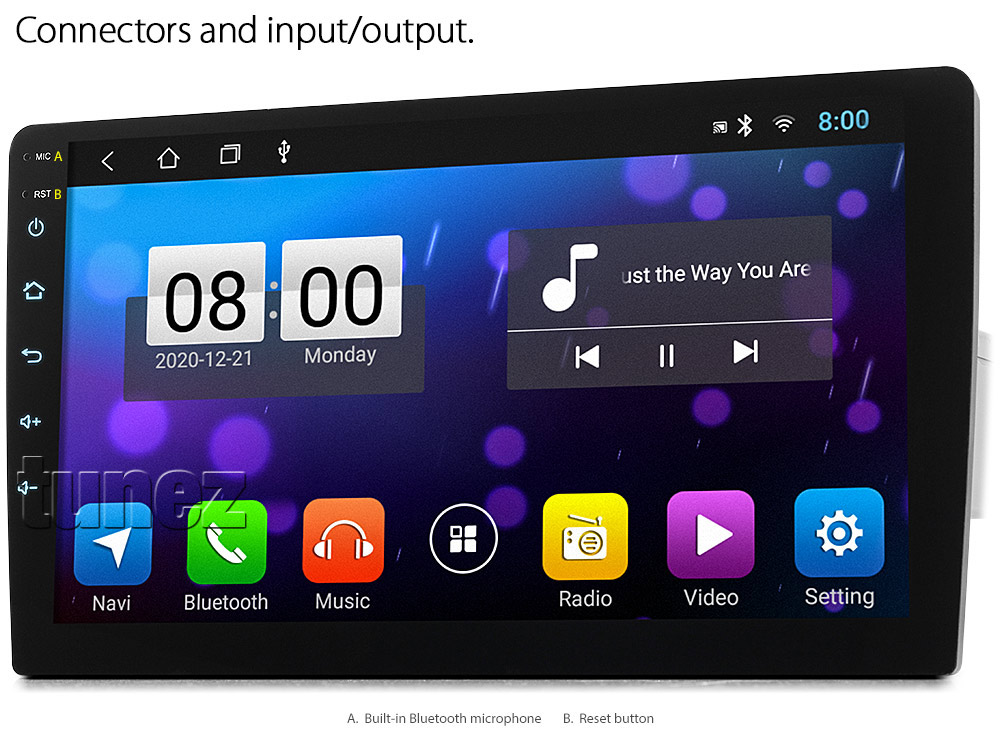

Connectors and hardware
Audio and visual (RCA) |
- 5 x Pre-out (Front right, front left, rear right, rear left and subwoofer)
- 2 x Video output
- 1 x Parking/reversing camera input
- 1 x Front camera input
- 1 x Video input
- 2 x Audio input (Right and left)
|
Cooling mechanism |
Highly conductive rear heat sink keeps the unit cool
|
Sound system |
Built-in high fidelity amplifier with maximum power output 45W x 4 (4 Ohm)
|

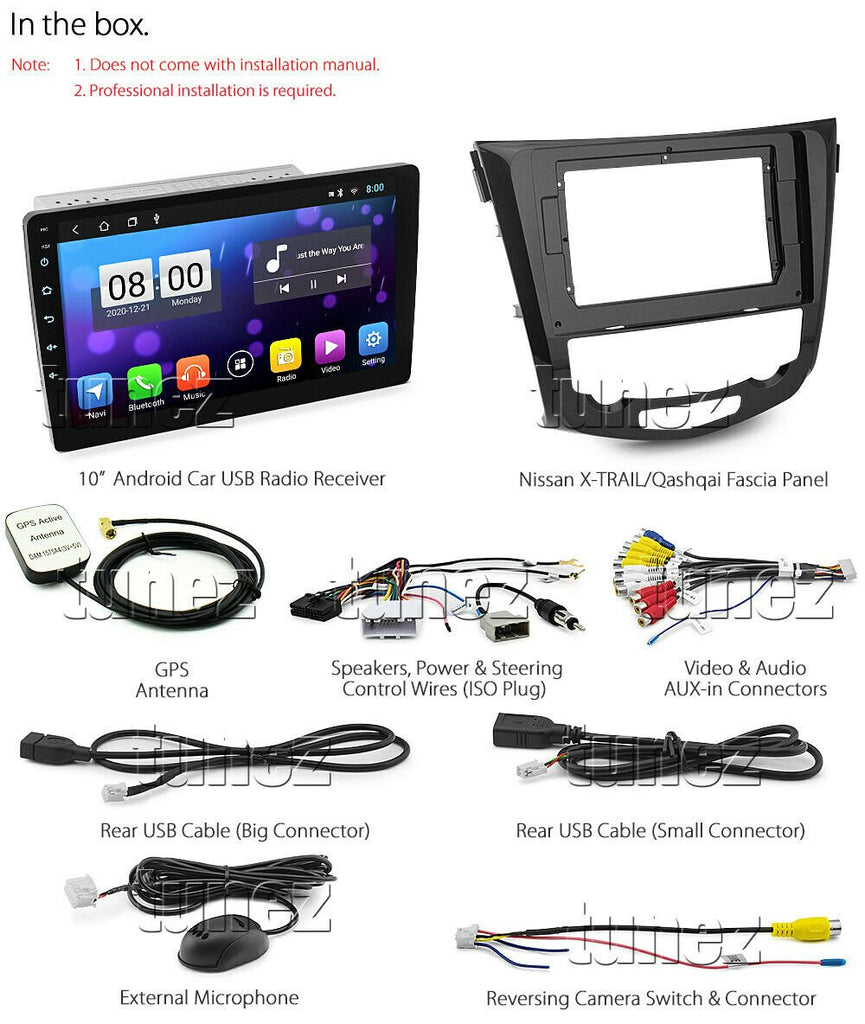

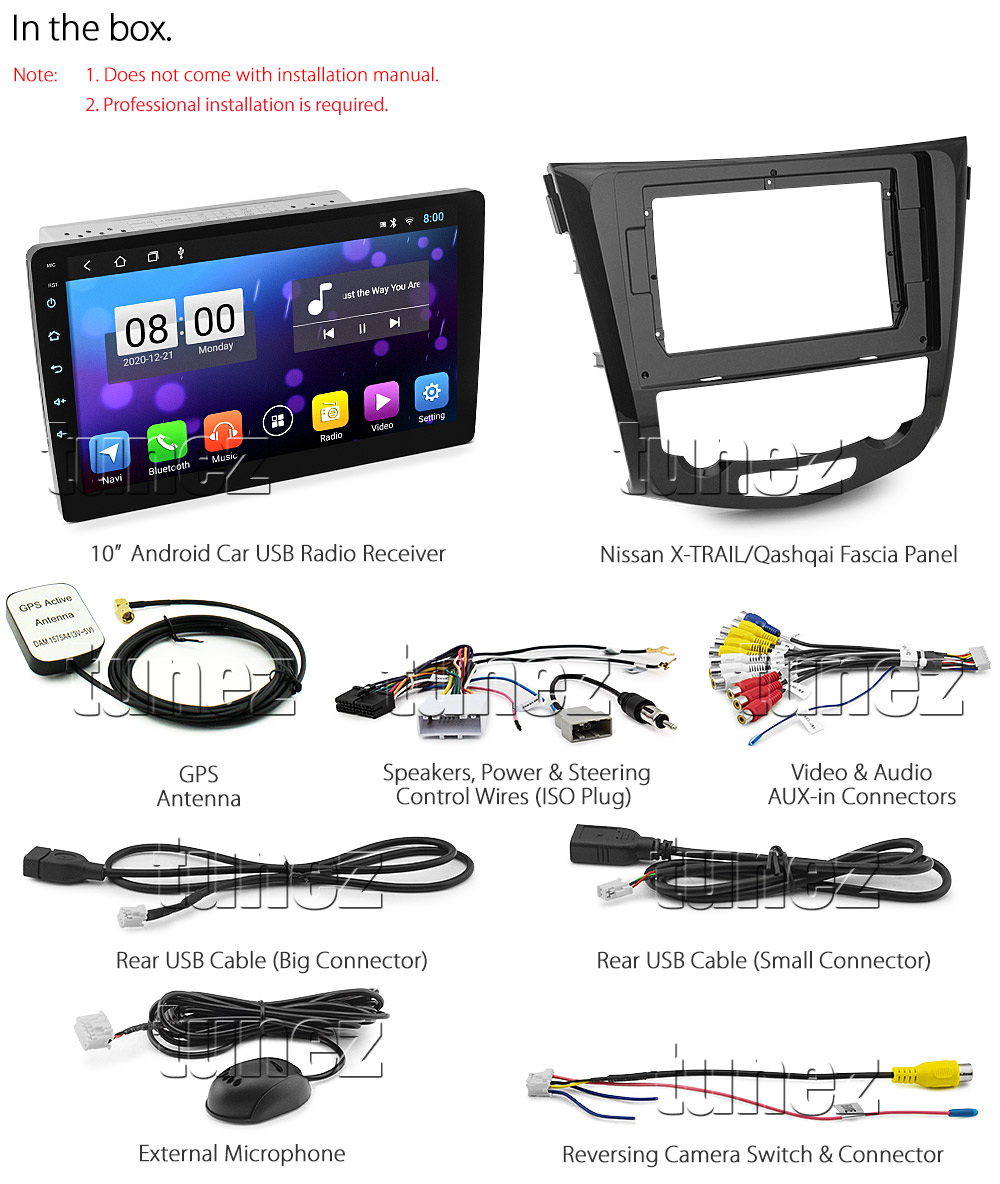

Accessories |
- Nissan X-Trail / Qashqai fascia kit and ISO plugs
- GPS antenna (3-meter)
- External Bluetooth microphone (2-meter)
- Rear USB connectors (2 ports, 1-meter each)
|
|
