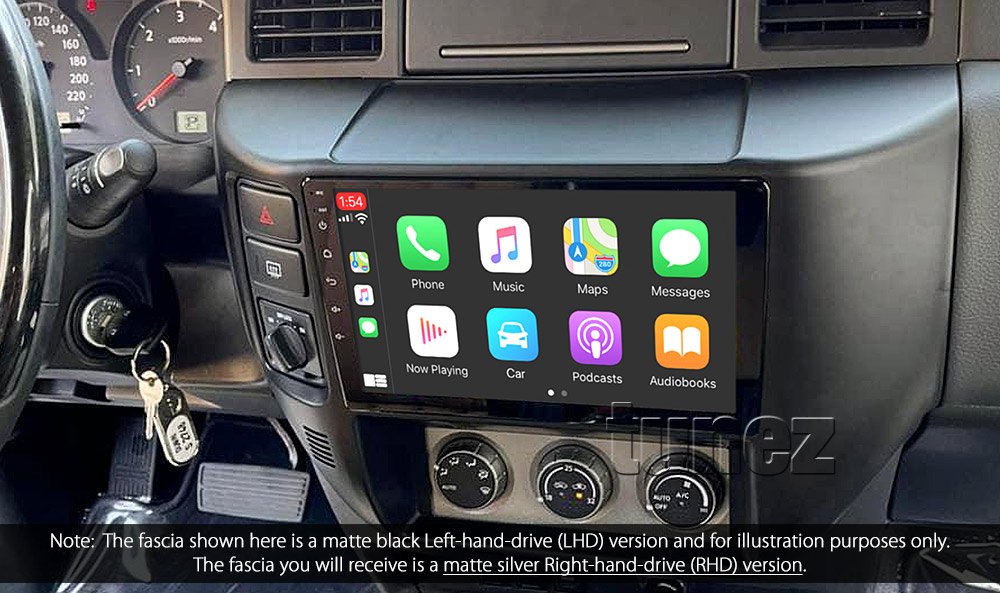

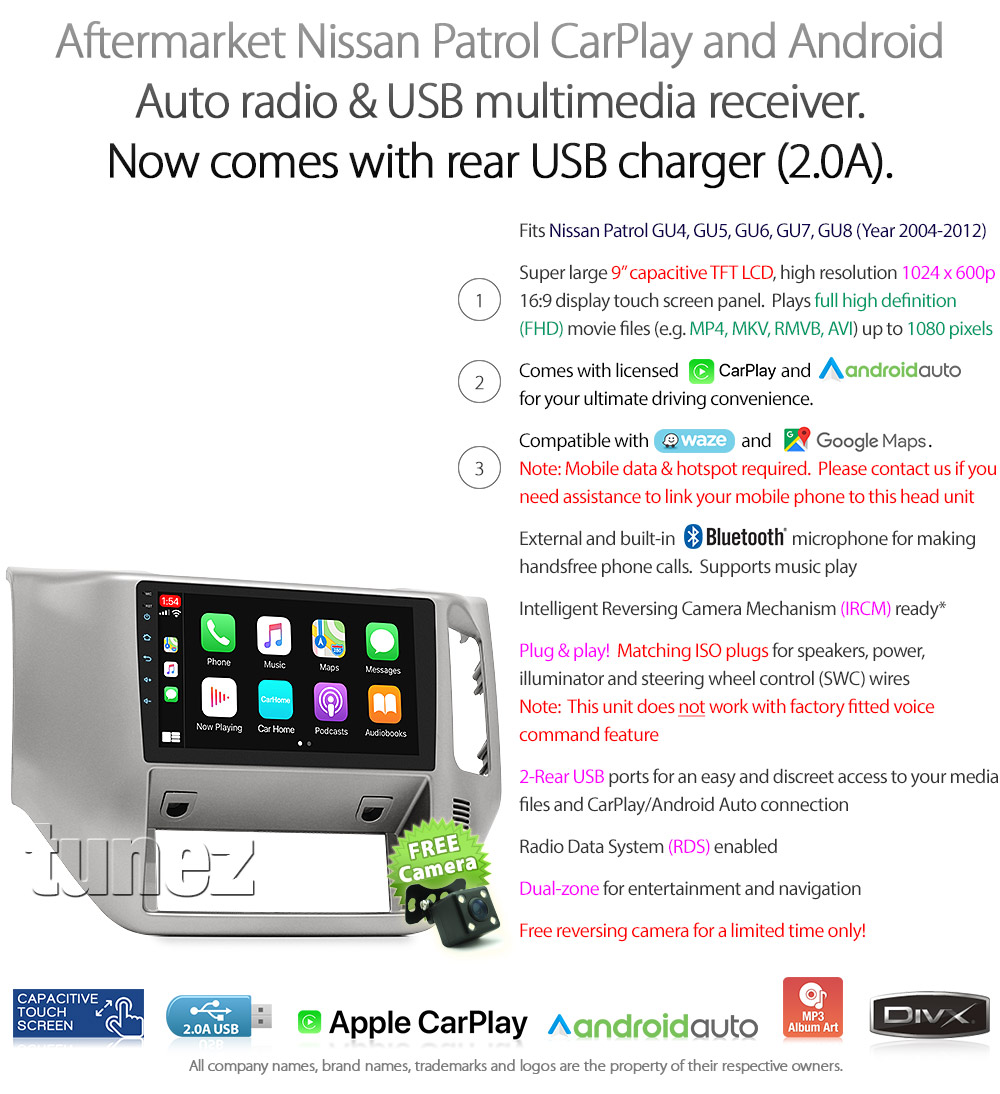

Newly released aftermarket Nissan Patrol GU4, GU5, GU6, GU7 and GU8 (Year 2004-2012) super large 9-inch capacitive TFT LCD touchscreen car multimedia radio receiver powered by Apple CarPlay and Android Auto system.
Plug & Play feature with matching wiring harness and ISO plugs. No need to splice your factory fitted wires!

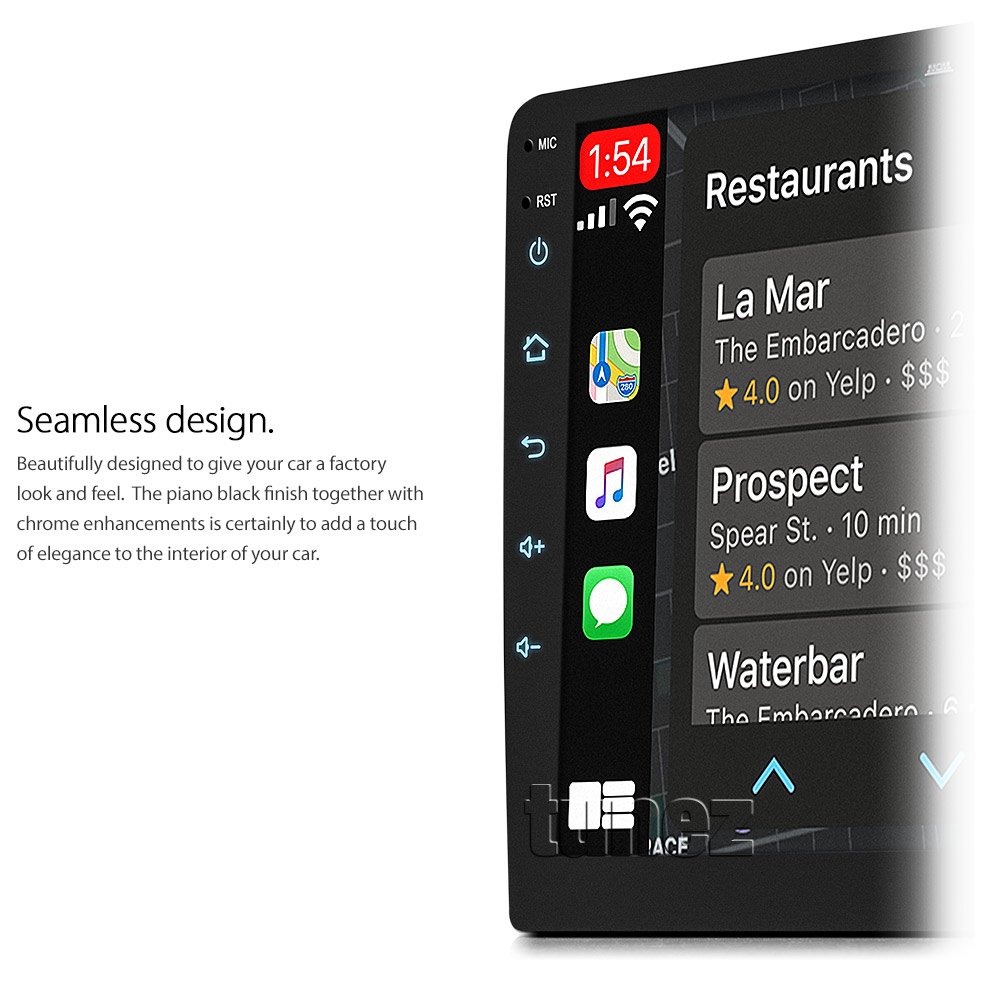

Matching fascia kit for a factory fitted look and feel!
All buyers, kindly note:
• Send us a message or e-mail of your vehicle's model, year manufactured and badge/series for compatibility and fitting check.
• Please ask installer to bench test head unit to ensure it is in working condition before installation.
|
Car specifications and technical guidance
Matching ISO plugs |
- The Plug & Play feature connects the ACC, battery, ground, illuminator, speakers and steering wheel control wires to your Nissan Patrol ISO plugs directly
- No need to splice your factory fitted wires
|
Steering wheel control |
- The Plug & Play wiring harness connects the steering wheel control wire to your Nissan Patrol plug directly
- You are required to perform steering wheel control learning procedure via 'Settings' menu in order to map factory steering wheel control buttons to the head unit
- Please follow the simple on-screen learning procedure or refer to the user manual
|
Reversing camera feature |
Works with factory fitted reversing camera
|

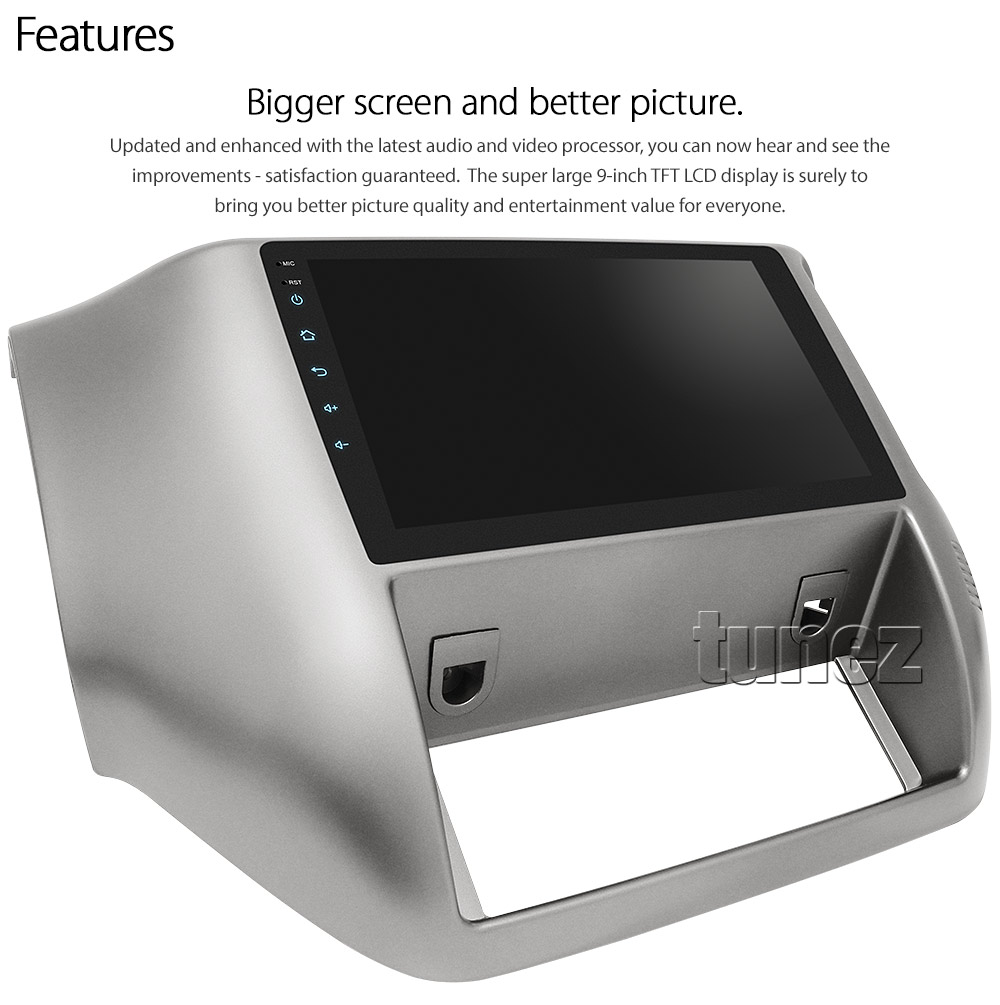

Fascia kit |

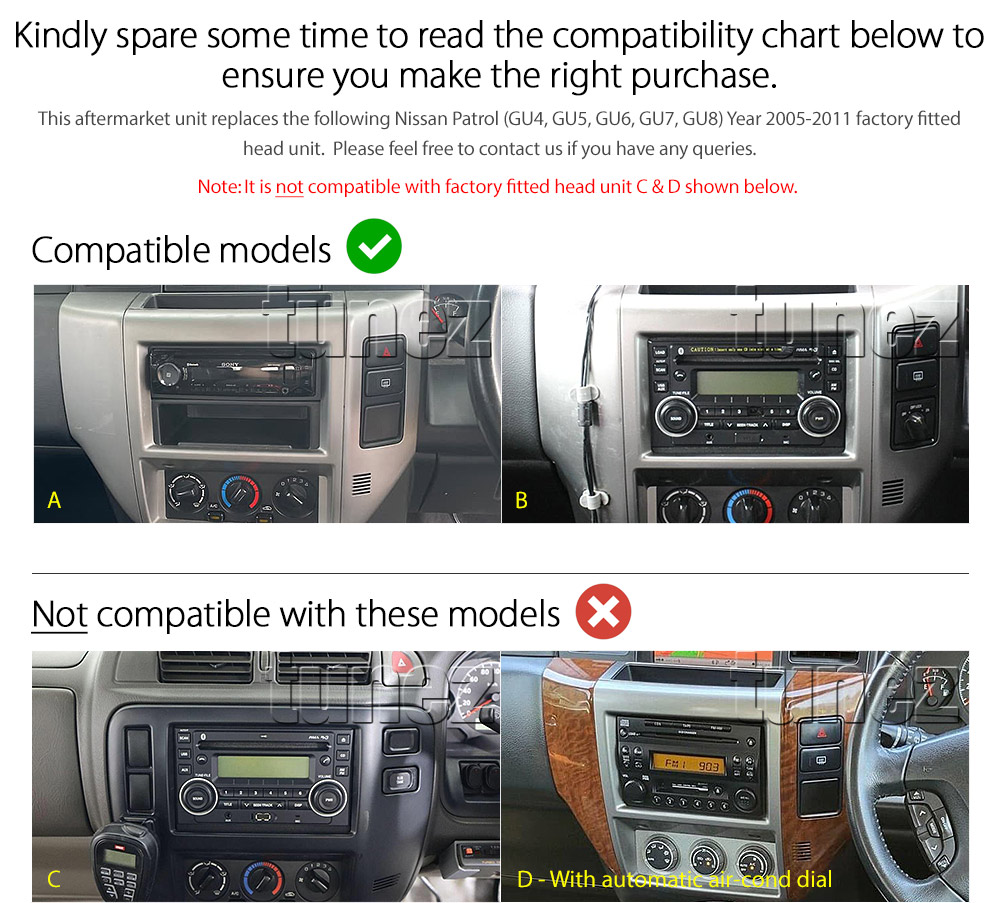

Designed for:
- Nissan Patrol GU4, GU5, GU6, GU7 and GU8 (Year 2004-2012)
- Matte silver colour only
- Supports manual air-cond only
|
Apple CarPlay requirement
iPhone models |
CarPlay is compatible with these iPhone models:
iPhone 13 (all series)
iPhone 12 (all series)
iPhone 11 Pro
iPhone 11 Pro Max
iPhone 11
iPhone XS
iPhone XS Max
iPhone XR
iPhone X
iPhone 8
iPhone 8 Plus
iPhone 7
iPhone 7 Plus
iPhone 6s
iPhone 6s Plus
iPhone 6
iPhone 6 Plus
iPhone SE
iPhone 5s
iPhone 5c
iPhone 5
Note: Does NOT connect wirelessly to head unit. Please use high-quality USB cable.
|
USB cable |
- Not all USB cables will work with head unit
- If you're having trouble connecting to CarPlay try using a high-quality USB cable
Here are some tips to finding the best USB cable for CarPlay:
- Use a cable that is under 1.5 meter (5-feet) long and avoid using cable extensions
- Make sure your cable has the USB icon
- If CarPlay used to work properly and no longer does, replacing your USB cable will likely fix this
|

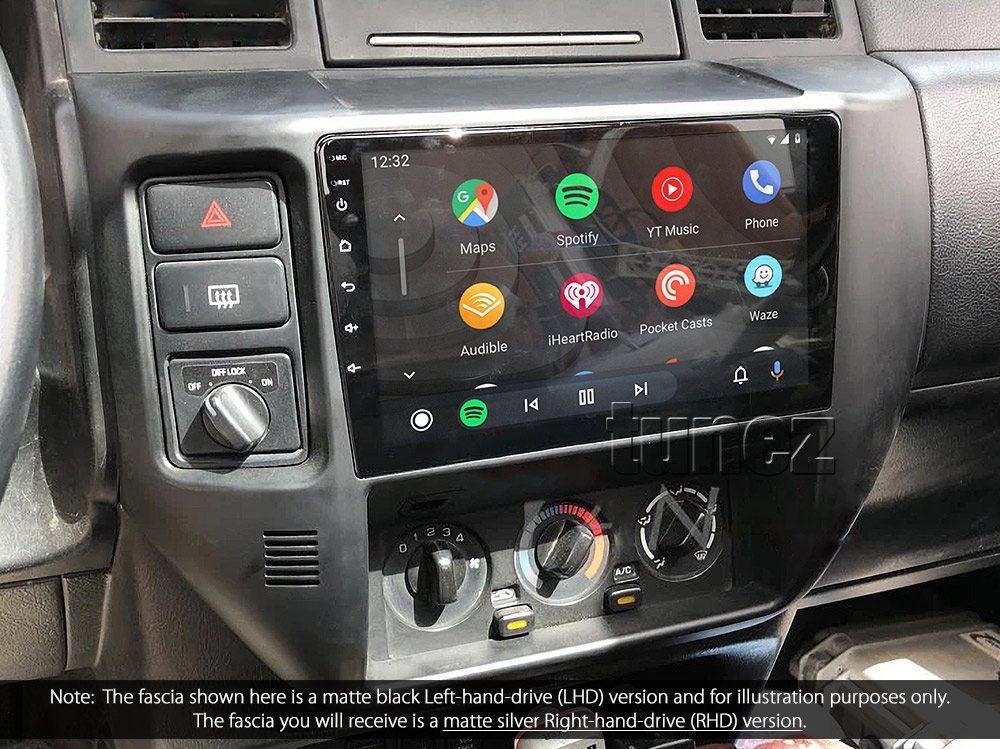

Android Auto requirement
Software version |
- An Android phone running Android 5.0 and up with a data plan
- For best performance, we recommend Android 6.0 and above
- You can check your phone’s software version by looking at the About Device section under Settings
Note: Does NOT connect wirelessly to head unit. Please use high-quality USB cable.
|
USB cable |
- Not all USB cables will work with head unit
- If you're having trouble connecting to Android Auto try using a high-quality USB cable
Here are some tips to finding the best USB cable for Android Auto:
- Use a cable that is under 1.5 meter (5-feet) long and avoid using cable extensions
- Make sure your cable has the USB icon
- If Android Auto used to work properly and no longer does, replacing your USB cable will likely fix this
|
Media
Compatible media |
Video format: MP4 / MKV / RMVB / AVI / DIVX / FLV / MPG
Audio format: MP3 / AAC / WMA / WAV / FLAC / MKA
|
Reminder |
Does NOT come with CD player and SD card reader
|
Touch screen |
Capacitive touch
|
Display |
- Super large 9-inch TFT LCD touchscreen
- 16:9 aspect ratio
- User friendly menu for ease of navigation
- 2 stage monitor dimming control function
- Automatically dims monitor when headlights are turned on
- Monitor 'Sleep' function, turns off monitor anytime you wish
|
TFT LCD screen |
- 32-bit True Colour
- 1024 x 600 pixels gives you sharp and crisp display
- Plays full high definition (FHD) movie files (e.g. MP4, MKV, RMVB, AVI) up to 1080 pixels via USB reader
- Contrast ratio 4,000:1
- Brightness 280cd/m2
|

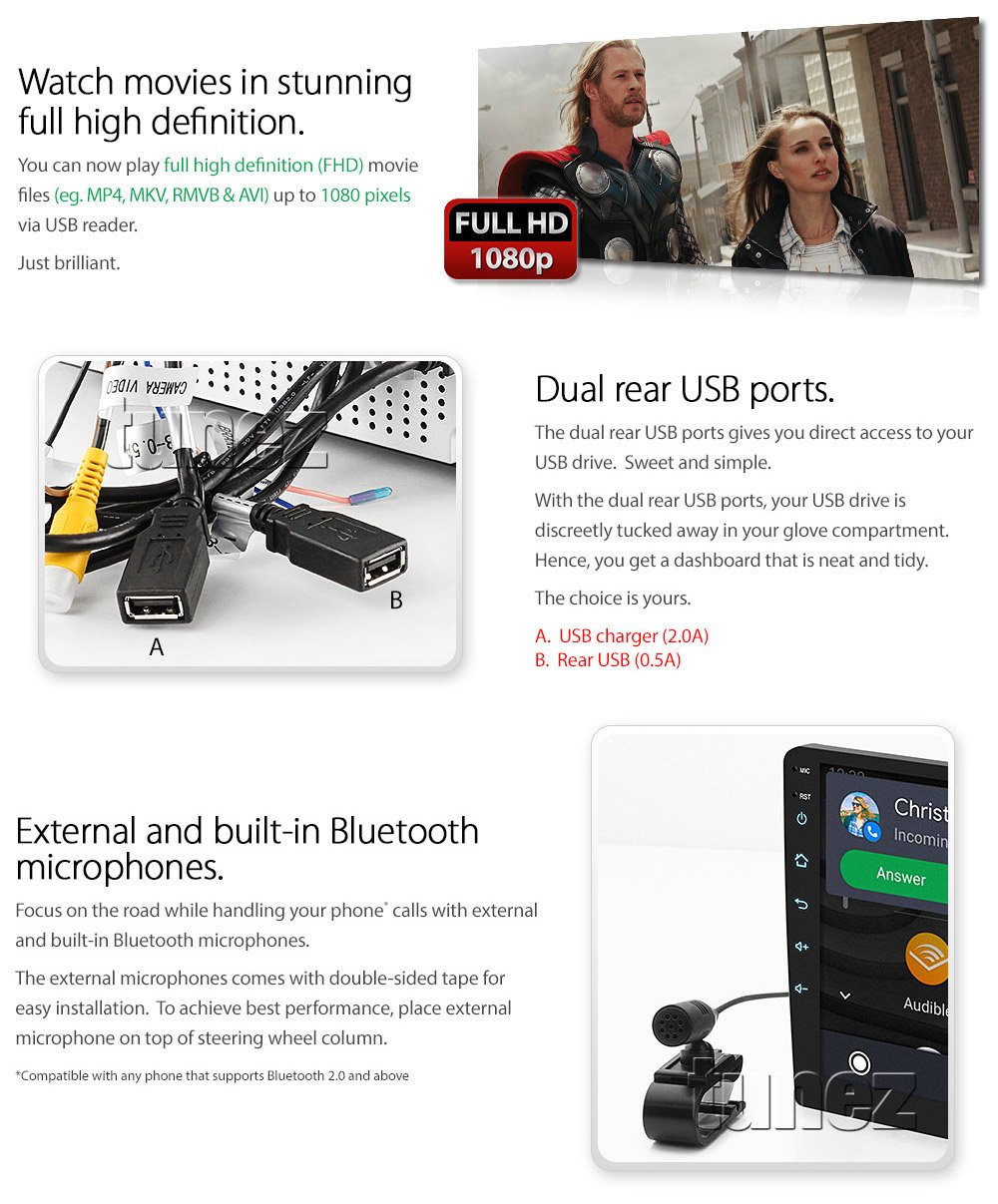

USB reader |
- 2 rear USB ports
- USB 2.0A comes with 1-meter USB cable. Hence, you can place your USB thumb drive or phone in the glove compartment and keep your dashboard neat. Also charges your phone while it is connected.
- USB 0.5A is only 10cm. Please use own USB extension. Suitable to read USB thumb drive (maximum 128GB) to play your favourite media e.g. MP3 music and MP4 videos.
- Both USB ports do NOT support external hard disk, iPod or tablet
|
Album art & ID3 tag |
- Displays MP3 album art
- Compatible with ID3 tag for artist name, song title and album name
- Please contact us if you have any queries on ID3 tag
- This feature is available in USB mode only
|
Analogue radio tuner |
- FM/AM tuner with Radio Data System (RDS)
- 30 present channels (18 FM & 12 AM)
- FM/AM frequencies menu option for all region
|

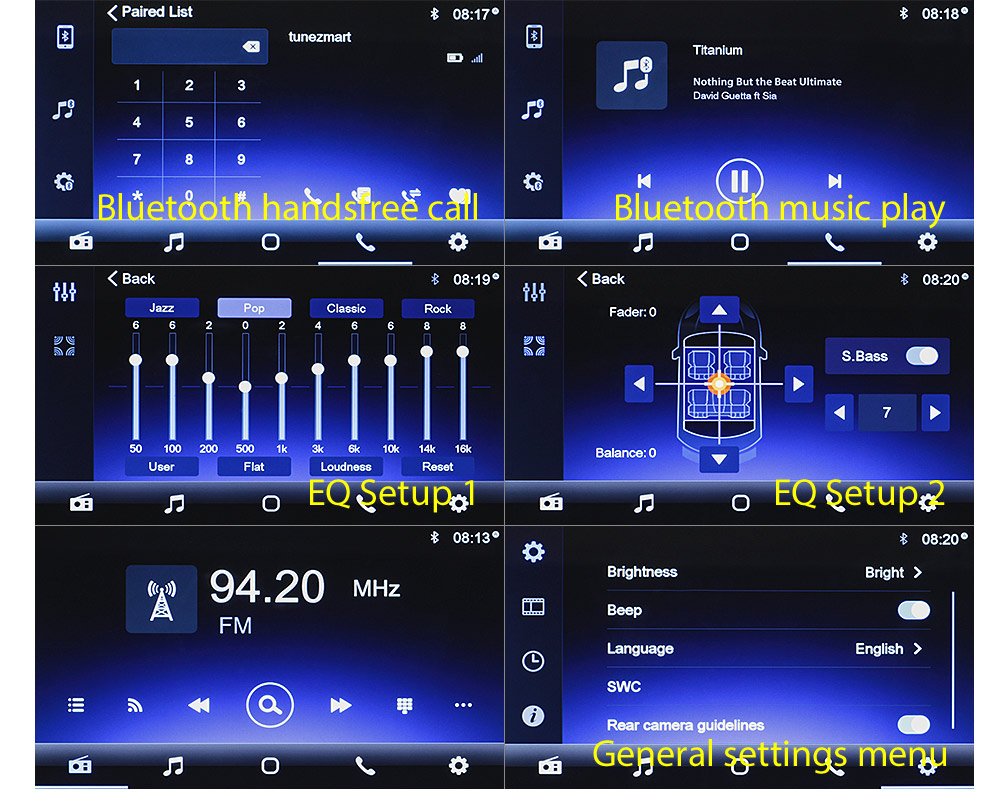

Bluetooth
System |
- Supports Bluetooth 3.0 and below
- High quality Bluetooth receiver
|
Handsfree
feature |
Make and receive phone calls using Bluetooth receiver
|
Microphone |
- Equipped with 2 microphones
- External microphone with clip. For best performance, place external microphone on steering wheel column
- Built-in microphone in head unit
|
Music player |
- Wirelessly stream music to the stereo using your mobile phone that supports A2DP for e.g. all iPhone models
- Remotely control your mobile phone using the stereo's on-screen button i.e. play, next song, previous song and stop
|
Systems and controls
Reversing camera feature |
- Intelligent Reversing Camera Mechanism (IRCM)*
- For e.g. upon detecting car in reverse gear, head unit automatically power up and goes into parking/reverse camera view mode
- For more features, kindly refer to IRCM features description mentioned earlier in this ad
- * Note: Works with Tunez optional reversing camera; for details, view optional items at the bottom of this ad
|
Audio and video settings |
- Built-in 10-band graphic equaliser for better audio control
- Preset EQ settings (Classic, Jazz, Pop, Rock and Custom settings)
- Fader, balance, subwoofer, loud settings
- Adjustable video display (Brightness, colour and contrast settings)
- Language (English only)
|
Other controls |
- Amplifier remote turn on control (REM)
- Power antenna control
- Built-in RGB imaging for auto video adjustment
- Eco friendly and low power consumption model
|

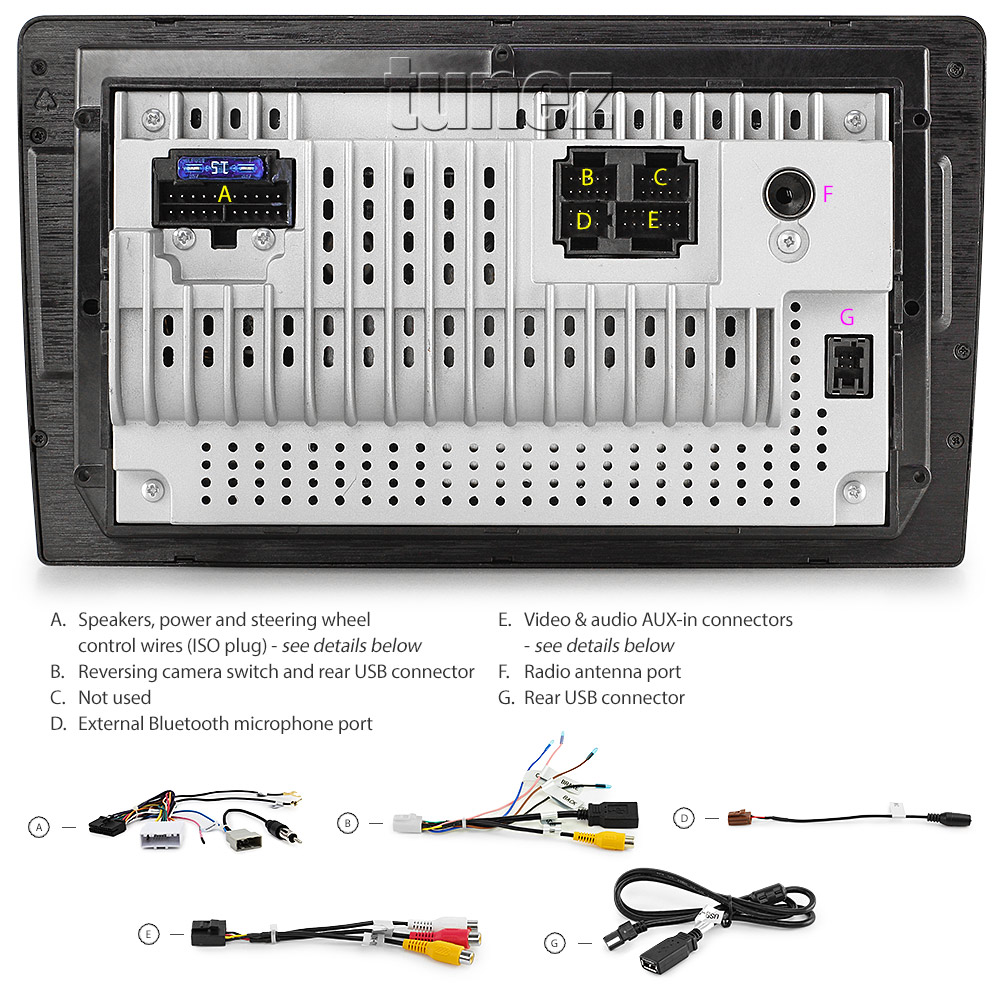

Connectors and hardware
Audio and visual (RCA) |
- 2 x Pre-out (Right & left)
- 1 x Video output
- 1 x Parking/reversing camera input
- 1 x Video input
|
Cooling mechanism |
Highly conductive rear heat sink keeps the unit cool
|
Maximum output power |
Built-in high fidelity amplifier with maximum power output of 25W x 4
|
Audio output impedance |
100Ω
|
Audio output level |
2Vrms (Max)
|
Accessories |
- Nissan Patrol fascia kit and matching wiring harness (ISO plugs)
- External Bluetooth microphone (2-meter)
- Rear USB 2.0A connector (1-meter)
- Rear USB 0.5A connector (10cm)
|
|
